Fig. 72: Windshield Garnish Moldings
Courtesy of GENERAL MOTORS CORP.

18. Remove both windshield garnish moldings. Refer to Garnish Molding Replacement - Windshield

Pillar in Interior Trim.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



Fig. 73: Radio
Courtesy of GENERAL MOTORS CORP.

19. Remove the radio from center stack. Refer to Radio Replacement in Entertainment.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2

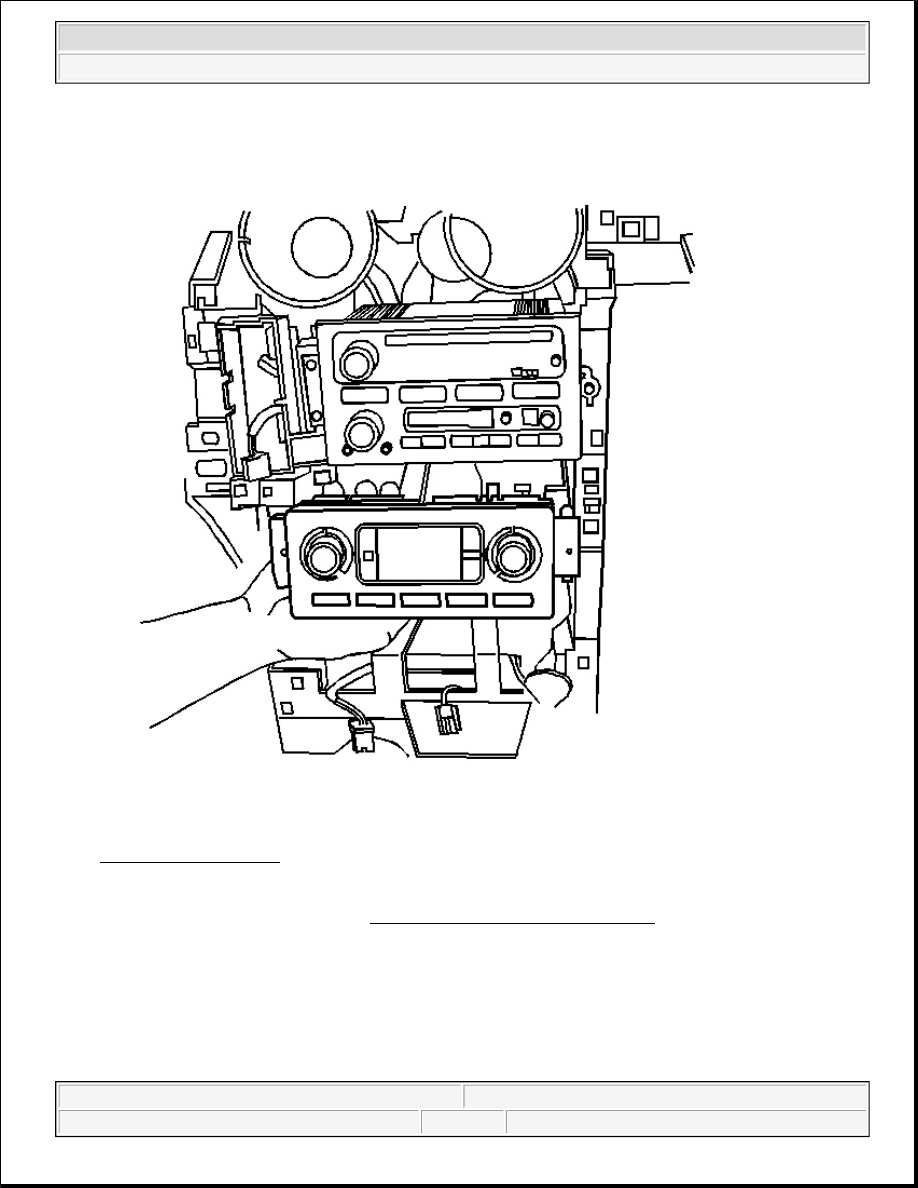

Fig. 74: HVAC Control
Courtesy of GENERAL MOTORS CORP.

20. Remove the HVAC control. Refer to HVAC Control Module Replacement in HVAC Systems -

Automatic.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2

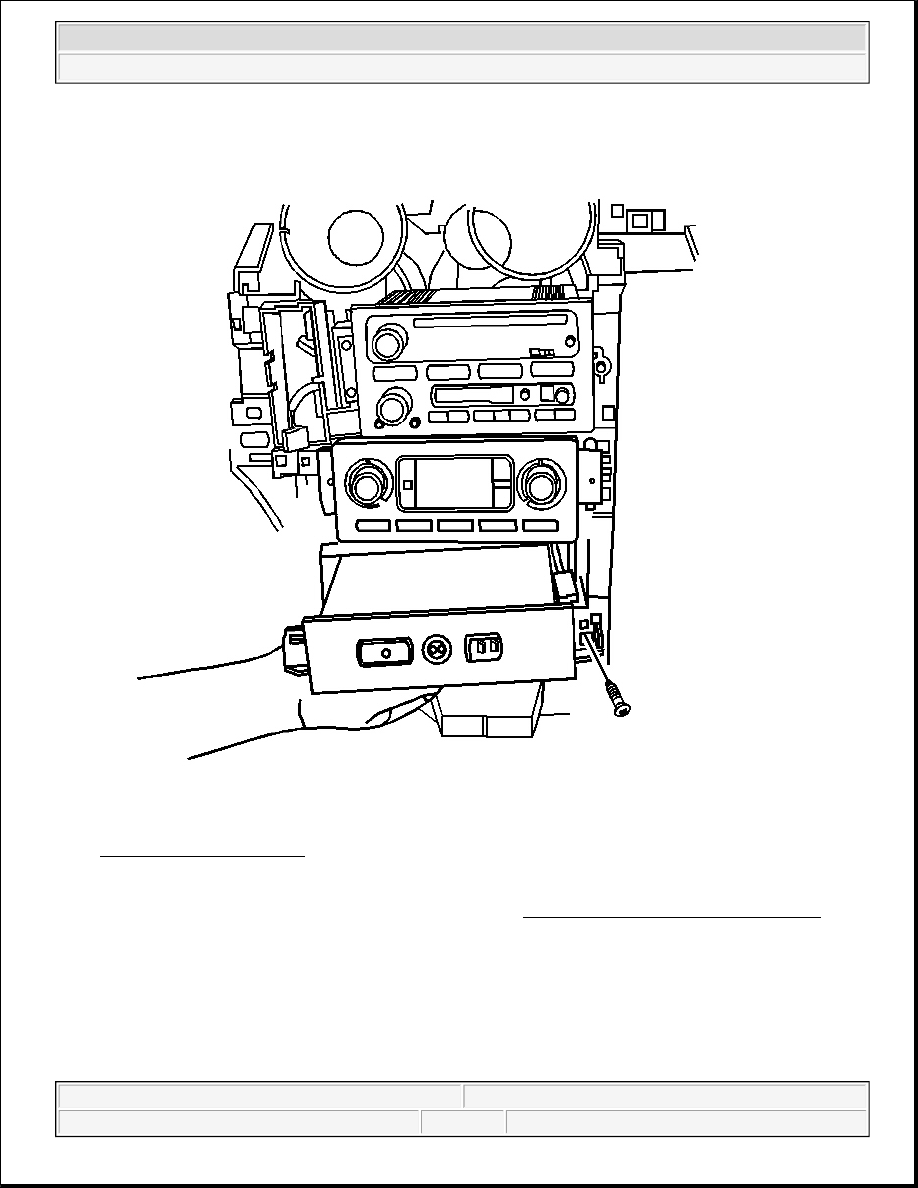

Fig. 75: Onstar(R) Module
Courtesy of GENERAL MOTORS CORP.

21. Remove the Onstar(R) module from center stack. Refer to OnStar Button Assembly Replacement in

Cellular Communication.
