Hummer H2. Manual - part 390

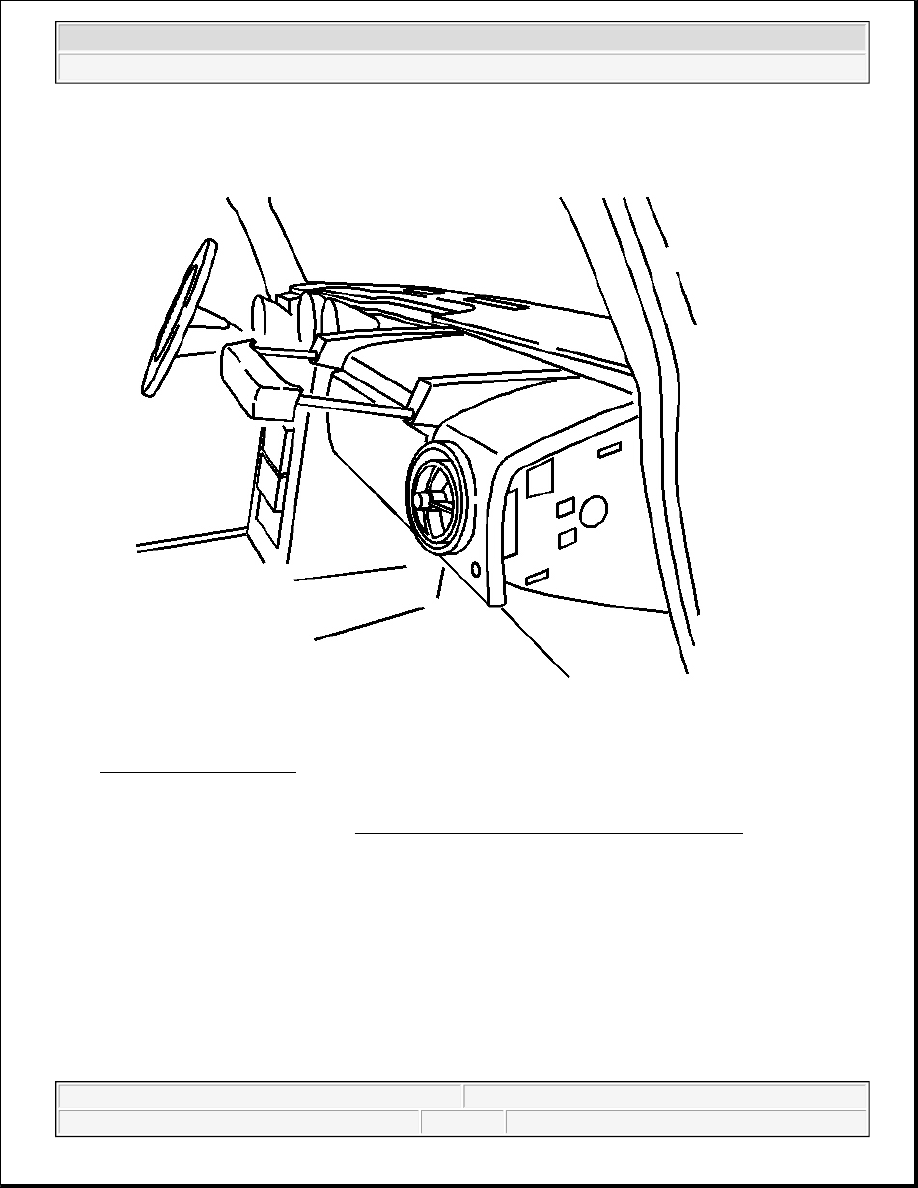

Fig. 64: I/P Assist Handle
Courtesy of GENERAL MOTORS CORP.

9. Remove the assist handle. Refer to Instrument Panel (I/P) Assist Handle Replacement .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



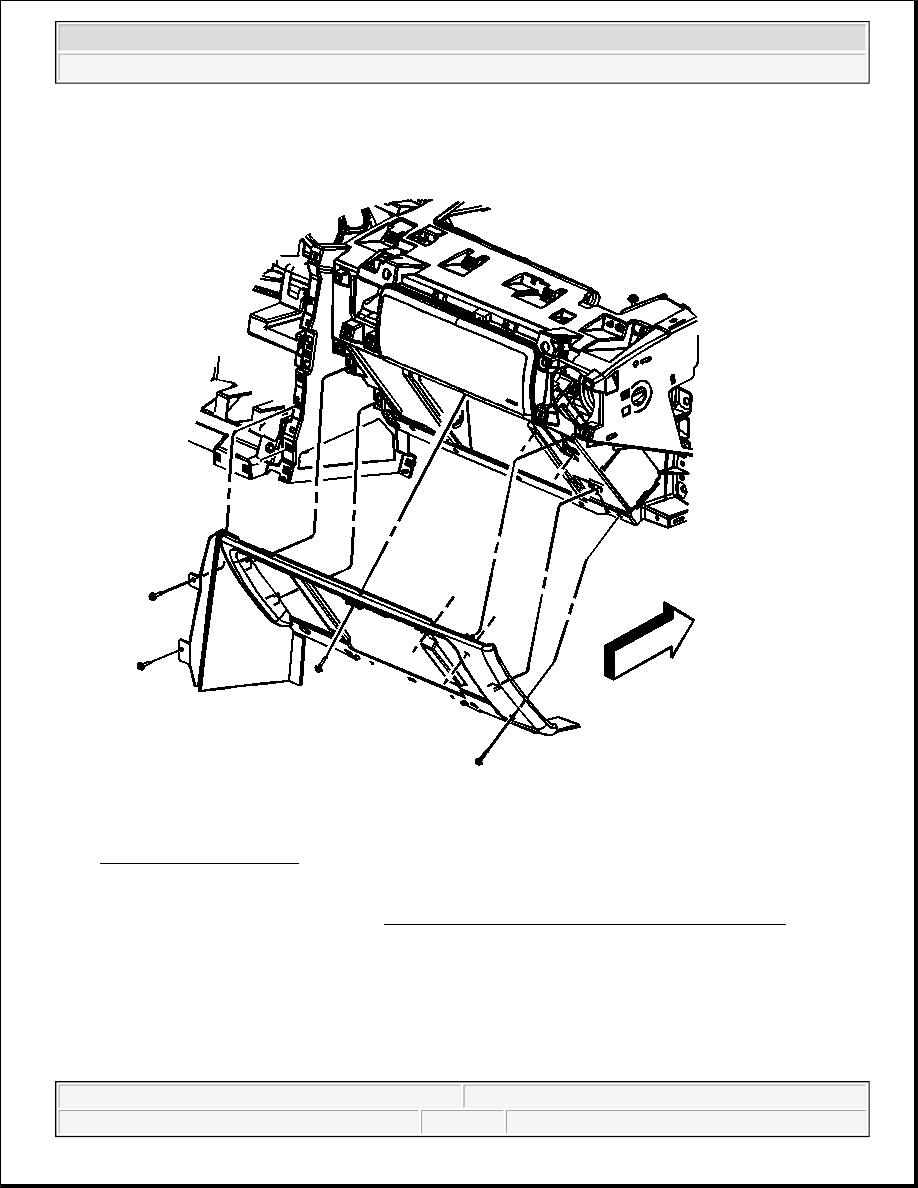

Fig. 65: I/P Compartment
Courtesy of GENERAL MOTORS CORP.

10. Remove the I/P compartment. Refer to Compartment Replacement - Instrument Panel (I/P) .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



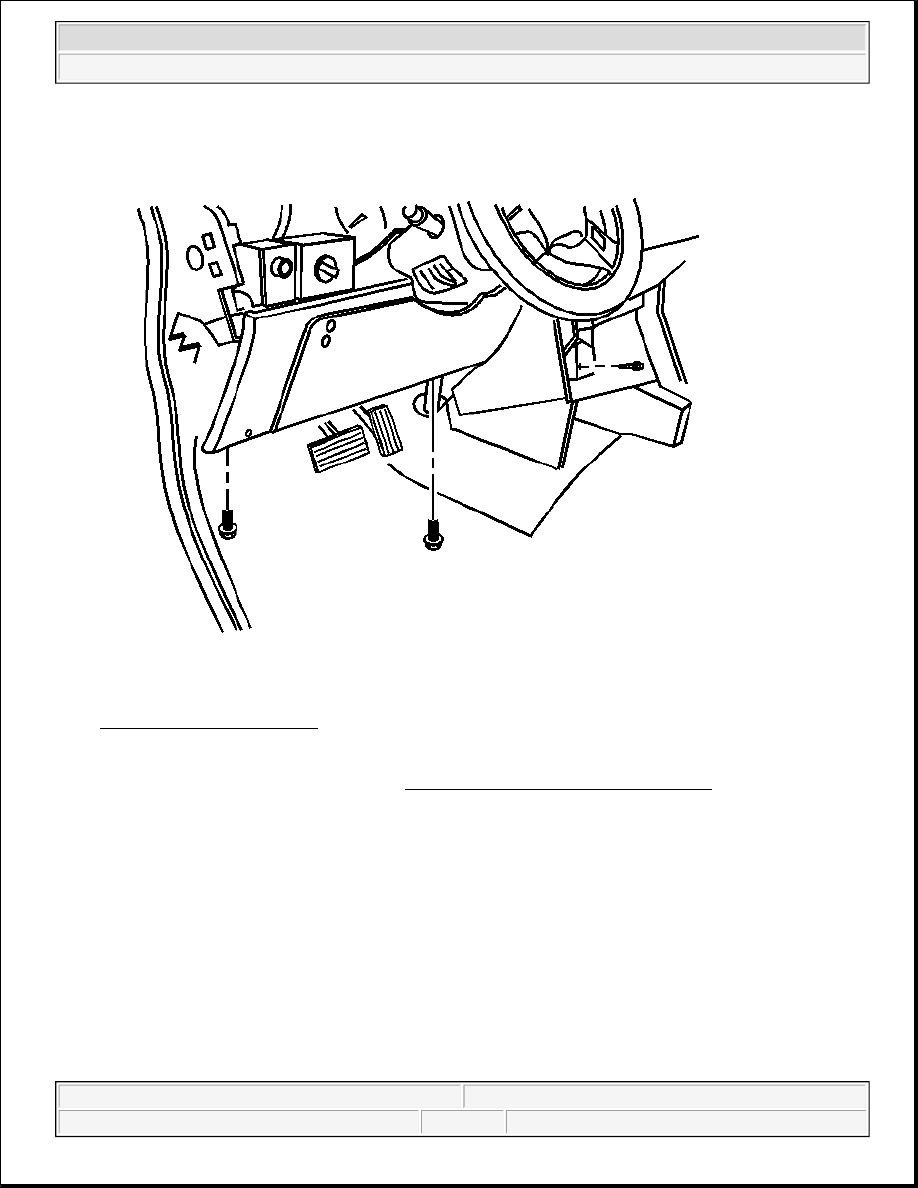

Fig. 66: Driver Knee Bolster
Courtesy of GENERAL MOTORS CORP.

11. Remove the drivers knee bolster. Refer to Trim Panel Replacement - Knee Bolster .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



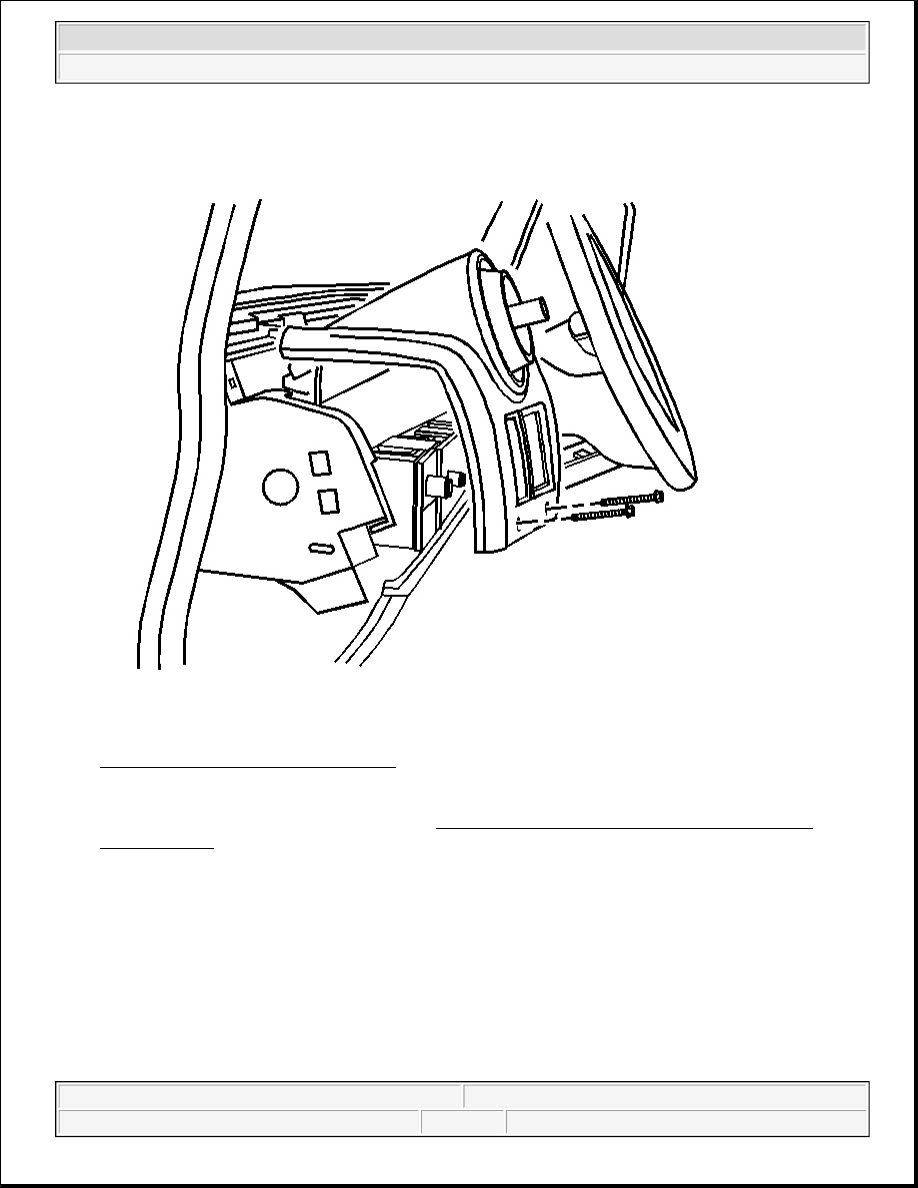

Fig. 67: I/P Accessory Left Trim Panel
Courtesy of GENERAL MOTORS CORP.

12. Remove the left accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P)

Accessory Left .
