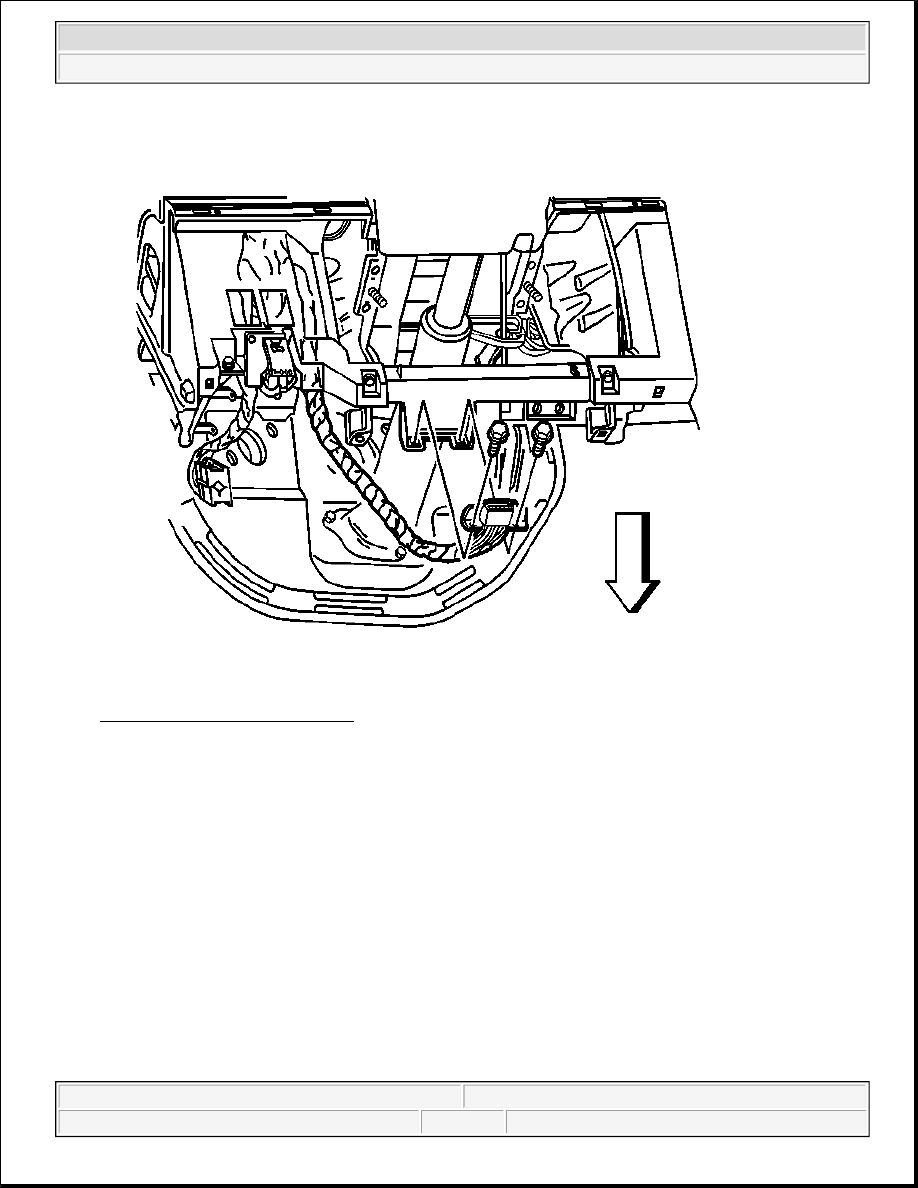

Fig. 60: I/P Data Link Connector
Courtesy of GENERAL MOTORS CORP.

4. Remove the screws from the data link connector.

5. Remove the data link connector from the I/P.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



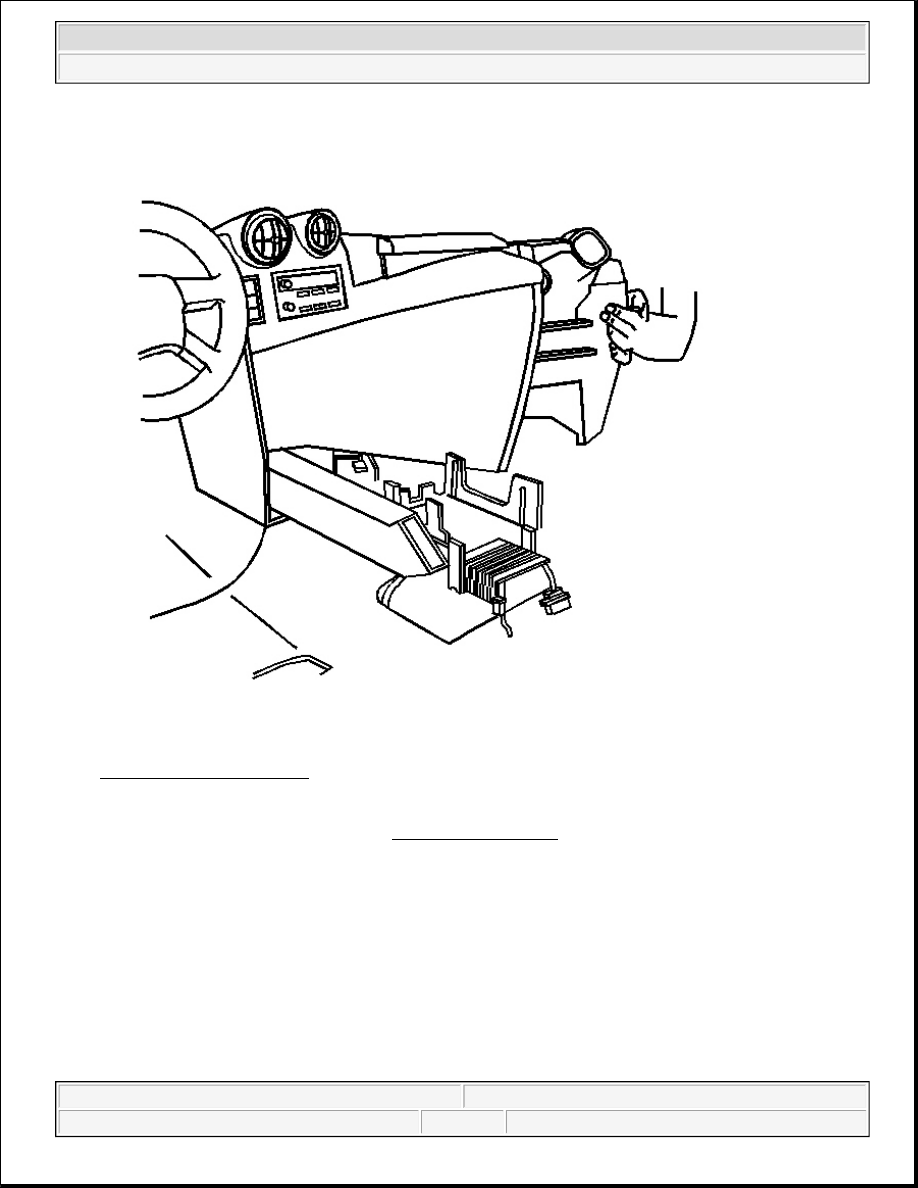

Fig. 61: I/P Center Console
Courtesy of GENERAL MOTORS CORP.

6. Remove the I/P center console. Refer to Console Replacement .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



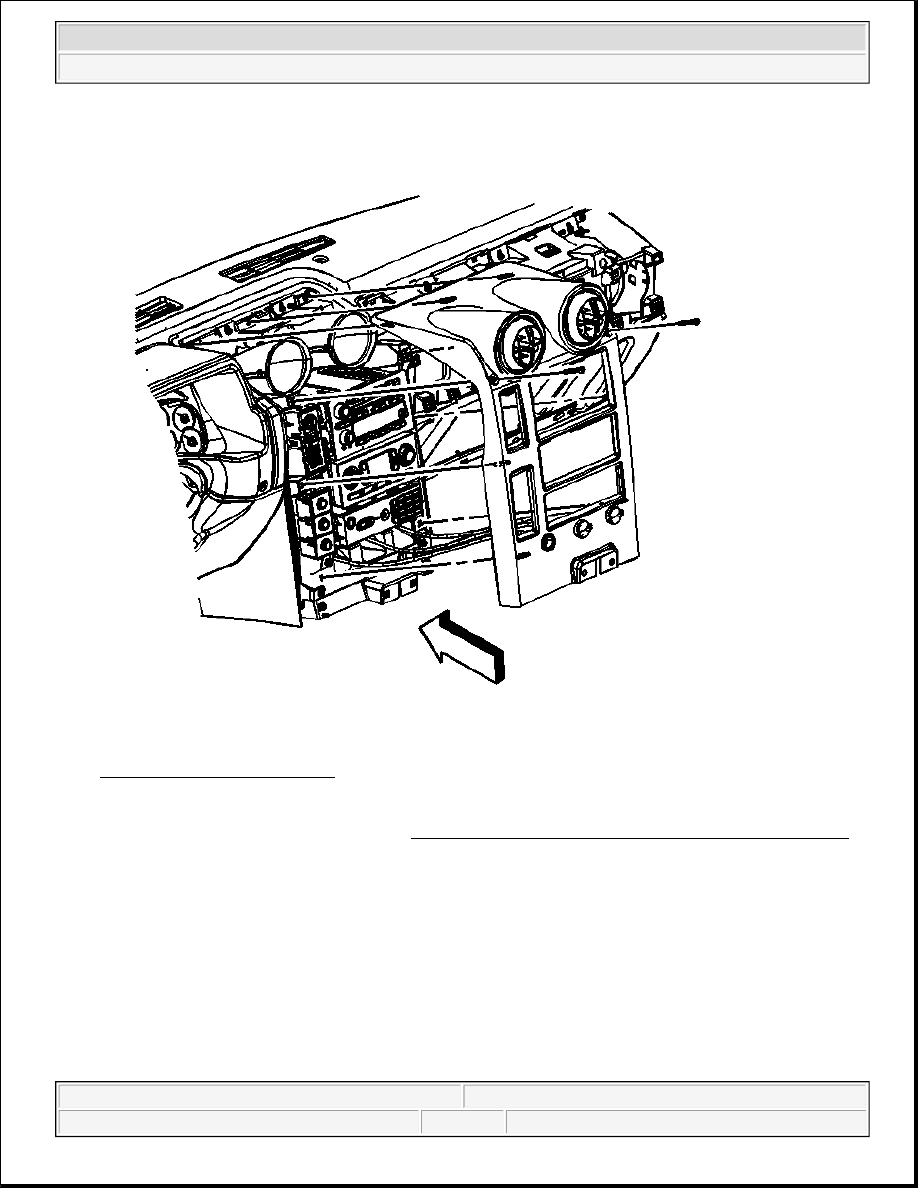

Fig. 62: I/P Center Trim Panel
Courtesy of GENERAL MOTORS CORP.

7. Remove the I/P center trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Center .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



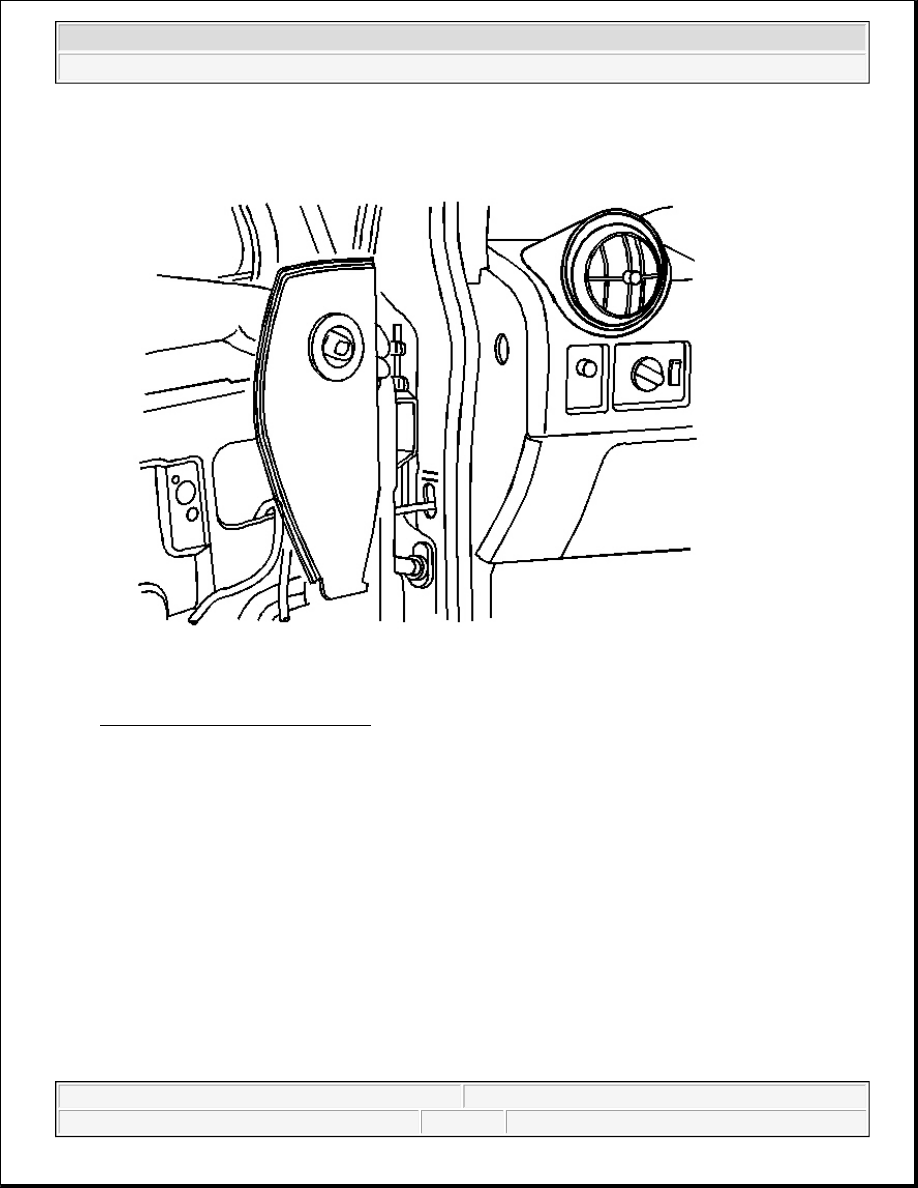

Fig. 63: Left & Right I/P Side Trim
Courtesy of GENERAL MOTORS CORP.

8. Remove the left and right I/P side trim.
