Hummer H2. Manual - part 387

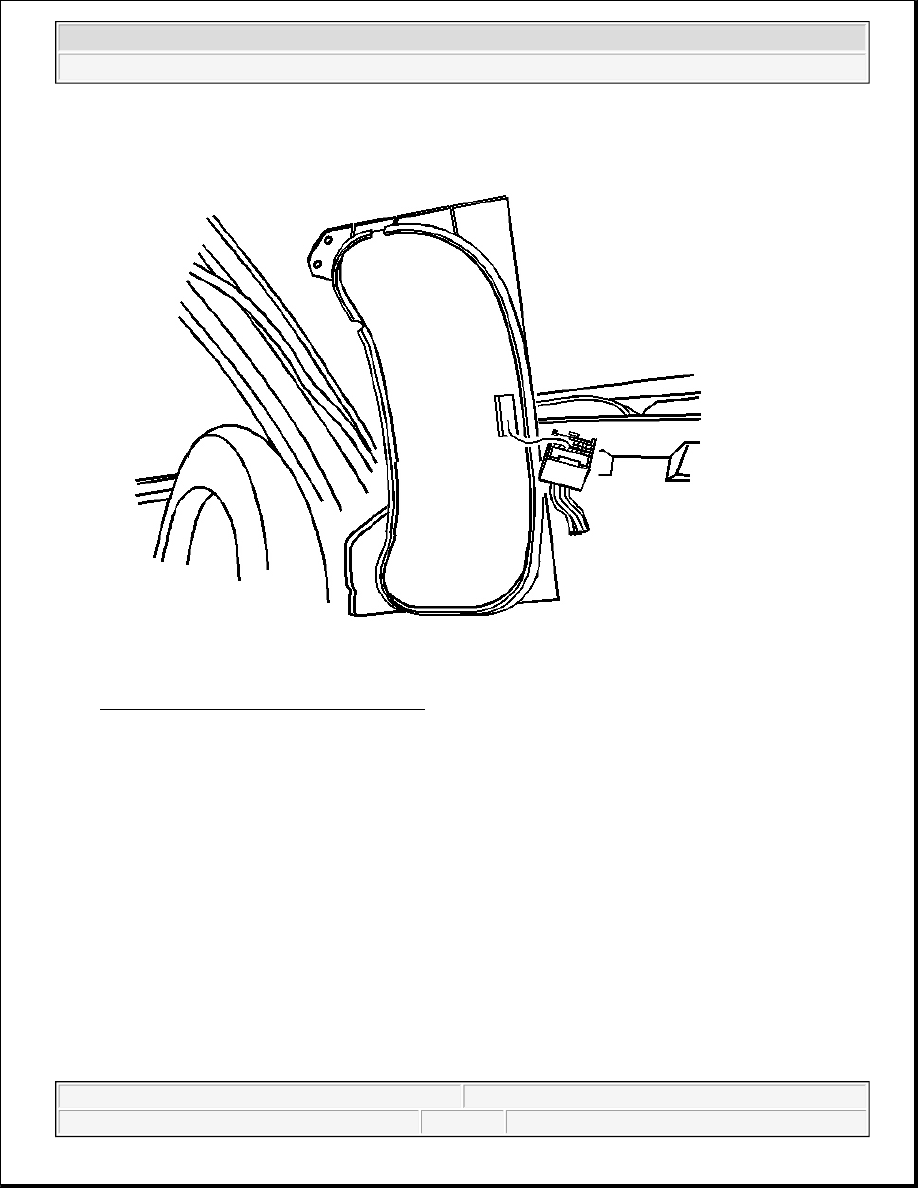

Fig. 52: I/P Cluster Electrical Connections
Courtesy of GENERAL MOTORS CORP.

1. Connect the electrical connections to the cluster.

2. Position the I/P cluster to the instrument panel.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



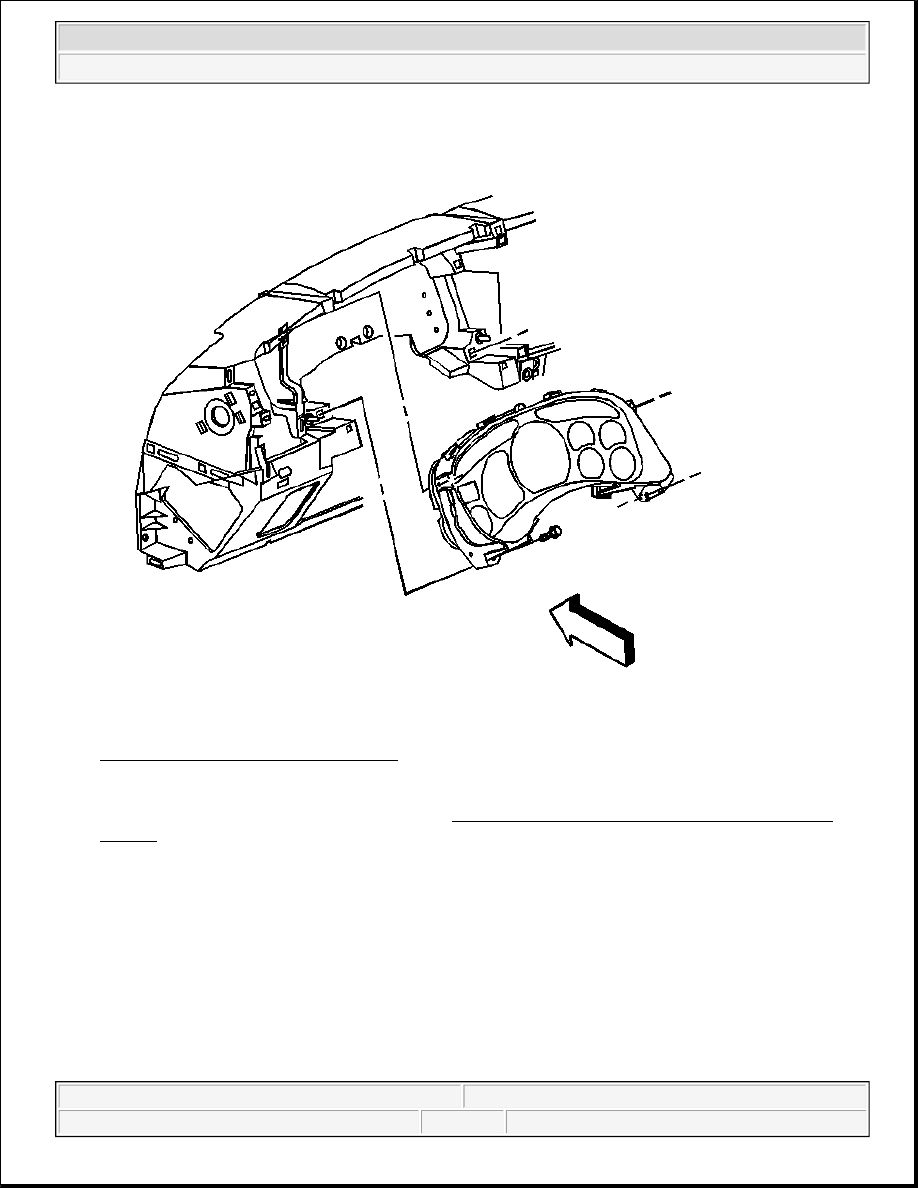

Fig. 53: I/P Cluster
Courtesy of GENERAL MOTORS CORP.

3. Install the screws to the instrument panel cluster.

Tighten: Tighten the screws to 2 N.m (18 lb in).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



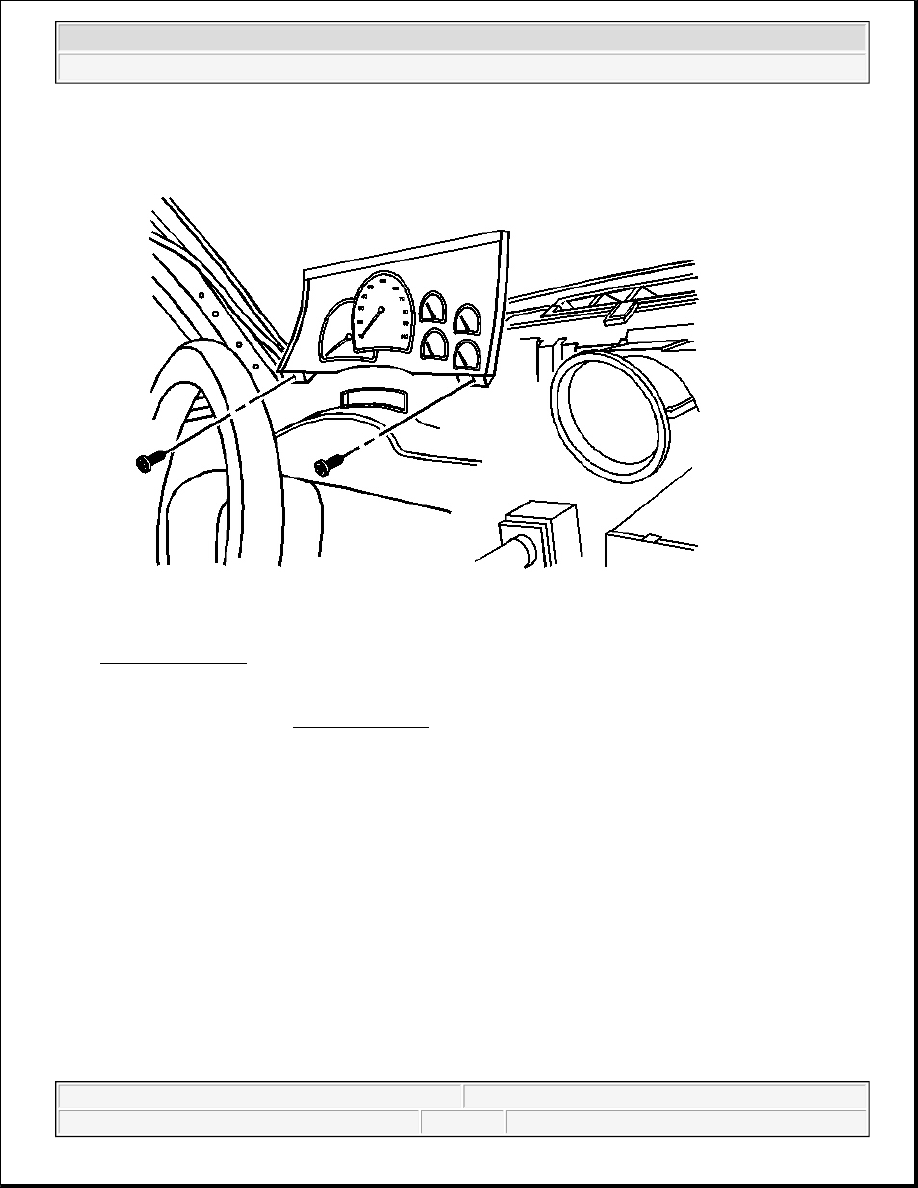

Fig. 54: I/P Cluster Trim Panel Screws
Courtesy of GENERAL MOTORS CORP.

4. Install the instrument cluster trim plate. Refer to Trim Panel Replacement - Instrument Panel (I/P)

Cluster .

CUPHOLDER REPLACEMENT

Removal Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



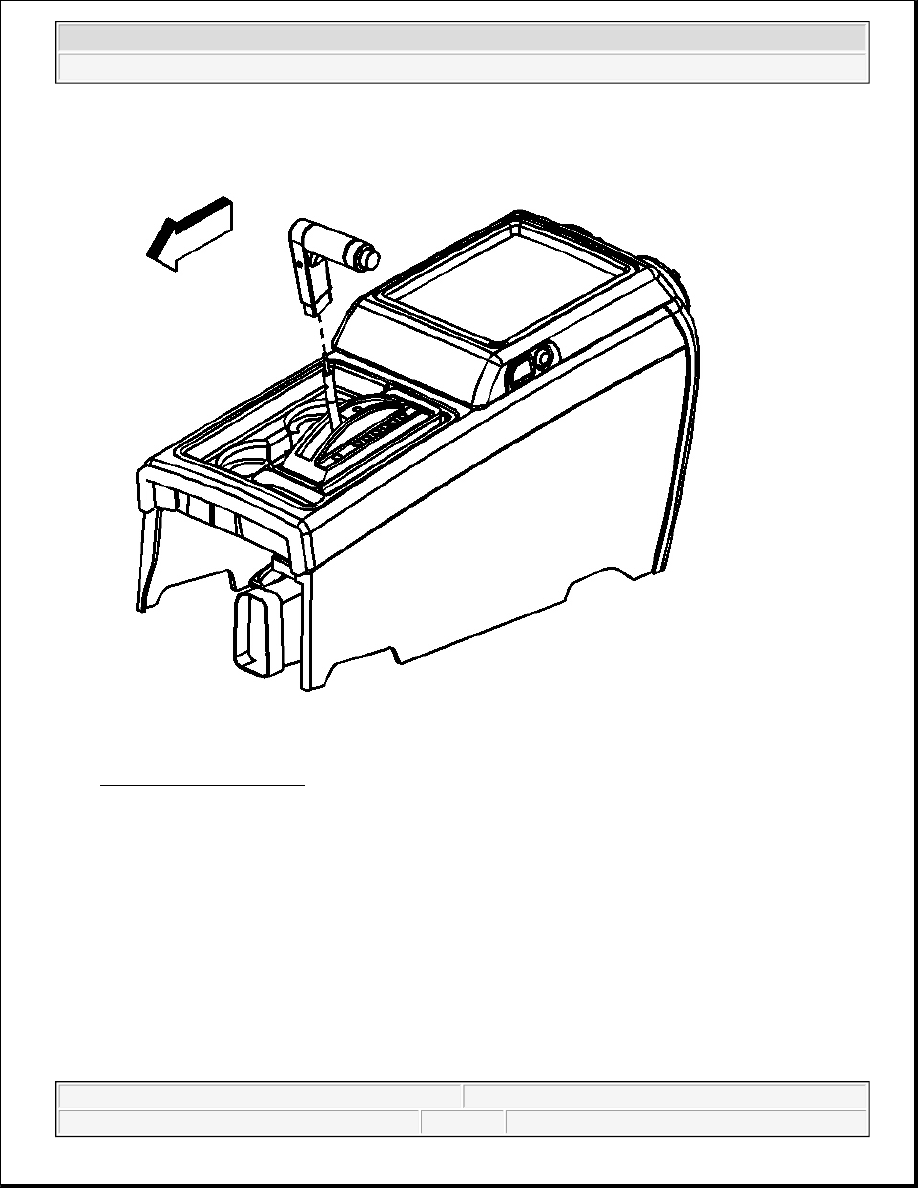

Fig. 55: Identifying Shifter
Courtesy of GENERAL MOTORS CORP.

1. Loosen the locking screw that fastens the shift lever to the shifter.

2. Remove the shifter.
