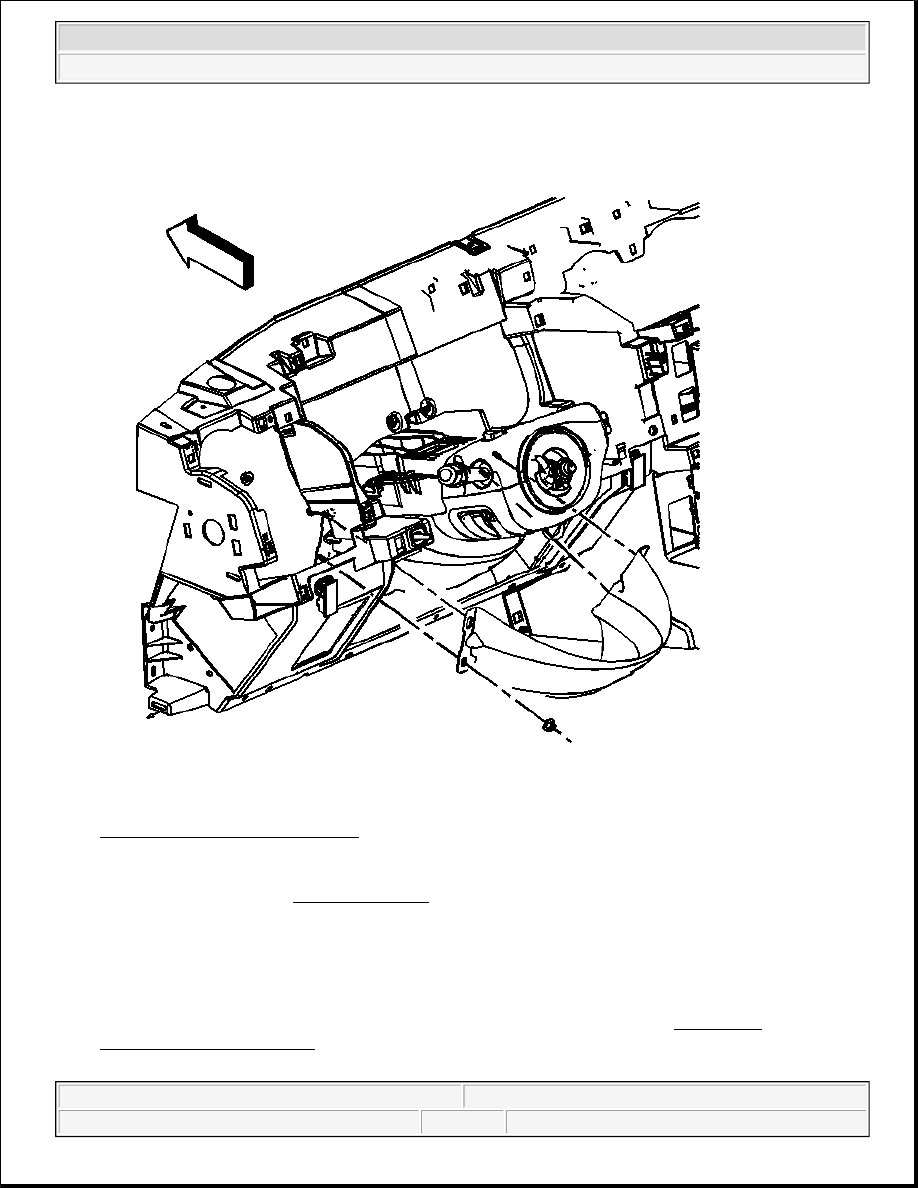

Fig. 48: Steering Column Bracket
Courtesy of GENERAL MOTORS CORP.

1. Align and fasten the nuts that hold the knee bolster deflector.

Tighten: Tighten the nuts to 2 N.m (18 lb in).

2. Fasten the screws/bolts that hold the knee bolster trim panel to the I/P. Refer to Trim Panel

Replacement - Knee Bolster .

3. Align and move forward center console in place and fasten to the center console bracket. Refer to

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



Console Replacement .

INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT

Removal Procedure

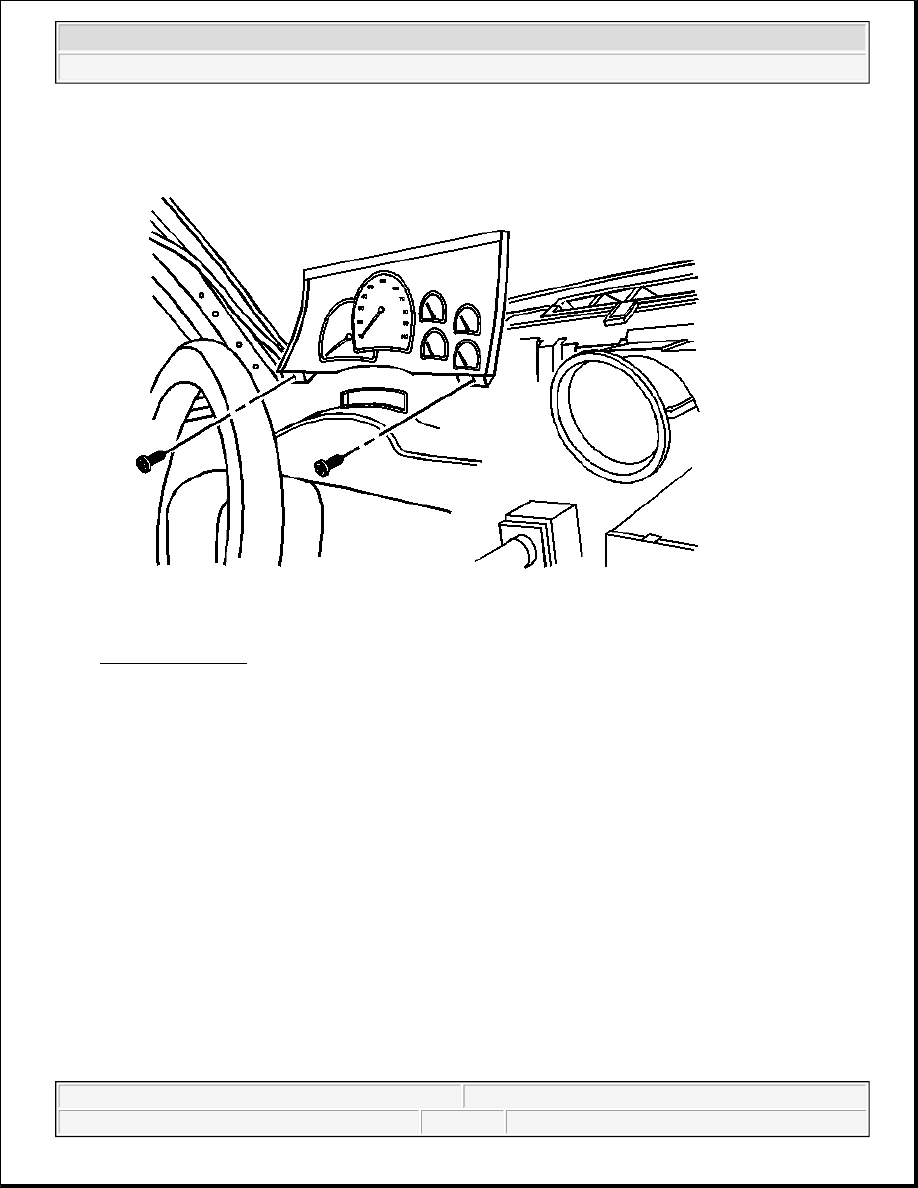

Fig. 49: I/P Cluster Trim Panel Screws
Courtesy of GENERAL MOTORS CORP.

1. Remove the I/P cluster trim plate from the instrument panel. Refer to Trim Panel Replacement -

Instrument Panel (I/P) Cluster .

2. Remove the screws from the I/P cluster to instrument panel.

IMPORTANT: The ignition switch must be in the OFF position when removing the instrument

panel cluster.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



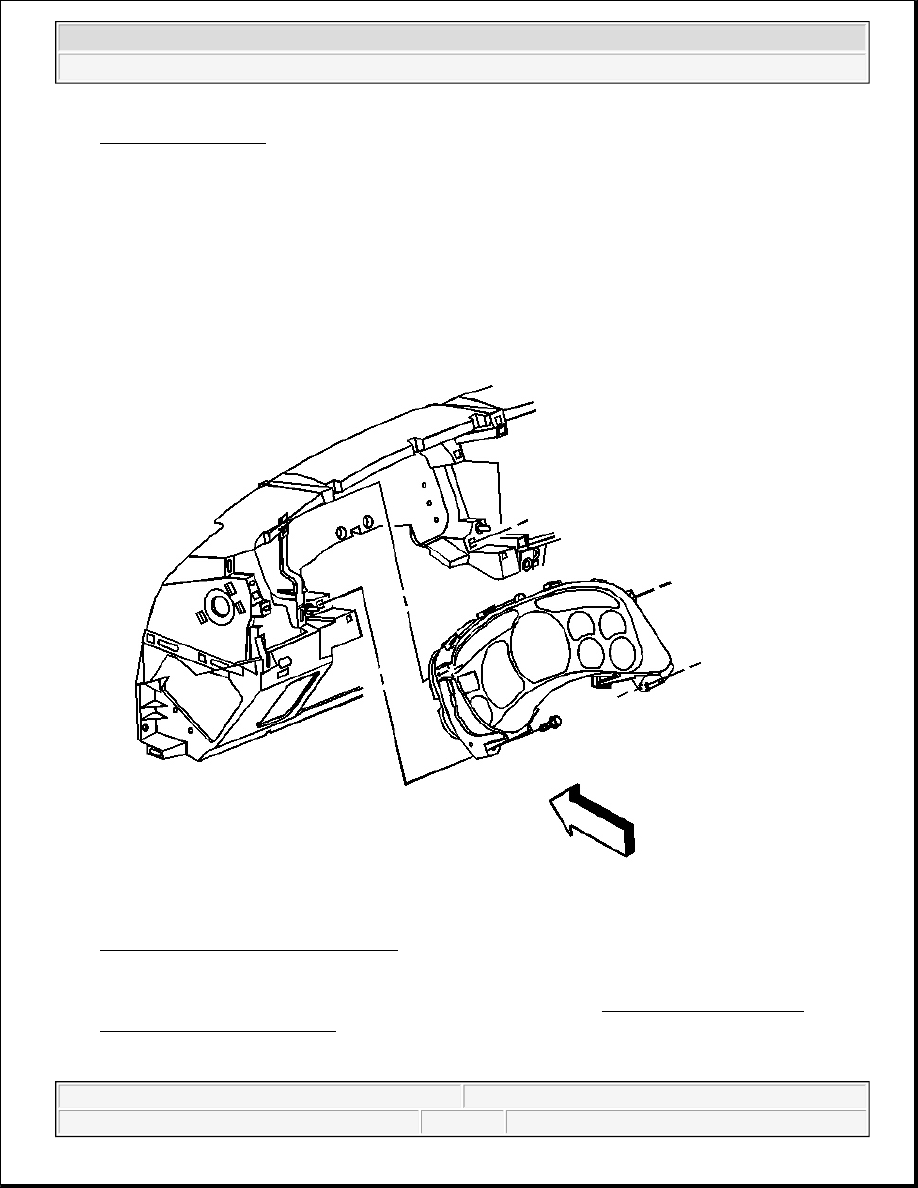

Fig. 50: I/P Cluster
Courtesy of GENERAL MOTORS CORP.

3. Remove the I/P cluster from the instrument panel.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



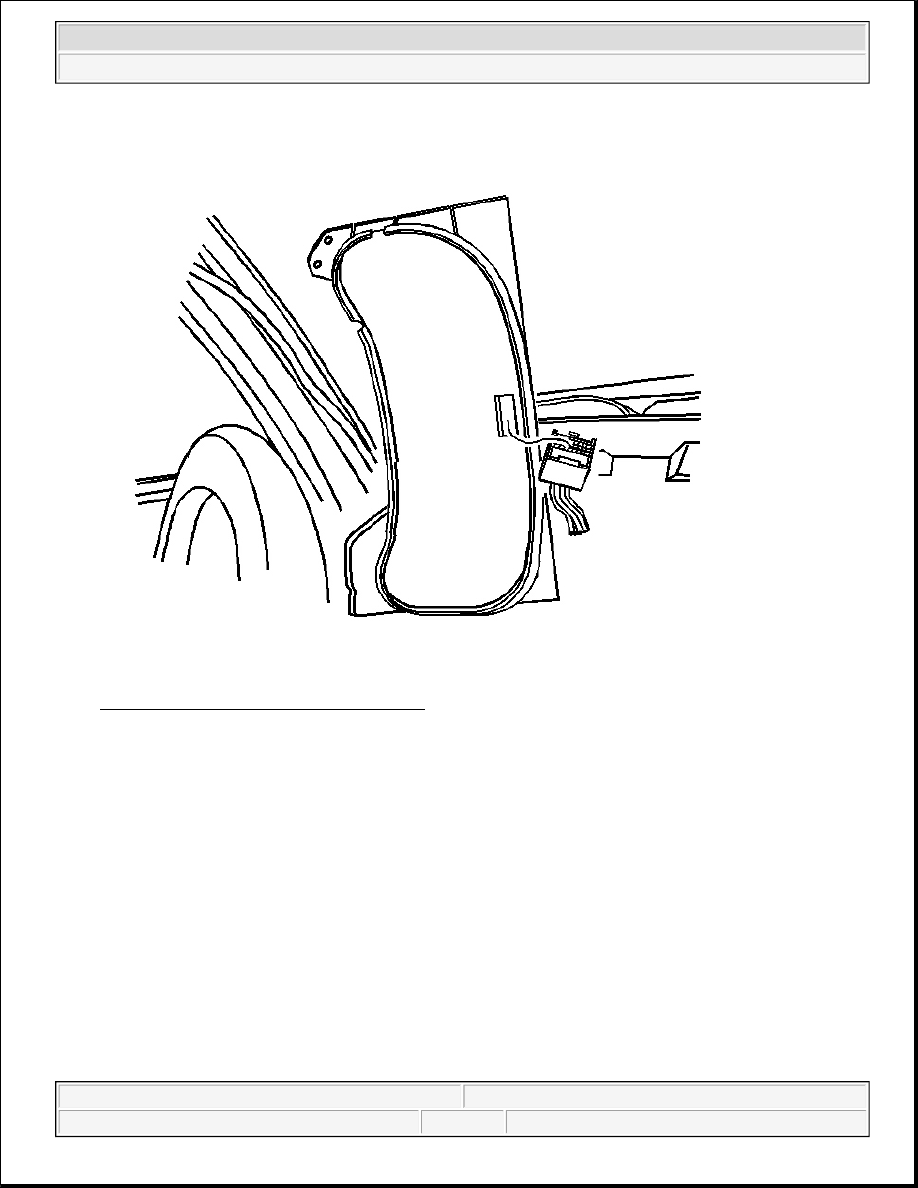

Fig. 51: I/P Cluster Electrical Connections
Courtesy of GENERAL MOTORS CORP.

4. Disconnect the I/P cluster electrical connections.

Installation Procedure
