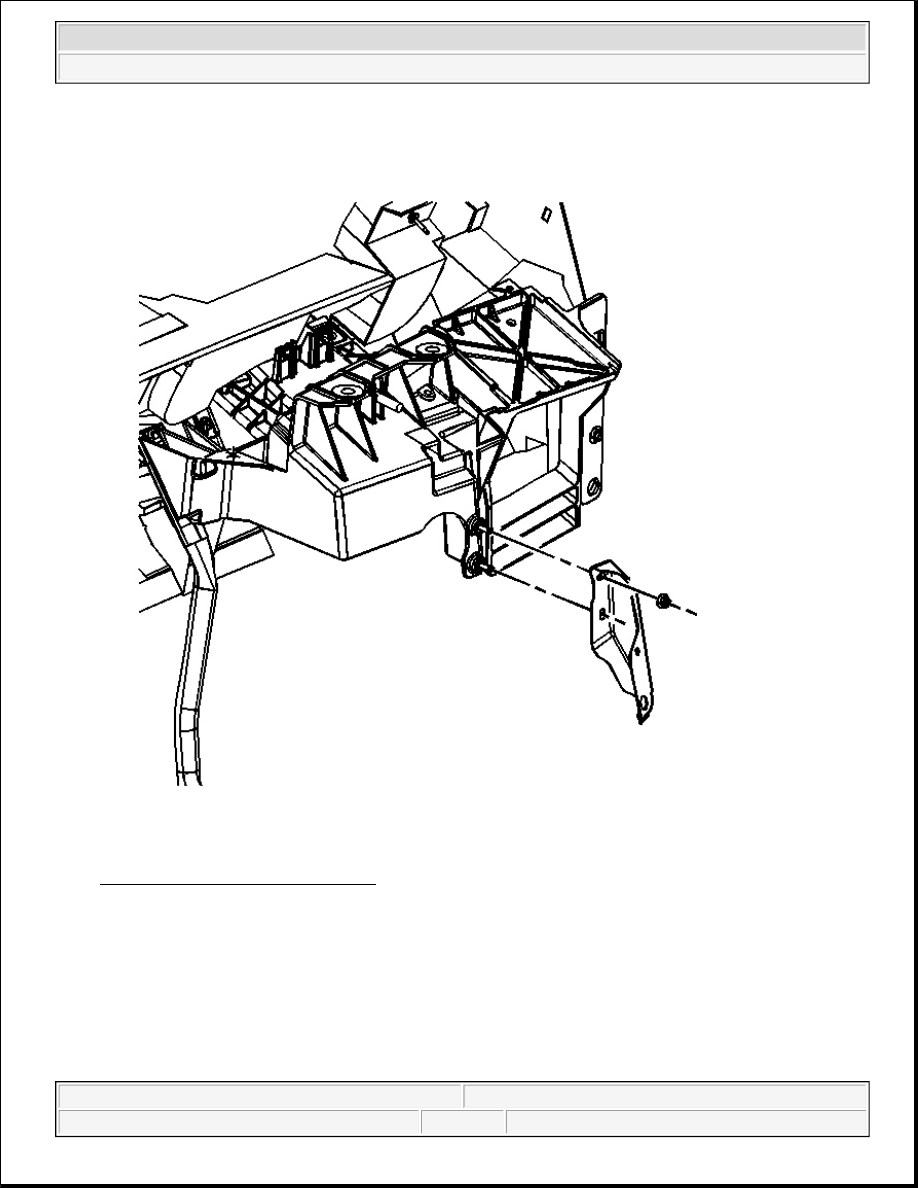

Fig. 44: I/P Carrier Center Support Bracket Nut
Courtesy of GENERAL MOTORS CORP.

3. Remove the bolt holding the bracket assembly-I/P center.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



Fig. 45: I/P Center Support Bracket
Courtesy of GENERAL MOTORS CORP.

4. Remove the bracket from the I/P and floor.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



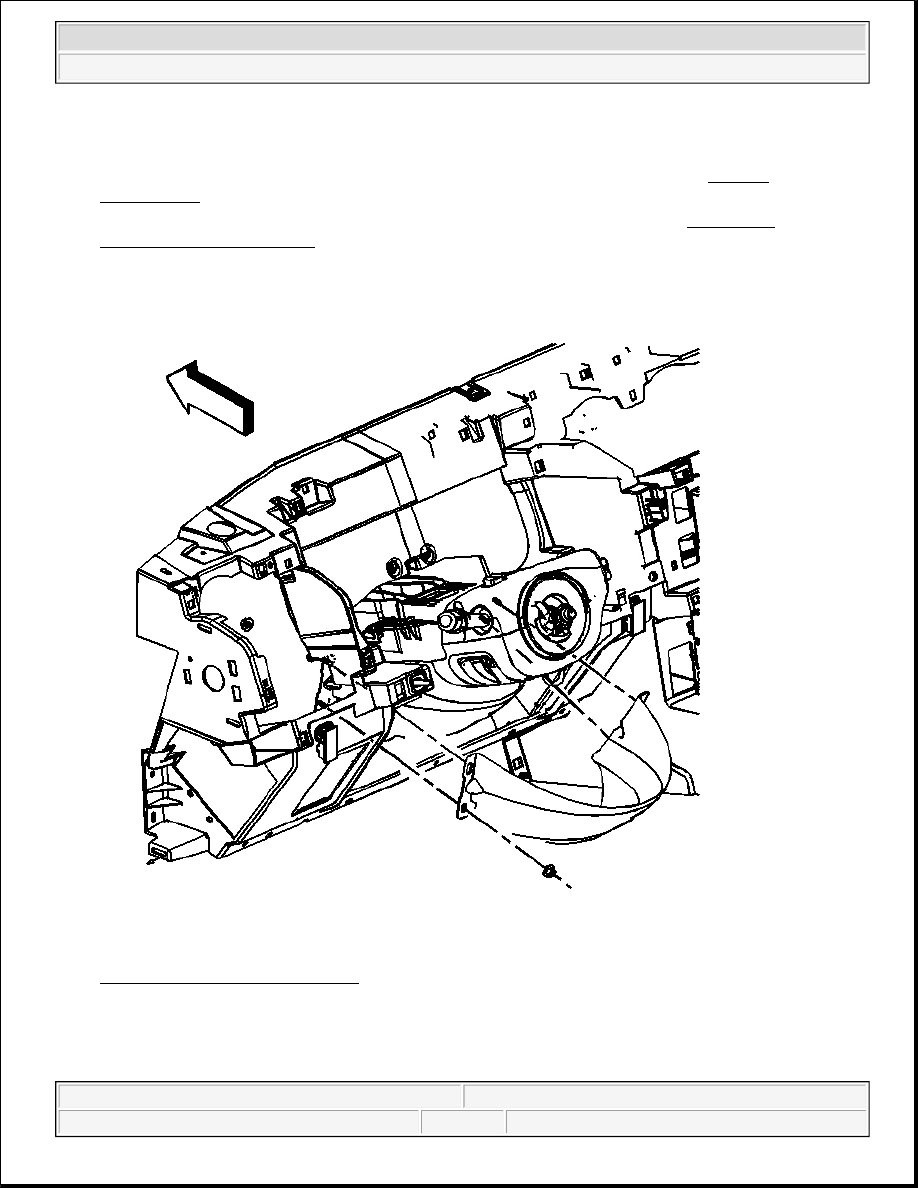

Fig. 46: I/P Carrier Center Support Bracket Nut
Courtesy of GENERAL MOTORS CORP.

1. Align the center bracket with the I/P and floor, then bolt the bracket in place.

Tighten: Tighten the bolt to 25 N.m (18 lb in).

2. Install the extension panel the I/P. Refer to Instrument Panel (I/P) Extension Trim Plate

Replacement .

3. Install the center console to the center console bracket. Refer to Console Replacement .

BRACKET REPLACEMENT - STEERING COLUMN

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



Removal Procedure

1. Loosen and move center console reward for access to the knee bolster bolt. Refer to Console

Replacement .

2. Remove the screws/bolts that hold the knee bolster trim panel to the I/P. Refer to Trim Panel

Replacement - Knee Bolster .

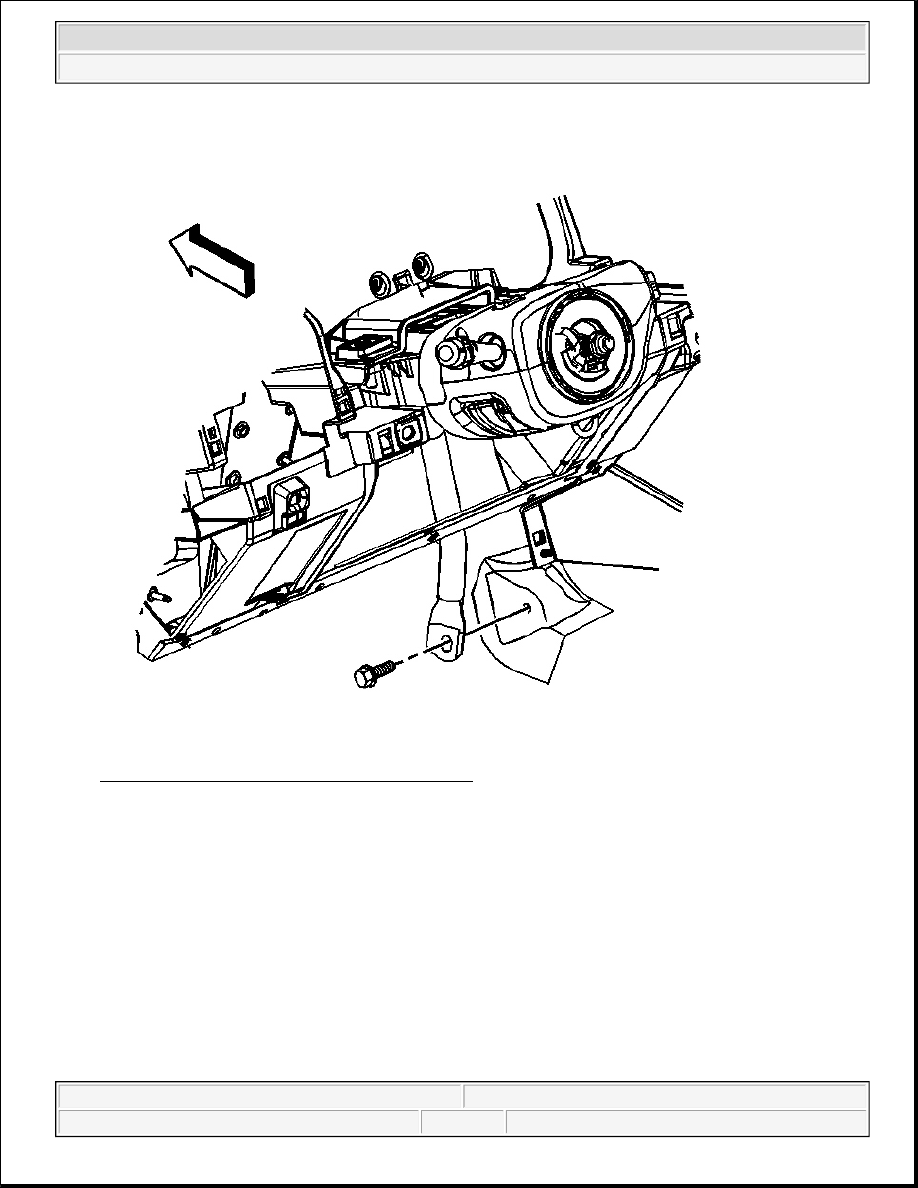

Fig. 47: Steering Column Bracket
Courtesy of GENERAL MOTORS CORP.

3. Remove the nuts that hold the knee bolster deflector to the I/P.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2
