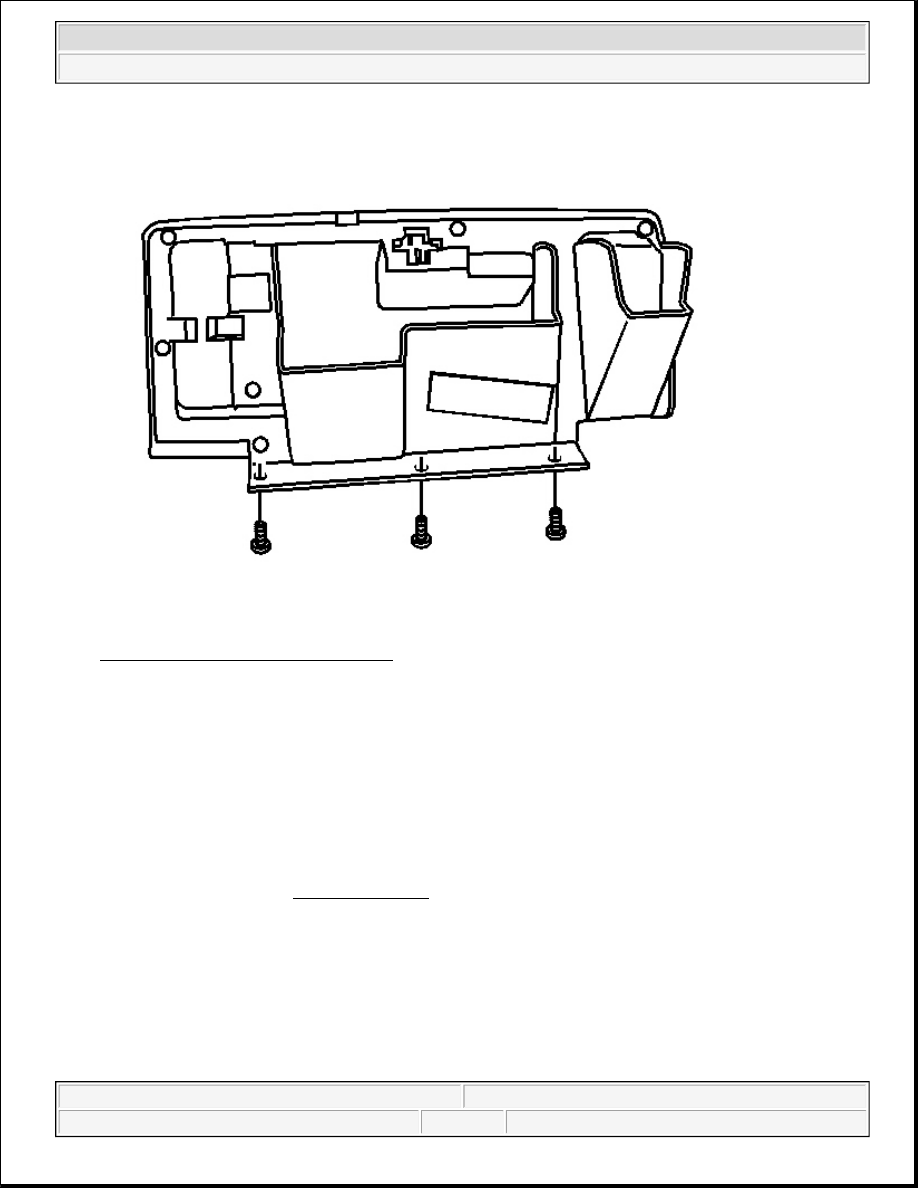

Fig. 38: I/P Compartment Door Hinge
Courtesy of GENERAL MOTORS CORP.

3. Remove the retaining screws to gain access to compartment handle.

4. Remove the compartment handle assembly.

Installation Procedure

1. Install new handle assembly to compartment door.

2. Ensure the linkage for the top compartment door are all connected before installing the inside panel.

3. Install the inside panel screws.

Tighten: Tighten the screws to 1.6 N.m (14 lb in).

4. Inspect the operation of the top compartment door

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



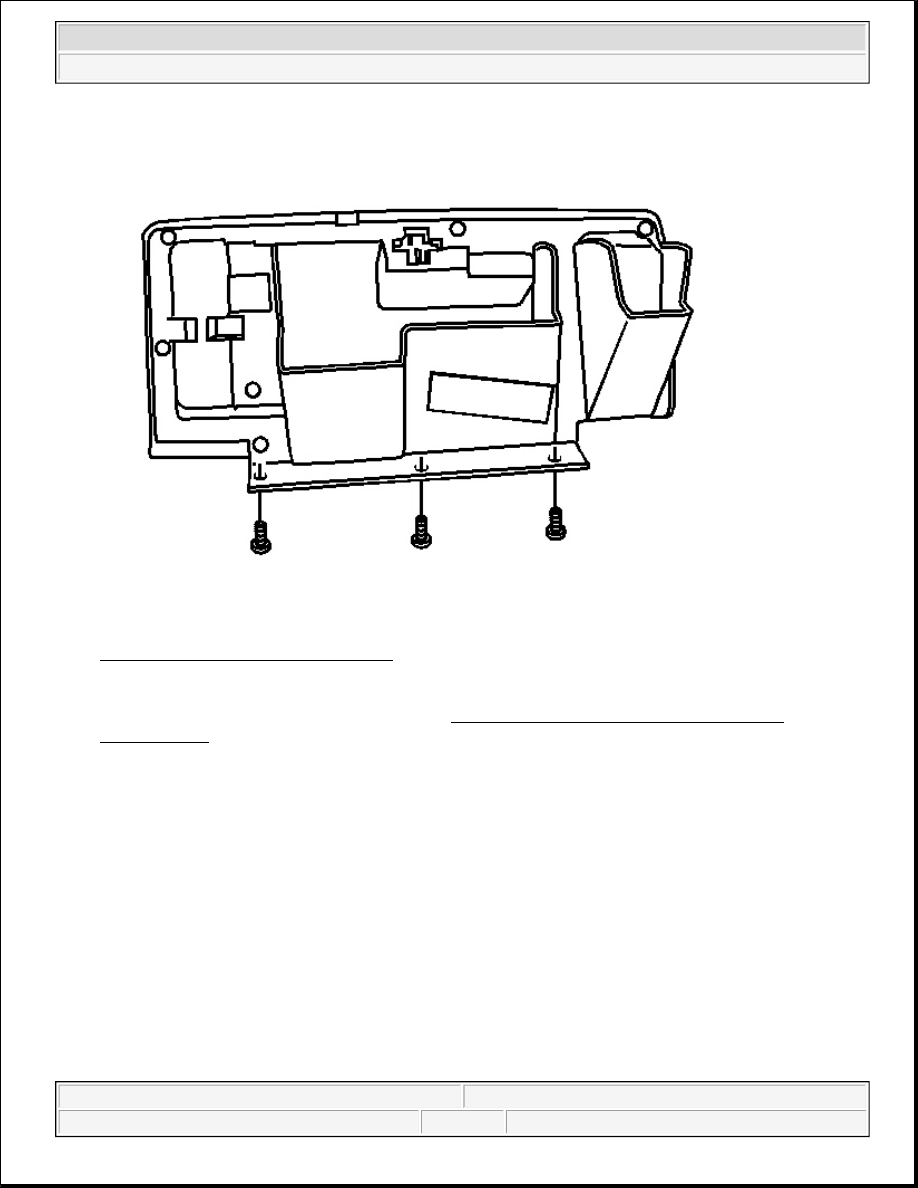

Fig. 39: I/P Compartment Door Hinge
Courtesy of GENERAL MOTORS CORP.

5. Install the compartment door to the I/P. Refer to Door Replacement - Instrument Panel (I/P)

Compartment .

INSTRUMENT PANEL (I/P) ASSIST HANDLE REPLACEMENT

Removal Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



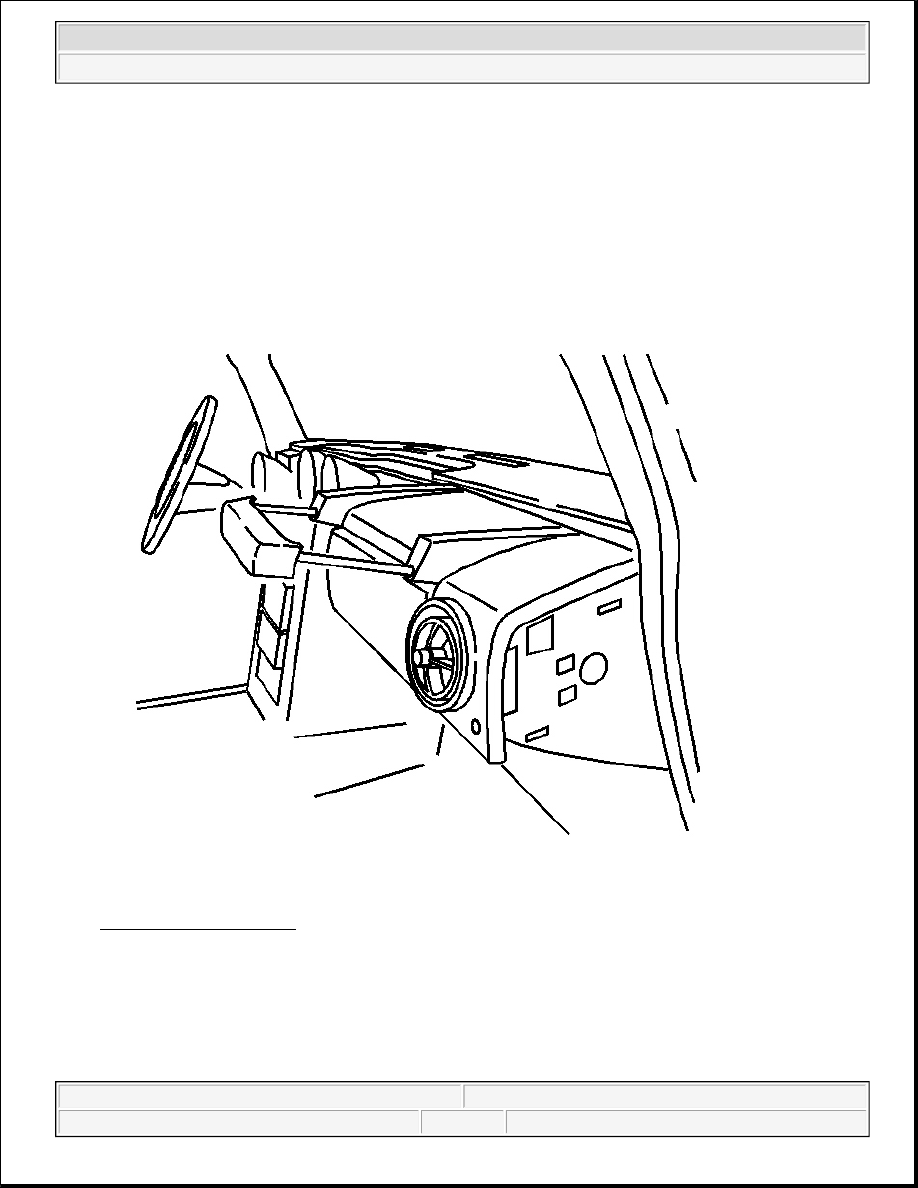

Fig. 40: I/P Passenger Side Trim Panel
Courtesy of GENERAL MOTORS CORP.

1. Remove the passenger I/P (Instrument Panel) side trim panel.

2. Fully open the I/P storage compartment.

3. Using a long flat-bladed tool, through the opening in the I/P retainer (1) on the passenger side of the I/P:

1. Push in on the assist handle release button (2) and

IMPORTANT: Both the left and the right assist handle release buttons face the outside

of the vehicle. The release buttons need to be pushed towards the inside
of the vehicle to release the assist handle.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



2. Pull out on the handle to partially disengage the assist handle.

4. Using a flat-bladed tool, through the I/P storage compartment opening, push in on the inboard assist

handle release button (3).

5. Remove the I/P assist handle.

Installation Procedure

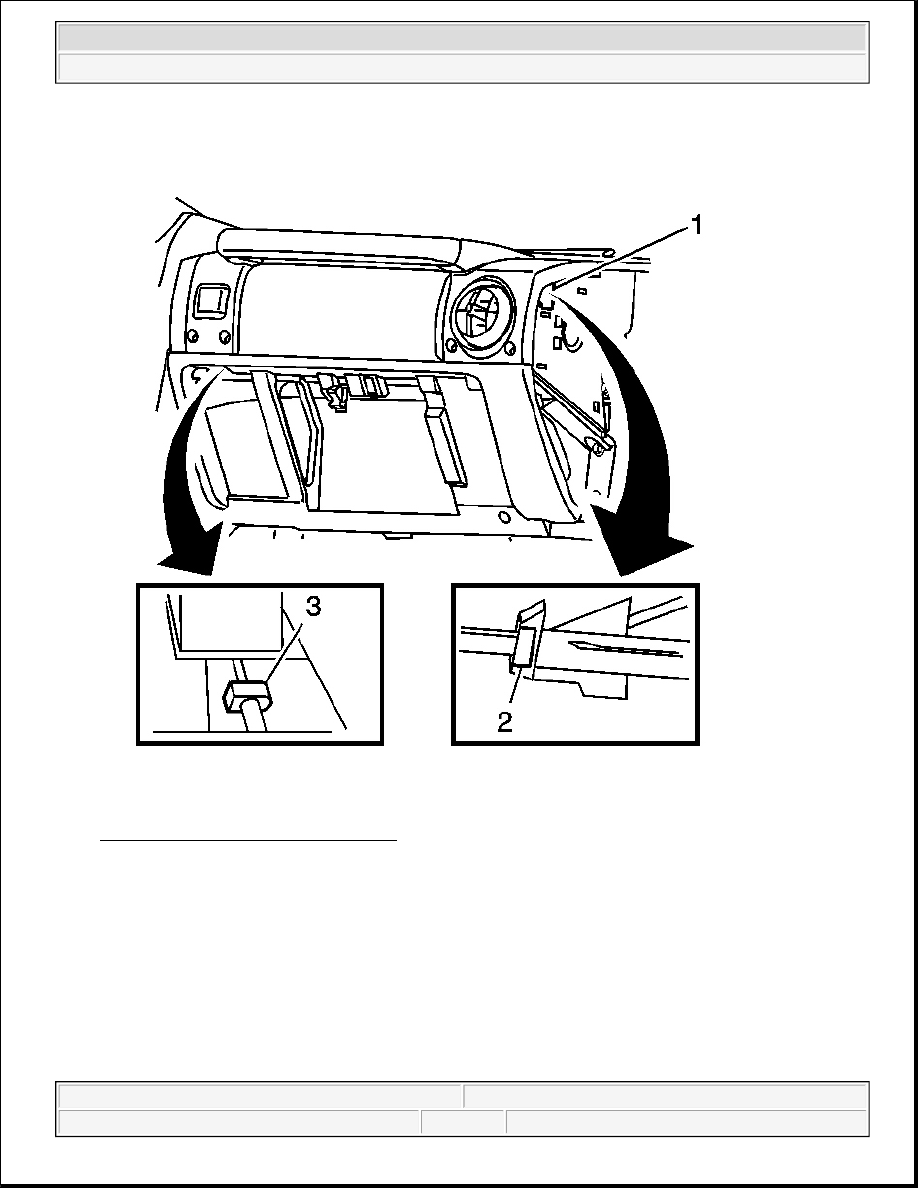

Fig. 41: I/P Assist Handle
Courtesy of GENERAL MOTORS CORP.

1. Line assist handle with holes in I/P and push the I/P assist handle into the I/P until I/P assist handle clicks

into place.

2. Pull rearward on the assist handle to ensure the handle is secure.

3. Install the passenger side I/P side trim panel.
