Hummer H2. Manual - part 382

Fig. 34: I/P Compartment Striker Assembly
Courtesy of GENERAL MOTORS CORP.

1. Install striker bracket to instrument panel subscript loosely.

2. Align striker with I/P compartment door and tighten striker bracket in place.

Tighten: Tighten the screws to 1.6 N.m (14 lb in).

DOOR REPLACEMENT - INSTRUMENT PANEL (I/P) COMPARTMENT

Removal Procedure

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



Fig. 35: I/P Compartment Door
Courtesy of GENERAL MOTORS CORP.

1. Remove screws from hinge assembly that holds the compartment door to the I/P.

2. Remove door compartment.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



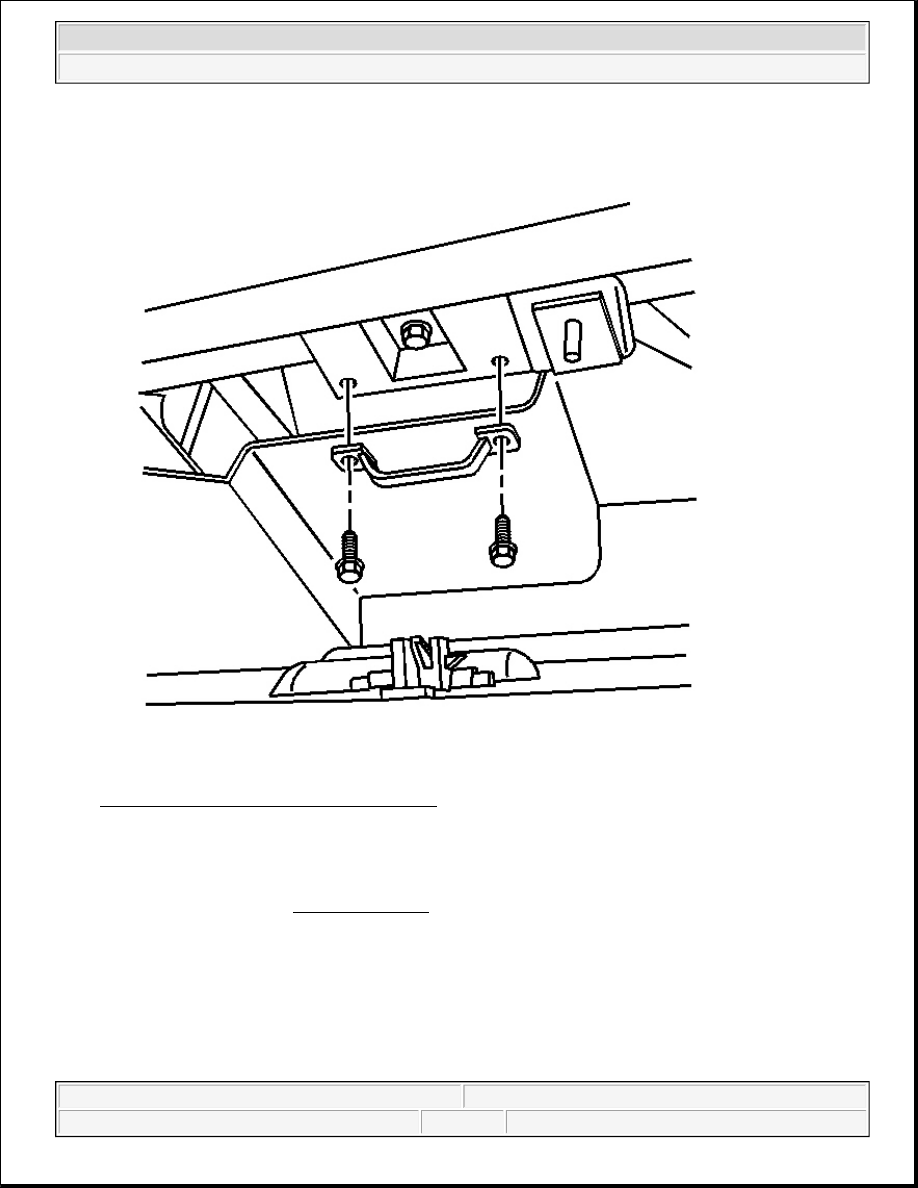

Fig. 36: I/P Compartment Door Hinge
Courtesy of GENERAL MOTORS CORP.

1. Align door compartment hinge to I/P.

Tighten: Tighten the screws to 1.6 N.m (14 lb in).

2. Fasten compartment hinge to IP.

HANDLE REPLACEMENT - INSTRUMENT PANEL (I/P) COMPARTMENT

Removal Procedure

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



Fig. 37: I/P Compartment Door
Courtesy of GENERAL MOTORS CORP.

1. Remove compartment door from instrument panel subscript. Refer to Door Replacement - Instrument

Panel (I/P) Compartment .

2. Place the compartment door on a work bench.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2
