Fig. 30: I/P Compartment Door
Courtesy of GENERAL MOTORS CORP.

1. Loosen hinge screws holding compartment door to I/P.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



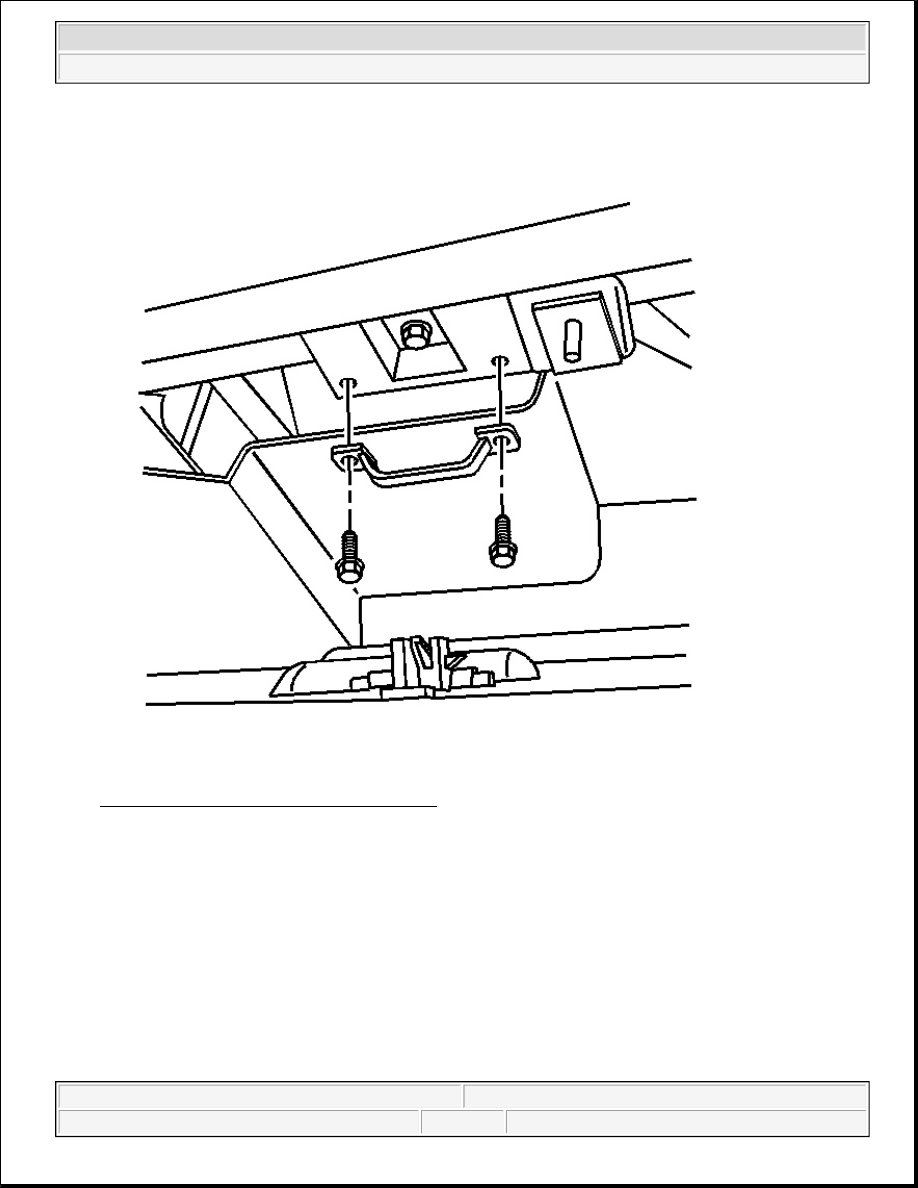

Fig. 31: I/P Compartment Striker Assembly
Courtesy of GENERAL MOTORS CORP.

2. Loosen screws/bolts holding striker assembly to I/P.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



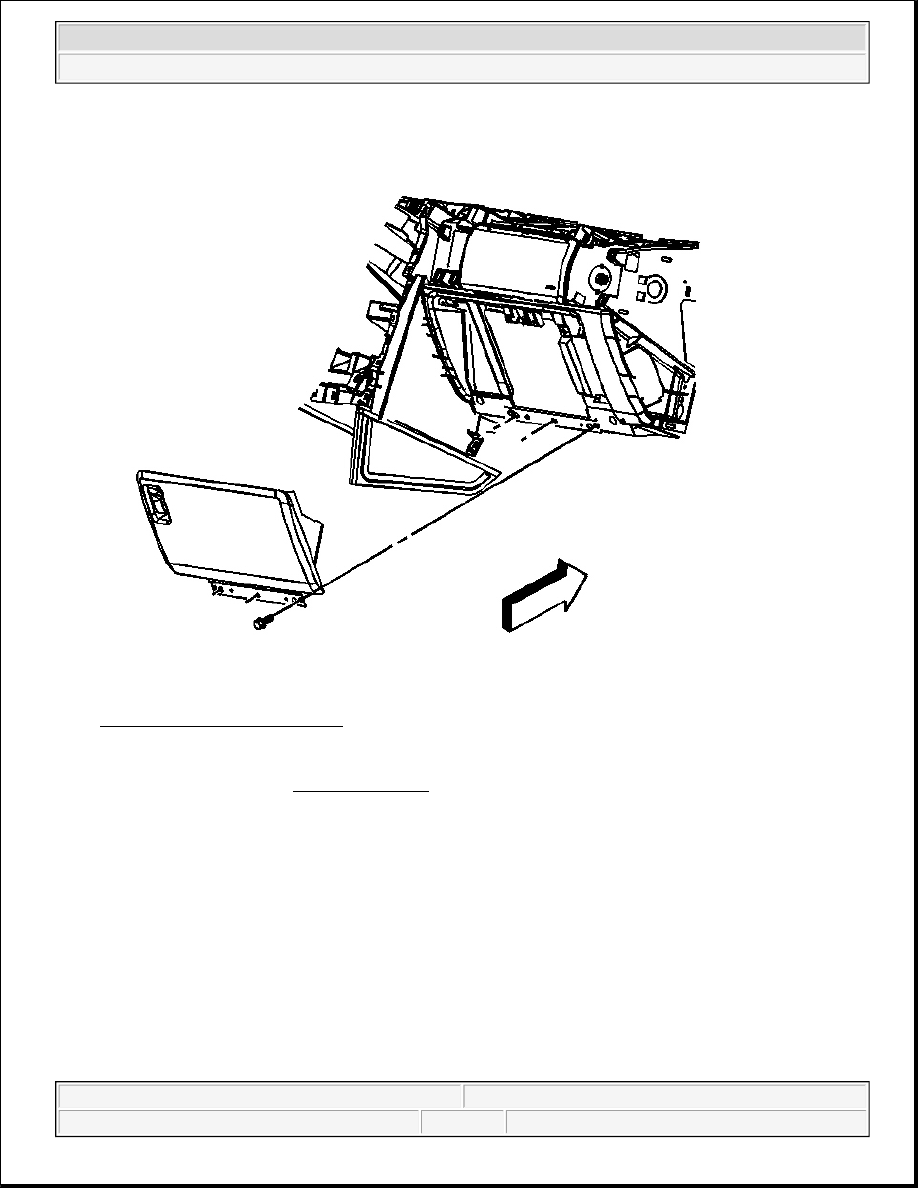

Fig. 32: I/P Compartment Door
Courtesy of GENERAL MOTORS CORP.

1. Align door assembly with striker assembly.

Tighten: Tighten the screws to 1.6 N.m (14 lb in).

2. Tighten door assembly to I/P.

STRIKER REPLACEMENT - INSTRUMENT PANEL (I/P) COMPARTMENT

Removal Procedure

1. Open compartment door to expose compartment striker bracket.

2. Loosen screws/bolts holding striker bracket to I/P.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



Fig. 33: I/P Compartment Striker Assembly
Courtesy of GENERAL MOTORS CORP.

3. Remove striker bracket assembly from I/P.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2
