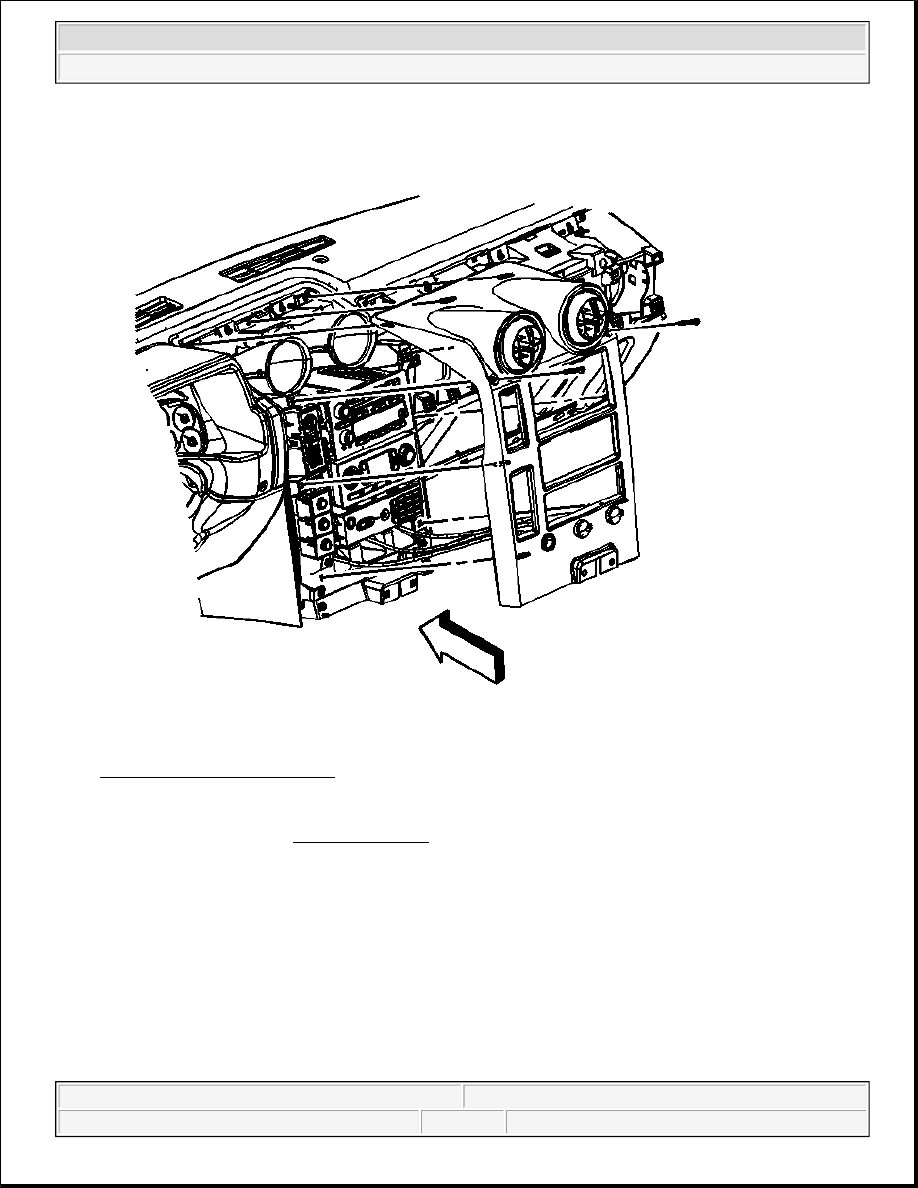

Fig. 22: I/P Center Trim Panel
Courtesy of GENERAL MOTORS CORP.

2. Fasten the trim panel to the I/P.

Tighten: Tighten the screws to 2 N.m (18 lb in).

TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER

Removal Procedure

NOTE:

Refer to Fastener Notice in Cautions and Notices



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



Fig. 23: I/P Cluster Trim Panel Screws
Courtesy of GENERAL MOTORS CORP.

1. Remove screws that hold cluster trim panel to I/P.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



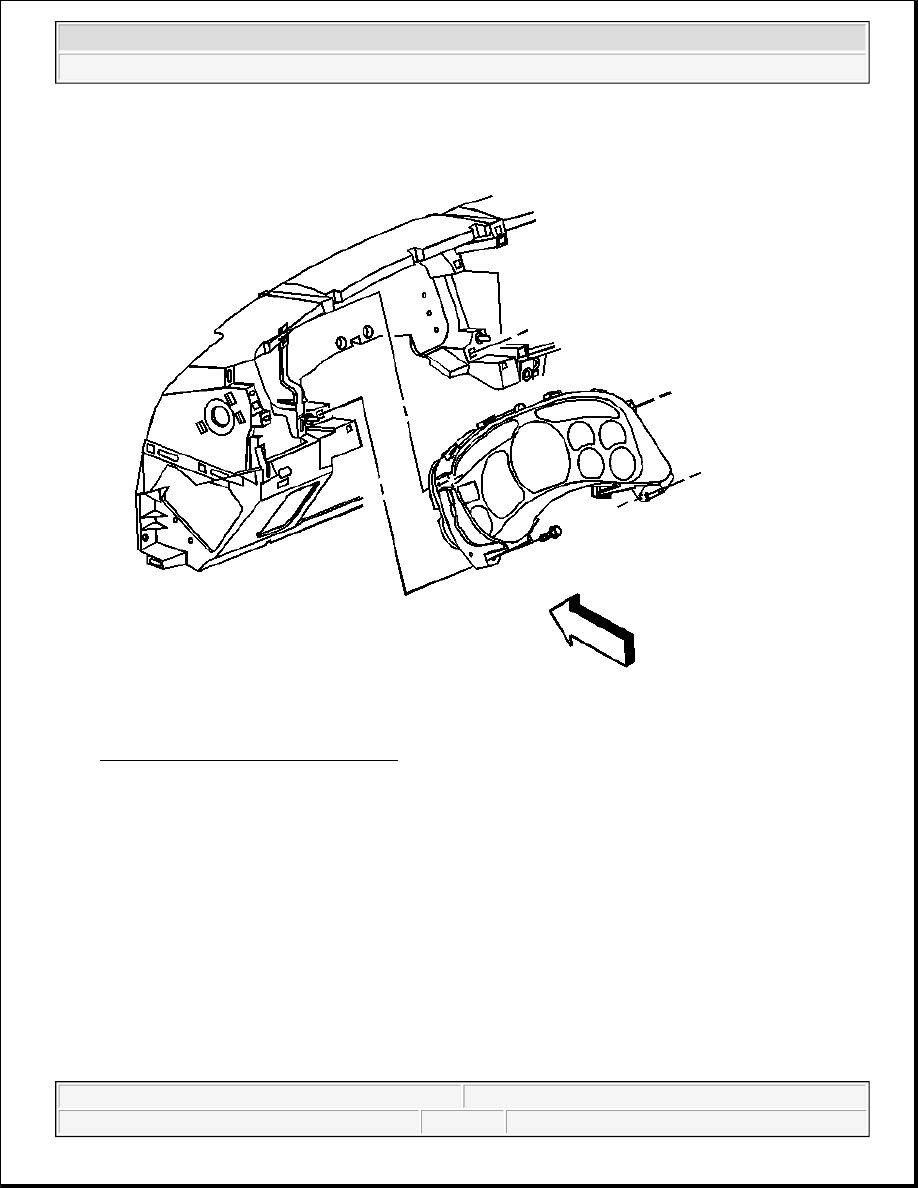

Fig. 24: I/P Cluster Trim Panel
Courtesy of GENERAL MOTORS CORP.

2. Use care to remove cluster trim panel from tabs in I/P.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



Fig. 25: I/P Cluster Trim Panel
Courtesy of GENERAL MOTORS CORP.

1. Align trim panel to I/P.

2. Install cluster trim panel to I/P.

Tighten: Tighten 2 N.m (18 lb in).

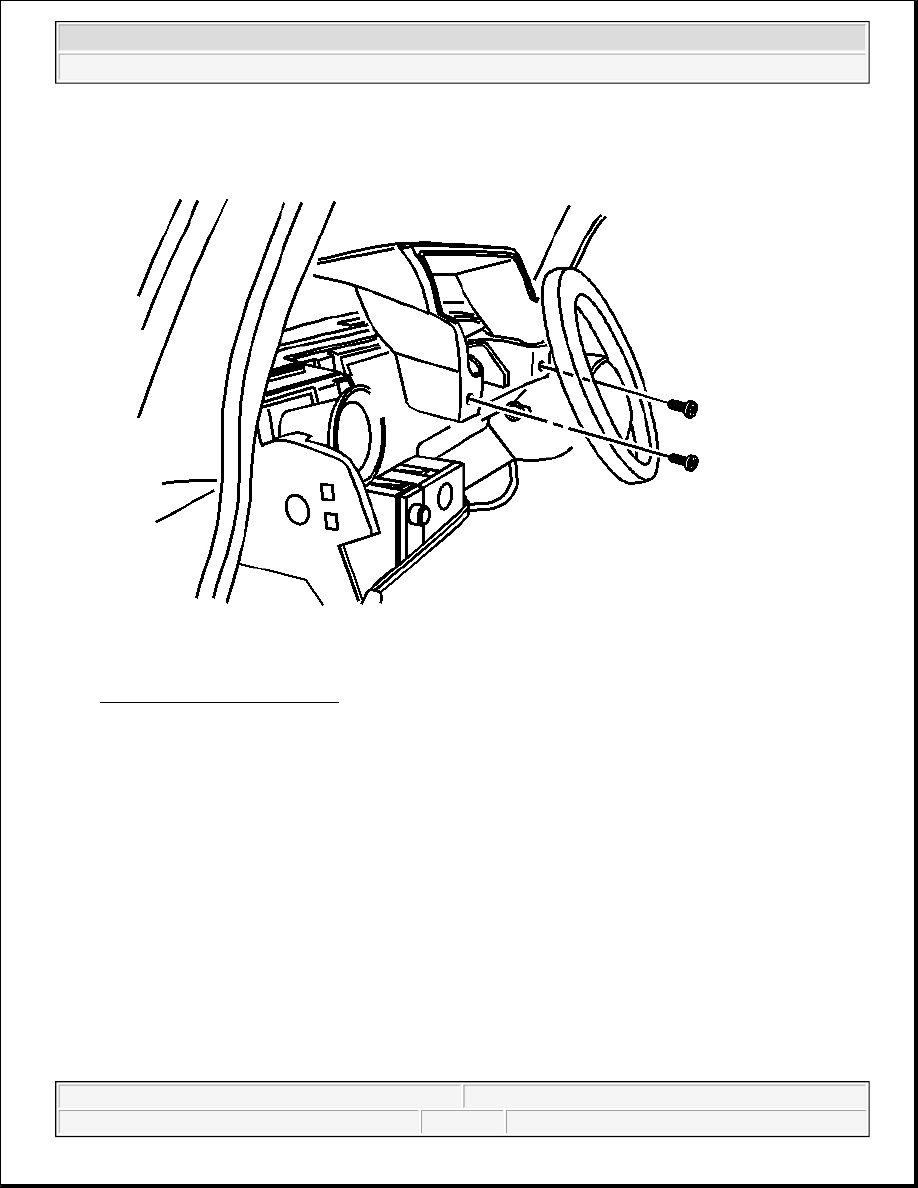

COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P)

Removal Procedure

1. Loosen and move center console reward for access to compartment trim panel. Refer to Console

Replacement .

NOTE:

Refer to Fastener Notice in Cautions and Notices.
