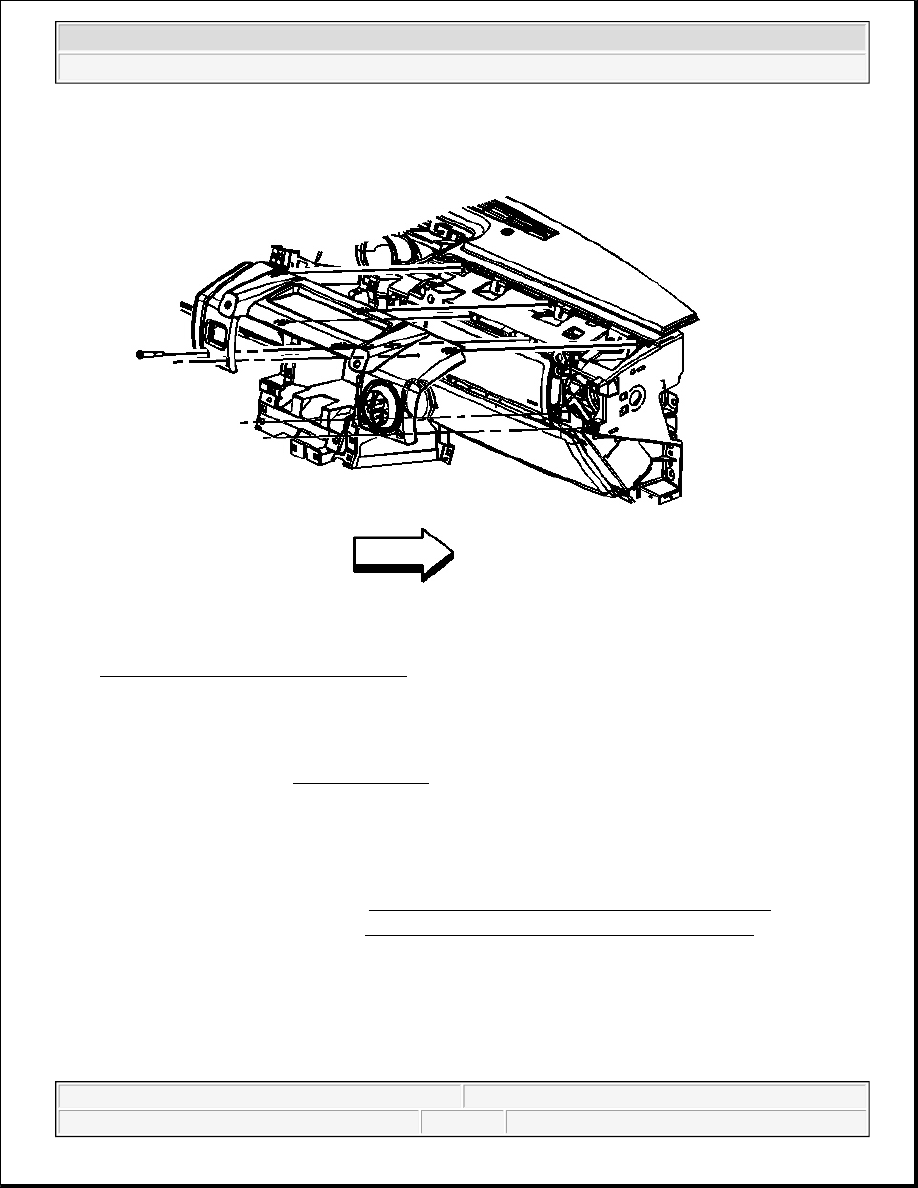

Fig. 18: I/P Accessory Right Trim Panel
Courtesy of GENERAL MOTORS CORP.

1. Align the trim pad with the I/P substrate tabs.

2. Install the trim panel screws.

Tighten: Tighten the screws to 2 N.m (18 lb in).

3. Install the I/P compartment. Refer to Compartment Replacement - Instrument Panel (I/P) .

4. Install the I/P assist handle. Refer to Instrument Panel (I/P) Assist Handle Replacement .

TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY LEFT

Removal Procedure

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



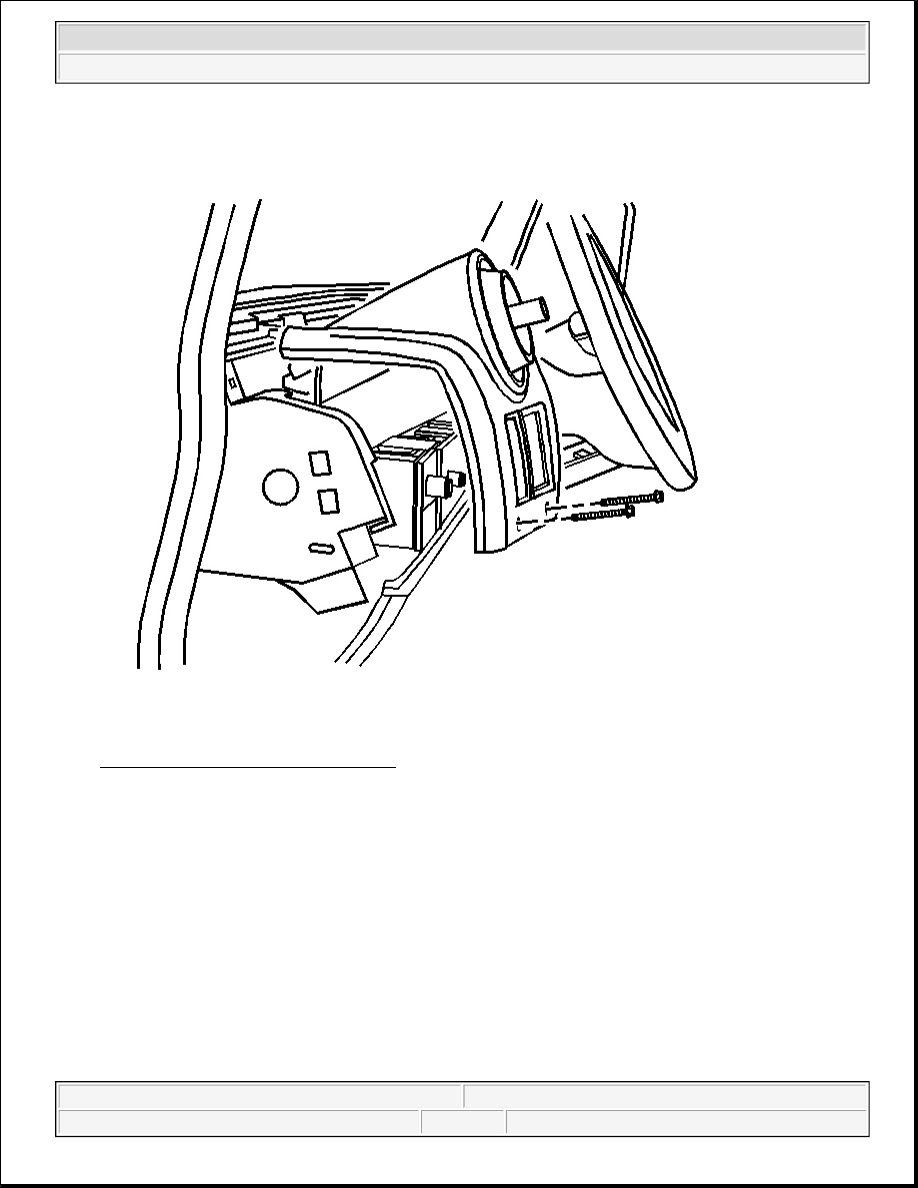

Fig. 19: I/P Accessory Left Trim Panel
Courtesy of GENERAL MOTORS CORP.

1. Remove screws that hold trim panel to I/P.

2. Remove trim from tabs in I/P.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



Fig. 20: I/P Accessory Left Trim Panel
Courtesy of GENERAL MOTORS CORP.

1. Align trim pad with I/P tabs.

2. Fasten trim panel to I/P.

Tighten: Tighten the screws to 2 N.m (18 lb in).

TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CENTER

Removal Procedure

1. Loosen and remove the center console for access to the center trim panel. Refer to Console

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



Replacement .

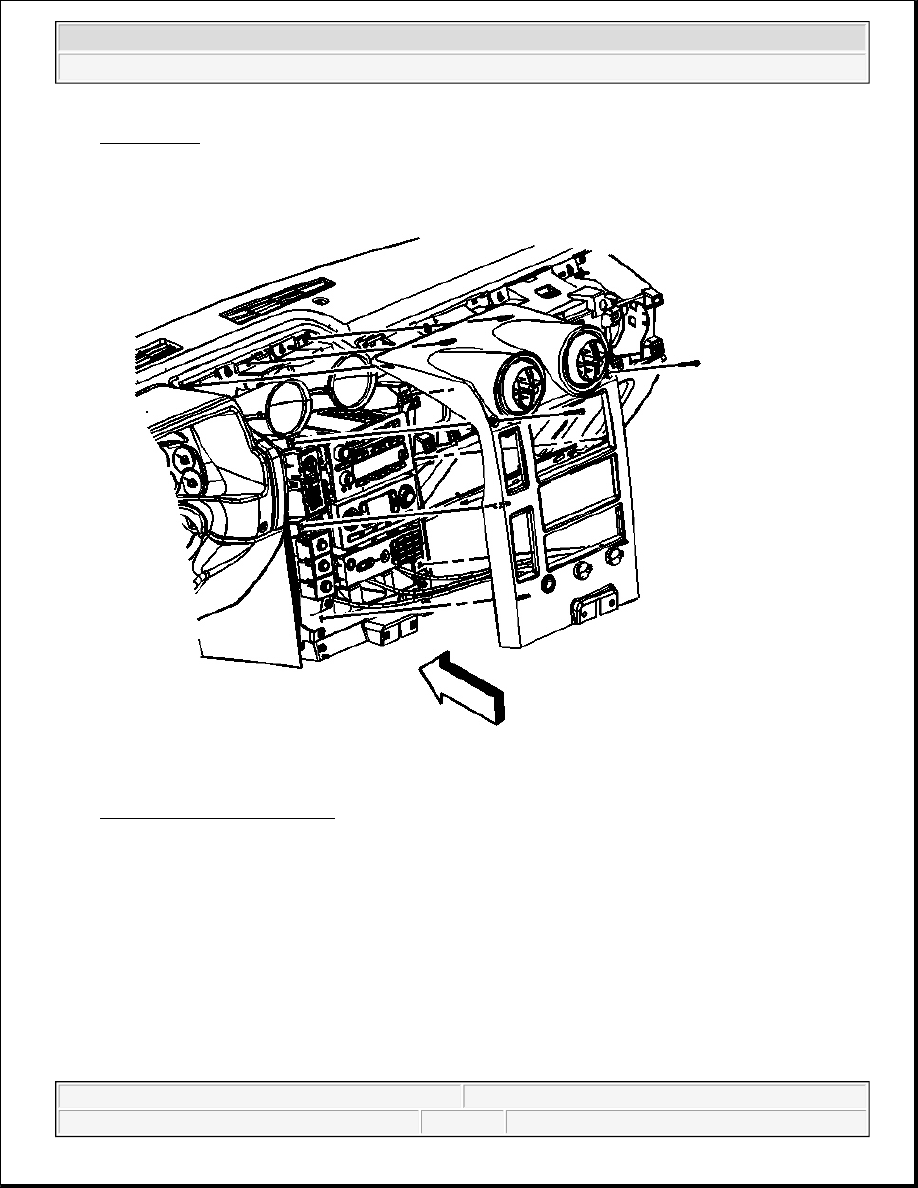

Fig. 21: I/P Center Trim Panel
Courtesy of GENERAL MOTORS CORP.

2. Remove the screws that hold the trim panel to the I/P.

3. Remove the trim from the tabs in the I/P.

Installation Procedure

1. Align the trim pad with the I/P tabs.
