REPAIR INSTRUCTIONS

INSULATOR REPLACEMENT - INSTRUMENT PANEL (I/P)

Removal Procedure

2

2. Open the driver's door.

Does the chime sound?

Intermittent Conditions

and Poor Connections in

Wiring Systems

Go to Step 3

3

Do the courtesy lights turn on when you
open the drivers door?

Go to Step 4

Go to Courtesy Lamps

Inoperative in Lighting

Systems

4

1. Turn the ignition ON, with the

engine OFF.

2. Turn the radio ON.

3. Adjust the radio balance and fade to

the left front speaker.

Does the speaker operate properly?

Go to Step 5

Go to Speakers

Inoperative - One or

More in Entertainment

5

Replace the radio. Refer to Radio
Replacement or Amplifier Replacement
in Entertainment.Did you complete the
replacement?

IMPORTANT:

Program the replacement radio or audio
amplifier.

Go to Step 6

-

6

Operate the system in order to verify the
repair.
Did you correct the condition?

System OK

Go to Step 1



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



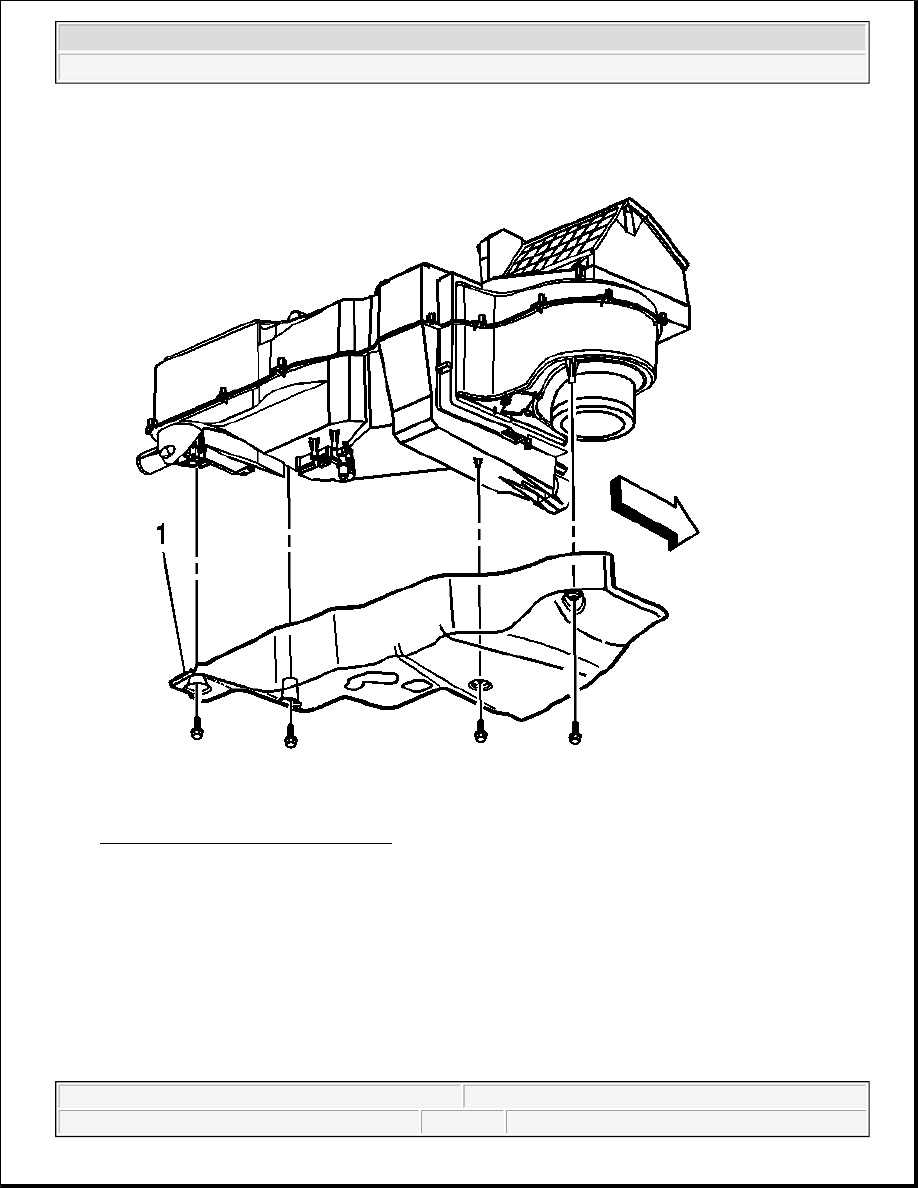

Fig. 11: Insulator & Instrument Panel
Courtesy of GENERAL MOTORS CORP.

1. Remove the retaining bolts.

2. Remove the insulator (1) from the instrument panel by pulling downwards.

Installation Procedure

1. Install the insulator (1) to the instrument panel.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



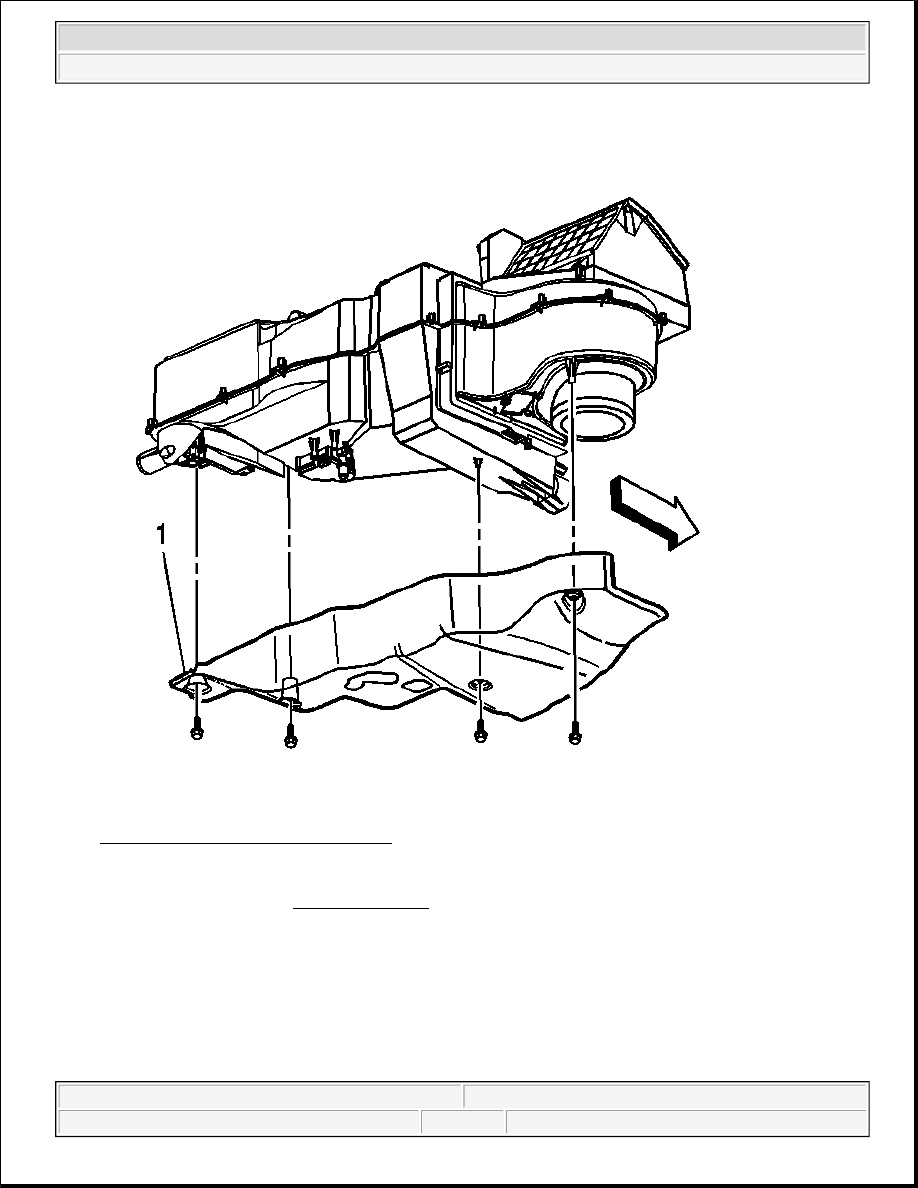

Fig. 12: Insulator & Instrument Panel
Courtesy of GENERAL MOTORS CORP.

2. Install the retaining bolts.

Tighten: Tighten the bolts to 1.6 N.m (14 lb in)

INSTRUMENT PANEL (I/P) EXTENSION TRIM PLATE REPLACEMENT

Removal Procedure

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



1. Loosen and move center console reward for access to the I/P extension trim plate. Refer to Console

Replacement .

2. Loosen and remove the I/P center trim panel from the I/P. Refer to Trim Panel Replacement -

Instrument Panel (I/P) Center .

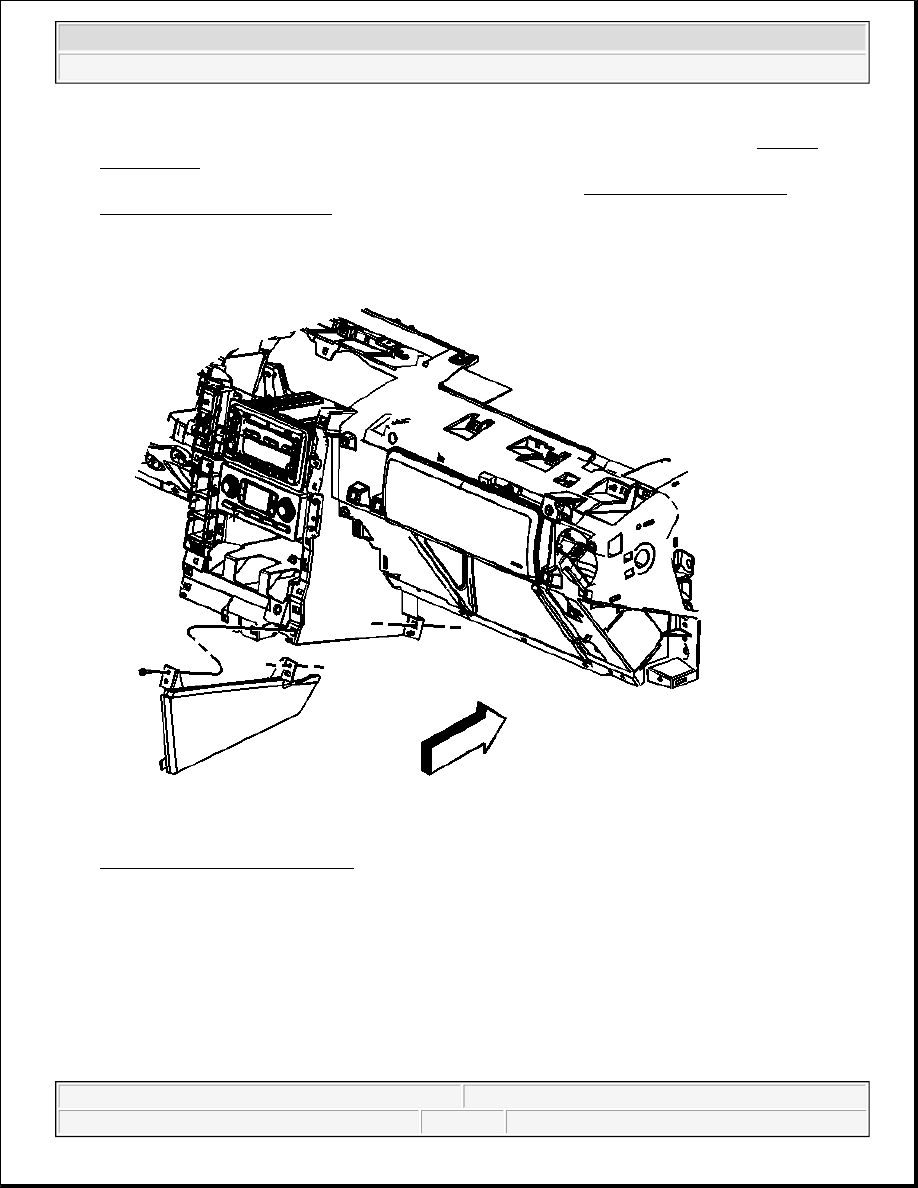

Fig. 13: I/P Extension Trim Plate
Courtesy of GENERAL MOTORS CORP.

3. Remove the screws that hold the I/P extension trim plate to the I/P.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2
