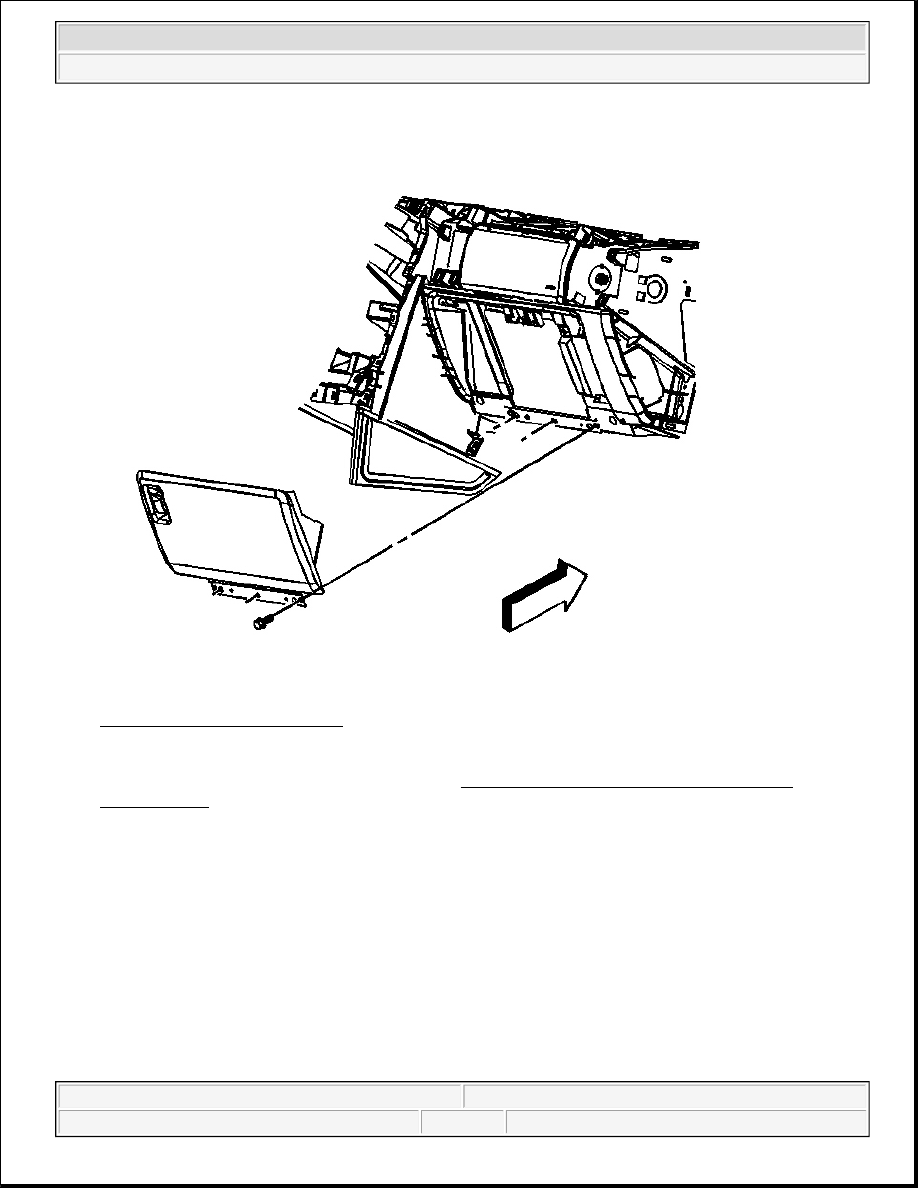

Fig. 26: I/P Compartment Door
Courtesy of GENERAL MOTORS CORP.

2. Remove the compartment door from I/P. Refer to Door Replacement - Instrument Panel (I/P)

Compartment .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



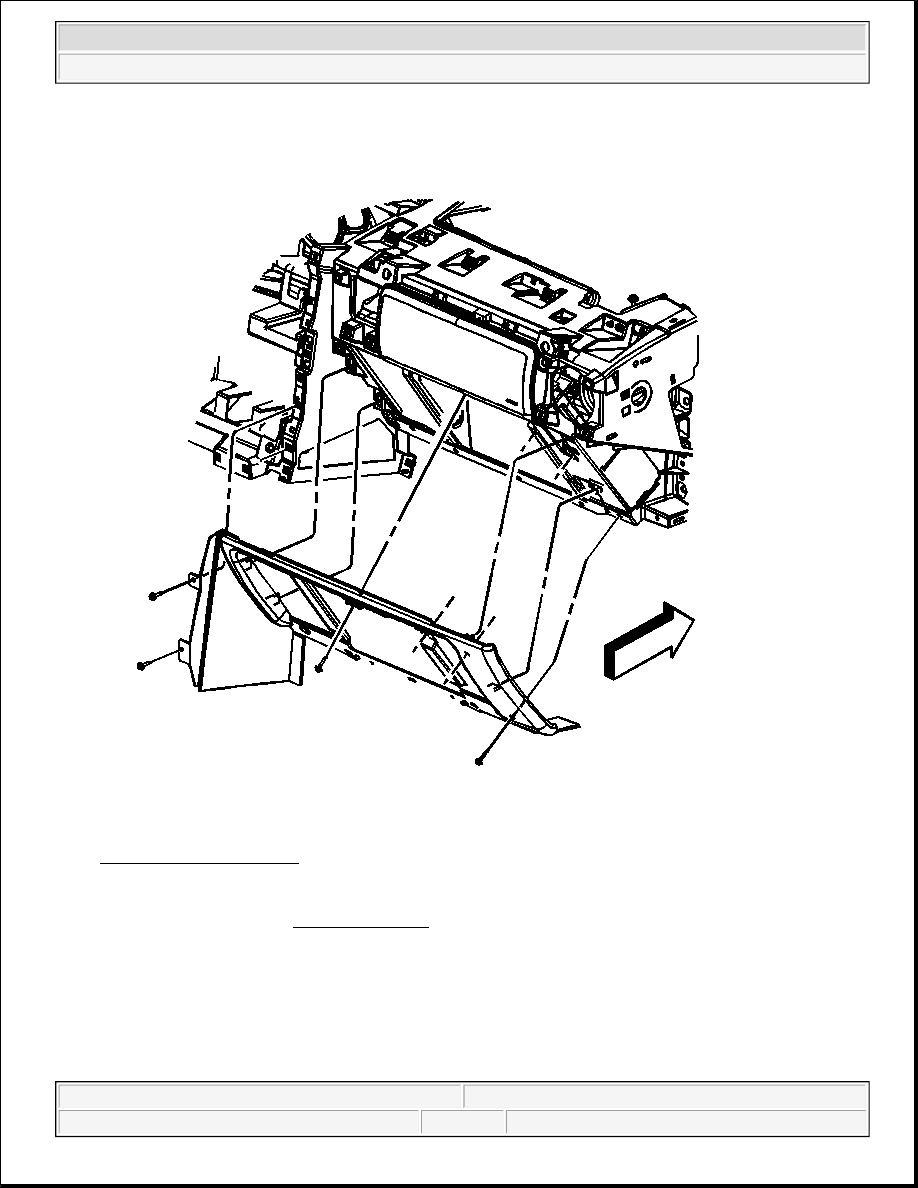

Fig. 27: I/P Compartment
Courtesy of GENERAL MOTORS CORP.

3. Remove the I/P compartment from I/P.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



Fig. 28: I/P Compartment
Courtesy of GENERAL MOTORS CORP.

1. Install the I/P compartment to I/P.

Tighten: Tighten the screws to 1.6 N.m (14 lb in).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



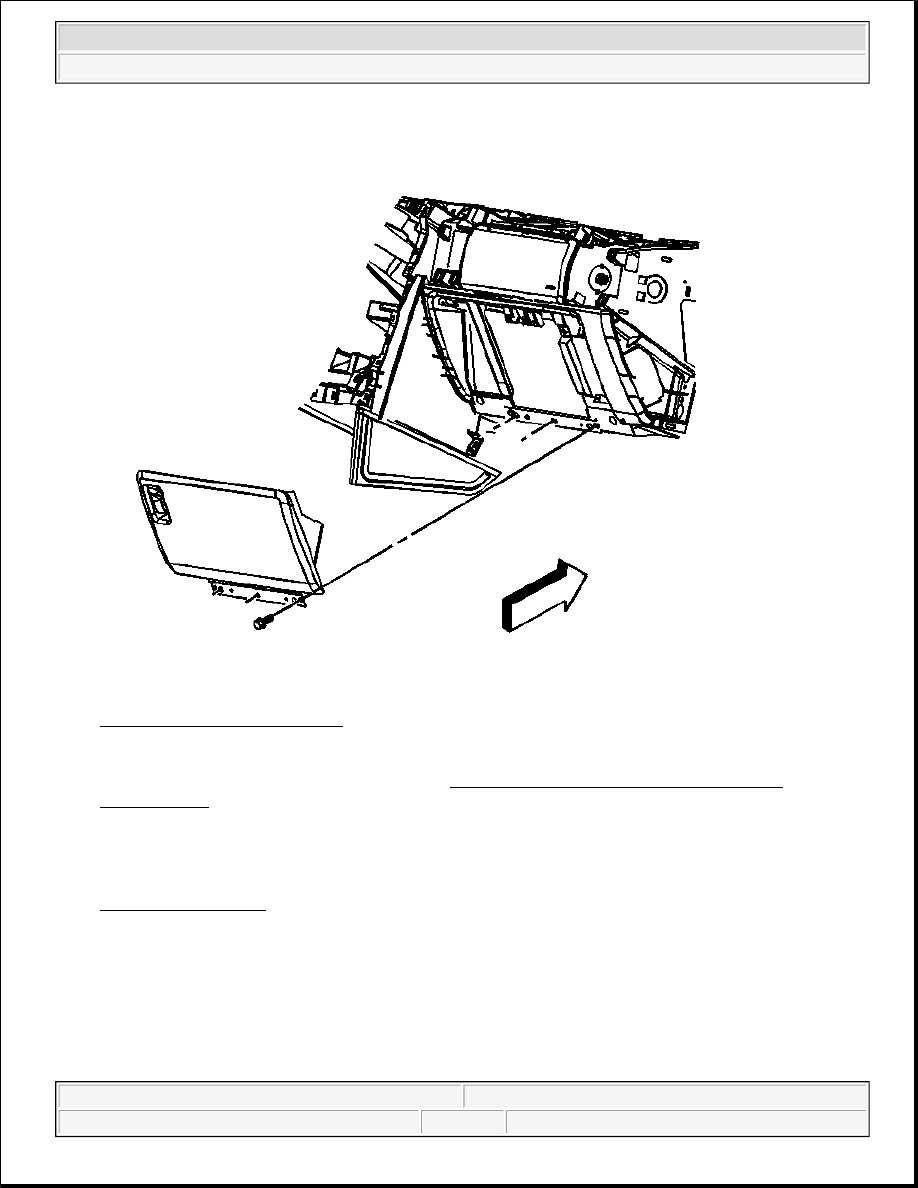

Fig. 29: I/P Compartment Door
Courtesy of GENERAL MOTORS CORP.

2. Install the I/P compartment door to I/P. Refer to Door Replacement - Instrument Panel (I/P)

Compartment .

Tighten: Tighten the screws to 1.6 N.m (14 lb in).

3. Align and move forward center console in place and fasten console to center console bracket. Refer to

Console Replacement .

STRIKER ADJUSTMENT - INSTRUMENT PANEL (I/P) COMPARTMENT

Removal Procedure
