Hummer H2. Manual - part 388

Fig. 56: Cup Holder
Courtesy of GENERAL MOTORS CORP.

3. Using a flat bladed tool, pry up on the cup holder to release the clips.

4. Disconnect the PRNDL lamps from the cup holder.

5. Remove the cup holder.

Installation Procedures



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



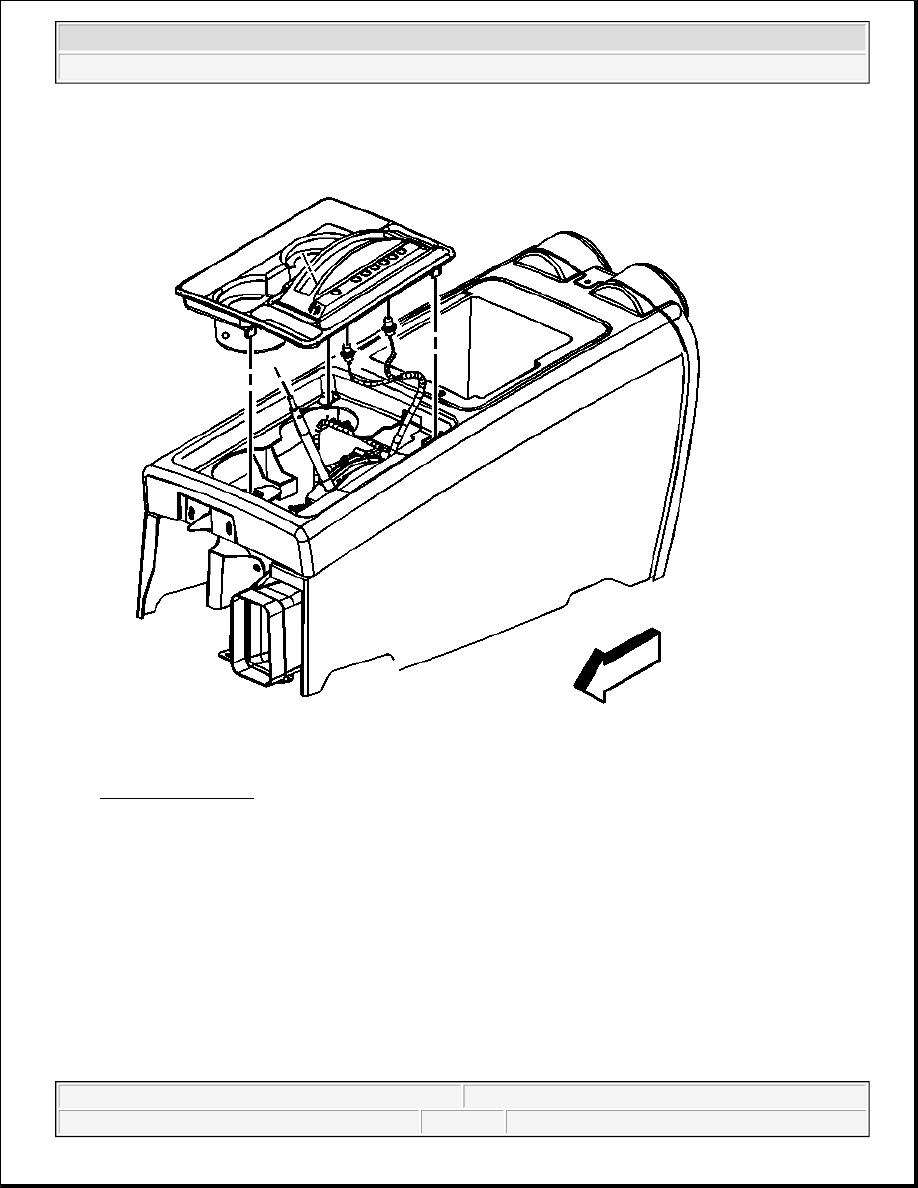

Fig. 57: Cup Holder
Courtesy of GENERAL MOTORS CORP.

1. Connect the lamps to the cup holder.

2. Align the cup holder to the center console.

3. Push the cup holder firmly into place to engage the clips.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



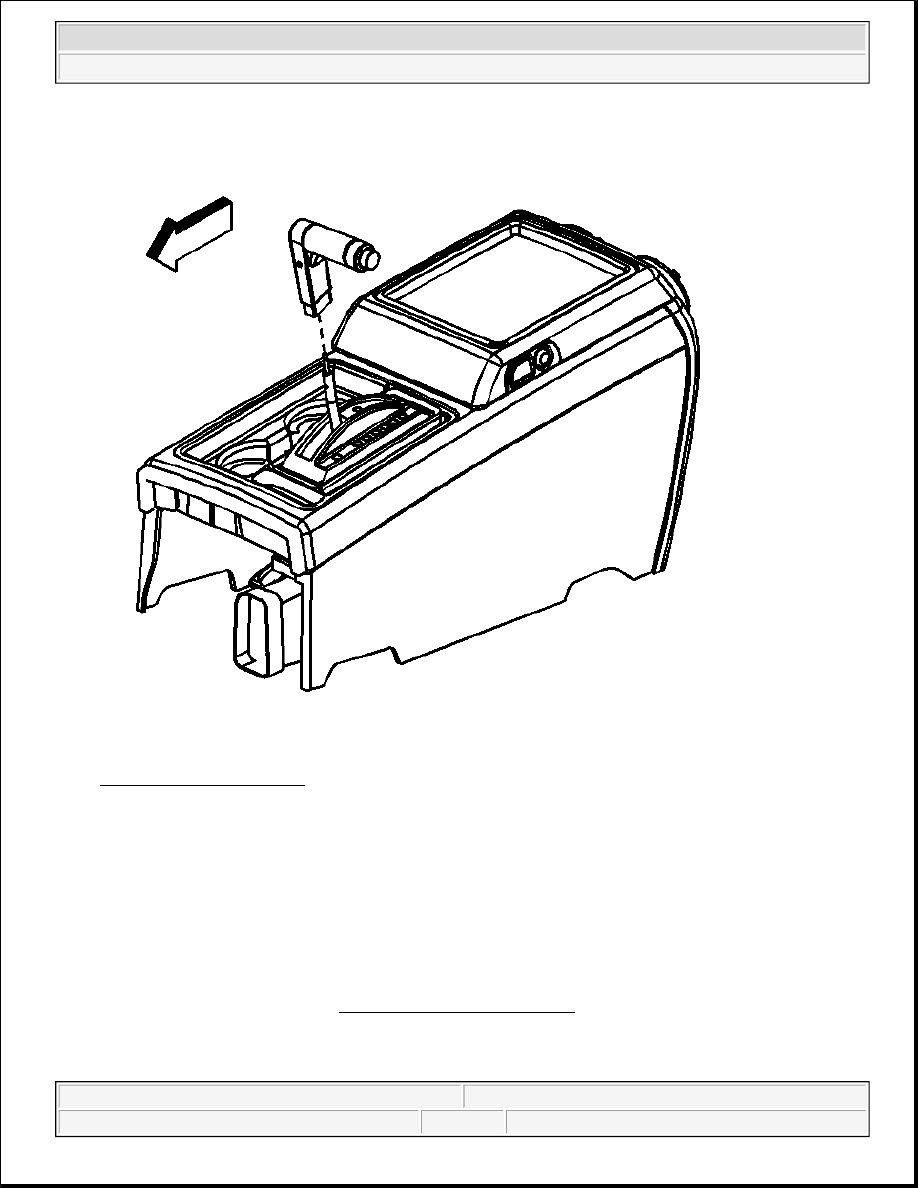

Fig. 58: Identifying Shifter
Courtesy of GENERAL MOTORS CORP.

4. Install shift handle to shifter and use hex nut to fasten in place.

Tighten: Tighten the nut to 1.6 N.m (14 lb in).

INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT

Removal Procedure

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



1. Disconnect the negative battery cable.

Fig. 59: Insulator & Instrument Panel
Courtesy of GENERAL MOTORS CORP.

2. Remove the passenger insulator. Refer to Insulator Replacement - Instrument Panel (I/P) .

3. Disconnect the brake release lever from the instrument panel (I/P).



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2
