Fig. 68: I/P Accessory Right Trim Panel
Courtesy of GENERAL MOTORS CORP.

13. Remove the right accessory trim panel. Refer to Trim Plate Replacement - Instrument Panel (I/P)

Accessory Right .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



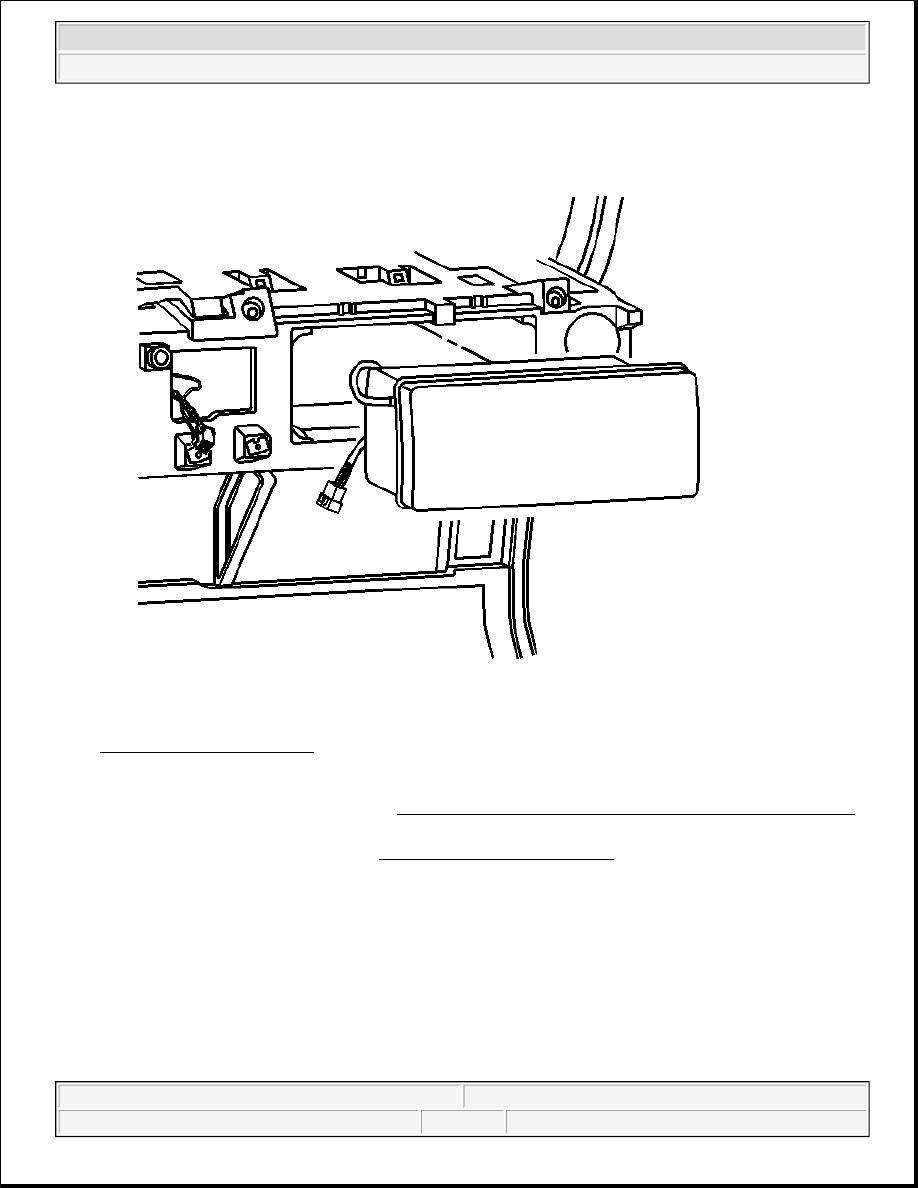

Fig. 69: I/P Air Bag Module
Courtesy of GENERAL MOTORS CORP.

14. Remove the I/P air bag module. Refer to Inflatable Restraint Instrument Panel Module Replacement

in SIR.

15. Remove the steering column. Refer to Steering Column Replacement in Steering Wheel and Column.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



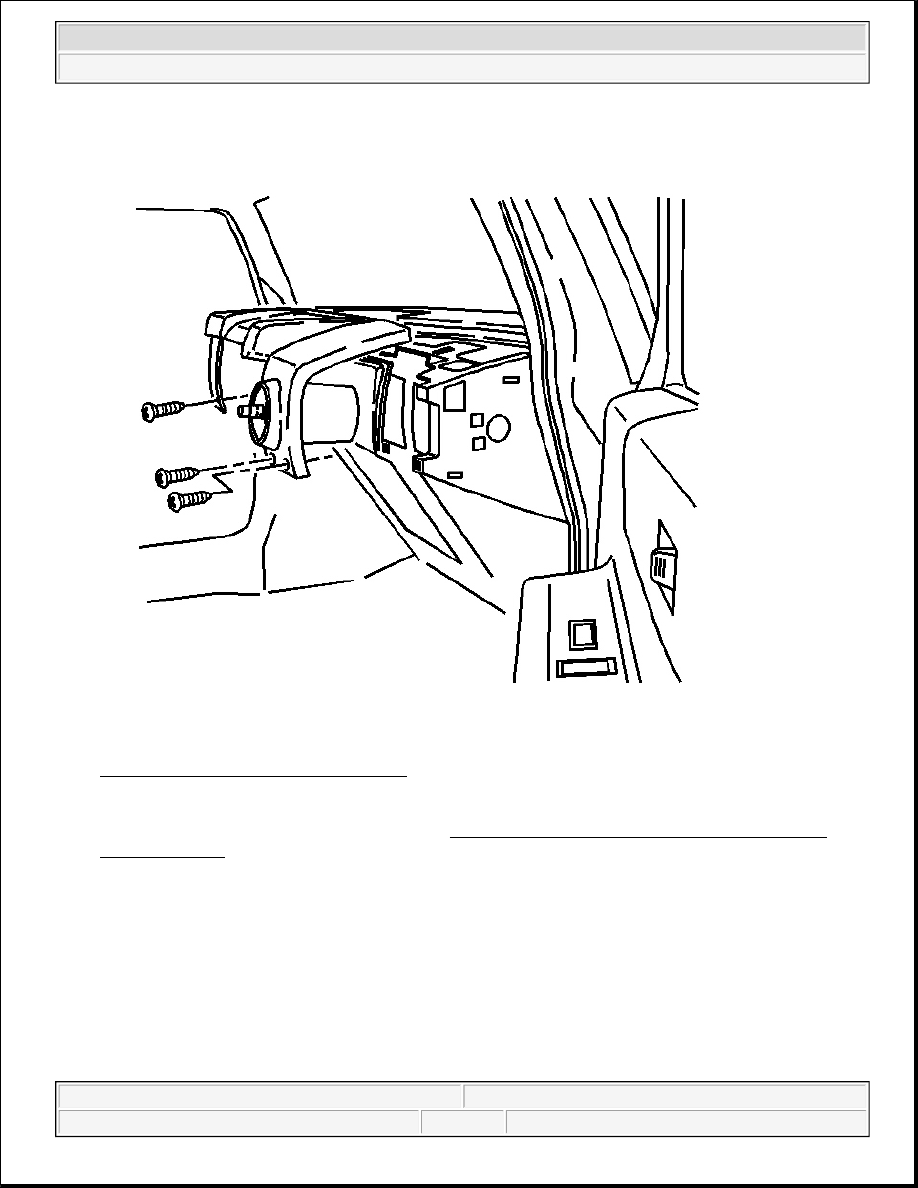

Fig. 70: I/P Cluster Trim Panel
Courtesy of GENERAL MOTORS CORP.

16. Remove the I/P cluster. Refer to Instrument Panel Cluster (IPC) Replacement .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2

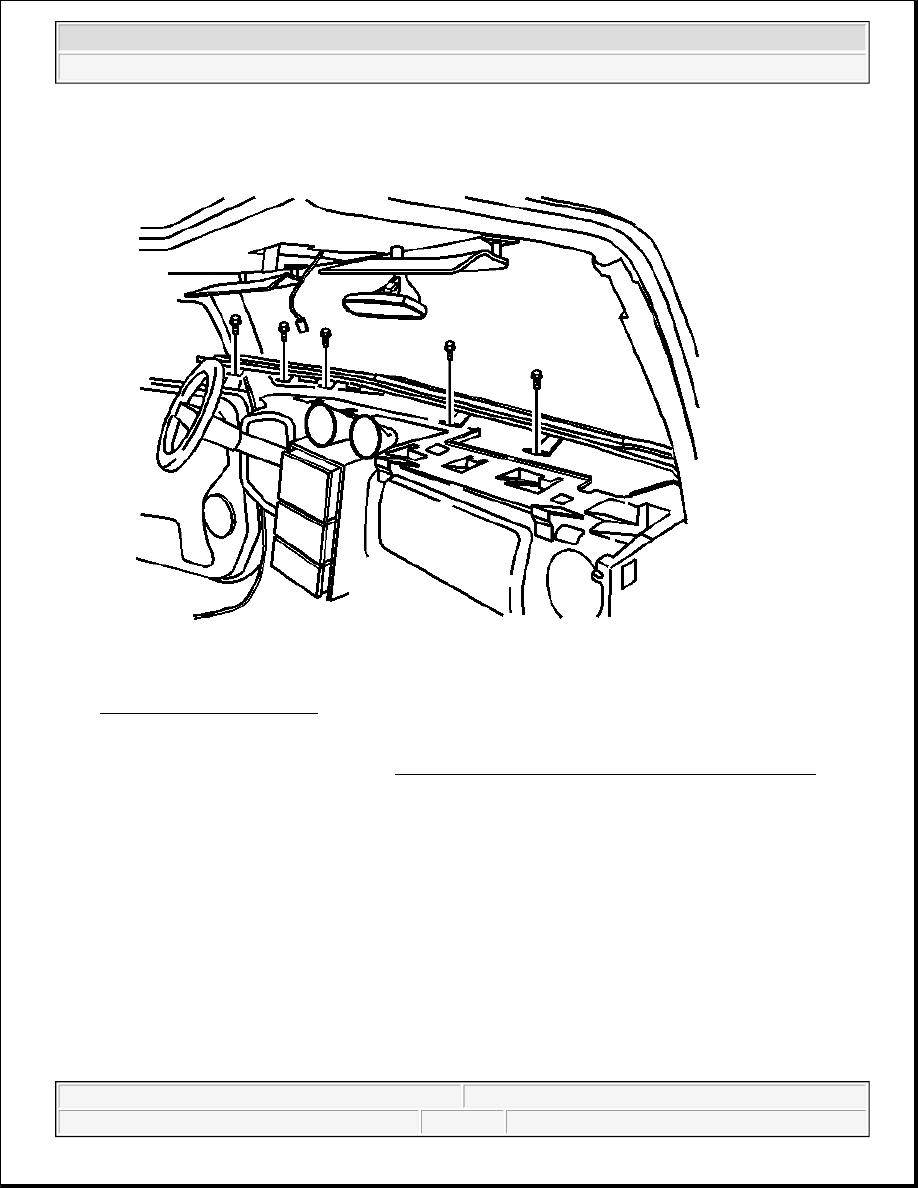

Fig. 71: I/P Upper Trim Pad
Courtesy of GENERAL MOTORS CORP.

17. Remove the I/P upper trim pad. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper .
