Fig. 112: Console Upper Trim Panel
Courtesy of GENERAL MOTORS CORP.

1. Remove the shift handle. Refer to Floor Shift Control Knob Replacement in Automatic Transmission.

2. Remove the console storage bin. Refer to Console Storage Bin Replacement .

3. Remove the cup holder/PRNDL assembly. Refer to Cupholder Replacement .

4. Remove the center console end panel. Refer to Center Console End Panel Replacement .

5. Pull upwards on the upper console trim panel to release the trim panel clips.

6. Remove the upper console trim panel.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



Fig. 113: Console Upper Trim Panel
Courtesy of GENERAL MOTORS CORP.

1. Align the trim panel with the console.

2. Push towards the console to engage the trim panel clips.

3. Install the center console end panel. Refer to Center Console End Panel Replacement .

4. Install the cup holder/PRNDL assembly. Refer to Cupholder Replacement .

5. Install the console storage bin. Refer to Console Storage Bin Replacement .

6. Install the shift handle. Refer to Floor Shift Control Knob Replacement in Automatic Transmission.

CONSOLE REPLACEMENT

Removal Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



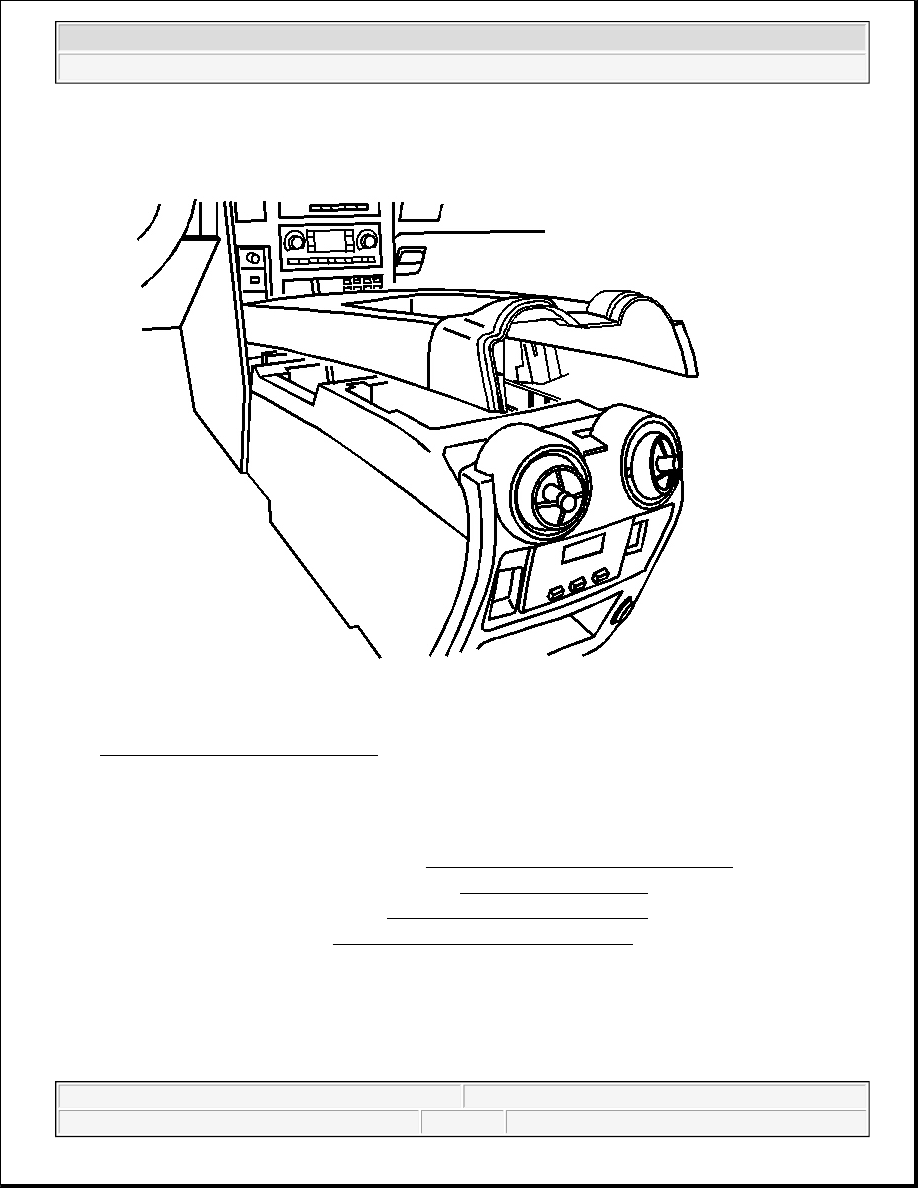

Fig. 114: Console Upper Trim Panel
Courtesy of GENERAL MOTORS CORP.

1. Remove the console upper trim plate. Refer to Trim Plate Replacement - Console Upper .

2. Disconnect the console electrical connector.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



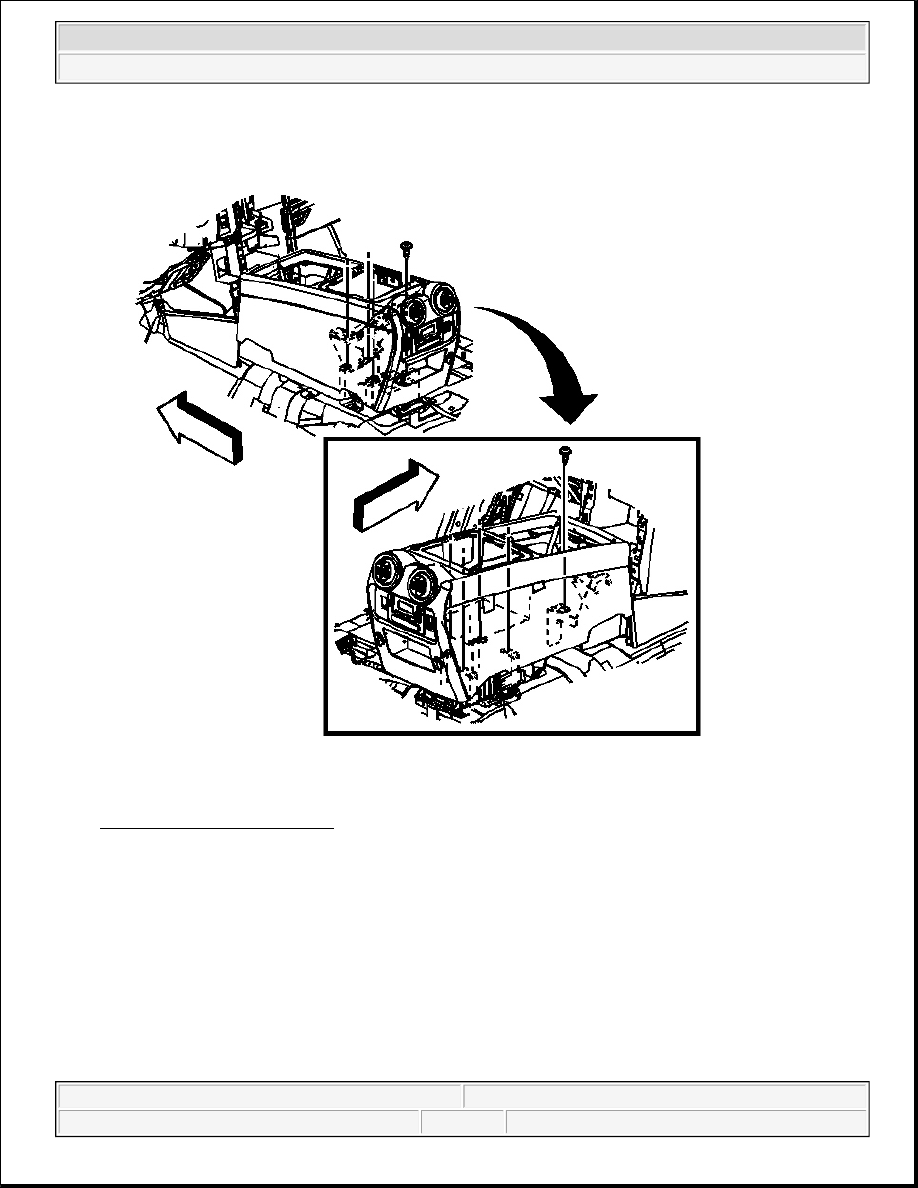

Fig. 115: Center Console Bolts
Courtesy of GENERAL MOTORS CORP.

3. Remove the bolts holding center console to center console bracket.
