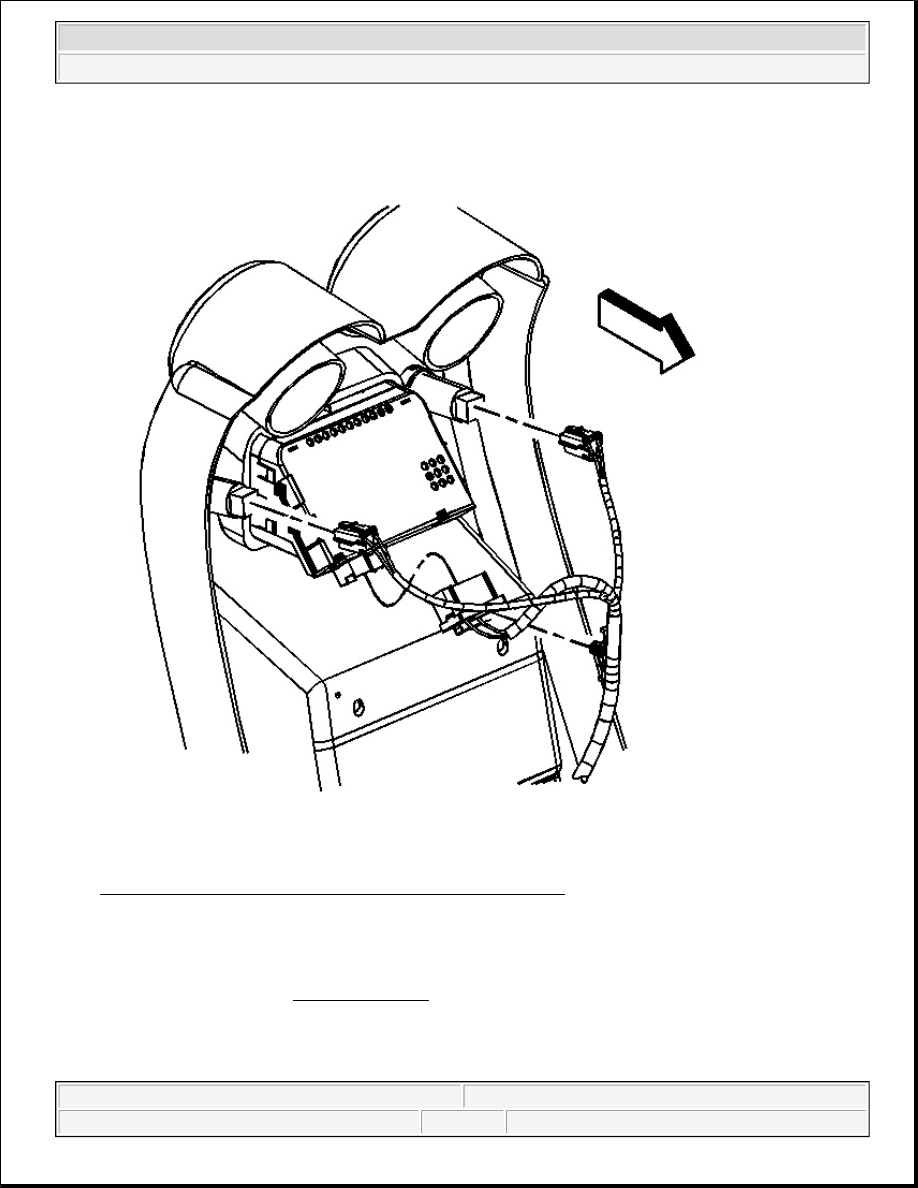

Fig. 120: Electrical Connectors & Center Console End Panel
Courtesy of GENERAL MOTORS CORP.

2. Disconnect electrical connectors to end panel.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



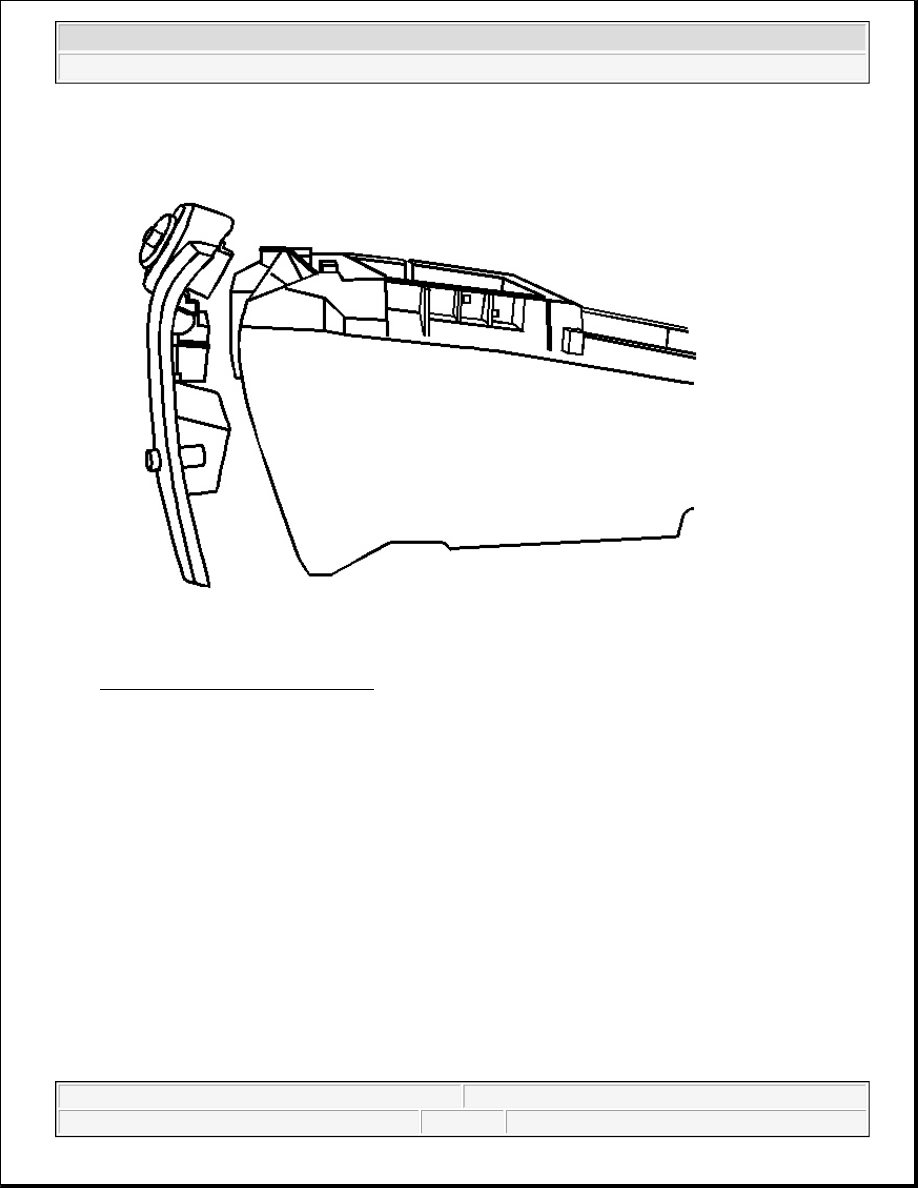

Fig. 121: Center Console End Panel
Courtesy of GENERAL MOTORS CORP.

3. Remove console end panel.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



Fig. 122: Electrical Connectors & Center Console End Panel
Courtesy of GENERAL MOTORS CORP.

1. Connect electrical connectors to console end panel.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



Fig. 123: Center Console End Panel
Courtesy of GENERAL MOTORS CORP.

2. Install the center console end panel.

3. Install the center console end panel screws.

Tighten: Tighten the screws to 1.6 N.m (14 lb in).

DESCRIPTION AND OPERATION

INSTRUMENT PANEL CLUSTER (IPC) DESCRIPTION AND OPERATION

Displays Test

Certain instrument panel cluster (IPC) features are tested when the ignition is turned on in order to verify the
features are working properly. The following indicators illuminate for 3 seconds:

z

The ABS indicator

z

The battery indicator
