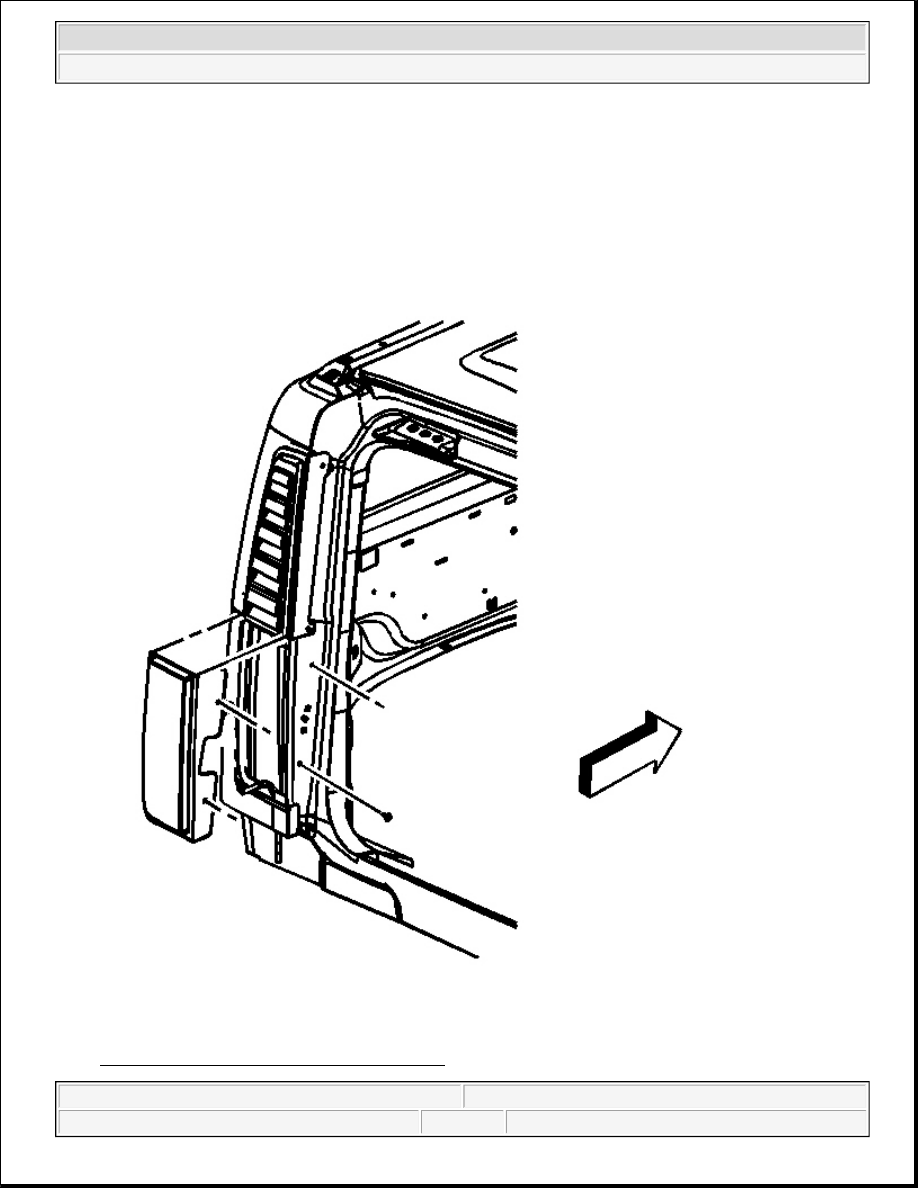

Fig. 118: Tail/Turn Signal Lamp Bulb (SUV)
Courtesy of GENERAL MOTORS CORP.

1. Remove the screws from the lamp.

2. Remove the lamp from the body.

3. Disconnect the electrical harness at the connector.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



4. Turn the bulb socket counterclockwise.

5. Remove the bulb from the socket.

Installation Procedure

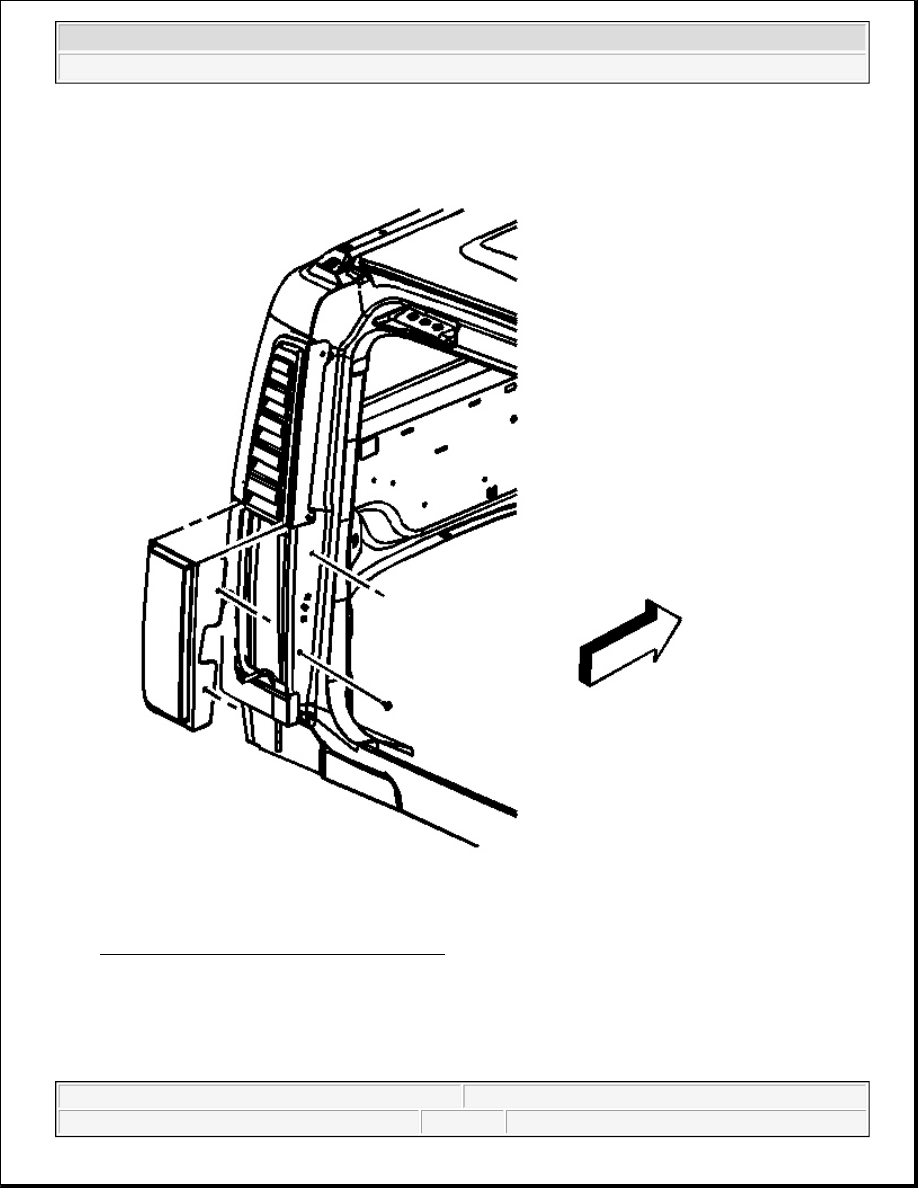

Fig. 119: Tail/Turn Signal Lamp Bulb (SUV)



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



Courtesy of GENERAL MOTORS CORP.

1. Install the bulb to the socket.

2. Turn the bulb socket clockwise in order to lock.

3. Connect the electrical harness at the connector.

4. Install the lamp to the body.

5. Install the screws to the lamp.

Tighten: Tighten the screws to 6 N.m (53 lb in).

TAIL LAMP GUARD REPLACEMENT - TUBULAR

Removal Procedure

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



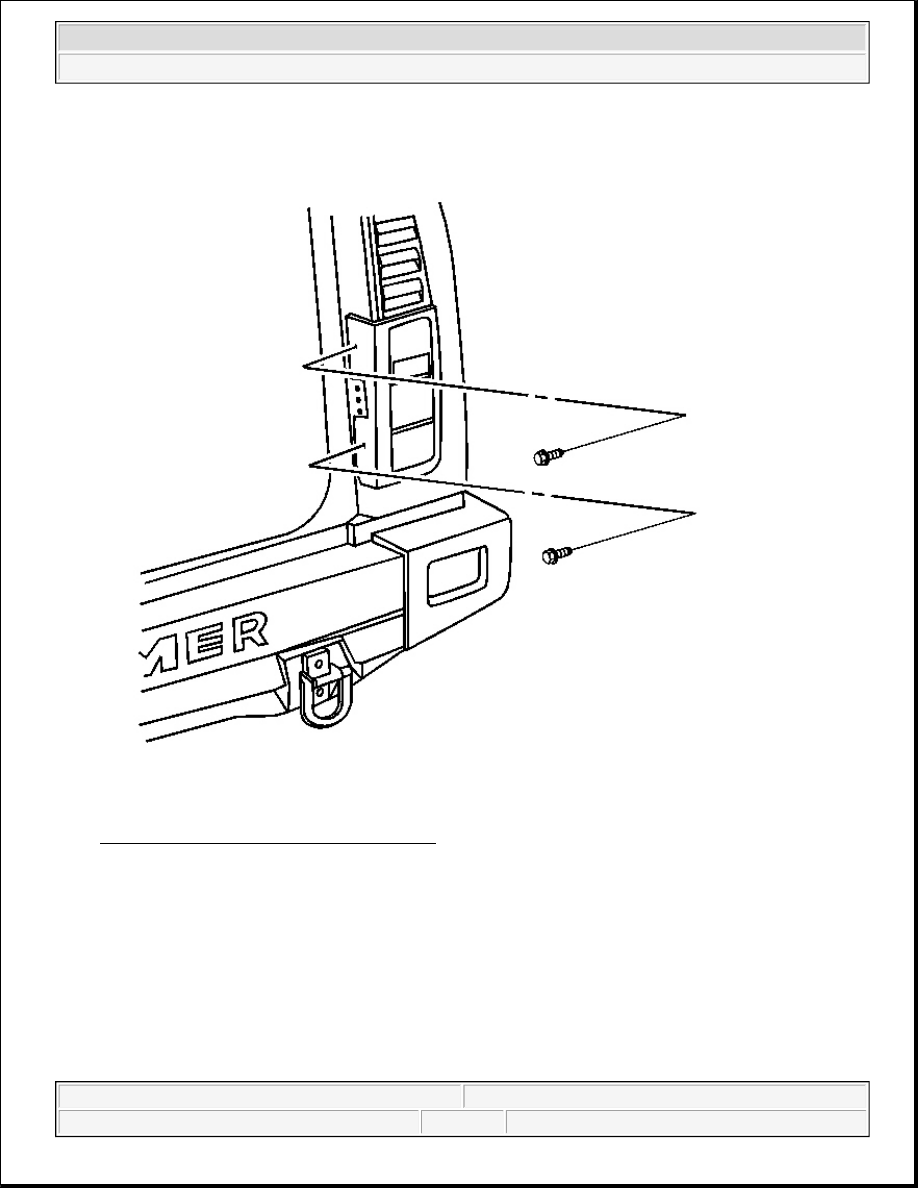

Fig. 120: Tubular Tail Lamp Guard Screws
Courtesy of GENERAL MOTORS CORP.

1. Open the liftgate.
