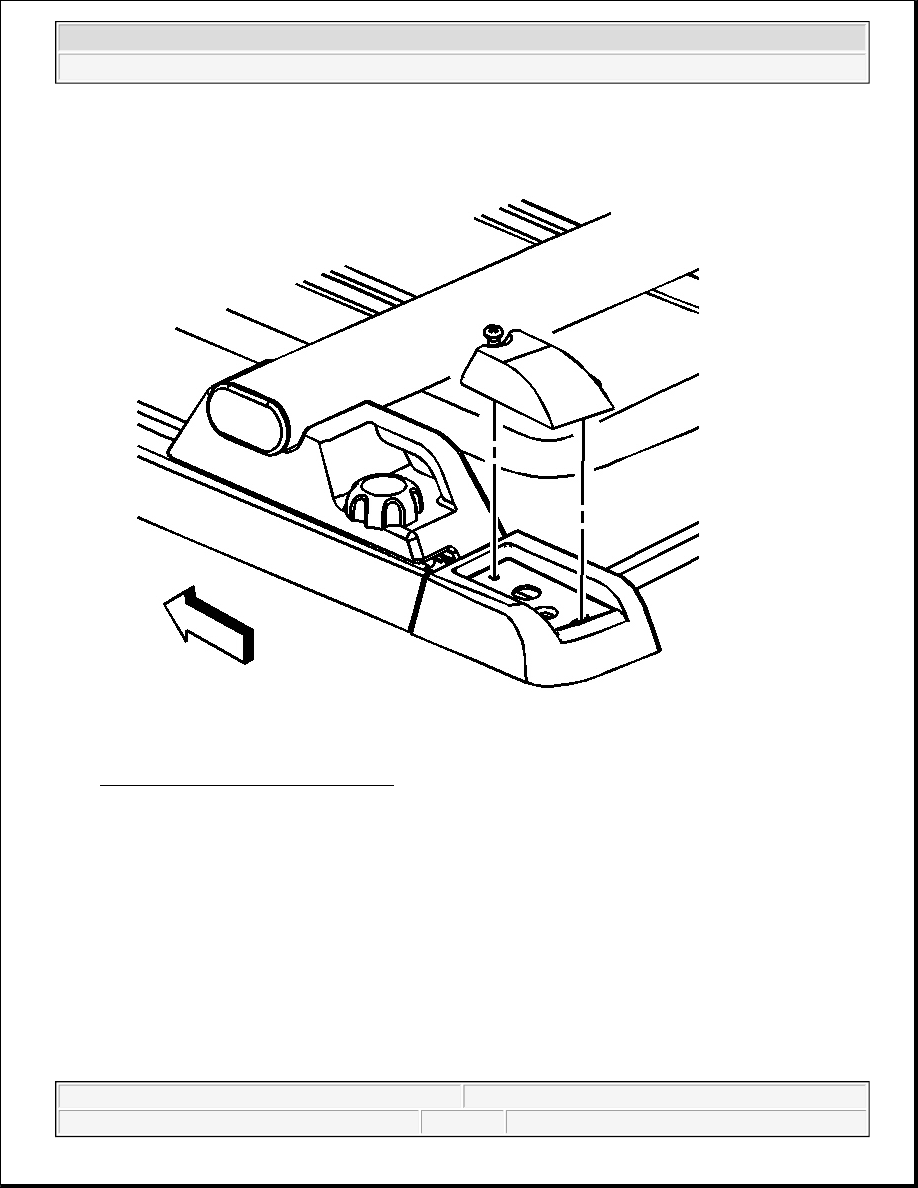

Fig. 112: Clearance Lamp Screw (SUV)
Courtesy of GENERAL MOTORS CORP.

1. Install the bulb.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2

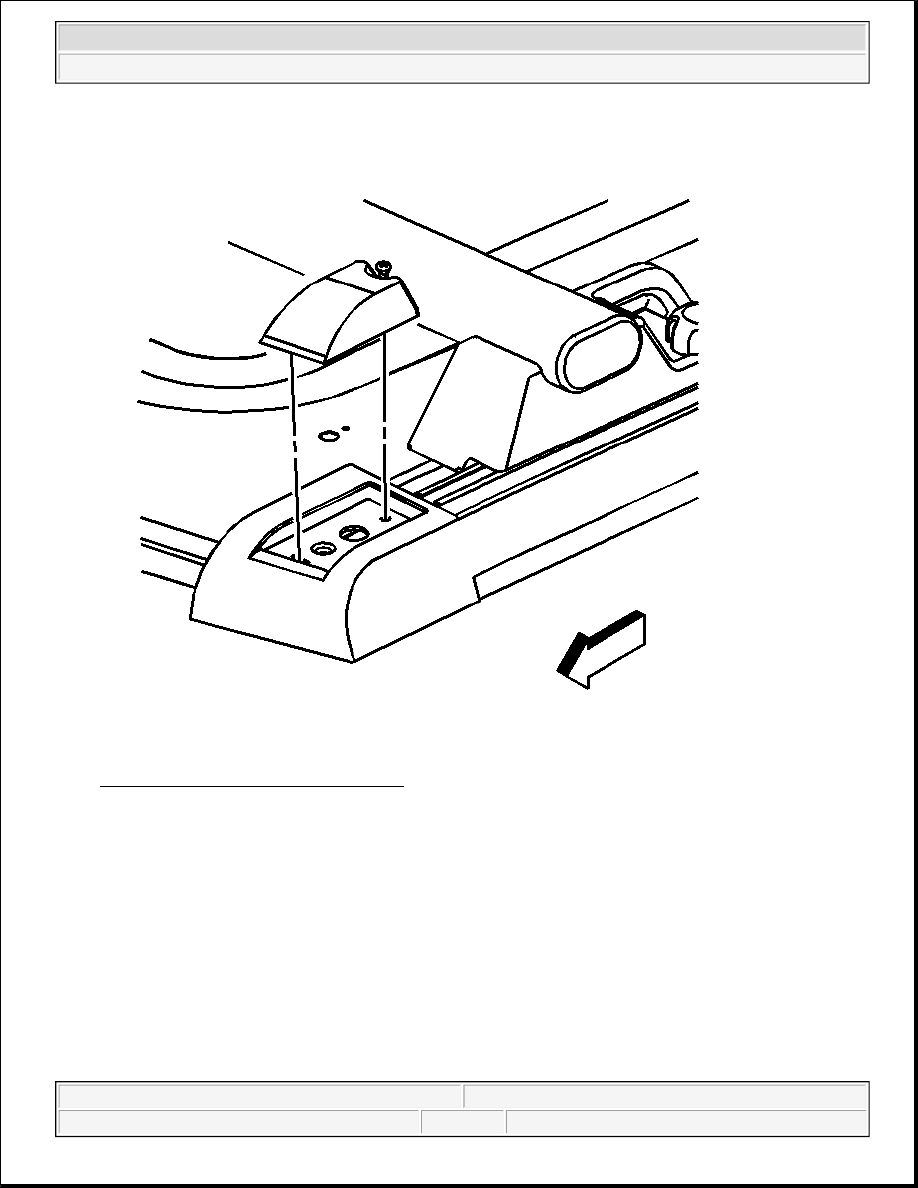

Fig. 113: Clearance Lamp Bulb (SUV)
Courtesy of GENERAL MOTORS CORP.

2. Install the lamp to the vehicle.

3. Install the bulb socket.

4. Install the lamp assembly by engaging the hook and tilting the assembly down into place.

5. Install the screw to the lamp assembly.

Tighten: Tighten the screw to 2.5 N.m (22 lb in).

HIGH MOUNTED STOP LAMP REPLACEMENT (SUV)

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



Removal Procedure

1. Remove the liftgate trim panel. Refer to Trim Panel Replacement - Liftgate in Body Rear End.

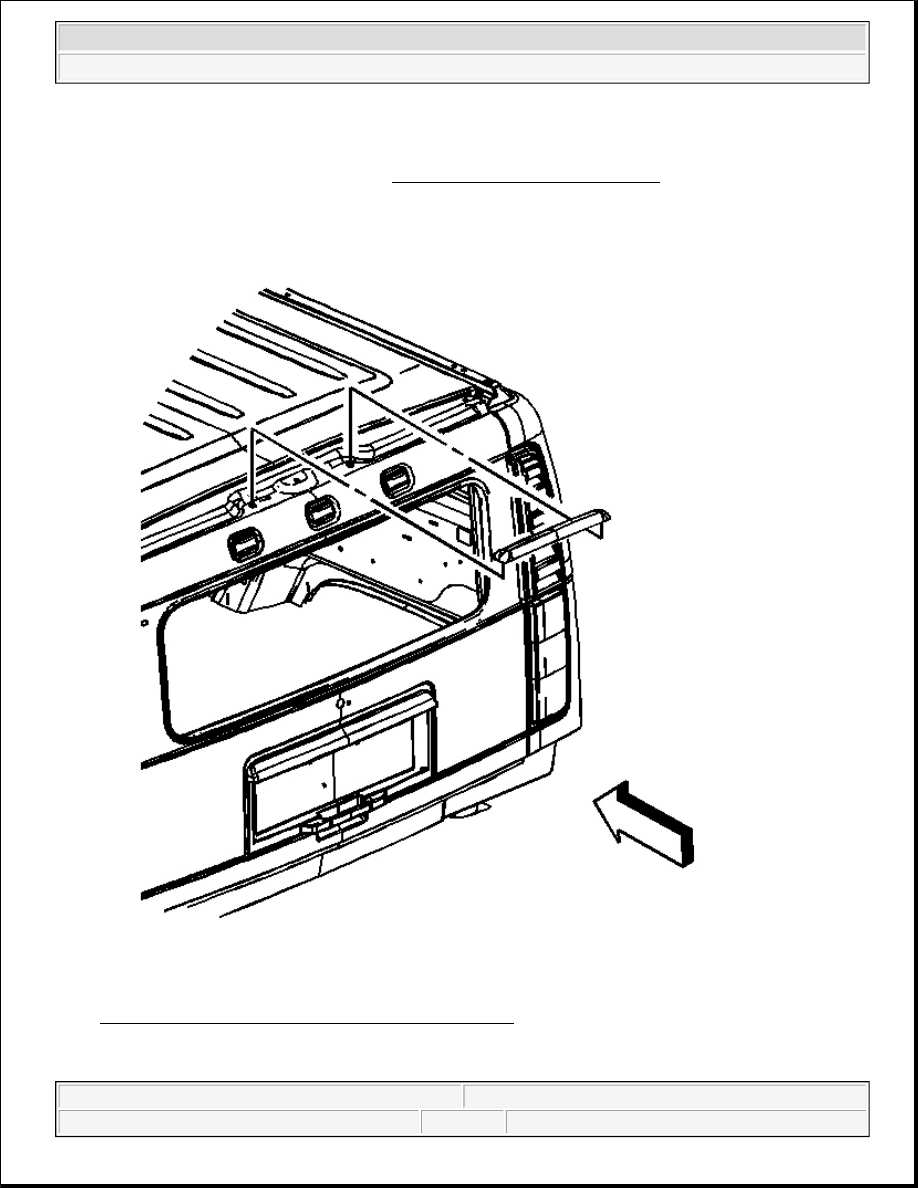

Fig. 114: High Mounted Stop Lamp & Harness (SUV)
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



2. Disconnect the electrical connector from the high mounted stop lamp.

3. Remove the retaining screws.

4. Remove the grommet from the liftgate.

5. Remove the lamp, with the attached harness, from the vehicle.

Installation Procedure

1. Install the lamp, with the attached harness, to the vehicle.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2
