8. Remove the bulb socket by turning the socket counterclockwise.

9. Remove the bulb.

Installation Procedure

1. Install the bulb.

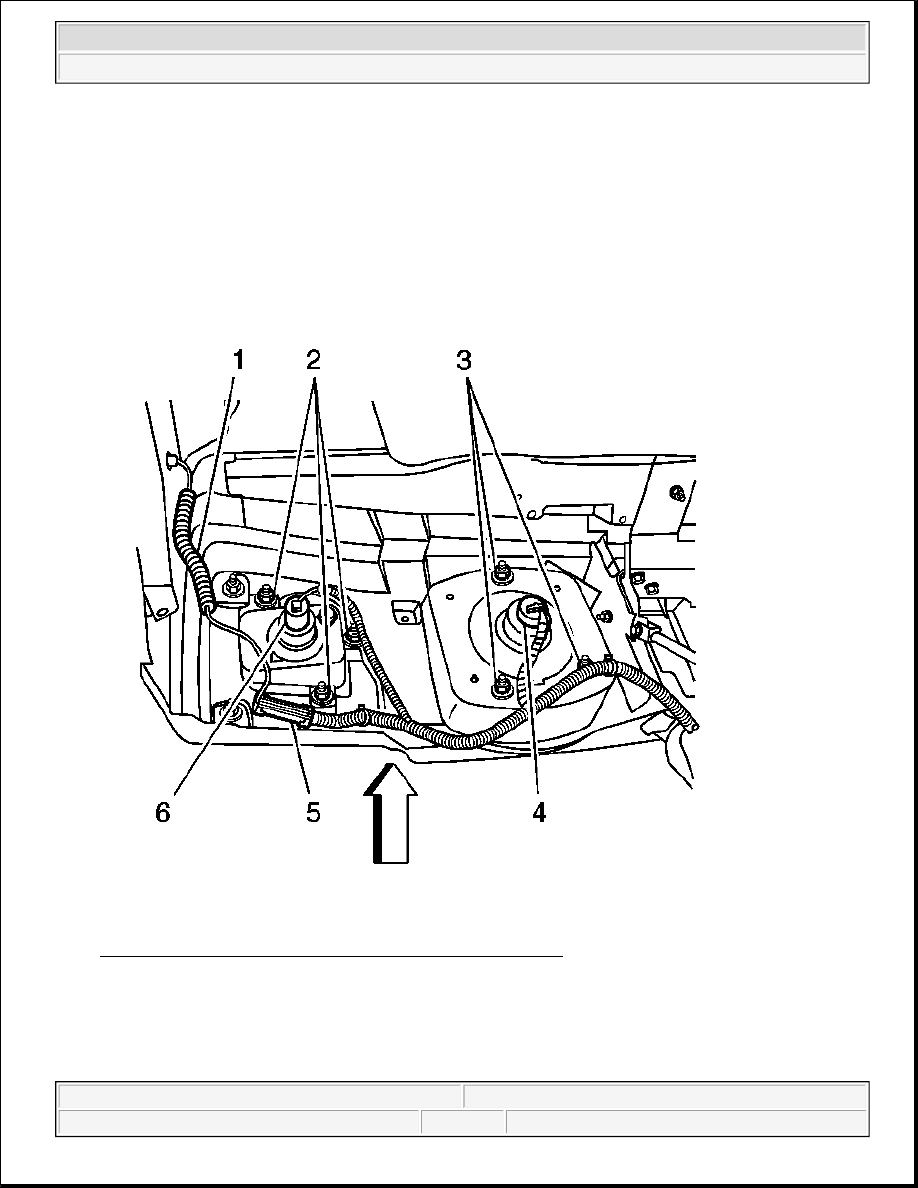

Fig. 105: Retaining Nuts & Connecting Electrical Connector
Courtesy of GENERAL MOTORS CORP.

2. Install the bulb socket (6) by turning the socket clockwise.

3. Install the lamp.

4. Open the hood.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



5. Install the retaining nuts (2).

Tighten: Tighten the nuts to 6 N.m (53 lb in).

6. Connect the electrical harness.

7. Close the hood.

8. Install the grille. Refer to Grille Replacement in Exterior Trim.

IDENTIFICATION LAMP REPLACEMENT (SUV)

Removal Procedure

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2

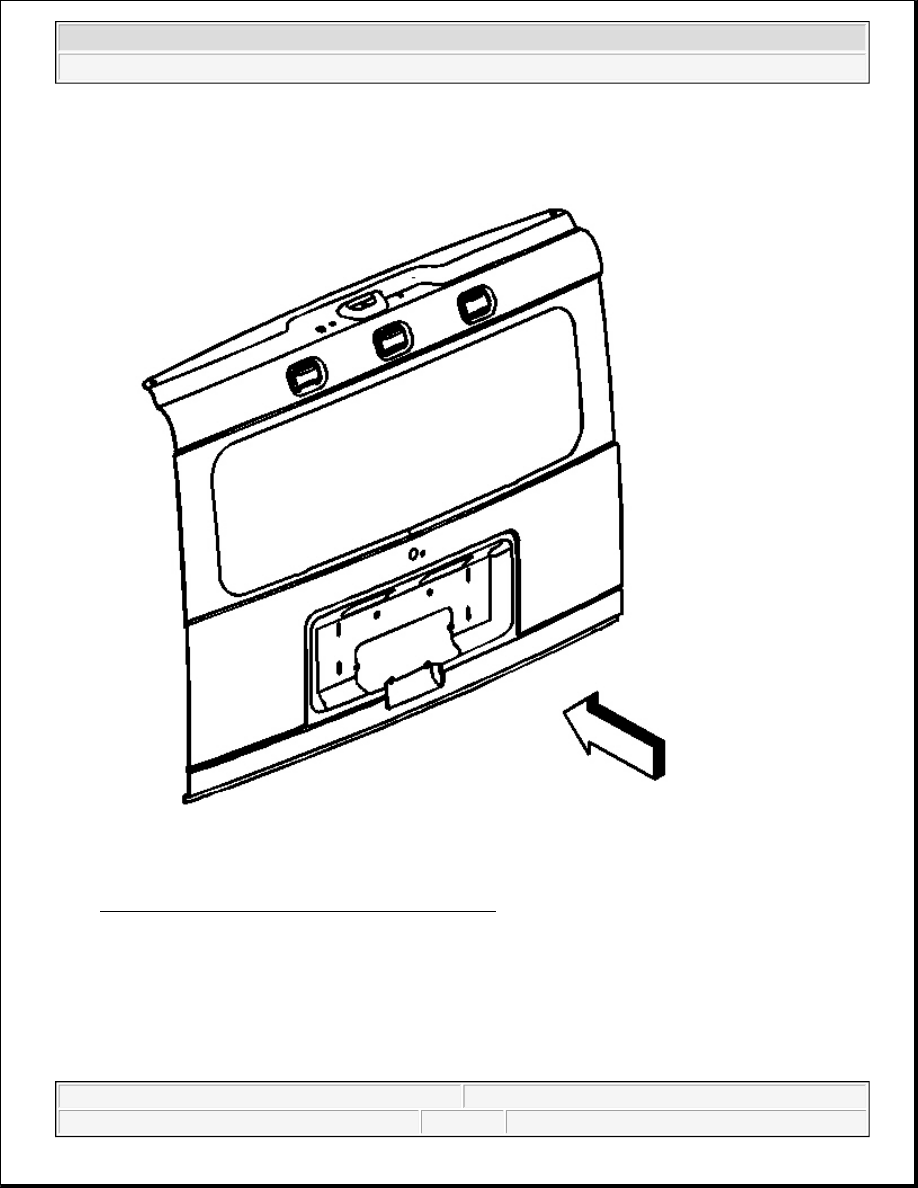

Fig. 106: Identification Lamp Retaining Clip (SUV)
Courtesy of GENERAL MOTORS CORP.

1. Insert a flat-bladed tool underneath the lamp on the notched side, to disengage the retaining clip.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2

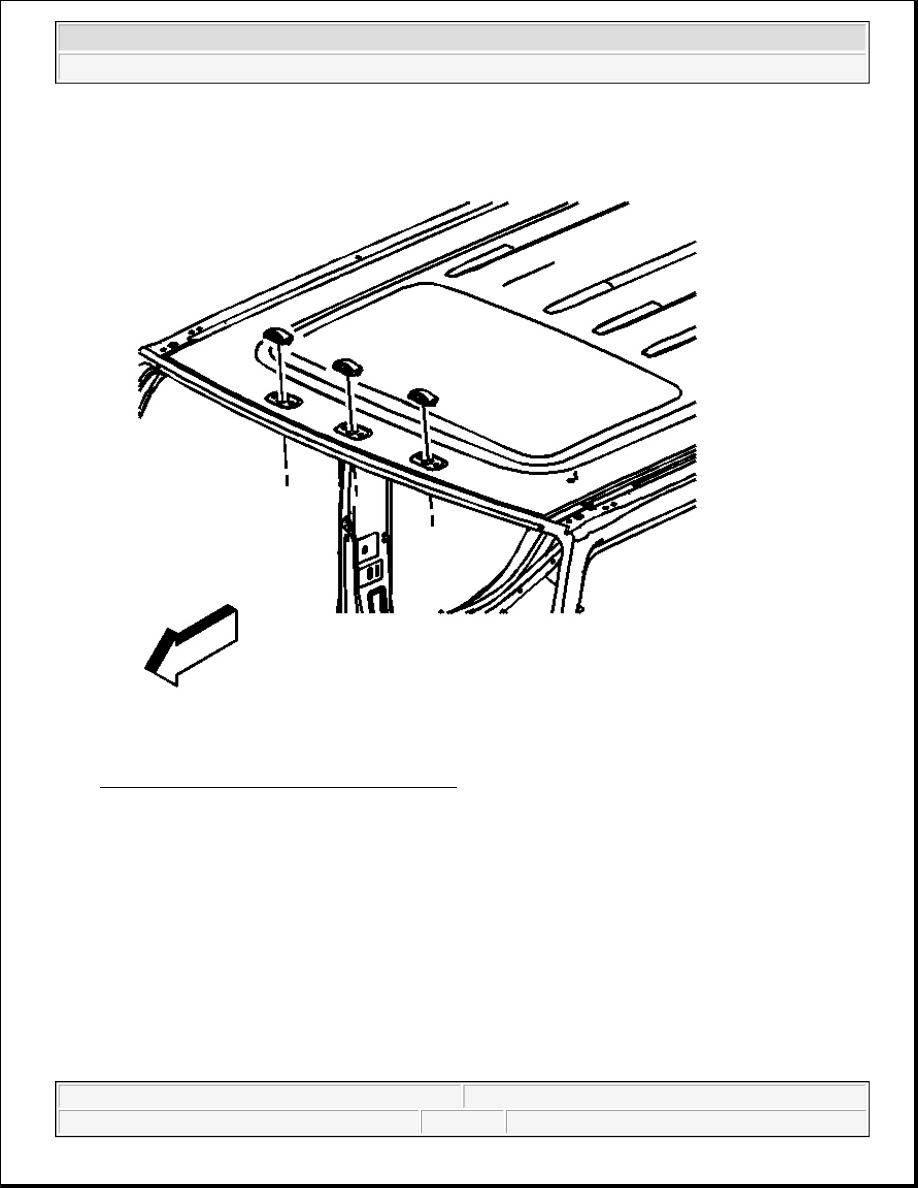

Fig. 107: Identification Lamp Assembly (SUV)
Courtesy of GENERAL MOTORS CORP.

2. Tilt the lamp back to disengage the hook.

3. Remove the electrical harness at the connector.

4. Remove the lamp from the vehicle.

5. Turn the bulb socket counterclockwise to remove the bulb from the lamp assembly.

6. Remove the bulb from the socket.

Installation Procedure
