Hummer H2. Manual - part 346

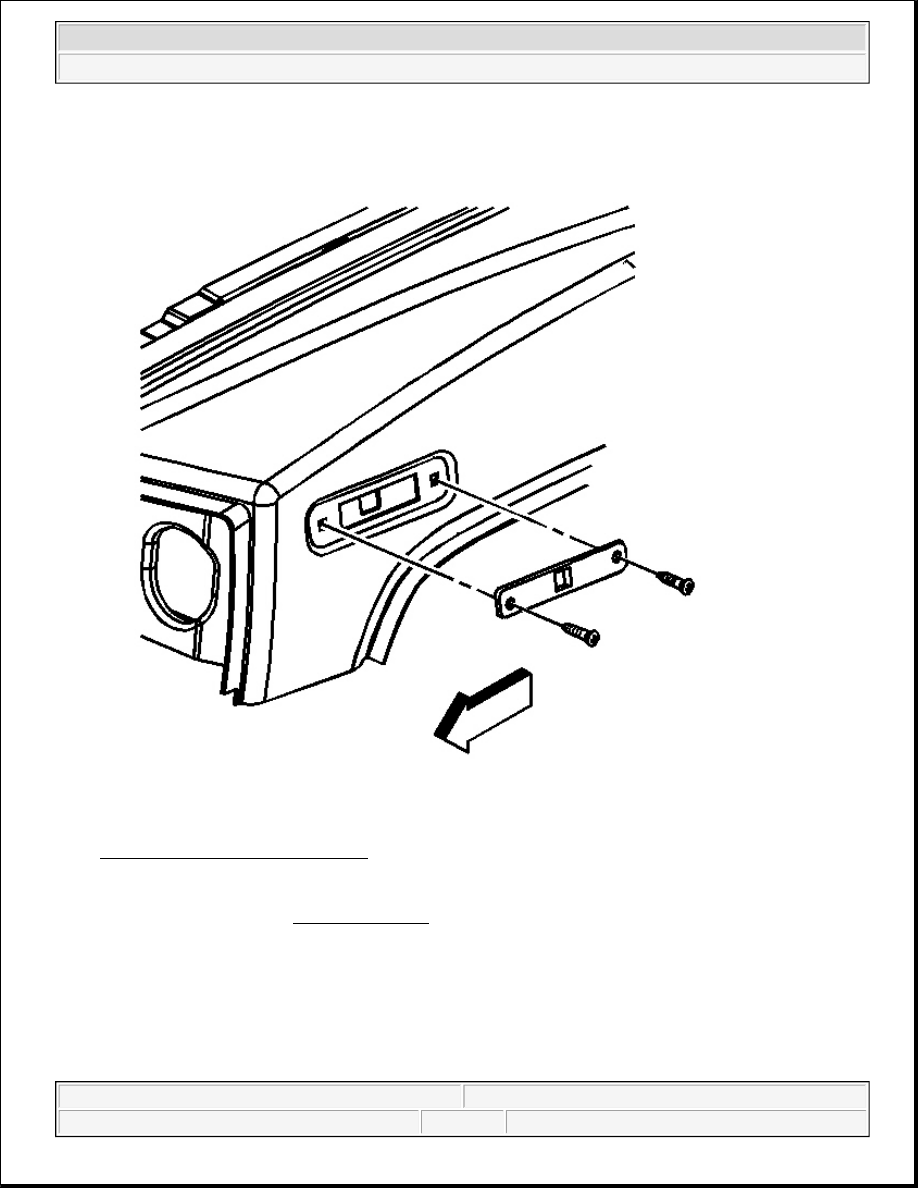

Fig. 101: Front Side Marker Lamp
Courtesy of GENERAL MOTORS CORP.

2. Install the screws to the lamp housing.

Tighten: Tighten the screws to 3 N.m (26 lb in).

3. Connect the electrical connector and secure the harness.

4. Close the hood.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



MARKER LAMP REPLACEMENT - REAR SIDE (SUV)

Removal Procedure

1. Remove the interior trim panel. Refer to Door Sill Plate Replacement - Rear .

2. Remove the wiring harness fastener from the body.

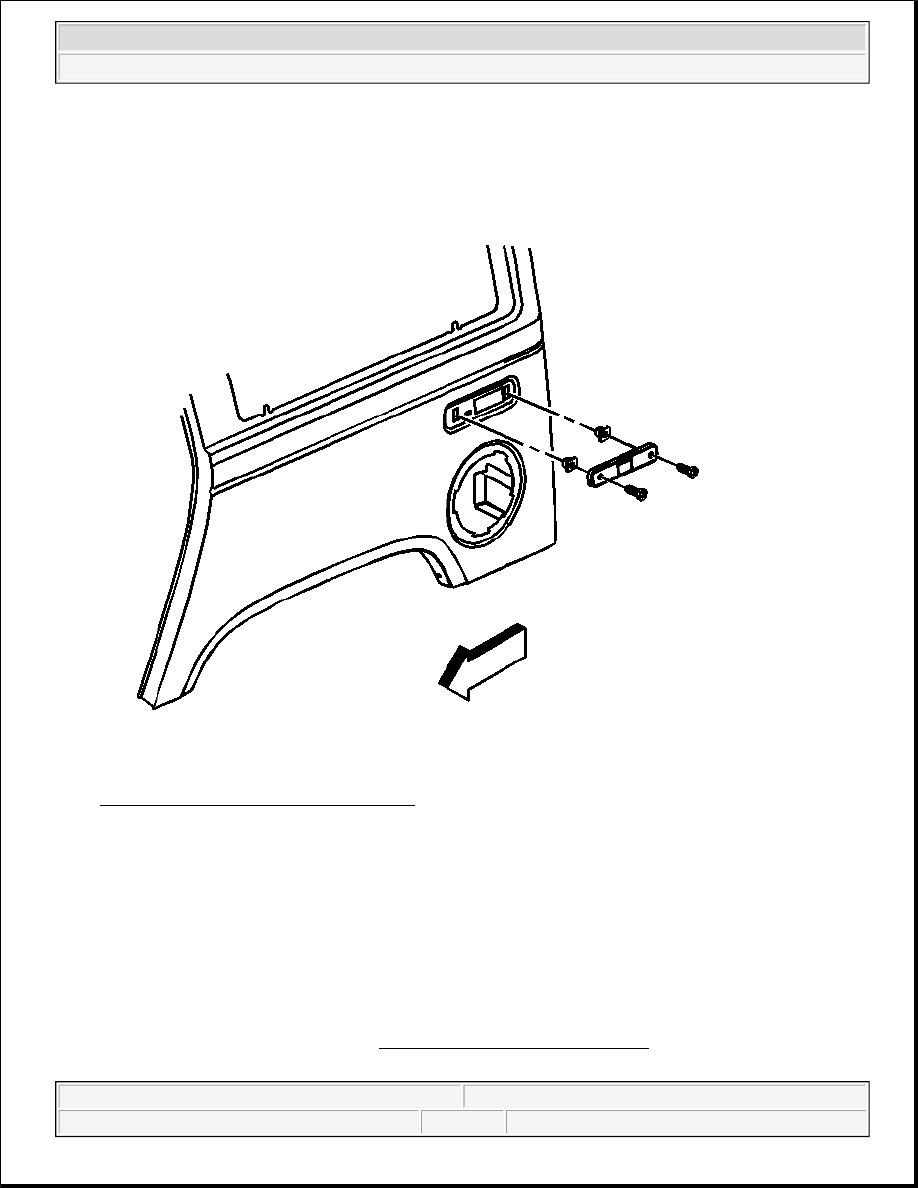

Fig. 102: Rear Side Marker Lamp (SUV)
Courtesy of GENERAL MOTORS CORP.

3. Disconnect the electrical connector.

4. Remove the screws from the lamp.

5. Remove the lamp, with the attached harness, from the vehicle.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



1. Install the lamp, with the attached harness, to the vehicle.

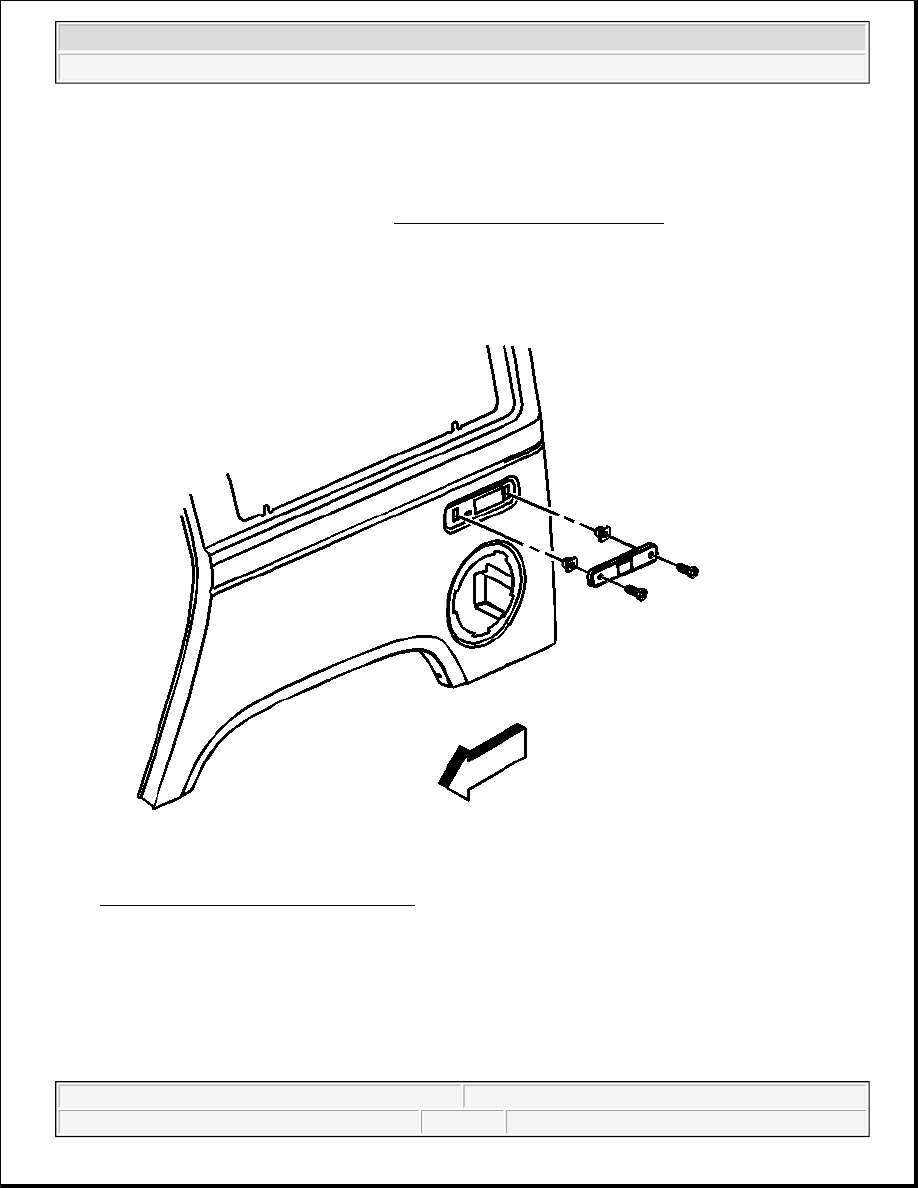

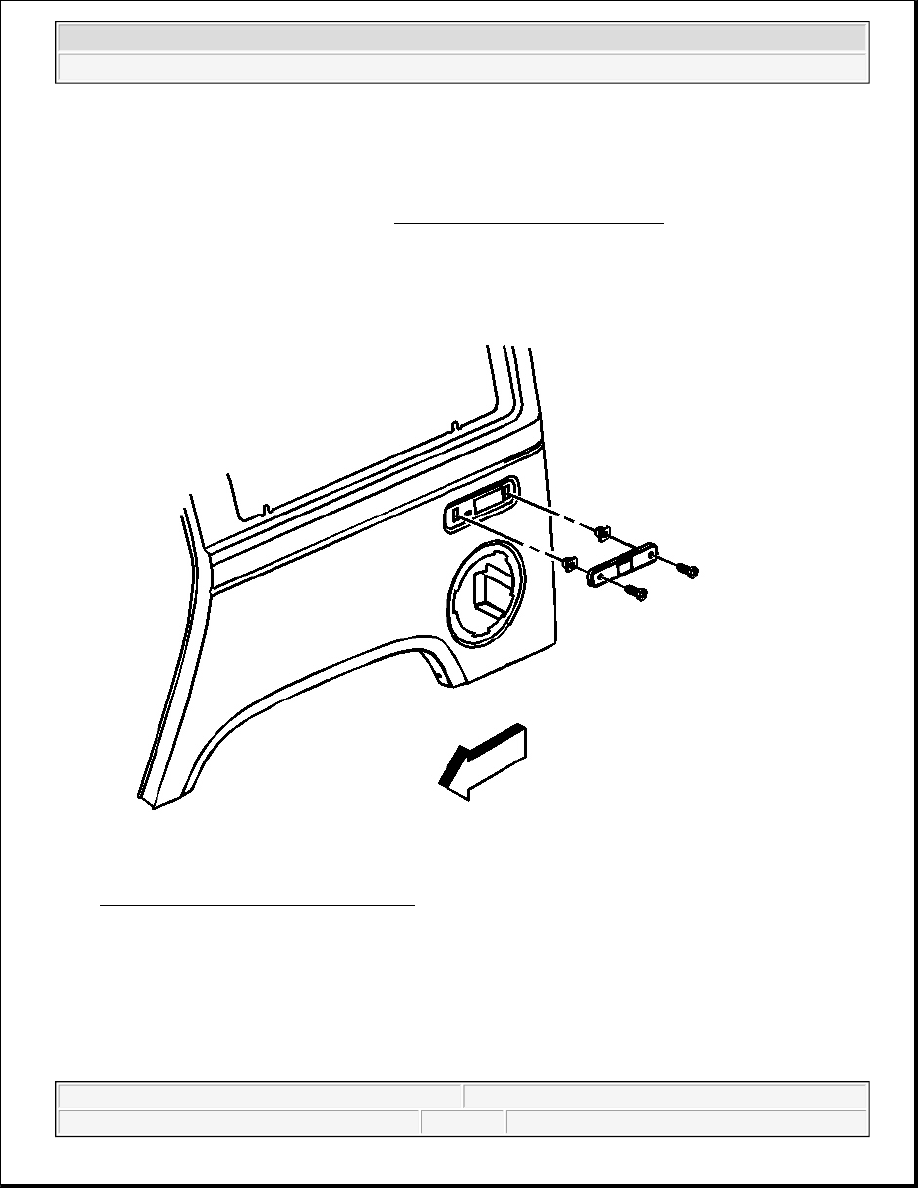

Fig. 103: Rear Side Marker Lamp (SUV)
Courtesy of GENERAL MOTORS CORP.

2. Install the screws to the lamp.

Tighten: Tighten the screws to 3 N.m (26 lb in).

3. Connect the electrical connector.

4. Install the wiring harness fastener to the body.

5. Install the interior trim panel. Refer to Door Sill Plate Replacement - Rear .

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



PARK/TURN SIGNAL LAMP REPLACEMENT (SUV)

Removal Procedure

1. Remove the grille. Refer to Grille Replacement in Exterior Trim.

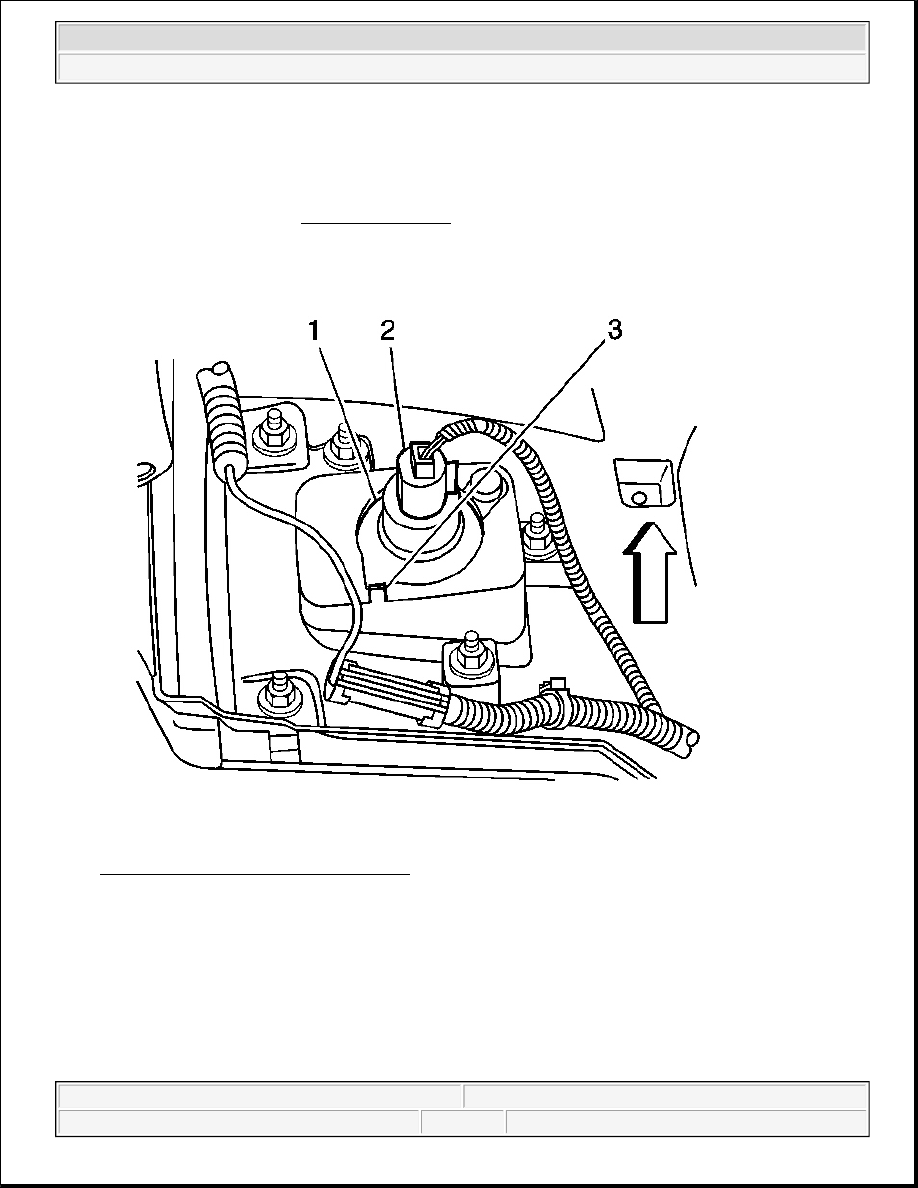

Fig. 104: Park/Turn Signal Lamp (SUV)
Courtesy of GENERAL MOTORS CORP.

2. Open the hood.

3. Remove the retaining nuts.

4. Disconnect the electrical harness connector (2).

5. Disengage the retaining clips.

6. Close the hood.

7. Remove the lamp.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2
