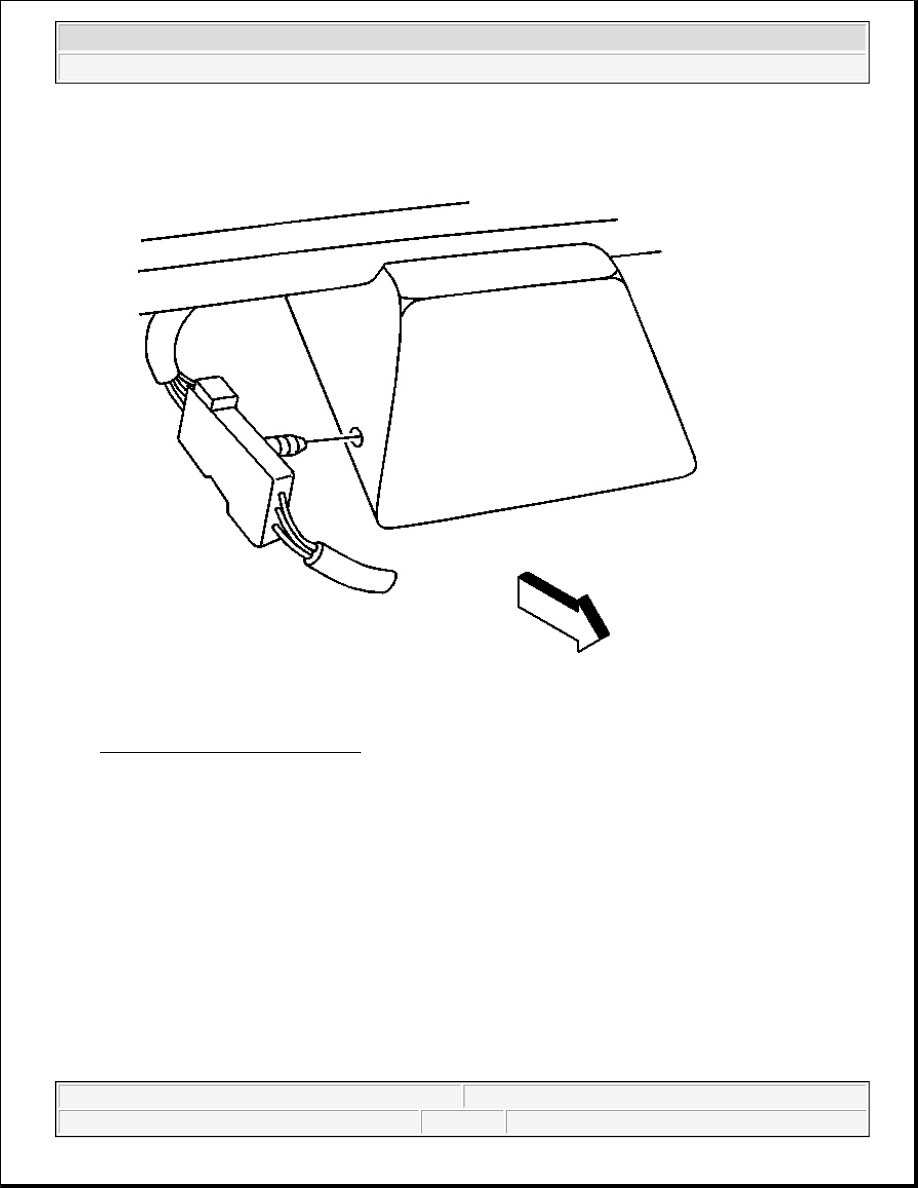

Fig. 98: Connector Retention Clip
Courtesy of GENERAL MOTORS CORP.

21. Insert connector retention clip on the connector into the hole on the drivers' side lamp bar assembly

stanchion.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2

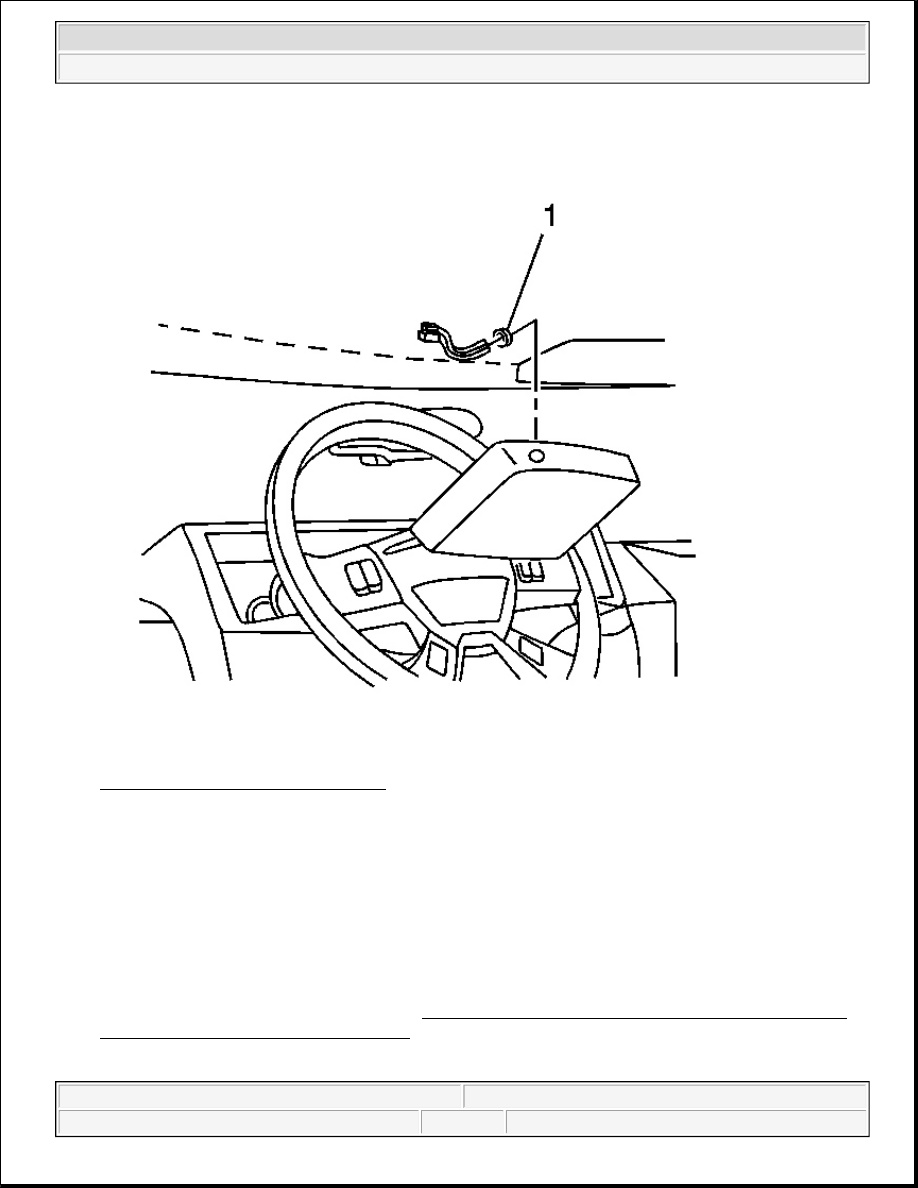

Fig. 99: Roof Lamp Wire Connectors
Courtesy of GENERAL MOTORS CORP.

22. Inside the vehicle, guide the 3 individual wire connectors running out of the headliner through the power

switch nut (1) and through the hole from the inside of the overhead center console.

23. Insert the individual wire connectors into the terminals of the power switch, and insert the switch into the

overhead center console. Hand tighten the power switch nut securely. Wires are to be placed in this order:

z

Terminal 1= Blue Wire

z

Terminal 2= Yellow Wire

z

Terminal 3= Black Wire

24. Install the overhead center console. Refer to Console Replacement - Overhead (Full Length)Console

Replacement - Overhead (Short Length) in Interior Trim.

25. Locate the harness connector for the overhead clearance lamp that was disconnected in step 15, and



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



connect to the new harness. Guide the remaining 2 connectors down to underneath the dash.

26. Once the wires have been routed under the dash, locate the connectors on the body harness.

27. Insert one wire and connector from roof lamp harness into one wire and connector in the body harness.

Connect the remaining connectors. Tie wrap any loose wires securely to prevent squeaks, rattles, or wire
damage.

28. Replace the windshield pillar garnish molding. Refer to Garnish Molding Replacement - Windshield

Pillar in Interior Trim.

29. Replace the sunshade. Refer to Sunshade Replacement in Interior Trim.

30. Operate lights and inspect for proper operation.

MARKER LAMP BULB REPLACEMENT - SIDE

The side marker lamps on this vehicle use an LED type system. If the lamp fails, it must be replaced as an
assembly. There are no conventional type bulbs to replace.

MARKER LAMP REPLACEMENT - FRONT SIDE

Removal Procedure

1. Open the hood.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2

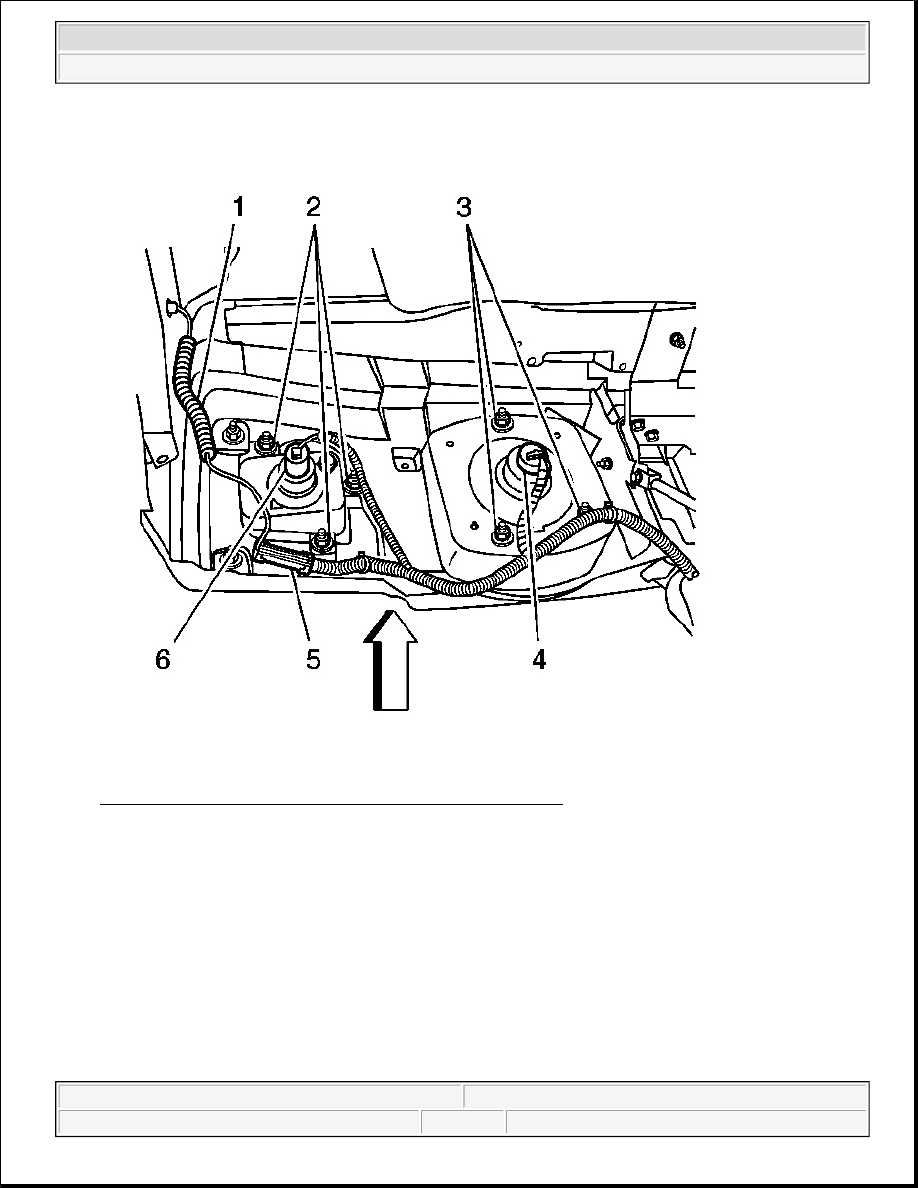

Fig. 100: Retaining Nuts & Connecting Electrical Connector
Courtesy of GENERAL MOTORS CORP.

2. Disconnect the electrical connector (5).

3. Remove the screws from the lamp housing.

4. Remove the lamp, with the attached harness (1), from the hood.

Installation Procedure

1. Install the lamp, with the attached harness, to the hood.
