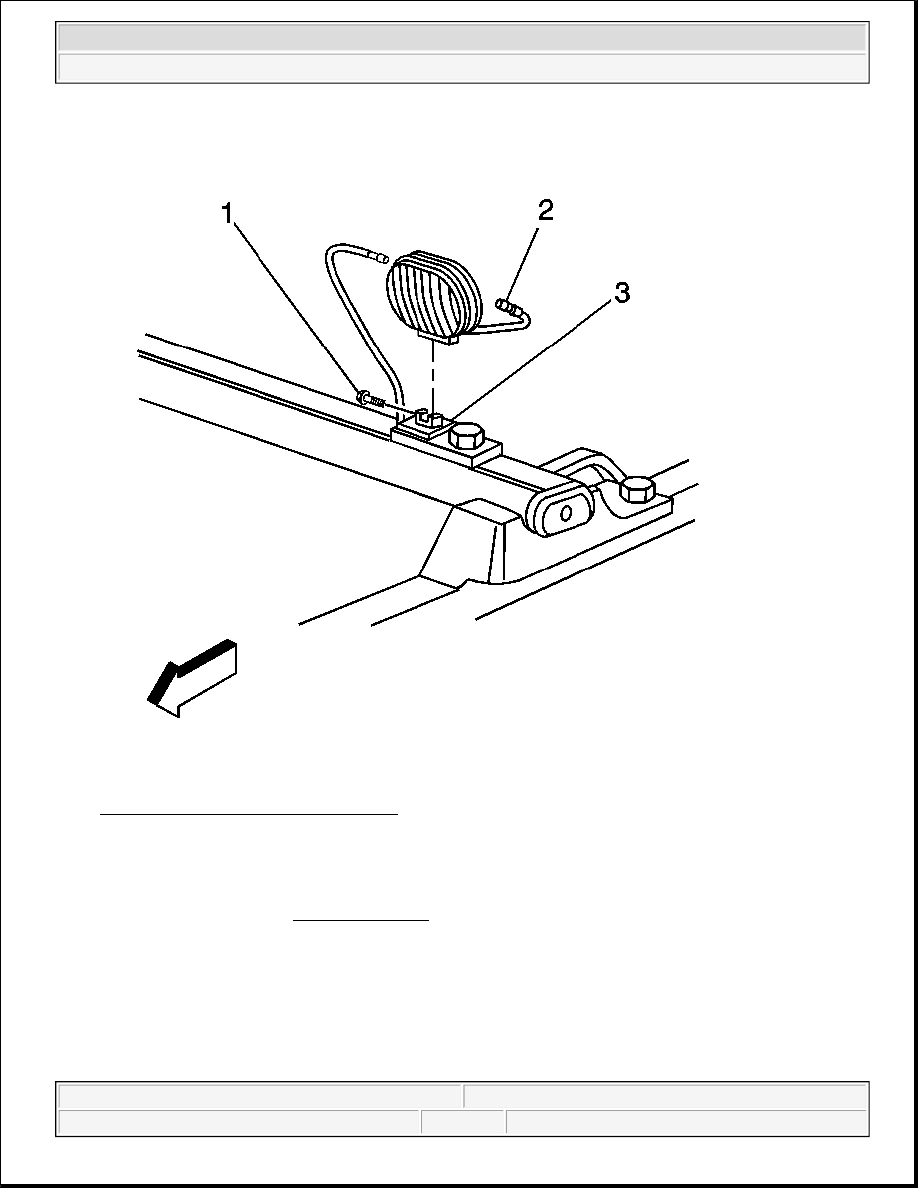

Fig. 90: Lamps & Lamp Bar Assembly
Courtesy of GENERAL MOTORS CORP.

1. Install the lamps into the U-brackets of the lamp bar assembly.

2. Install the bolts (1) through the U-brackets and the lamps.

Tighten: Tighten the bolts to 15 N.m (11 lb ft).

3. Connect the lamp electrical connectors (2), and snap the connectors into the retainers on the back of the

lamp stanchions (3).

NOTE:

Refer to Fastener Notice in Cautions and Notices.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2

If equipped, remove the luggage carrier roof rails. Refer to Luggage Carrier Replacement (SUV) .

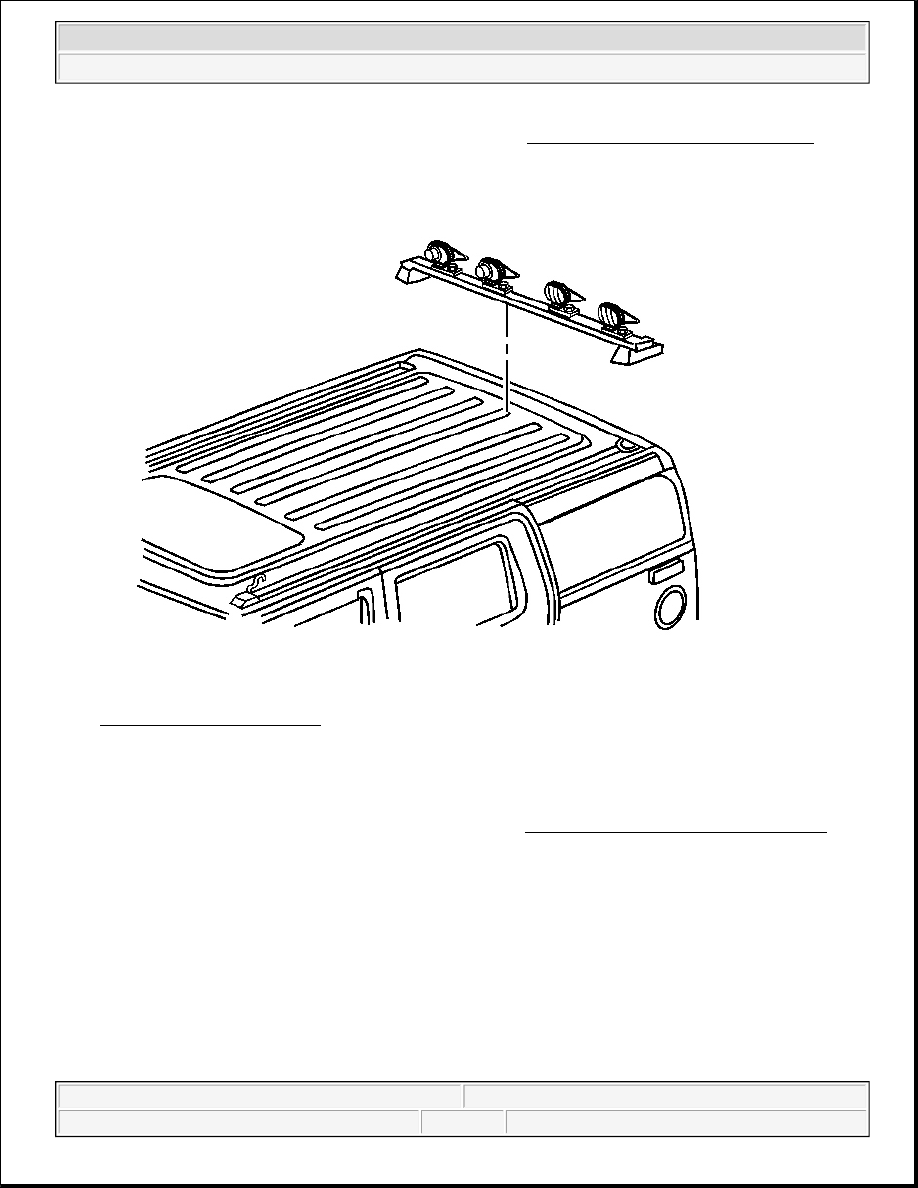

Fig. 91: Lamp Bar Assembly
Courtesy of GENERAL MOTORS CORP.

4. Guide the lamp bar assembly, with the lamps installed, onto the roof through the openings in the roof

rails.

5. If equipped, replace the luggage carrier roof rails. Refer to Power Roof Systems Component Views in

Roof.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2

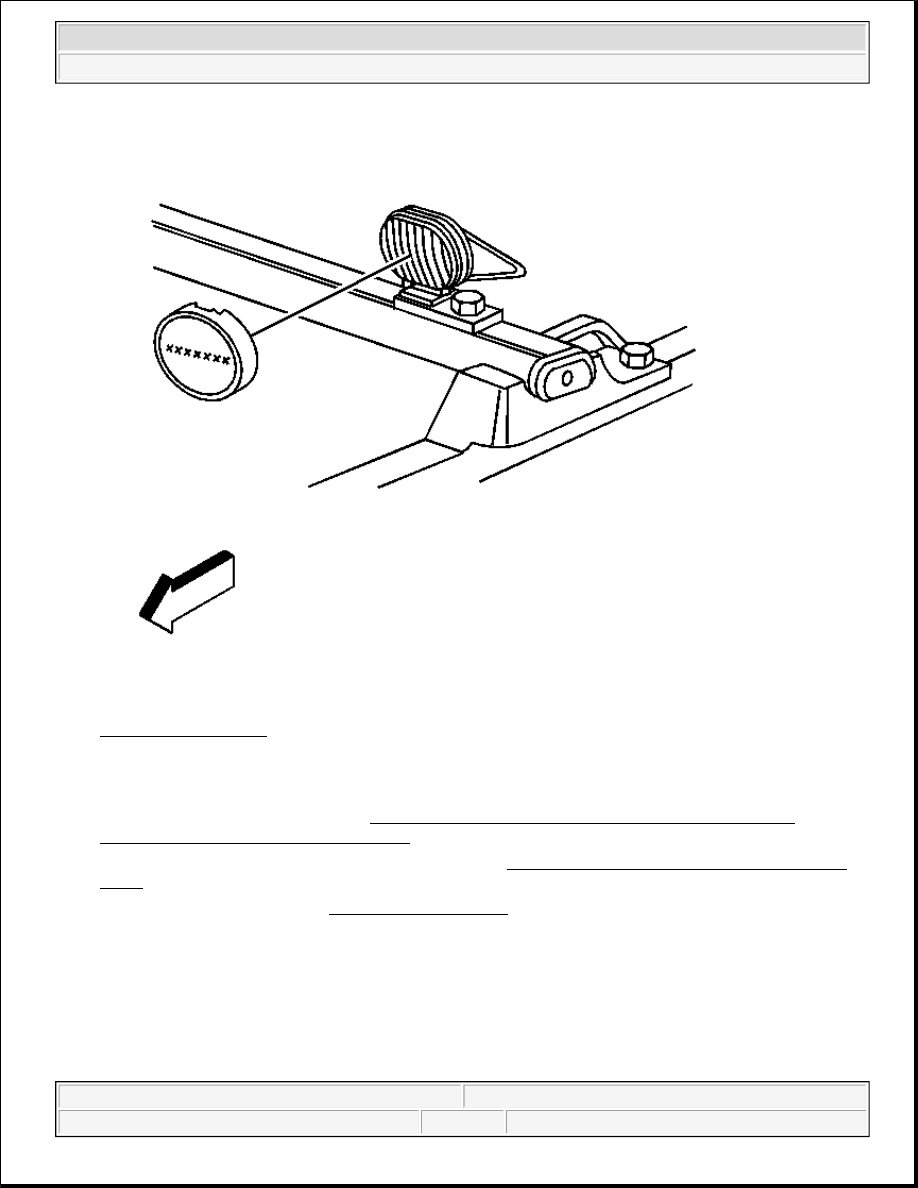

Fig. 92: Lamp Covers
Courtesy of GENERAL MOTORS CORP.

6. Install the lamp covers.

7. Remove the overhead console. Refer Console Replacement - Overhead (Full Length)Console

Replacement - Overhead (Short Length) in Interior Trim.

8. Remove the windshield pillar garnish molding. Refer to Garnish Molding Replacement - Windshield

Pillar in Interior Trim.

9. Remove the sunshade. Refer to Sunshade Replacement in Interior Trim.

10. Route the section of the body harness containing the three individual wire connectors up the windshield

pillar and through the headliner into the overhead console opening.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2

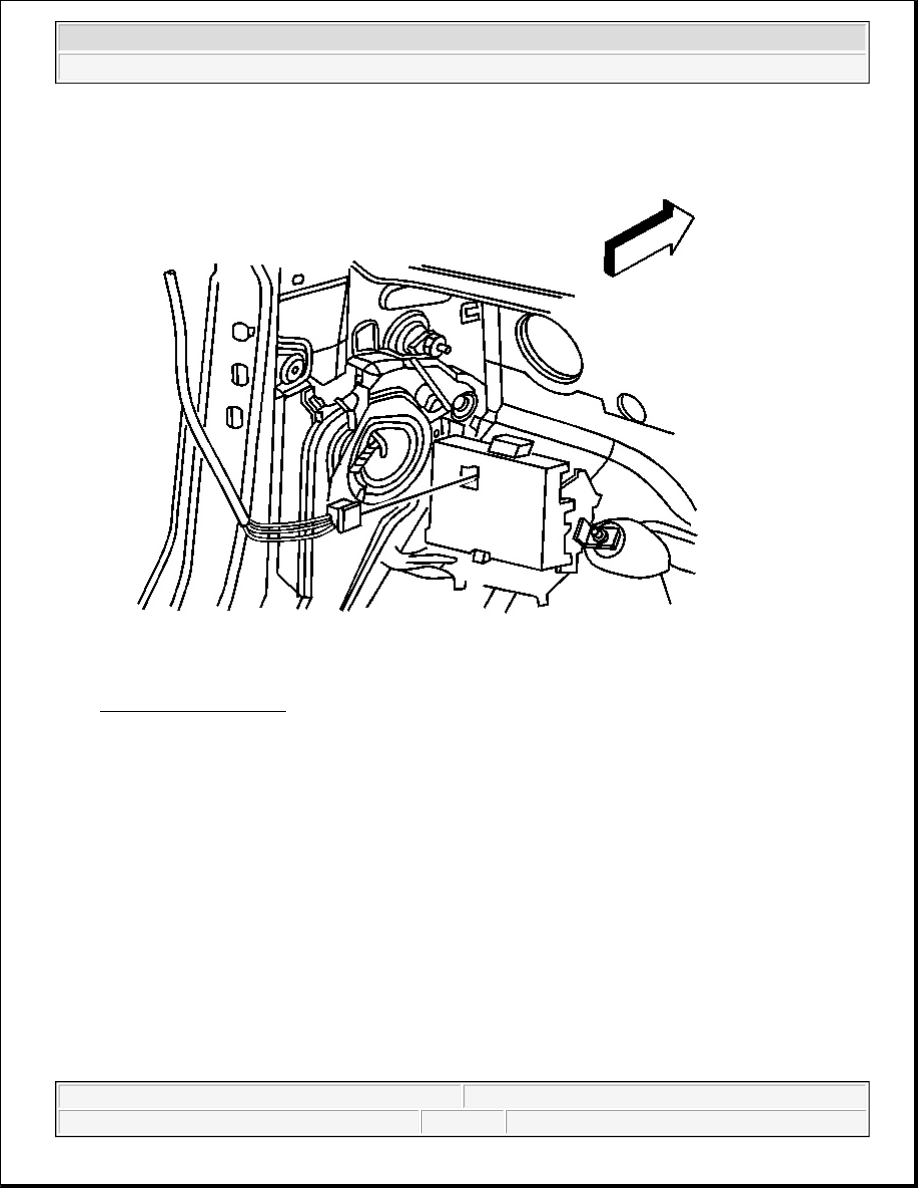

Fig. 93: Harness Section
Courtesy of GENERAL MOTORS CORP.

11. Route the section of the harness with the connector under the dashboard, and connect into the Z82

location of the MidBec (trailer wiring connector), ensuring the connector is fully seated.
