Hummer H2. Manual - part 341

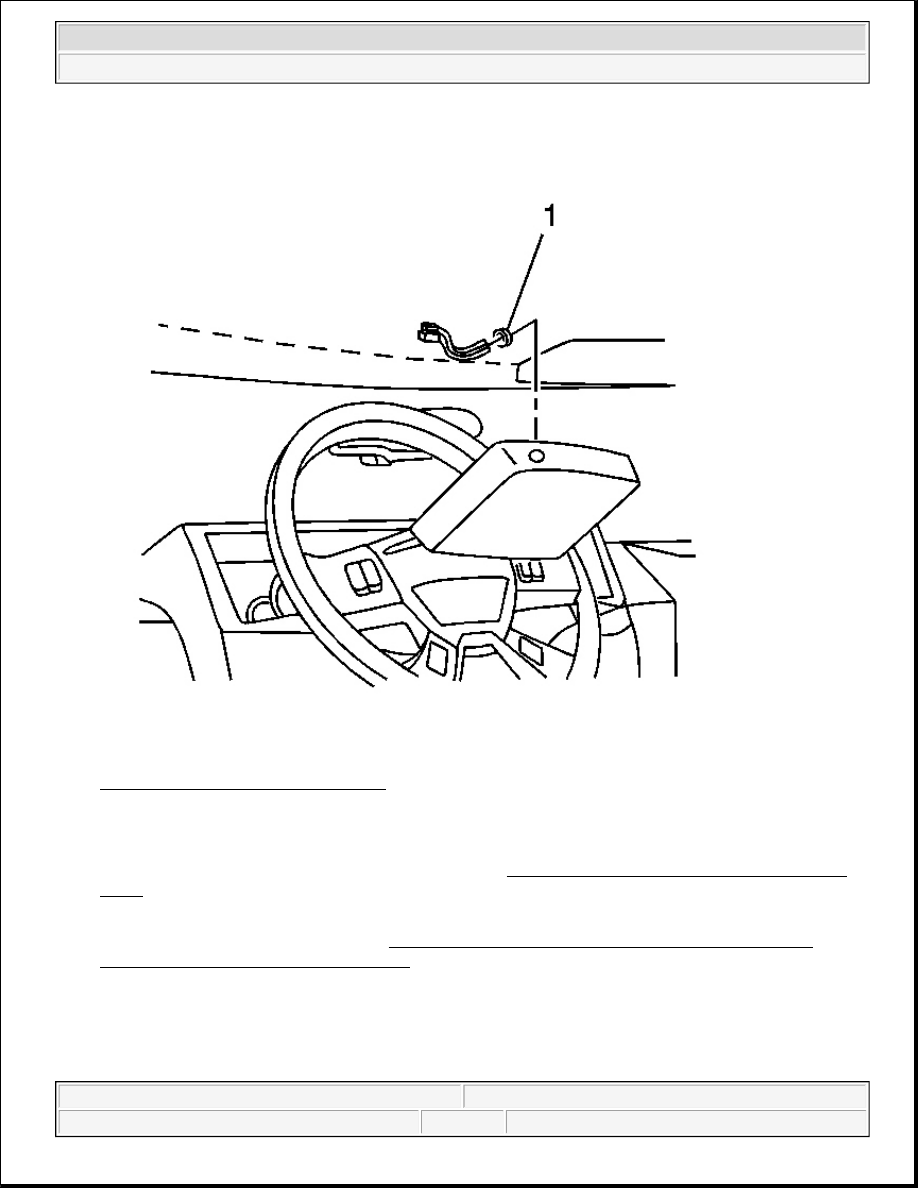

Fig. 82: Roof Lamp Wire Connectors
Courtesy of GENERAL MOTORS CORP.

1. Remove the sunshade.

2. Remove the windshield pillar garnish molding. Refer to Garnish Molding Replacement - Windshield

Pillar in Interior Trim.

3. Disconnect the body harness roof lamp wire connectors.

4. Remove the overhead console. Refer to Console Replacement - Overhead (Full Length)Console

Replacement - Overhead (Short Length) in Interior Trim.

5. Remove the power switch nut.

6. Remove the power switch.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



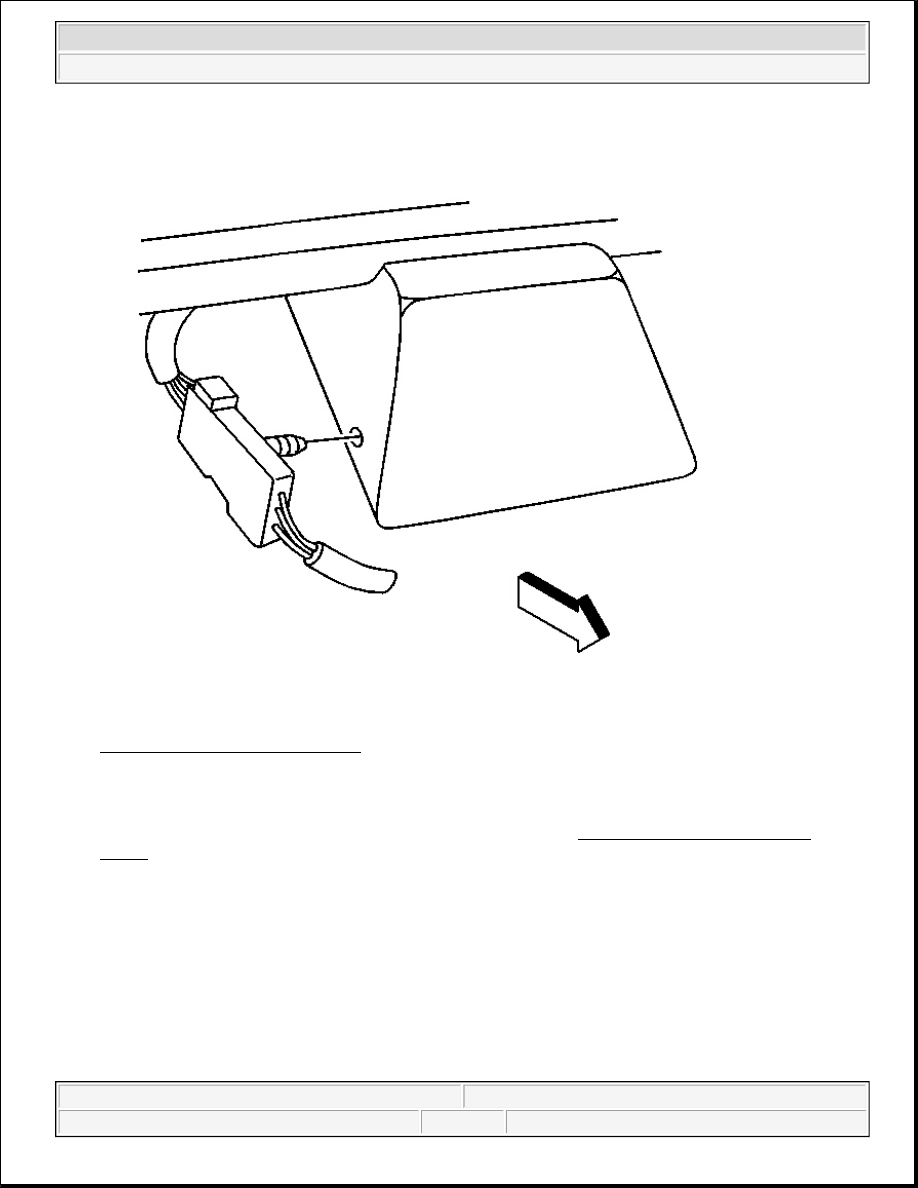

Fig. 83: Connector Retention Clip
Courtesy of GENERAL MOTORS CORP.

7. Remove the connector retention clip from the hole in the driver's side lamp bar assembly stanchion.

8. Remove the clearance lamp bulb and the clearance lamp. Refer to Clearance Lamp Replacement

(SUV) .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



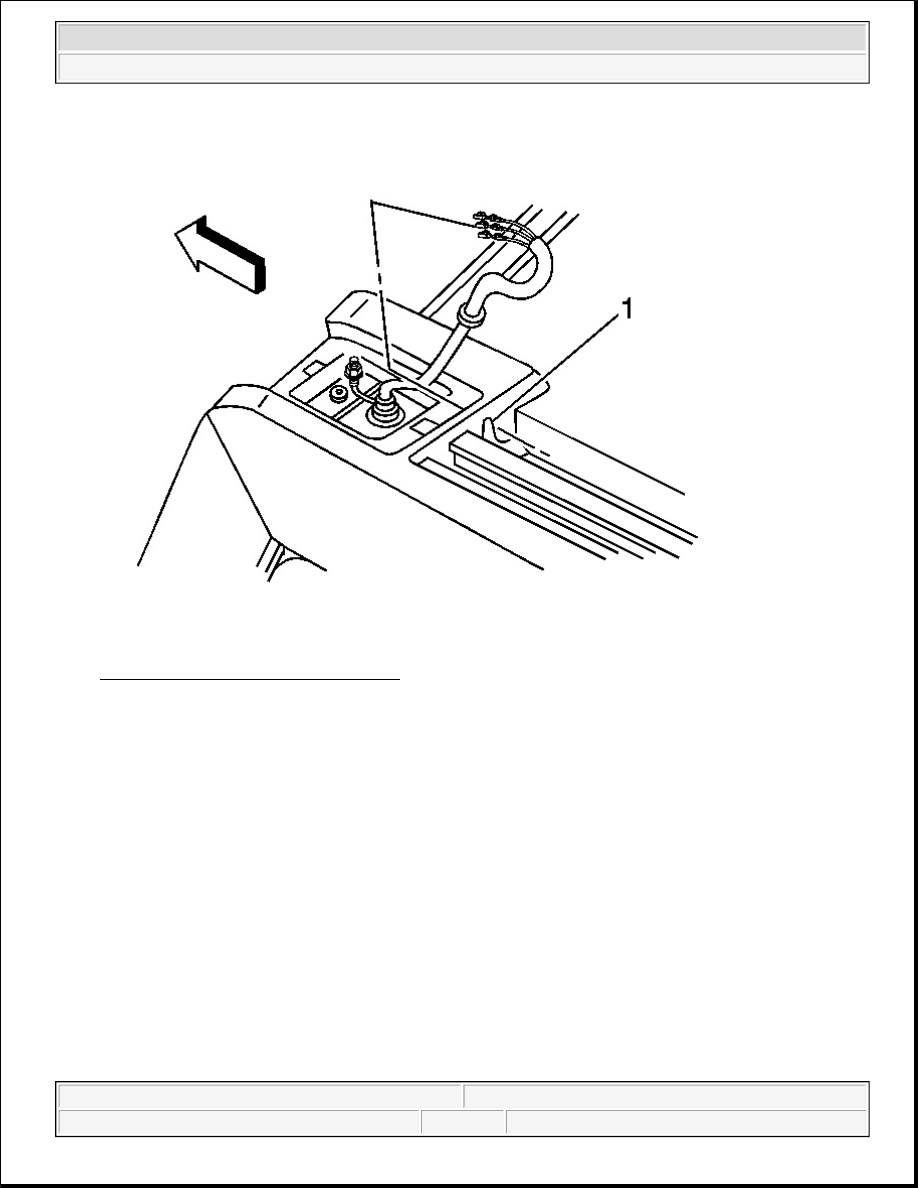

Fig. 84: Wires & Marker Lamp Pocket
Courtesy of GENERAL MOTORS CORP.

9. Remove the wires through the opening (1) in the marker lamp pocket in the roof rail.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



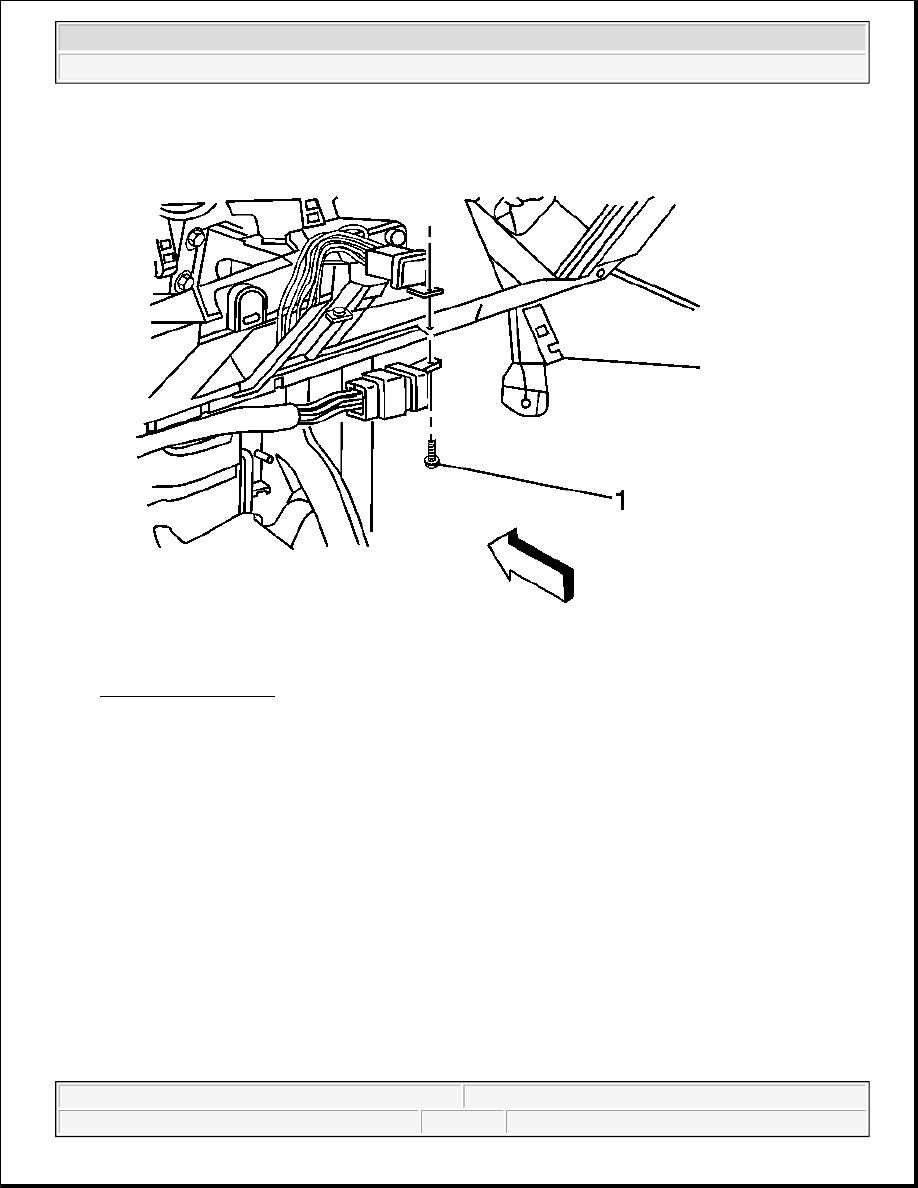

Fig. 85: Dash Rail Bolt
Courtesy of GENERAL MOTORS CORP.

10. Remove the bolt (1) in the opening in the dash rail from the J-nut on the upper relay flange, and remove

the relays.
