Hummer H2. Manual - part 348

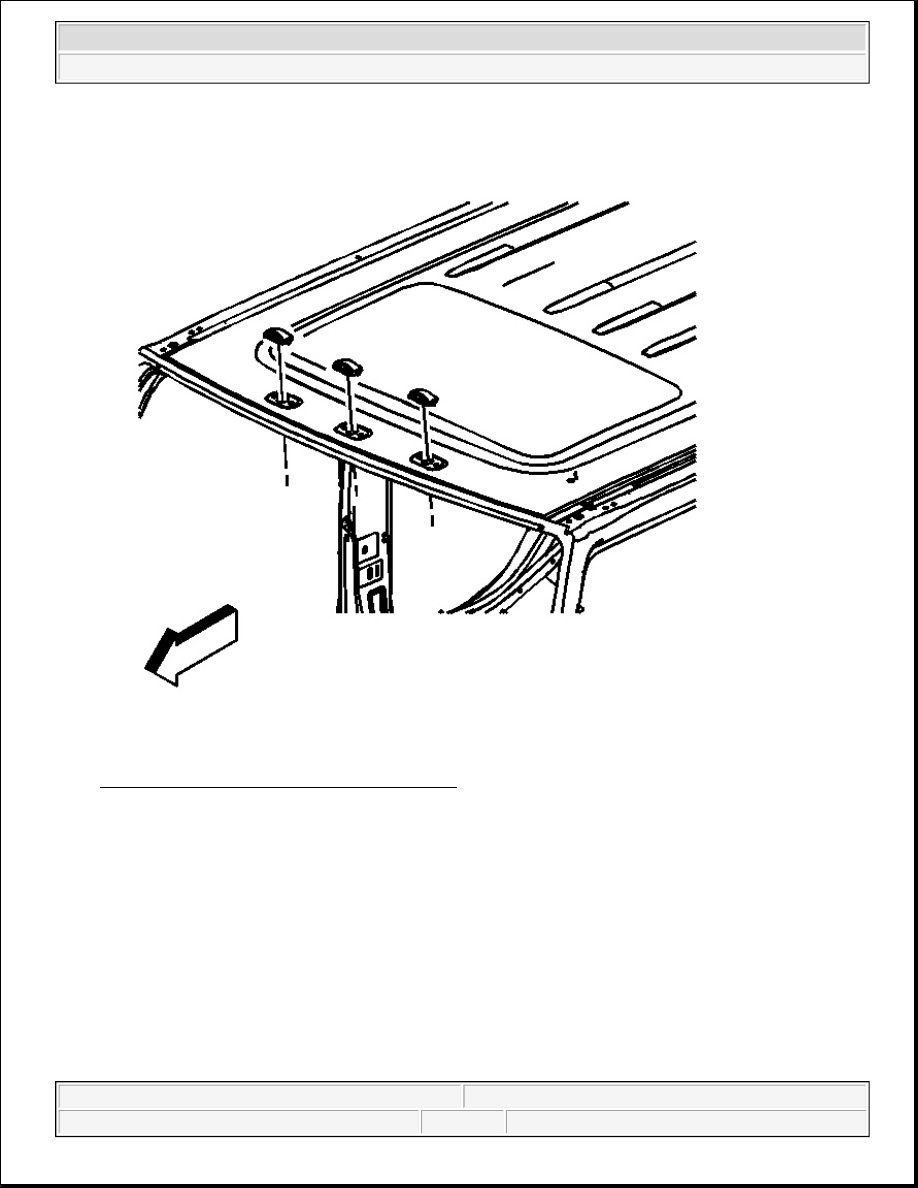

Fig. 108: Identification Lamp Retaining Clip (SUV)
Courtesy of GENERAL MOTORS CORP.

1. Install the bulb to the socket.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2

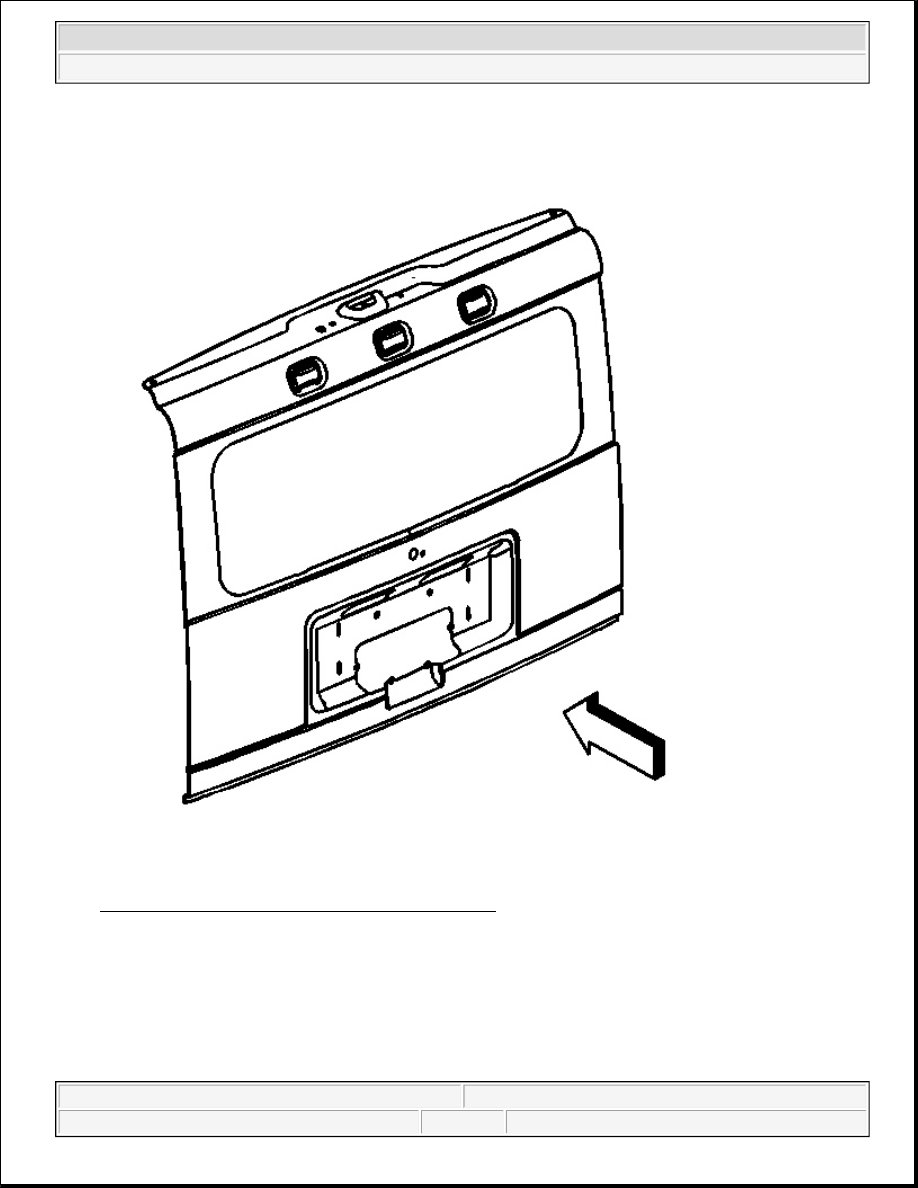

Fig. 109: Identification Lamp Assembly (SUV)
Courtesy of GENERAL MOTORS CORP.

2. Turn the bulb socket clockwise to lock the socket into the lamp assembly.

3. Install the lamp assembly to the vehicle.

4. Install the electrical harness at the connector.

5. Tilt the lamp forward to engage the hook.

6. Apply light pressure downward on the lamp to engage the retaining clip.

CLEARANCE LAMP REPLACEMENT (SUV)

Removal Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2

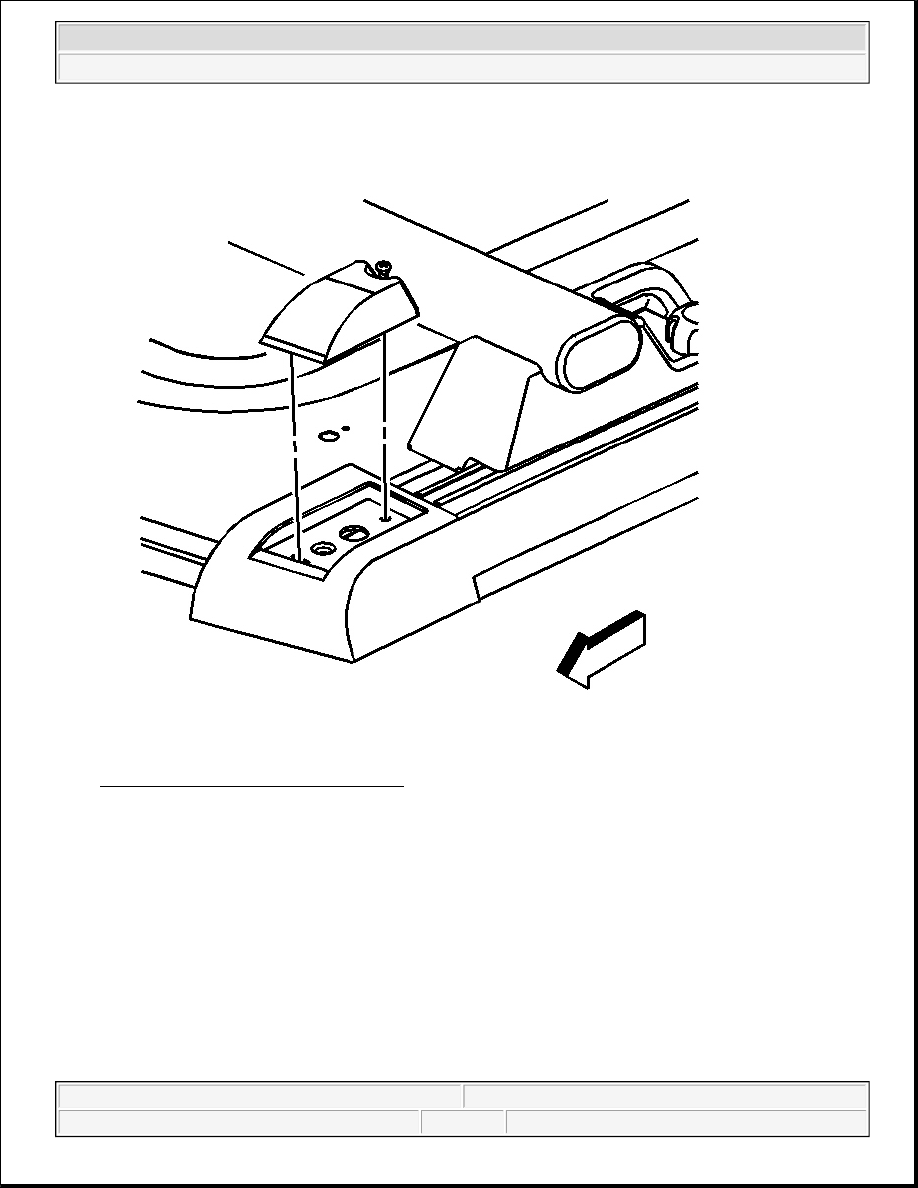

Fig. 110: Clearance Lamp Screw (SUV)
Courtesy of GENERAL MOTORS CORP.

1. Remove the screw from the lamp.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2

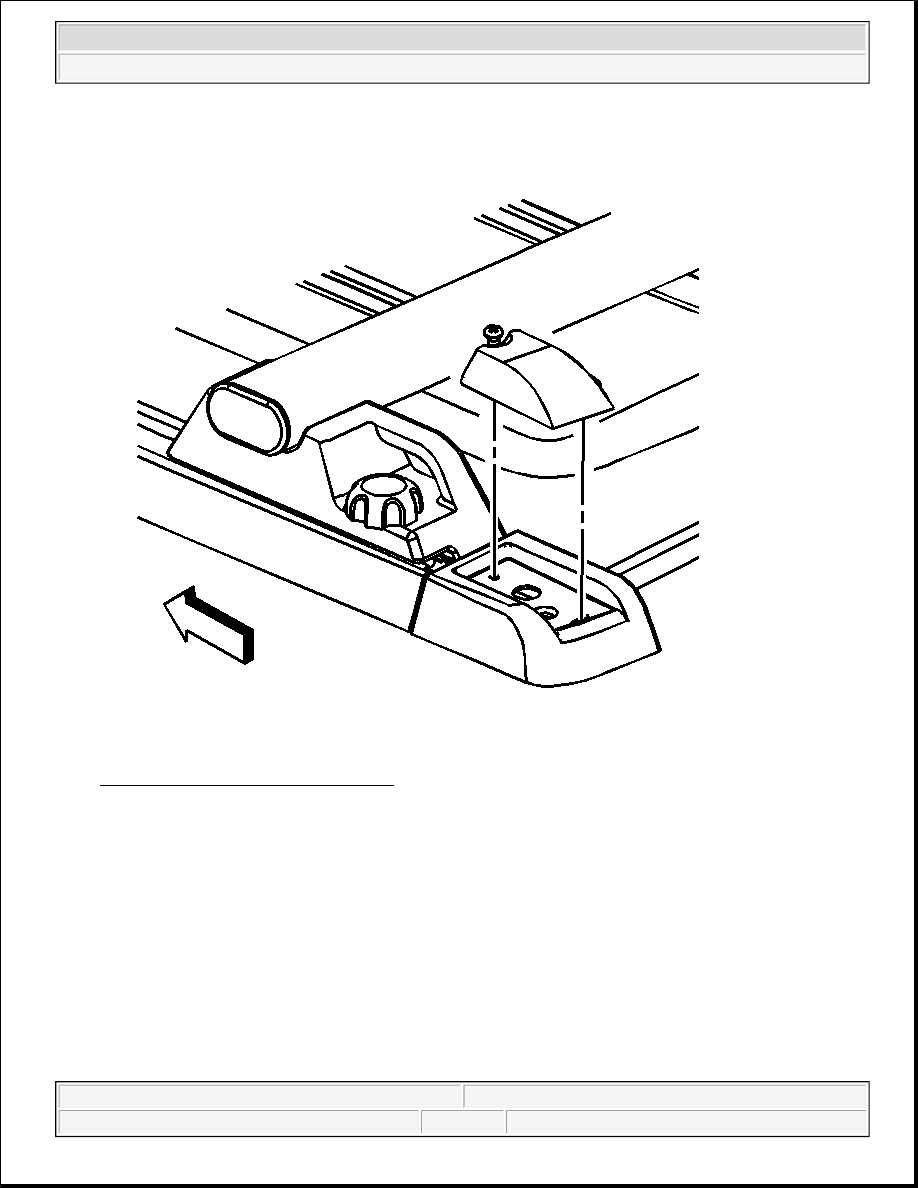

Fig. 111: Clearance Lamp Bulb (SUV)
Courtesy of GENERAL MOTORS CORP.

2. Remove the lamp by tilting back the assembly and disengaging the hook.

3. Remove the bulb socket.

4. Remove the lamp from the vehicle.

5. Remove the bulb.

Installation Procedure
