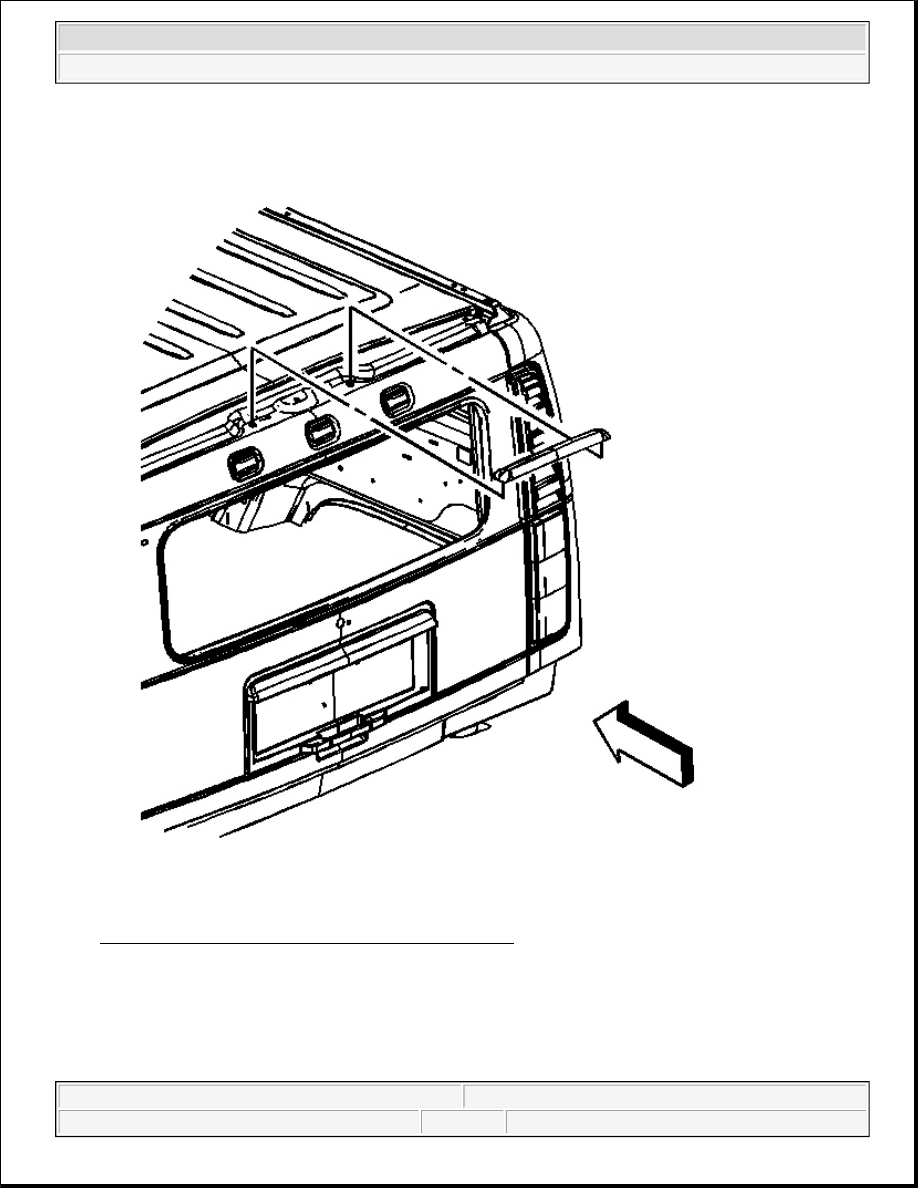

Fig. 115: High Mounted Stop Lamp & Harness (SUV)
Courtesy of GENERAL MOTORS CORP.

2. Install the grommet to the liftgate.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



3. Install the retaining screws.

Tighten: Tighten the screws to 3 N.m (26 lb in).

4. Connect the electrical connector to the high mounted stop lamp.

5. Install the liftgate trim panel. Refer to Trim Panel Replacement - Liftgate in Body Rear End.

LICENSE LAMP REPLACEMENT

Removal Procedure

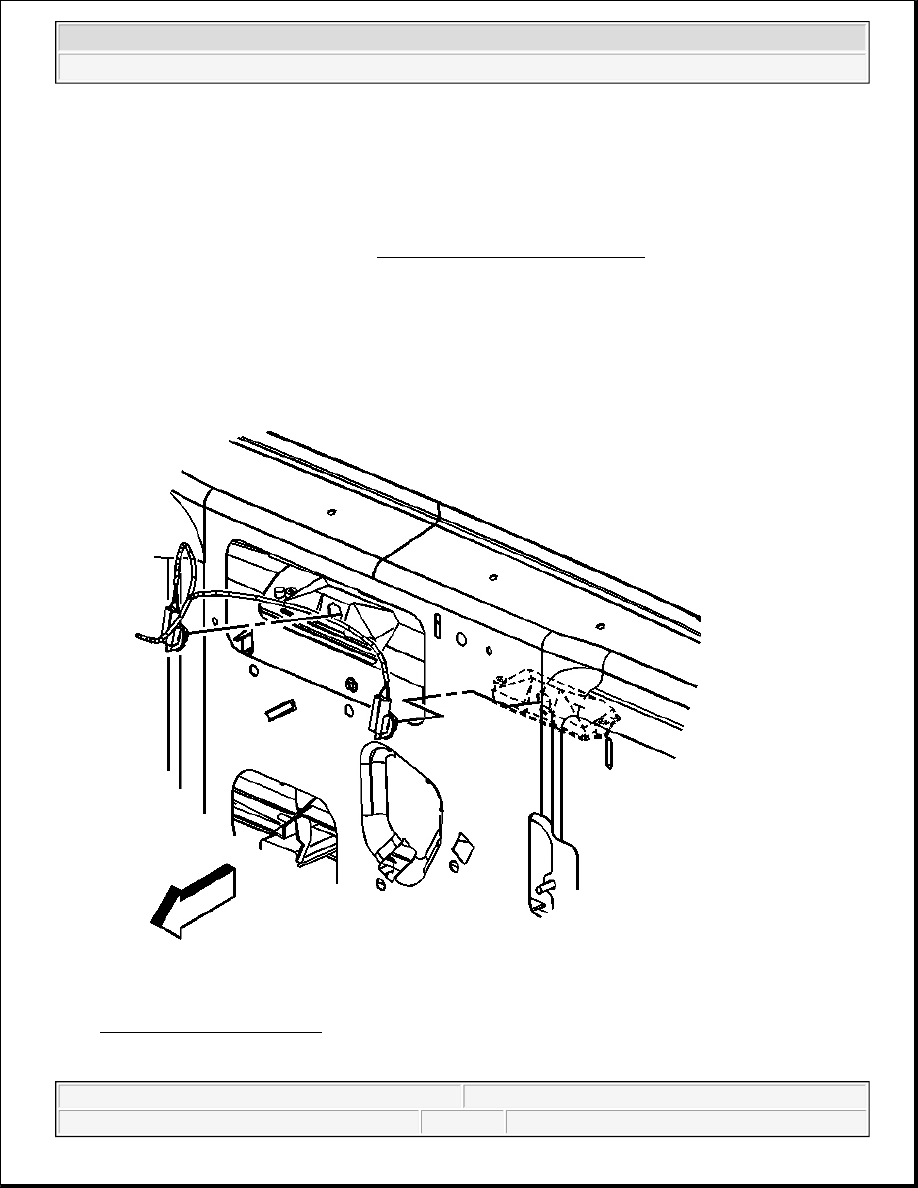

Fig. 116: License Lamp Bulb
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



1. Remove the screws from the license pocket bezel.

2. Remove the bezel and the lamp.

3. Disconnect the electrical connector.

4. Remove the screw from the lamp.

5. Remove the lamp from the vehicle.

6. Remove the bulb socket from the lamp.

7. Remove the bulb.

Installation Procedure

Fig. 117: License Lamp Bulb
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



1. Install the bulb to the socket.

2. Install the bulb socket to the lamp.

3. Install the lamp to the vehicle.

4. Install the screws to the lamp.

Tighten: Tighten the screws to 3 N.m (26 lb in).

5. Connect the electrical connector.

6. Install the bezel and lamp to the license plate pocket.

7. Install the screws to the license pocket bezel.

Tighten: Tighten the screws to 3 N.m (26 lb in).

TAIL/TURN SIGNAL LAMP REPLACEMENT (SUV)

Removal Procedure

NOTE:

Refer to Fastener Notice in Cautions and Notices.
