Fig. 121: Adhesive Strip To Body
Courtesy of GENERAL MOTORS CORP.

2. Remove the screws retaining the tail lamp guard.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



Fig. 122: Tubular Tail Lamp Guard
Courtesy of GENERAL MOTORS CORP.

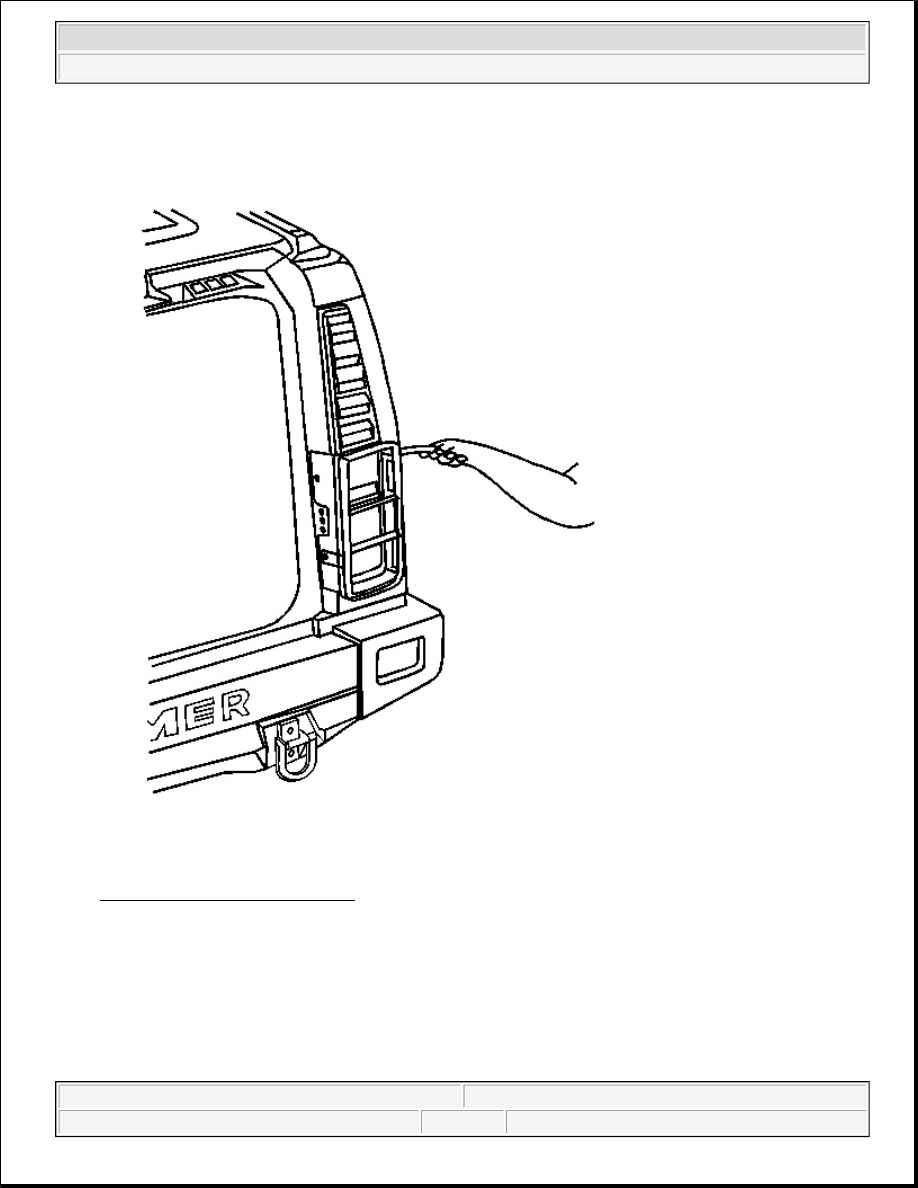

3. Carefully separate adhesive strip from body.

4. Remove the tail lamp guard from the vehicle.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2

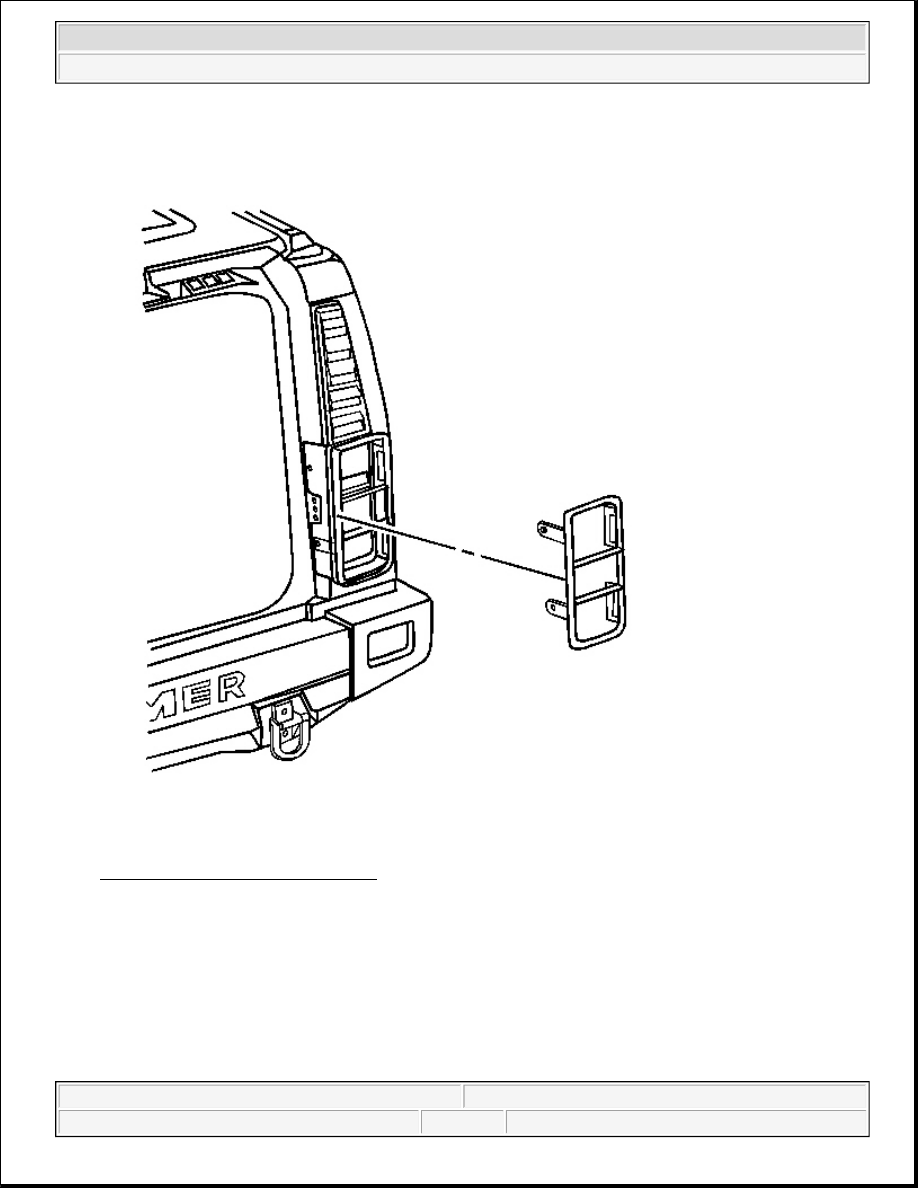

Fig. 123: Tubular Tail Lamp Guard
Courtesy of GENERAL MOTORS CORP.

1. Position the tail lamp guard to the vehicle.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2

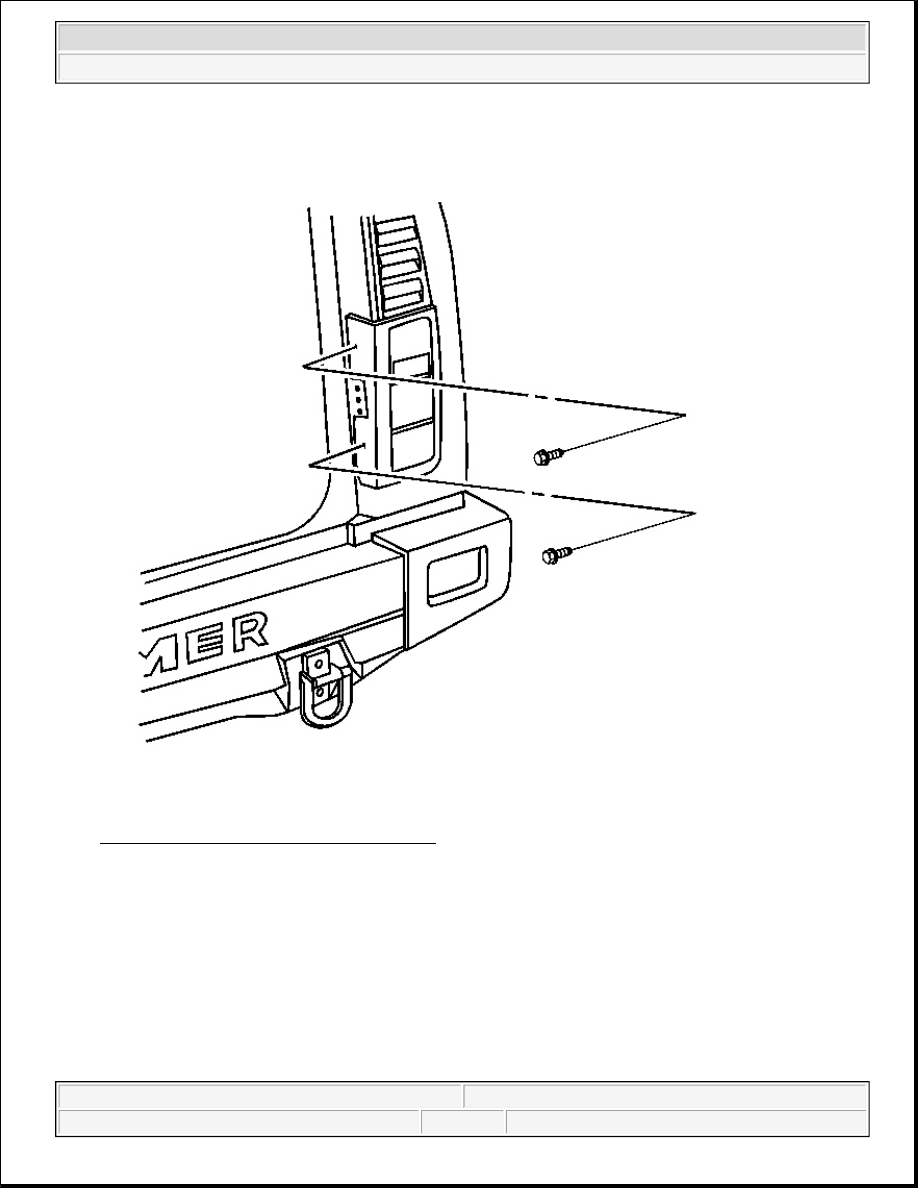

Fig. 124: Tubular Tail Lamp Guard Screws
Courtesy of GENERAL MOTORS CORP.

2. Install the screws retaining the tail lamp guard.

Tighten: Tighten to 6 N.m (53 lb in).

3. Clean the surface where the adhesive strip will mount with varnish and makers (VMP) naptha.

NOTE:

Refer to Fastener Notice in Cautions and Notices.
