Fig. 40: Ambient Light Sensor & I/P Top Cover
Courtesy of GENERAL MOTORS CORP.

3. Turn the ambient light sensor 1/4 turn and remove it from the I/P top cover.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



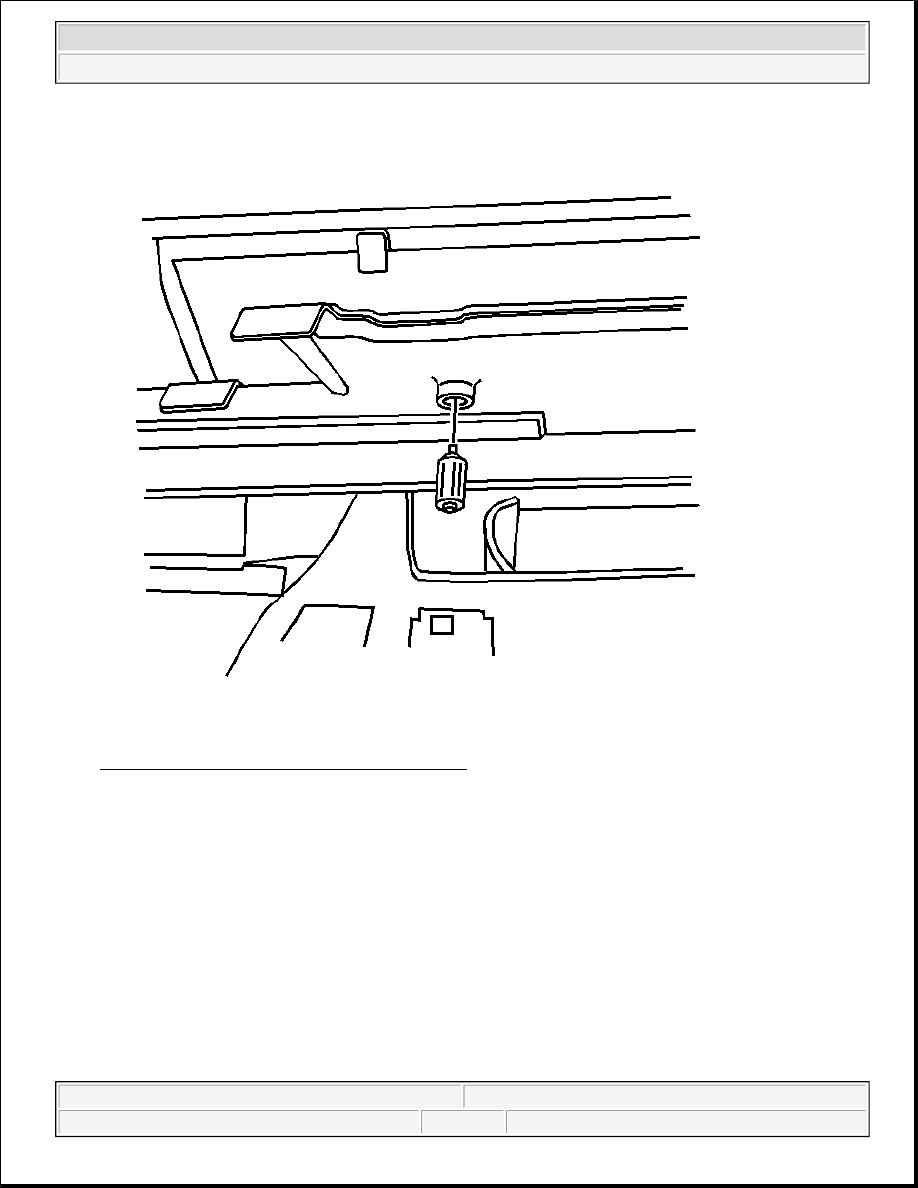

Fig. 41: Ambient Light Sensor & I/P Top Cover
Courtesy of GENERAL MOTORS CORP.

1. Install the ambient light sensor to the underside of the I/P top cover, turning it 1/4 turn to secure it in

place.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



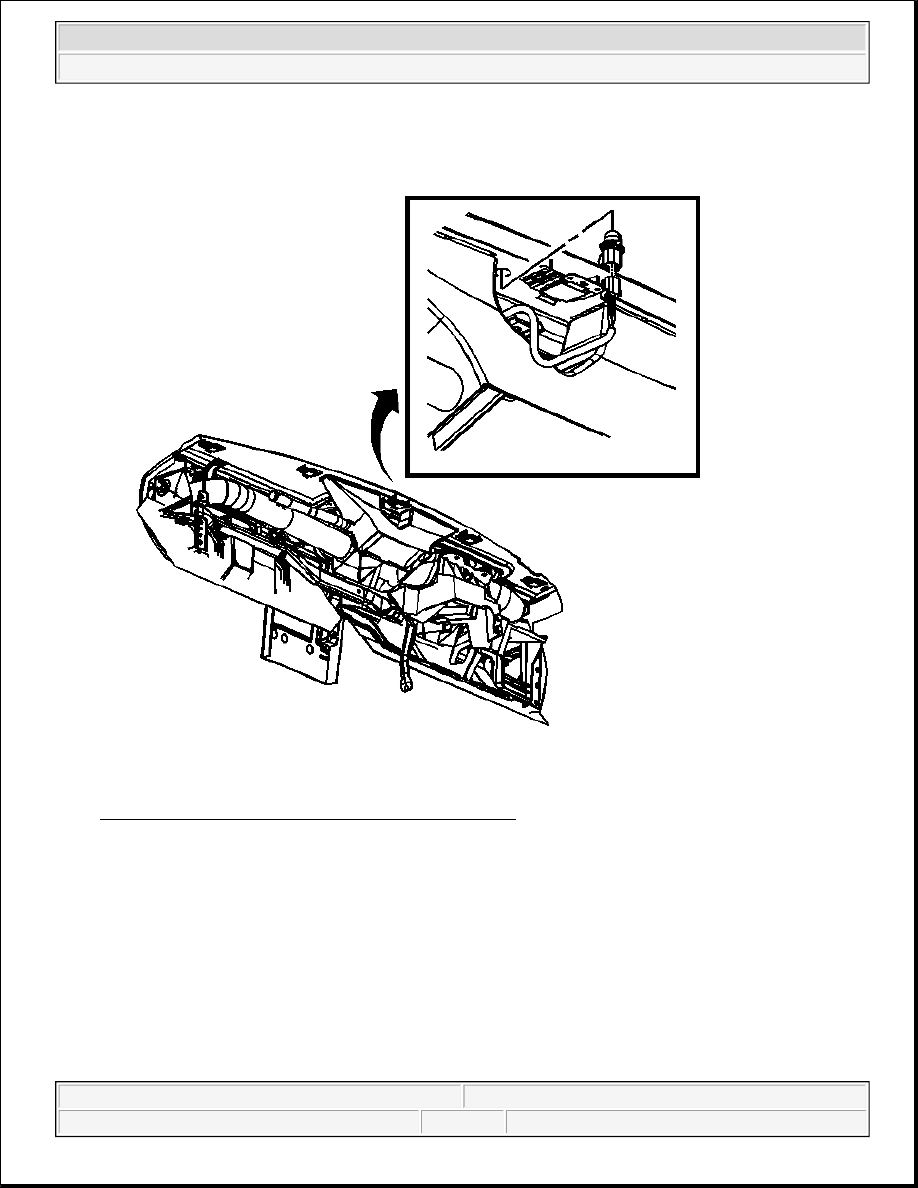

Fig. 42: Electrical Connector & Ambient Light Sensor
Courtesy of GENERAL MOTORS CORP.

2. Connect the electrical connector to the ambient light sensor on the underside of the I/P top trim panel.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



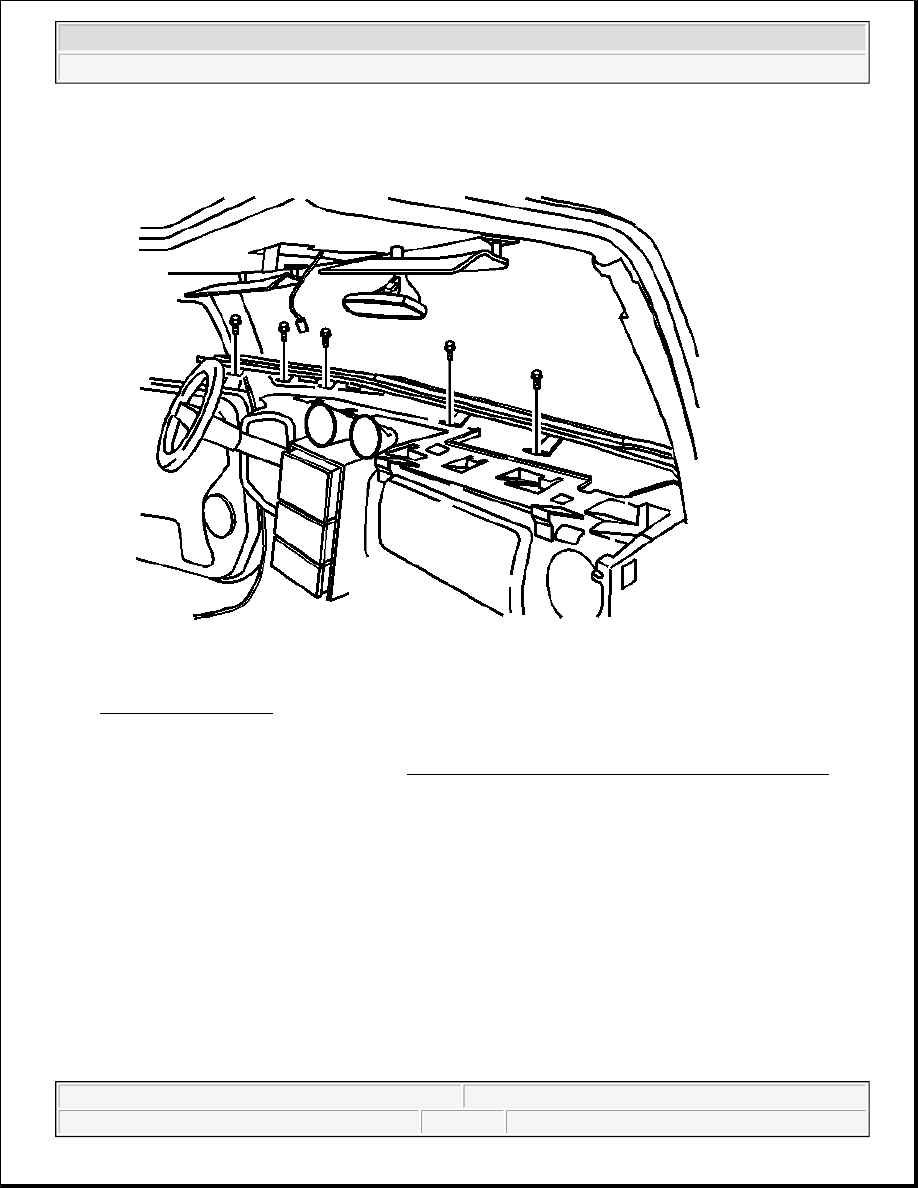

Fig. 43: I/P Top Cover
Courtesy of GENERAL MOTORS CORP.

3. Install the I/P top cover to the I/P. Refer toTrim Pad Replacement - Instrument Panel (I/P) Upper in

Instrument Panel, Gauges, and Console.
