Removal Procedure

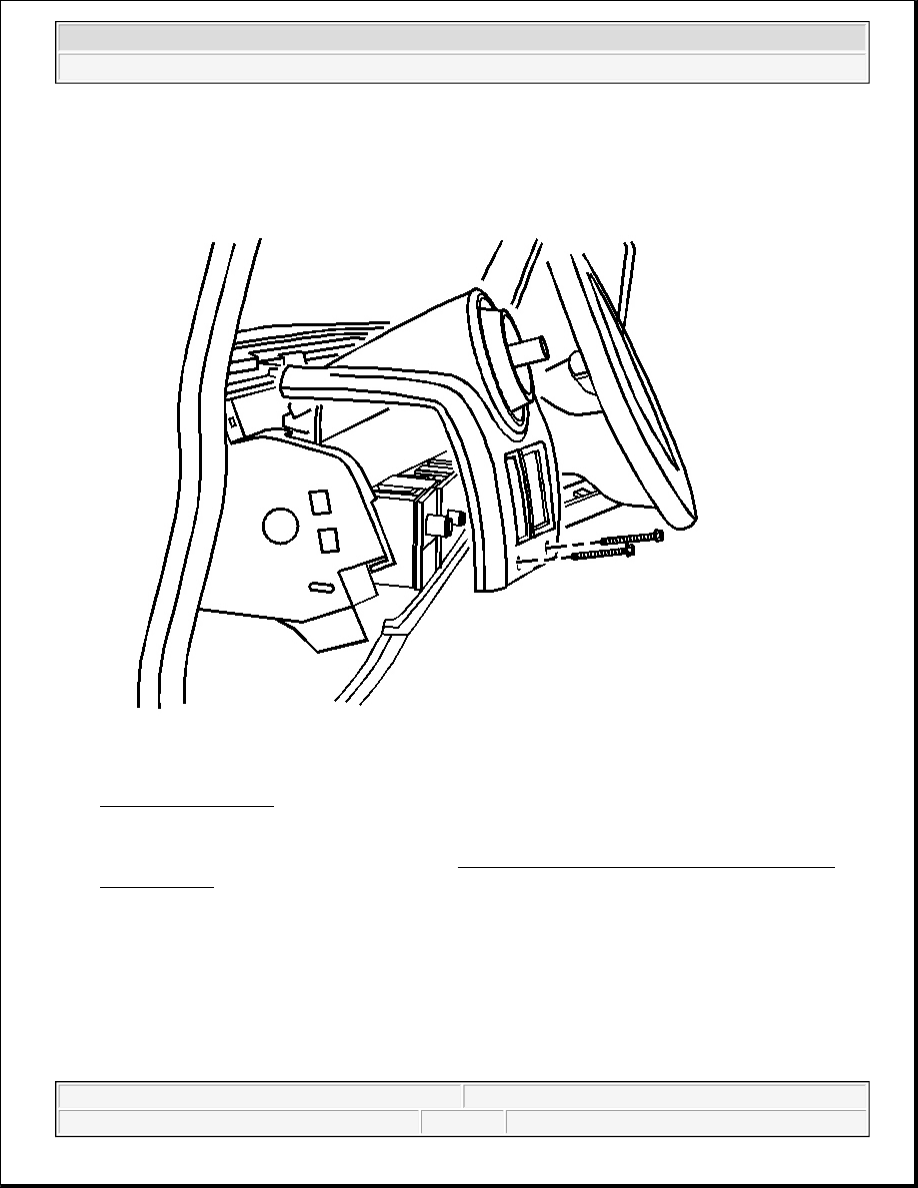

Fig. 32: I/P Trim Plate
Courtesy of GENERAL MOTORS CORP.

1. Remove the instrument panel trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P)

Accessory Left in Instrument Panel, Gauges, and Console.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



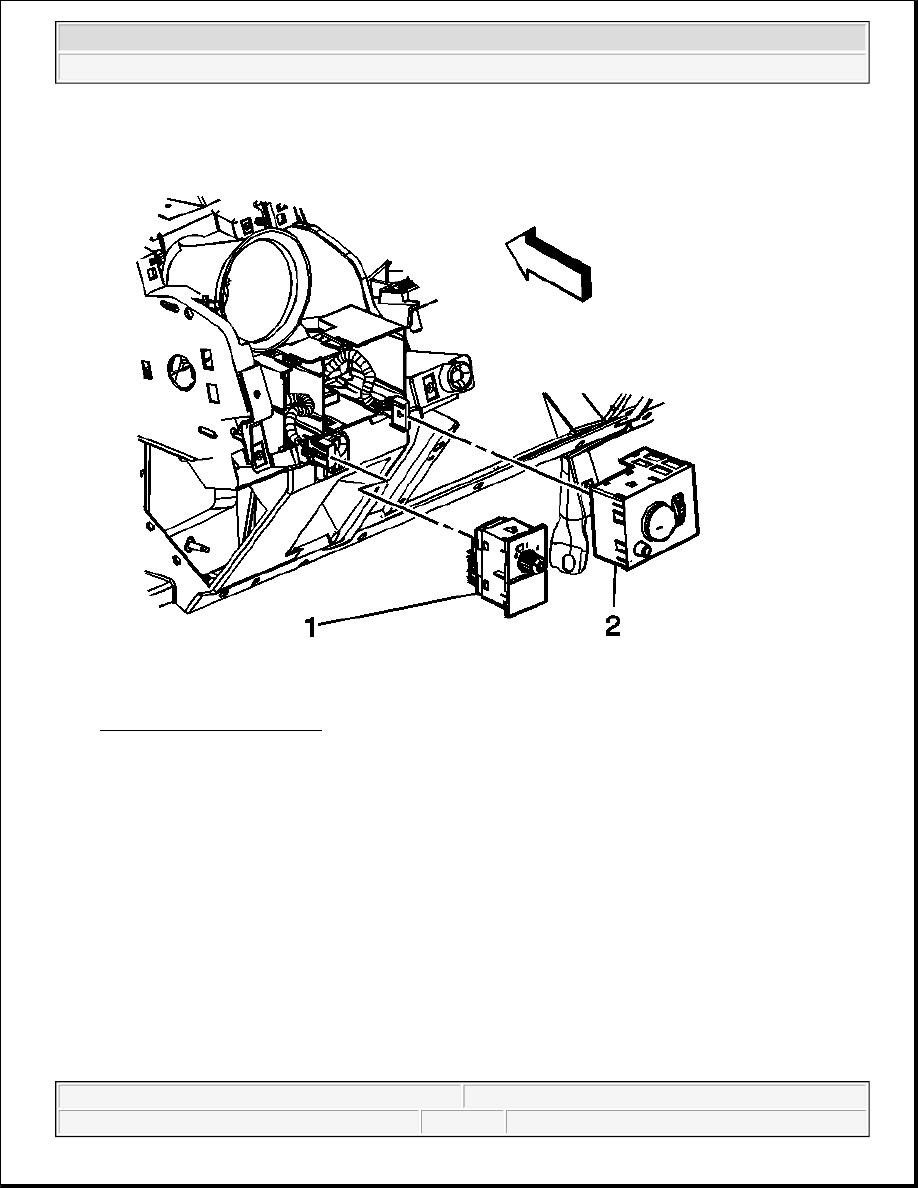

Fig. 33: Headlamp Switch
Courtesy of GENERAL MOTORS CORP.

2. Pull out the headlamp switch in order to release the clips.

3. Remove the headlamp switch.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



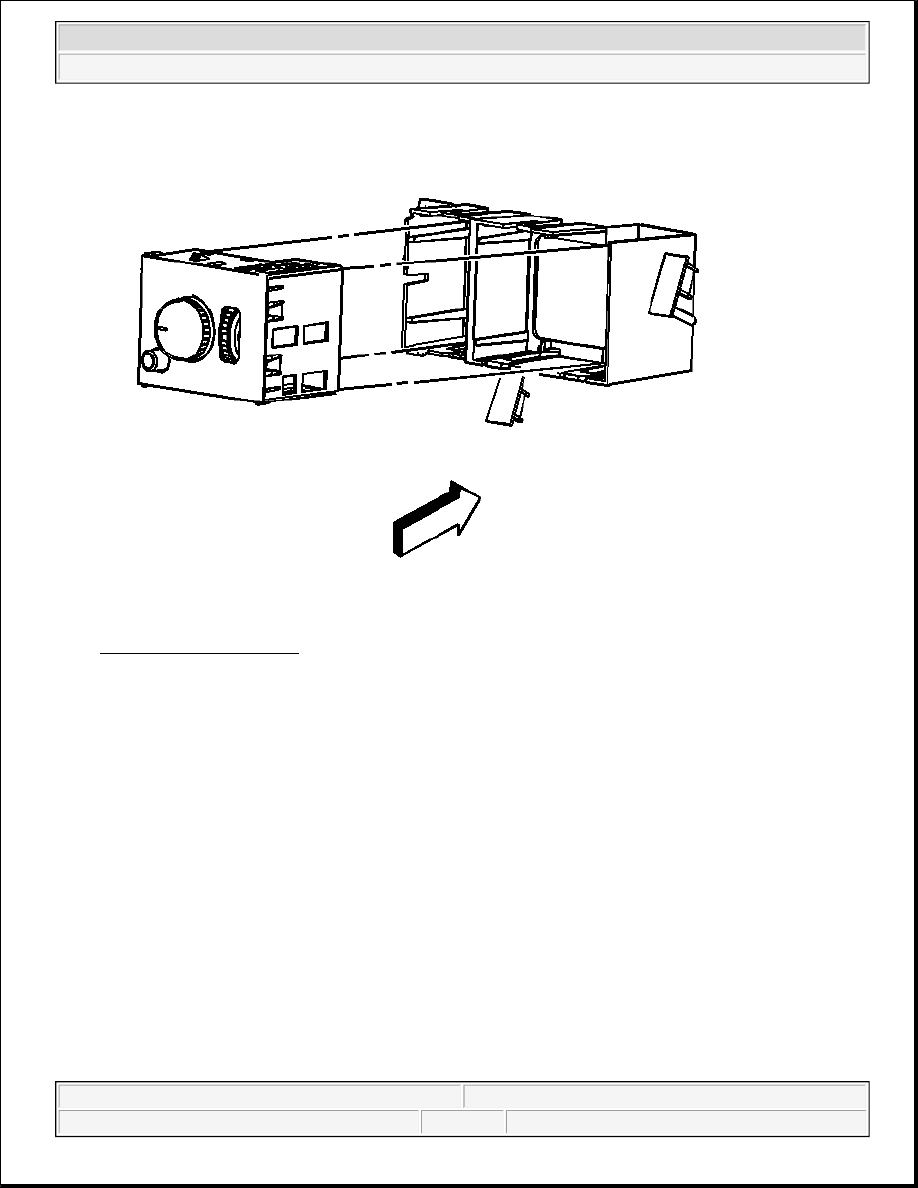

Fig. 34: Electrical Connector
Courtesy of GENERAL MOTORS CORP.

4. Disconnect the electrical connector.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



Fig. 35: Electrical Connector
Courtesy of GENERAL MOTORS CORP.

1. Connect the electrical connectors to the headlamp switch.
