Hummer H2. Manual - part 329

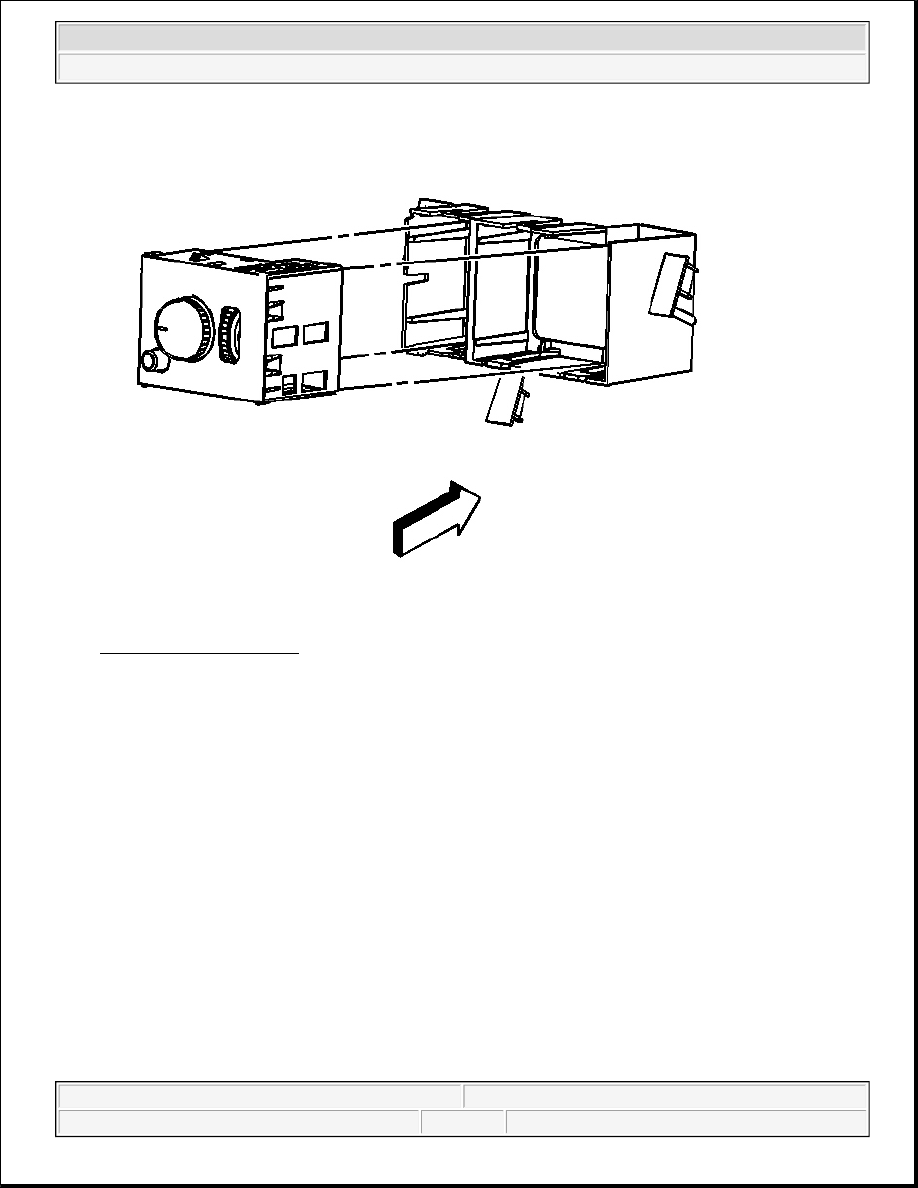

Fig. 36: Headlamp Switch
Courtesy of GENERAL MOTORS CORP.

2. Align and install the headlamp switch to the instrument panel.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



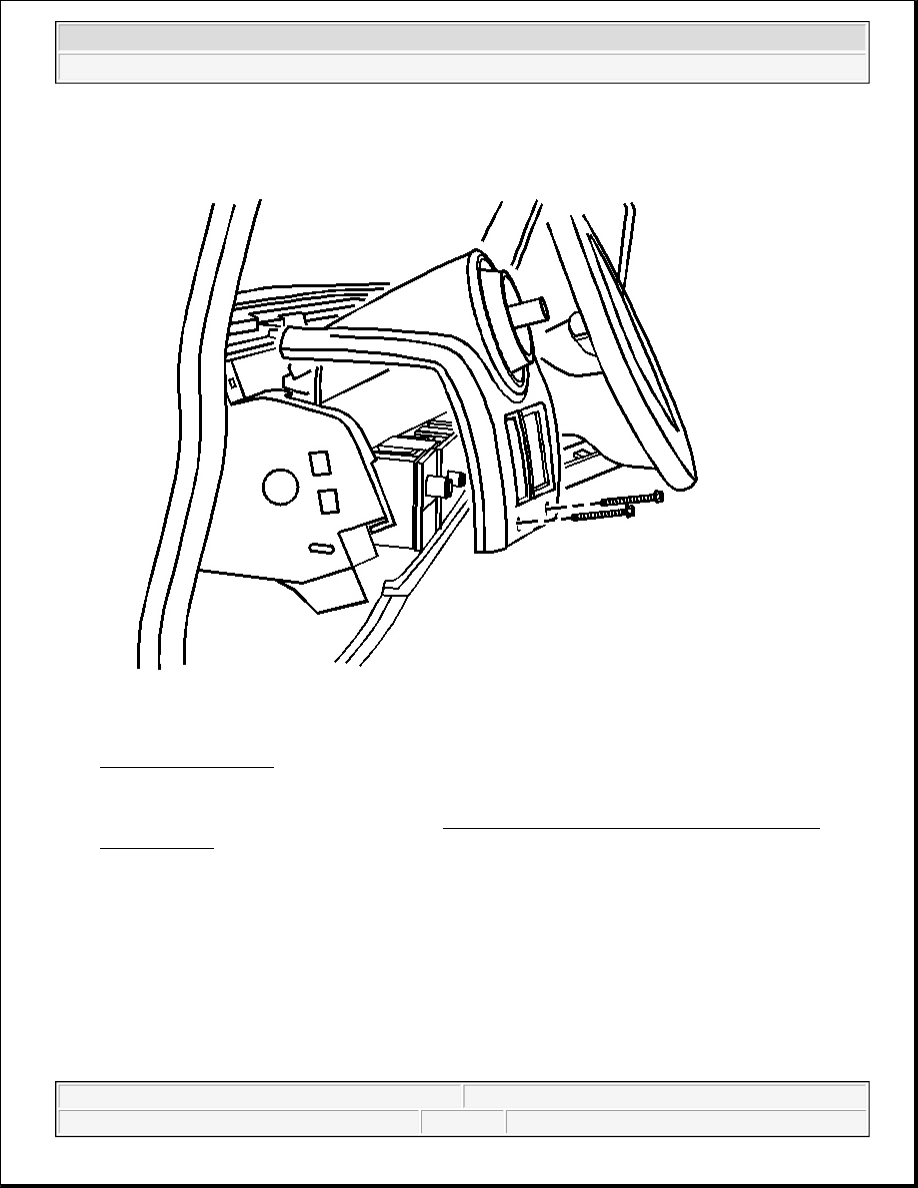

Fig. 37: I/P Trim Plate
Courtesy of GENERAL MOTORS CORP.

3. Install the instrument panel trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P)

Accessory Left in Instrument Panel, Gauges, and Console.

AMBIENT LIGHT SENSOR REPLACEMENT

Removal Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



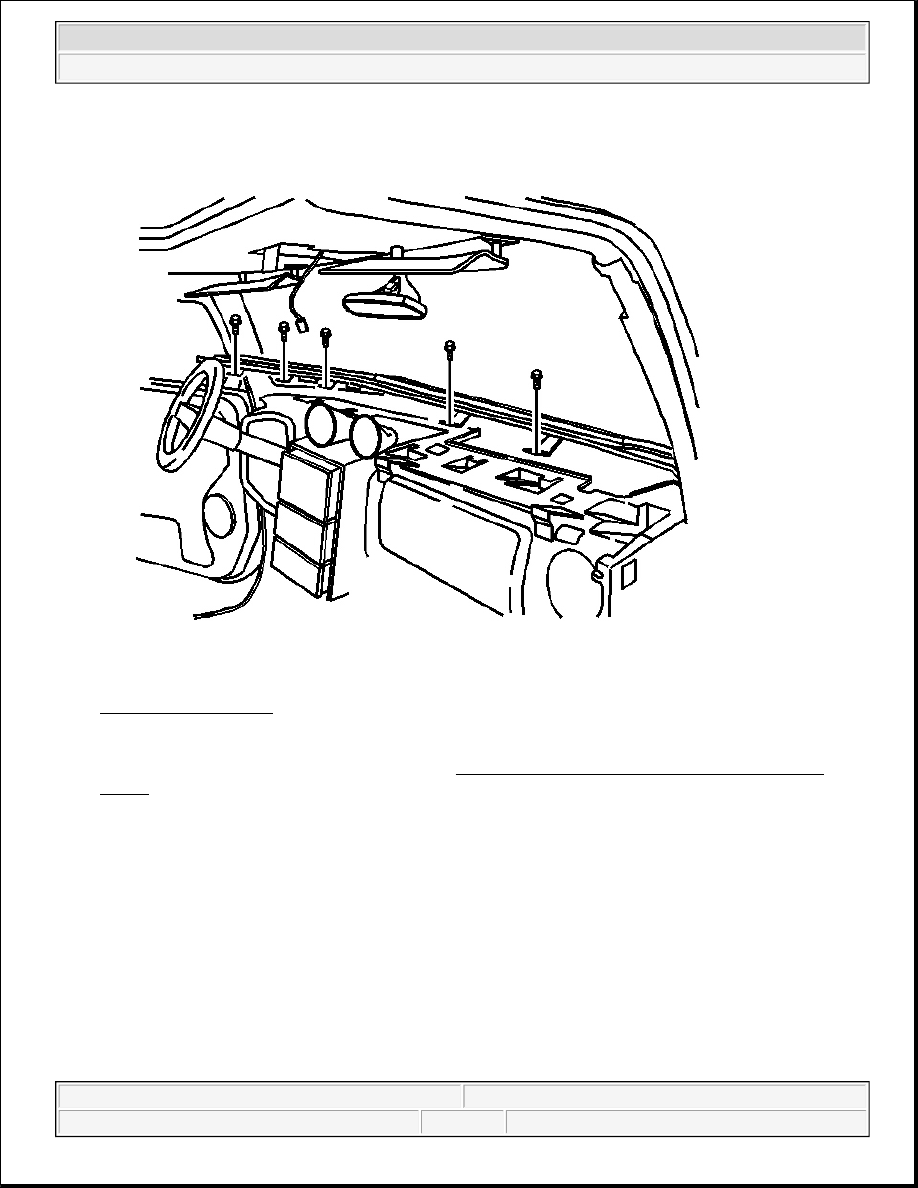

Fig. 38: I/P Top Cover
Courtesy of GENERAL MOTORS CORP.

1. Remove the instrument panel top cover. Refer to Trim Pad Replacement - Instrument Panel (I/P)

Upper in Instrument Panel, Gauges, and Console.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



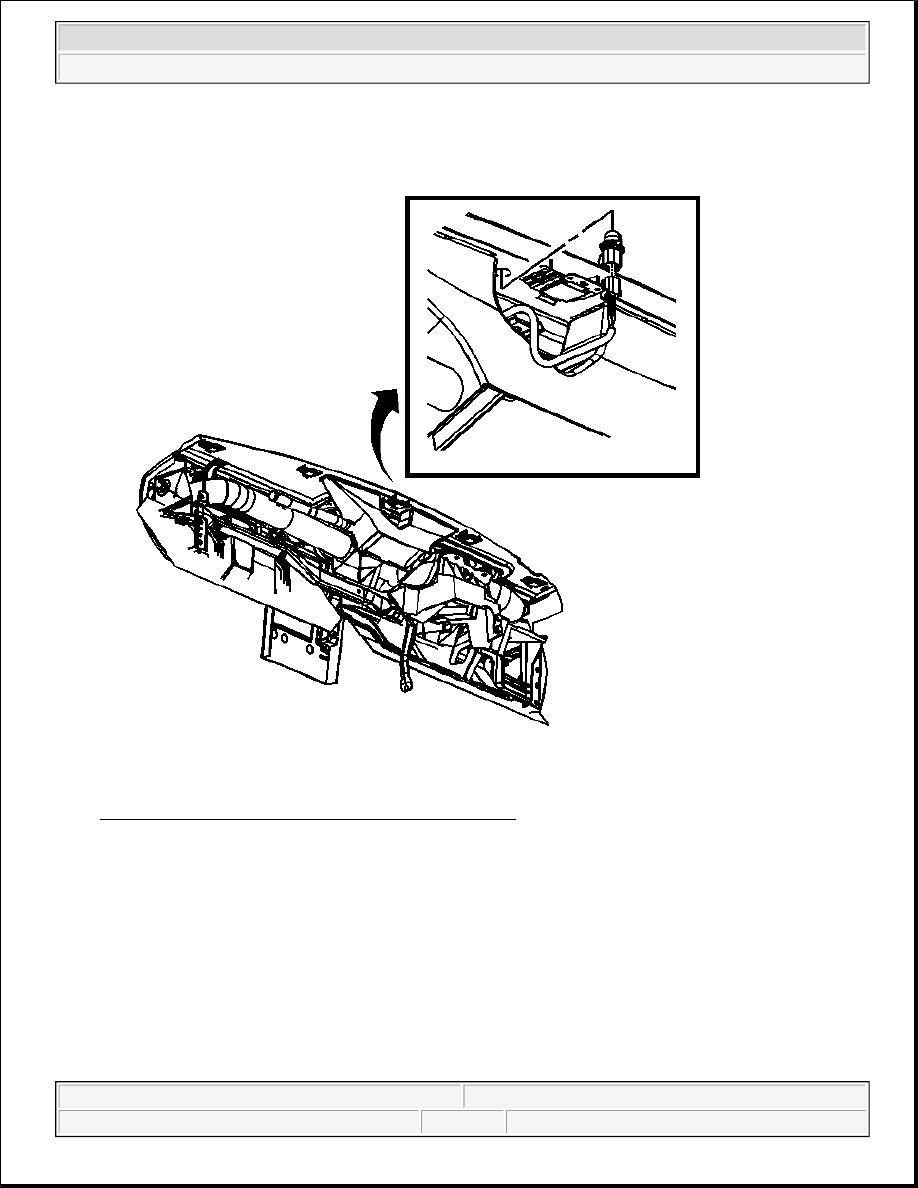

Fig. 39: Electrical Connector & Ambient Light Sensor
Courtesy of GENERAL MOTORS CORP.

2. Disconnect the electrical connector to the ambient light sensor on the underside of the I/P upper trim

panel.
