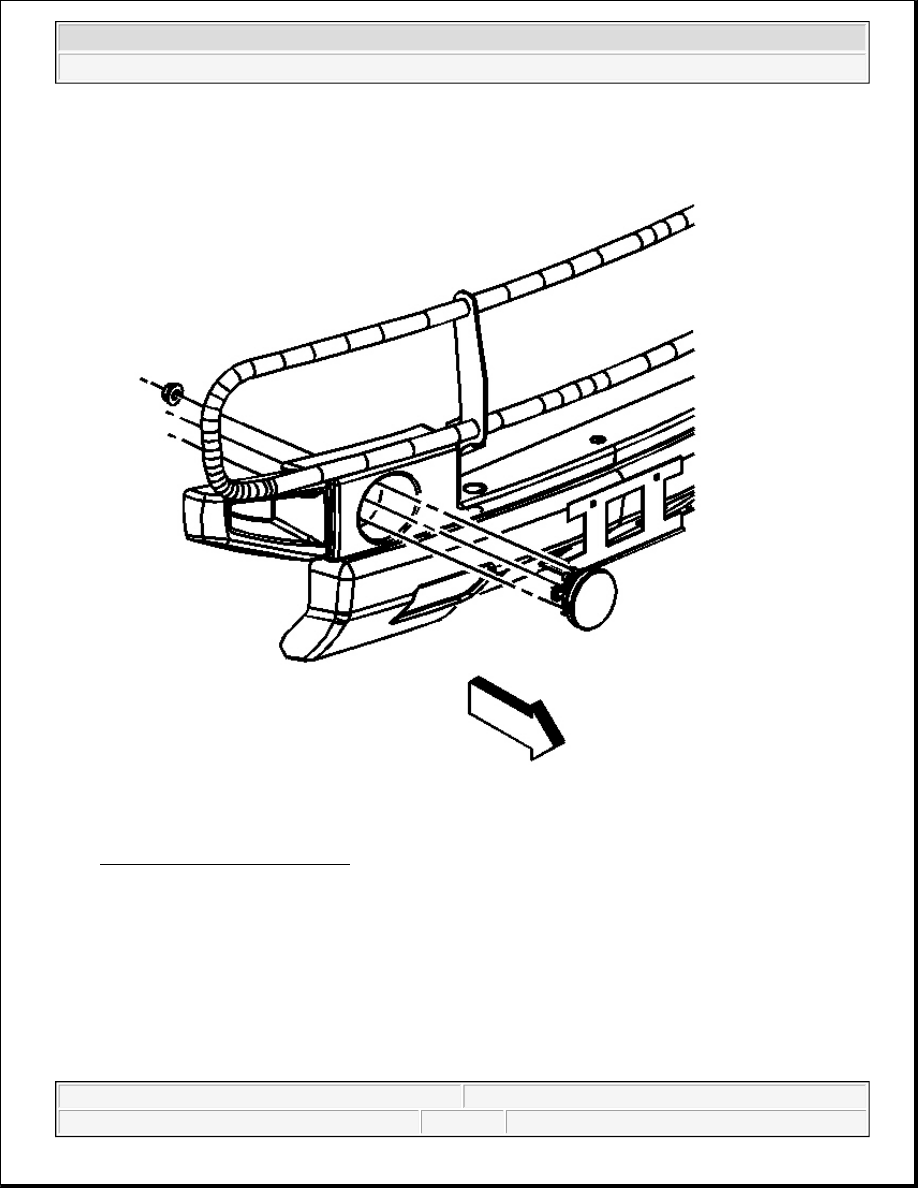

Fig. 44: Daytime Running Lamp
Courtesy of GENERAL MOTORS CORP.

1. Disconnect the electrical connector.

2. Remove the nuts from the rear of the lamp assembly.

3. Disengage the clips retaining lamp.

4. Remove the lamp assembly.

5. Remove the bulb socket by turning the socket counter clockwise.

6. Remove the bulb.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



Installation Procedure

1. Install the bulb.

2. Install the bulb socket by turning the socket clockwise.

3. Install the lamp assembly.

4. Engage the clips retaining the lamp.

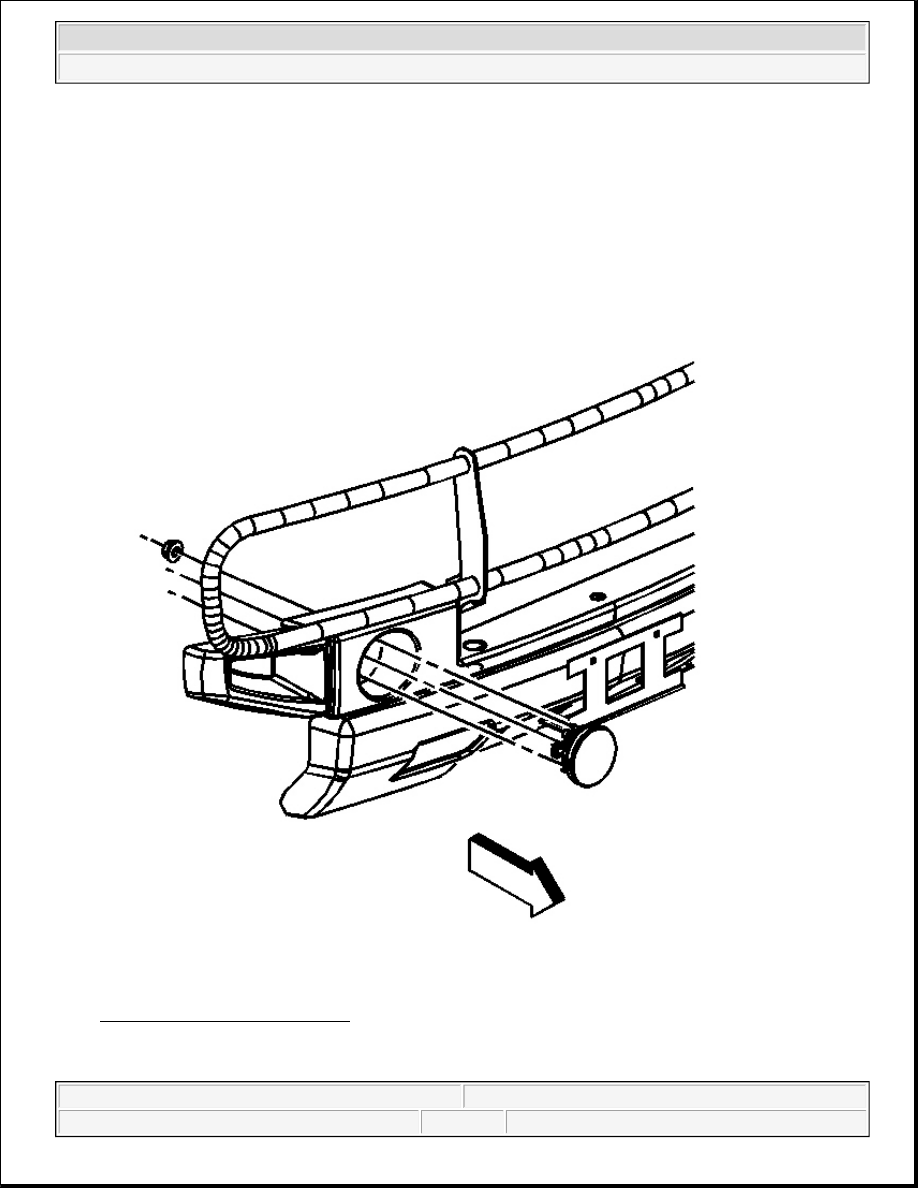

Fig. 45: Daytime Running Lamp
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



5. Install the nuts to the rear of the lamp assembly.

Tighten: Tighten the nuts to 6 N.m (53 lb in).

6. Connect the electrical connector.

HAZARD AND TURN SIGNAL FLASHER REPLACEMENT

Removal Procedure

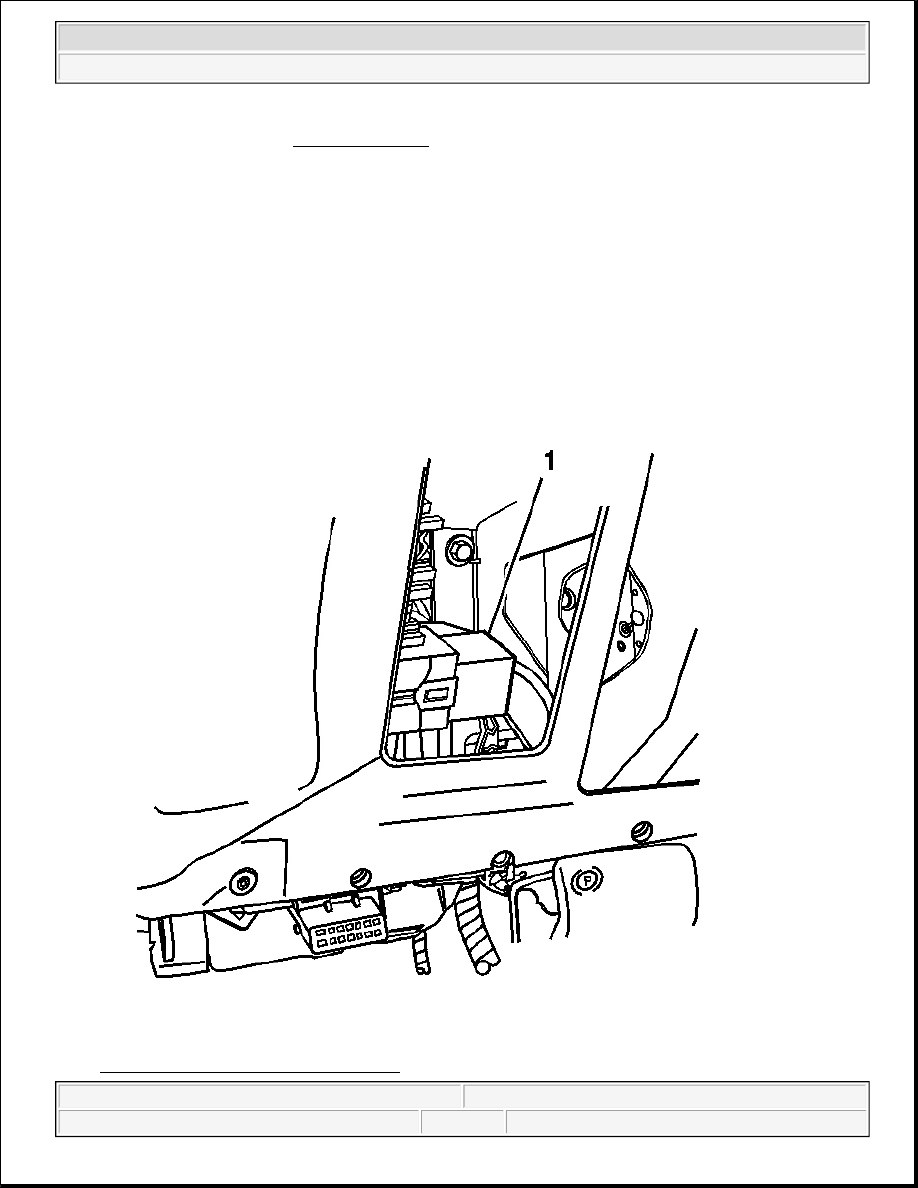

Fig. 46: Hazard & Turn Signal Flasher

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



Courtesy of GENERAL MOTORS CORP.

1. Remove the knee bolster trim panel. Refer to Trim Panel Replacement - Knee Bolster in Instrument

Panel, Gauges and Console.

2. On the back side of the fuse block release the retainer while pulling the flasher (1) inboard.

3. Remove the flasher (1) from the fuse block.

Installation Procedure

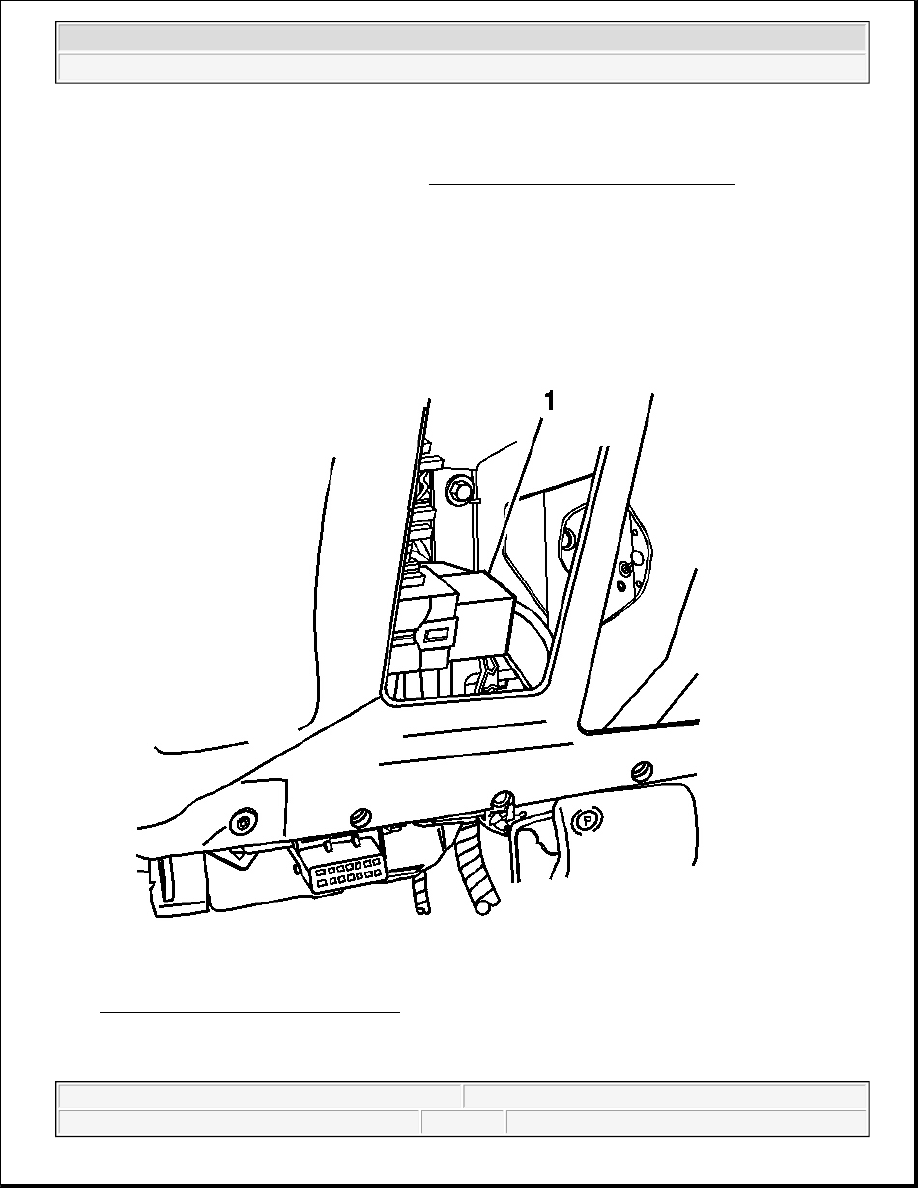

Fig. 47: Hazard & Turn Signal Flasher
Courtesy of GENERAL MOTORS CORP.

1. Install the flasher (1) to the fuse block until the retainer clicks into place.
