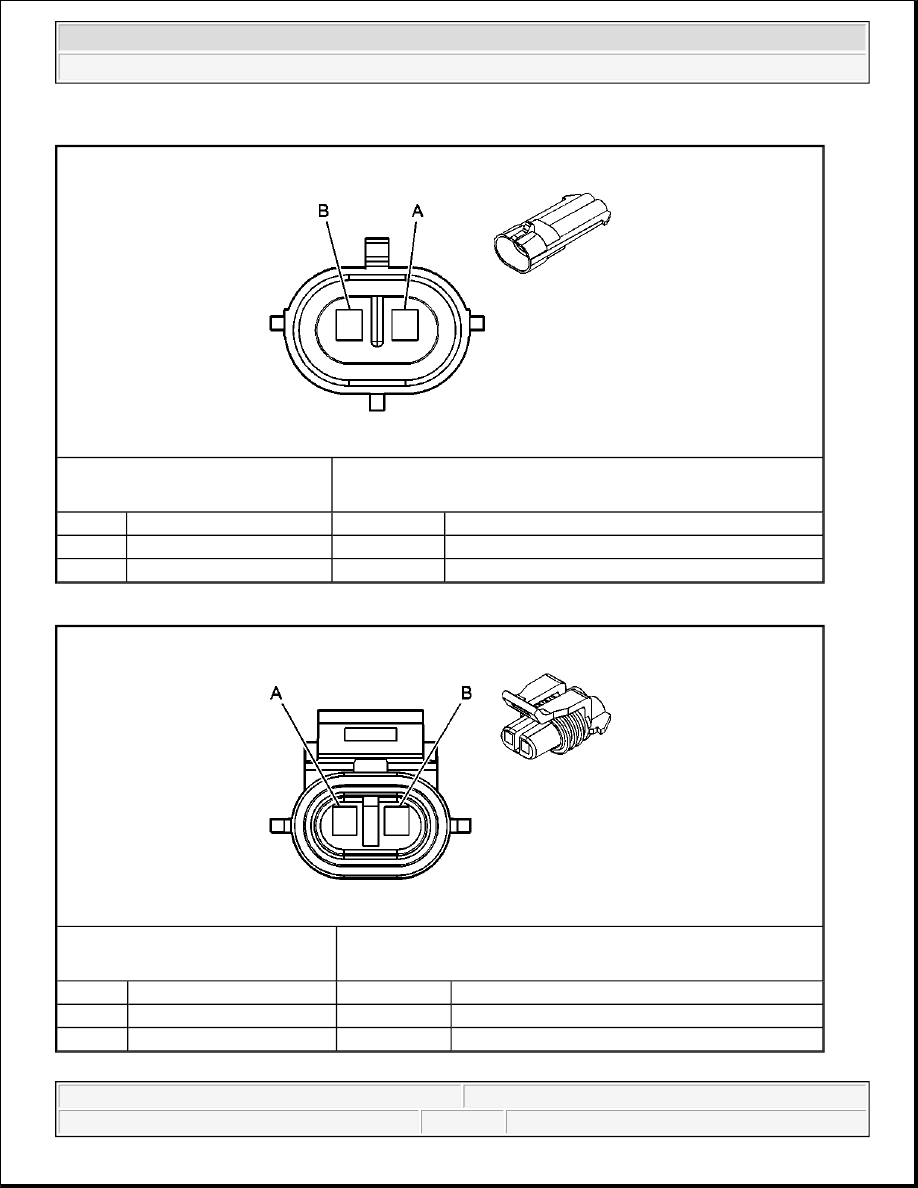

Liftgate Ajar Switch Terminal Identification - Right

Marker Lamp Terminal Identification - LF

Connector Part Information

z

12052644

z

2-Way F Metri-Pack 150 Series Sealed (GY)

Pin

Wire Color

Circuit No.

Function

A

BK

1450

Ground

B

PK/BK

1303

Liftgate Ajar Switch Signal

Connector Part Information

z

12162000

z

2-Way M Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

BN

2309

Front Park Lamps Supply Voltage

B

L-BU

2114

Left Turn Signal Lamps Supply Voltage



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



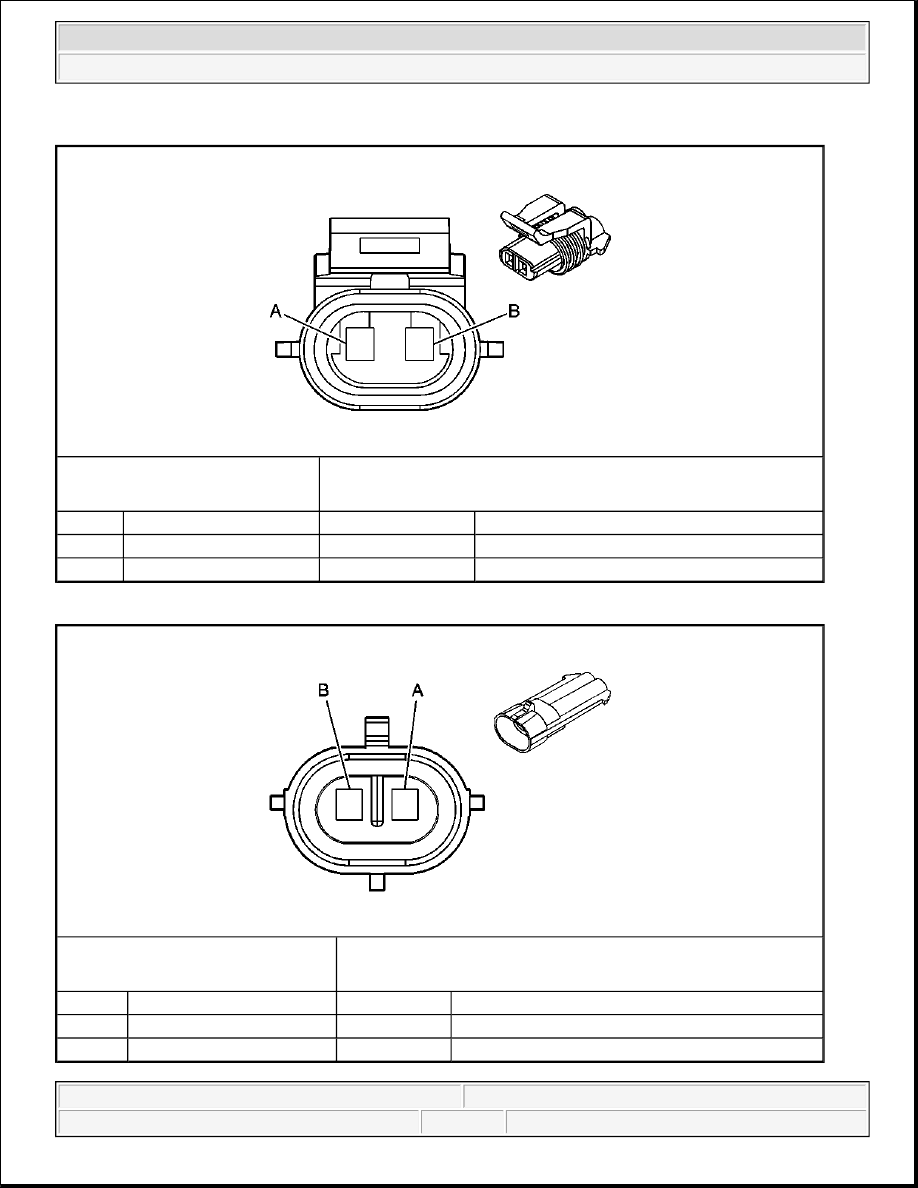

Marker Lamp Terminal Identification - RF

Marker Lamp Terminal Identification - LR

Connector Part Information

z

12162000

z

2-Way M Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

BN

2309

Front Park Lamps Supply Voltage

B

D-BU

2115

Right Turn Signal Lamps Supply Voltage

Connector Part Information

z

12052641

z

2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

BN

2509

Left Rear Marker Lamp Supply Voltage

B

L-BU

2114

Left Turn Signal Lamps Supply Voltage



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



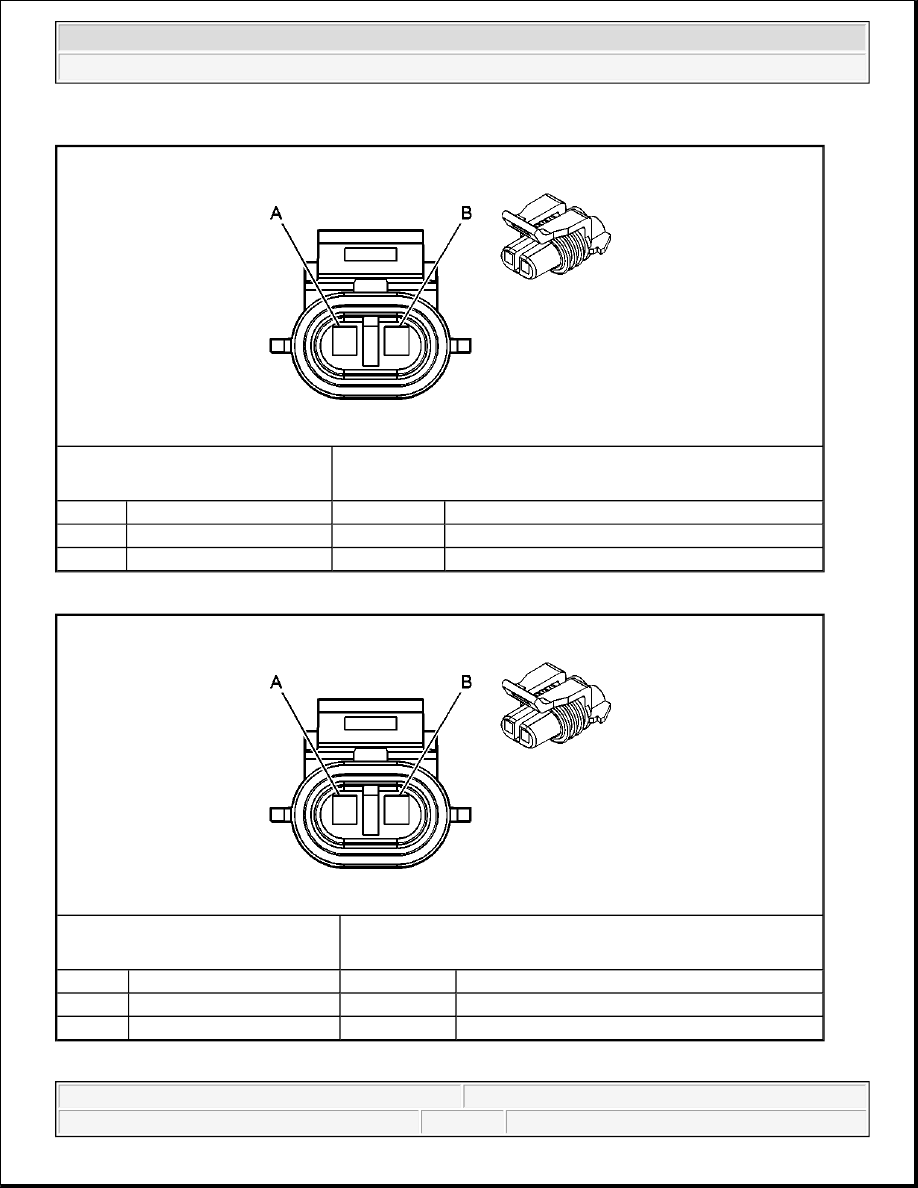

Marker Lamp Terminal Identification - RR

Off-Road Lamps Terminal Identification - Grille Guard (w/UNR)

Off-Road Lamps Terminal Identification - Relay 1 (w/USB/USC or UNR)

Connector Part Information

z

12052641

z

2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

BN/WH

2609

Right Rear Marker Lamp Supply Voltage

B

D-BU

2115

Right Turn Signal Lamps Supply Voltage

Connector Part Information

z

12052641

z

2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

PU

2234

Front Off-Road Lamps Supply Voltage

B

BK

1050

Ground



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



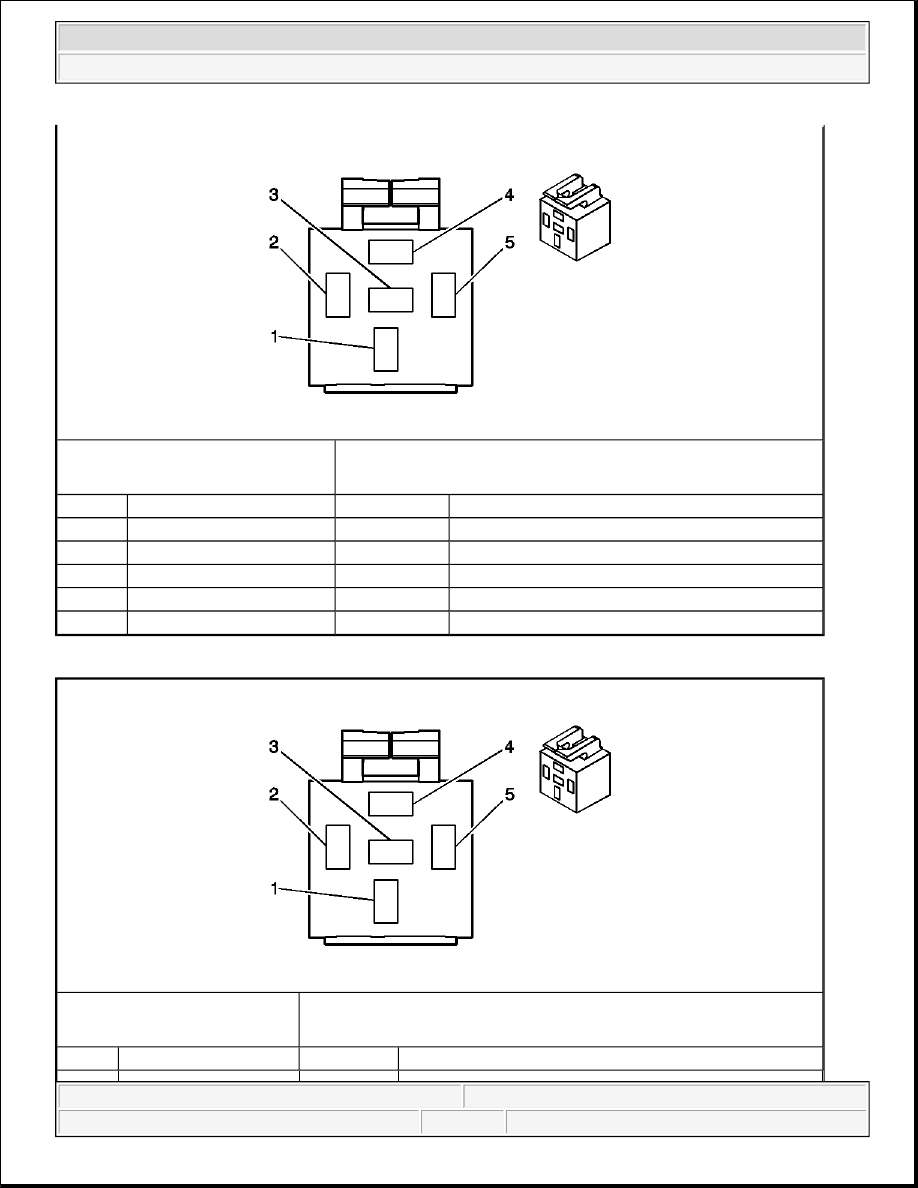

Off-Road Lamps Terminal Identification - Relay 2 (w/USB/USC or UNR)

Connector Part Information

z

871896

z

5-Way F Sumitomo (BK)

Pin

Wire Color

Circuit No.

Function

1

RD

122

Roof Off-Road Lamps Supply Voltage 1

2

YE

317

Off-Road Lamp Relay Control

3

-

-

Not Used

4

BU

316

Battery Positive Voltage

5

BK

1050

Ground

Connector Part Information

z

871896

z

5-Way F Sumitomo (BK)

Pin

Wire Color

Circuit No.

Function



2004 Hummer H2
