Headlamp and Panel Dimmer Terminal Identification Switch

Connector Part Information

z

15398841

z

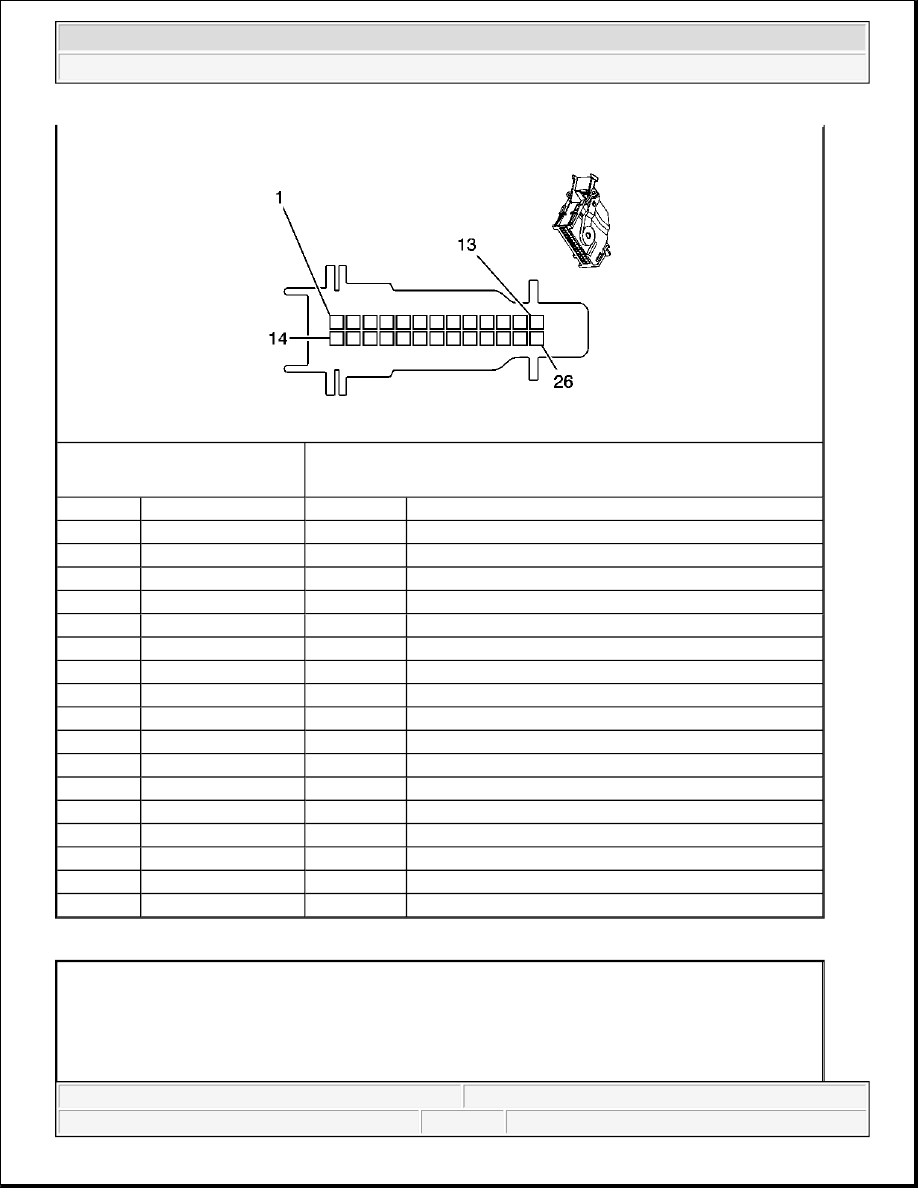

26-Way F AMP Lever Assist (BK)

Pin

Wire Color

Circuit No.

Function

1-4

-

-

Not Used

5

BK/WH

746

Right Front Door Ajar Switch Signal

6-7

-

-

Not Used

8

WH

156

Courtesy Lamp - Right Front Door Supply Voltage

9

-

-

Not Used

10

GY

295

Door Lock Actuator Lock Control

11

TN

294

Door Lock Actuator Unlock Control

12-13

-

-

Not Used

14

OG

4240

Battery Positive Voltage

15-18

-

-

Not Used

19

L-BU

661

Right Courtesy Lamp Control

20

D-GN

1178

Right Front Door Switch Low Reference

21

-

-

Not Used

22

TN

1047

PDM Class 2 Serial Data

23

-

-

Not Used

24

L-GN

265

Passenger Door Key Switch Signal

25-26

-

-

Not Used



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



Headlamp Terminal Identification - Left

Connector Part Information

z

15393872

z

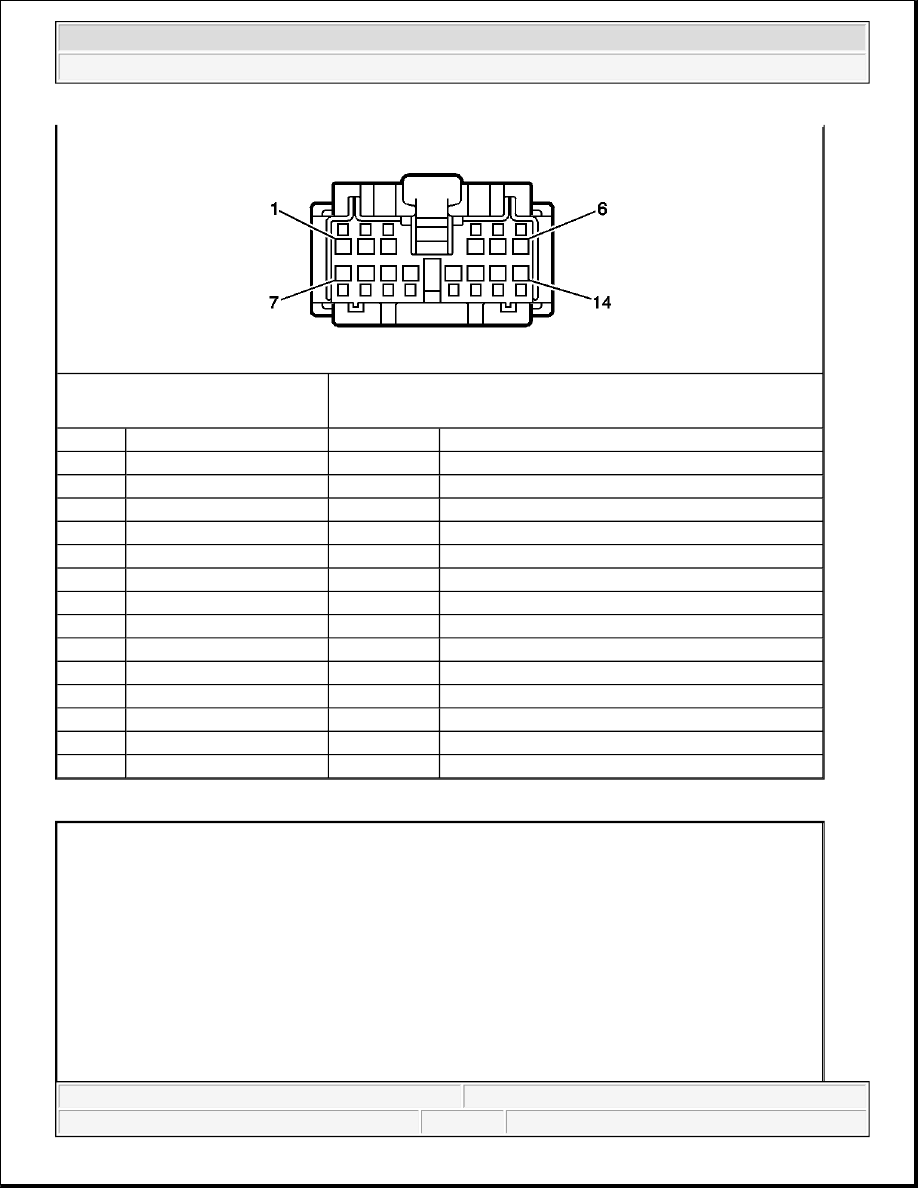

14-Way F (GN)

Pin

Wire Color

Circuit No.

Function

1

PU

328

Interior Lamp Defeat Switch Signal

2

GY/BK

308

Park Lamp Switch On Signal

3

BK/WH

1851

Ground

4

WH

103

Headlamp Switch On Signal

5

D-GN

588

DRL Switch Signal

6

BK

1050

Ground

7

PK

1348

Headlamp On Indicator Control

8

PU

359

DRL Off Indicator Switch

9

PU/WH

1382

LED Dimming Signal

10

D-BU/WH

1495

Courtesy Lamps On Signal

11

OG/BK

2090

Dimmer Potentiometer Signal

12

GY/BK

2226

Dimmer Switch Low Reference

13

GY

1056

Dimming Potentiometer 5-volt Reference

14

BN/WH

230

Instrument Panel Lamps Dimming Control



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



Headlamp Terminal Identification - Right

Connector Part Information

z

12048369

z

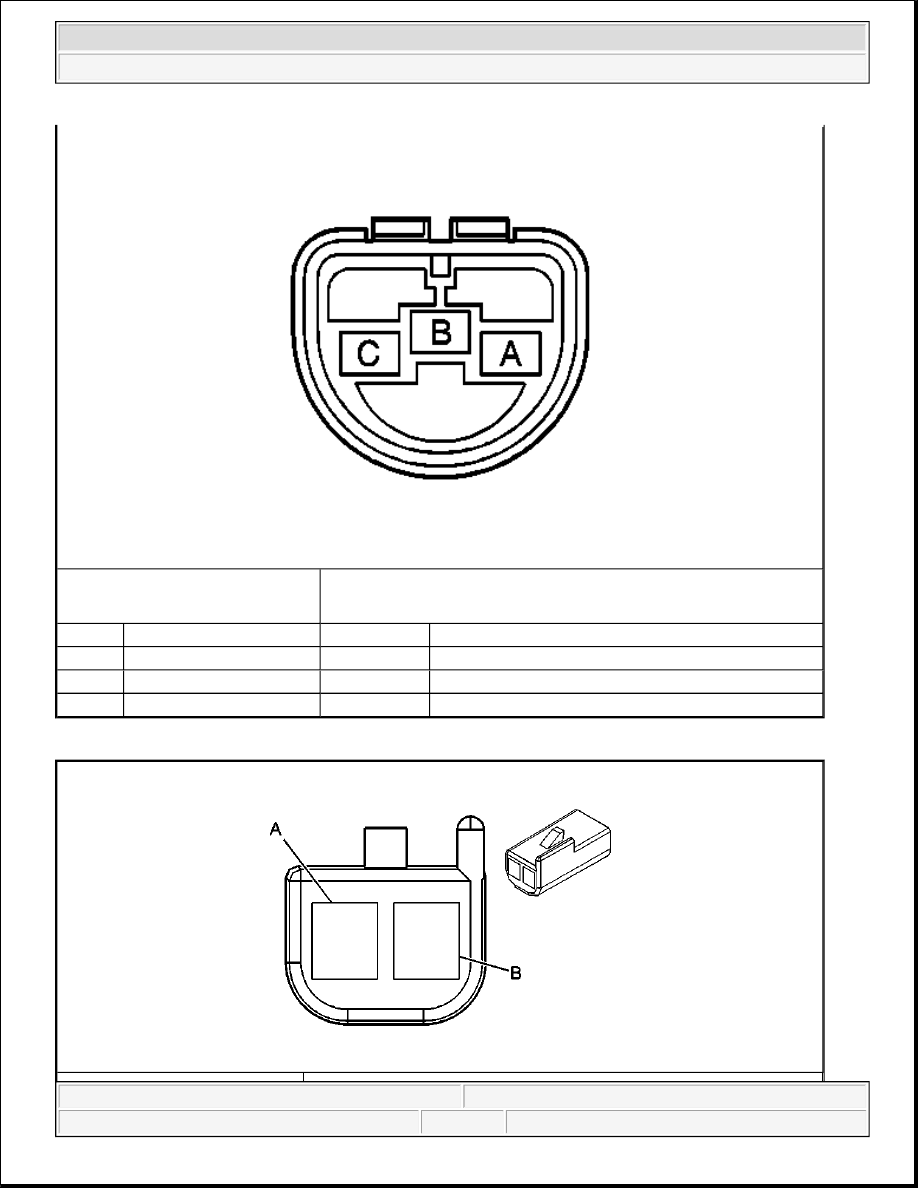

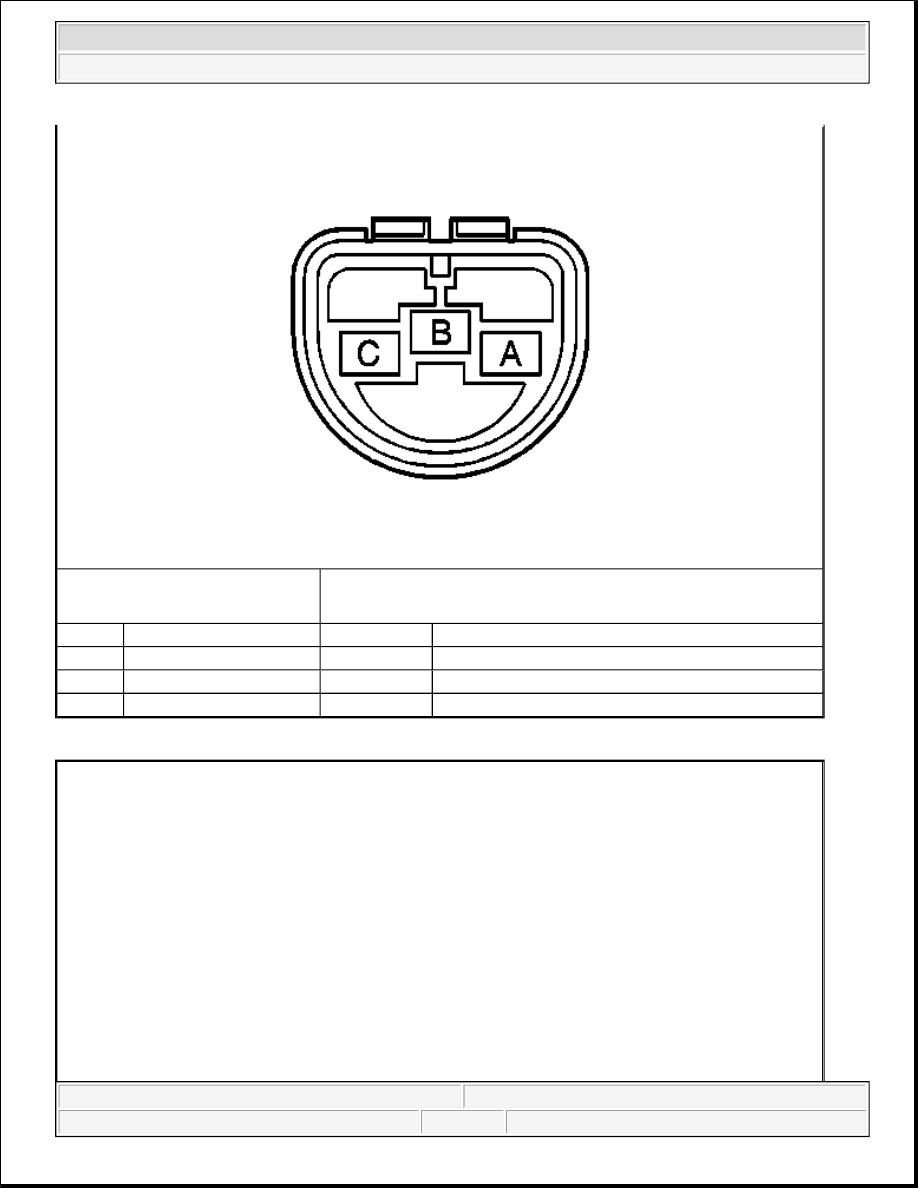

3-Way F Metri-Pack 280 Series Sealed (BU)

Pin

Wire Color

Circuit No.

Function

A

YE

712

Left Headlamp Low Beam Supply Voltage

B

BK

550

Ground

C

D-GN/WH

711

Left Headlamp High Beam Supply Voltage



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



I/P Compartment Terminal Identification Lamp/Switch

Connector Part Information

z

12048369

z

3-Way F Metri-Pack 280 Series Sealed (BU)

Pin

Wire Color

Circuit No.

Function

A

TN/WH

312

Right Headlamp Low Beam Supply Voltage

B

BK

150

Ground

C

L-GN/BK

311

Right Headlamp High Beam Supply Voltage
