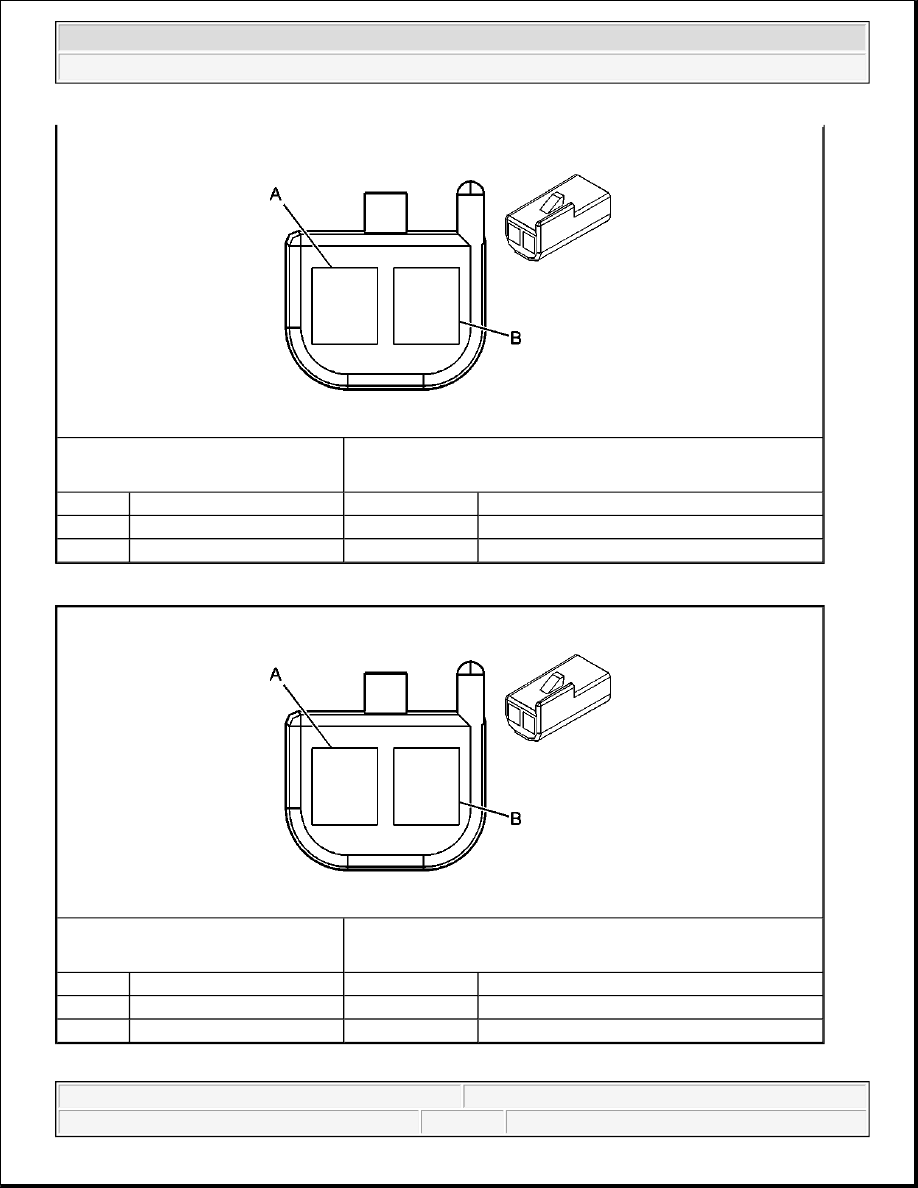

Courtesy Lamp Terminal Identification - Right Rear Door

Courtesy/Reading Lamp Terminal Identification - Center

Connector Part Information

z

12047662

z

2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

WH

156

Courtesy Lamp Supply Voltage

B

L-BU

661

Right Courtesy Lamp Control

Connector Part Information

z

12047662

z

2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

GY/BK

690

Courtesy Lamp Supply Voltage

B

BK

1250

Ground



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



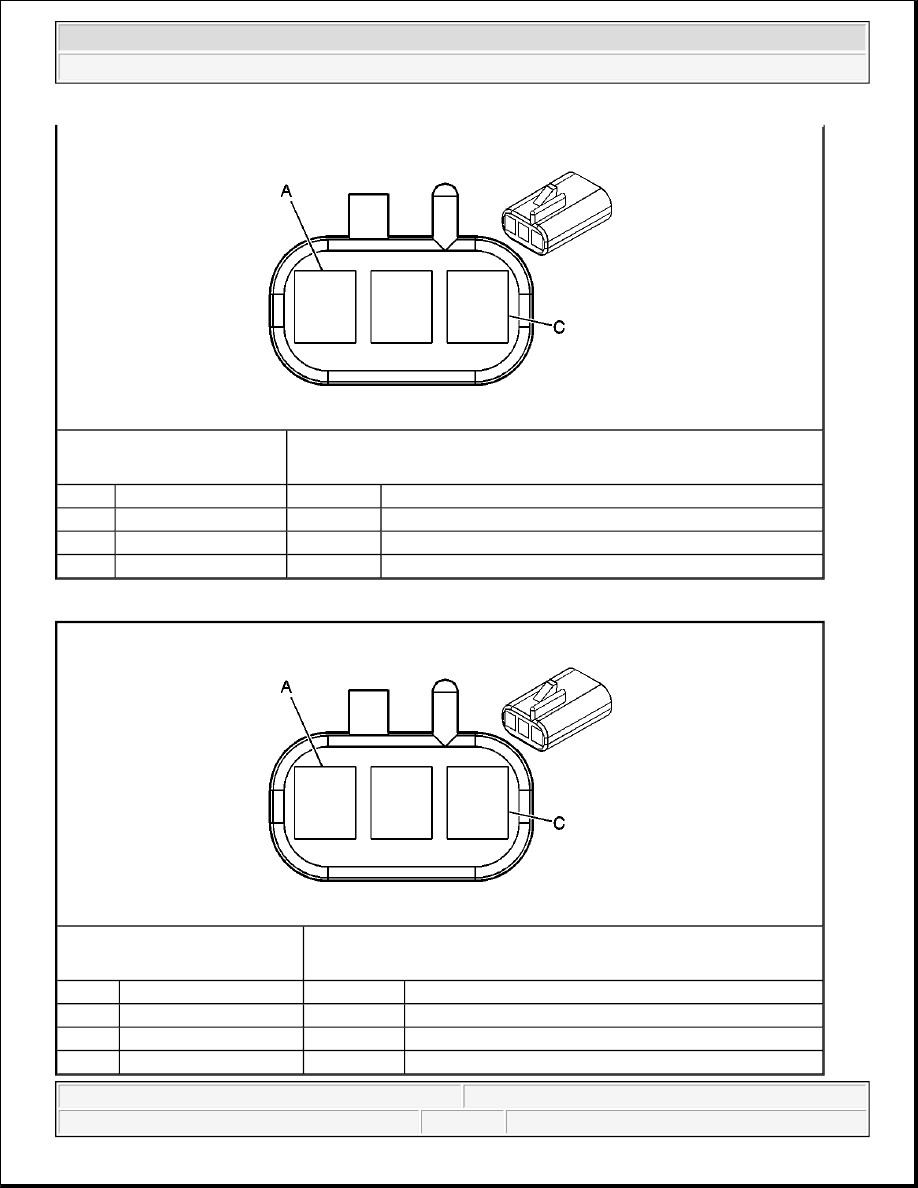

Courtesy/Reading Lamps Terminal Identification - Left Front

Connector Part Information

z

12047781

z

3-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

GY/BK

690

Courtesy Lamp Supply Voltage

B

BK

1050

Ground

C

OG

1732

Inadvertent Load Control Courtesy Lamps Supply Voltage

Connector Part Information

z

12047781

z

3-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

GY/BK

690

Courtesy Lamp Supply Voltage

B

BK

1050

Ground

C

OG

1732

Inadvertent Power Courtesy Lamps Supply Voltage



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



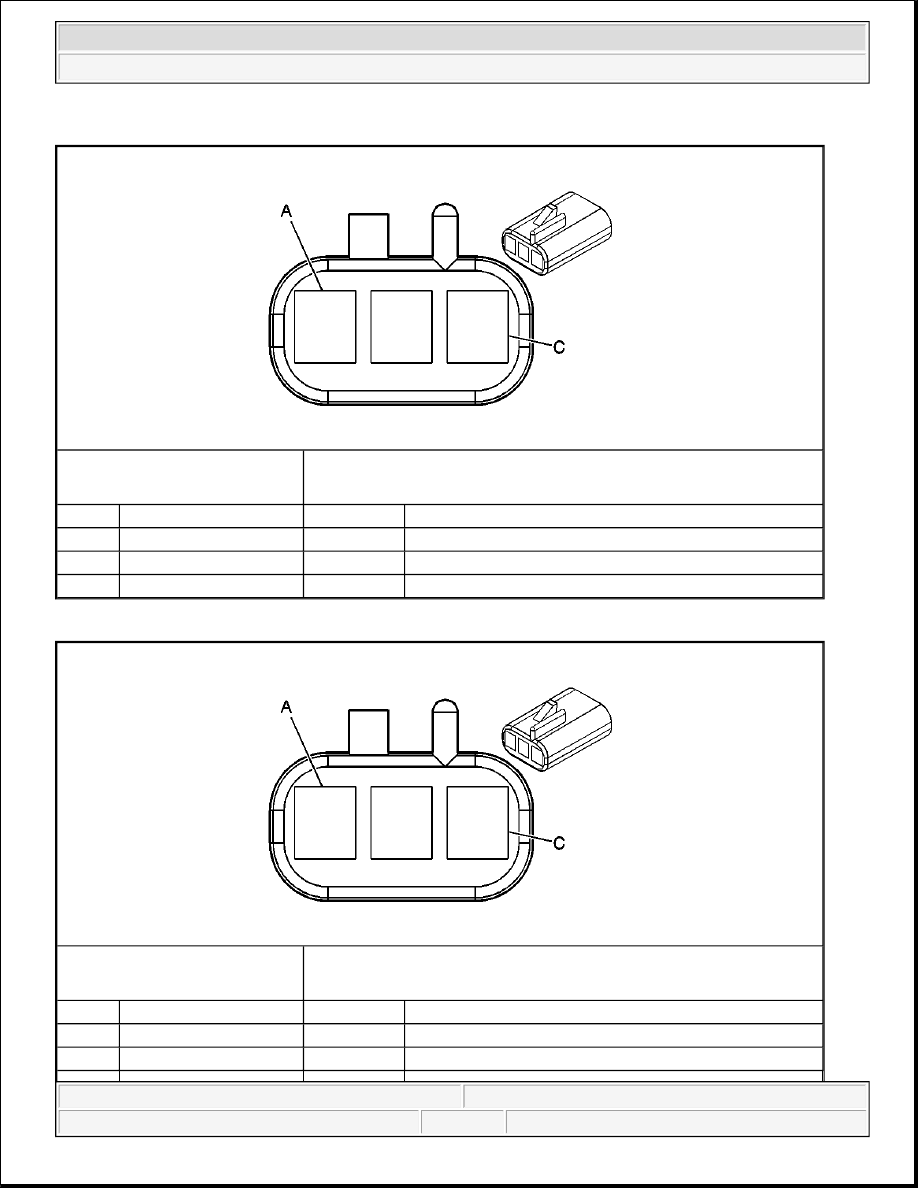

Courtesy/Reading Lamps Terminal Identification - Right Front

Courtesy/Reading Lamp Terminal Identification - Rear

Connector Part Information

z

12047781

z

3-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

GY/BK

690

Courtesy Lamp Supply Voltage

B

BK

1050

Ground

C

OG

1732

Inadvertent Power Courtesy Lamps Supply Voltage

Connector Part Information

z

12047781

z

3-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

GY/BK

690

Courtesy Lamp Supply Voltage

B

BK

1050

Ground



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



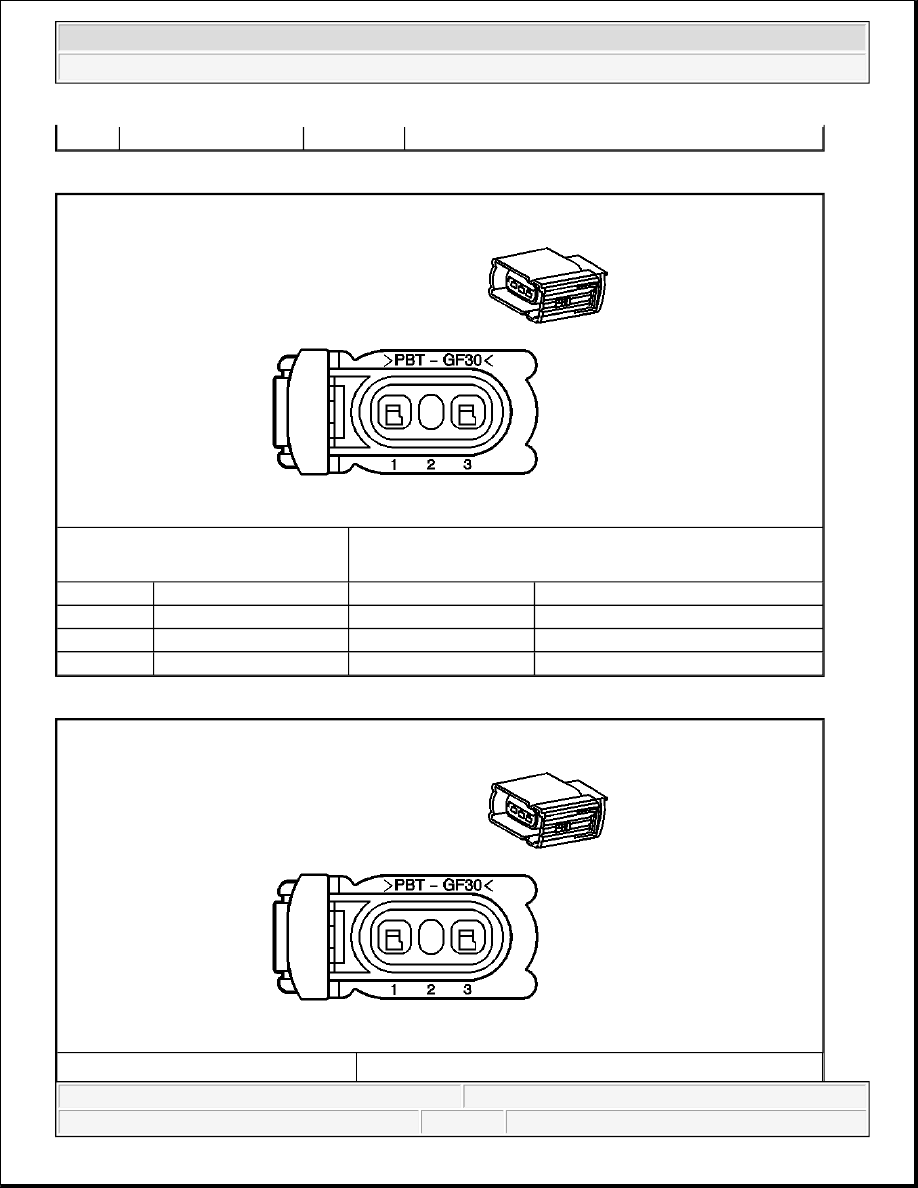

Daytime Running Lamp (DRL) Terminal Identification - Left

Daytime Running Lamp (DRL) Terminal Identification - Right

C

OG

1732

Inadvertent Power Courtesy Lamps Supply Voltage

Connector Part Information

z

15409404

z

3-Way F SLD Delphi Packard (BK)

Pin

Wire Color

Circuit No.

Function

1

BK

150

Ground

2

-

-

Plugged

3

D-BU

545

DRL Supply Voltage

z

15409404
