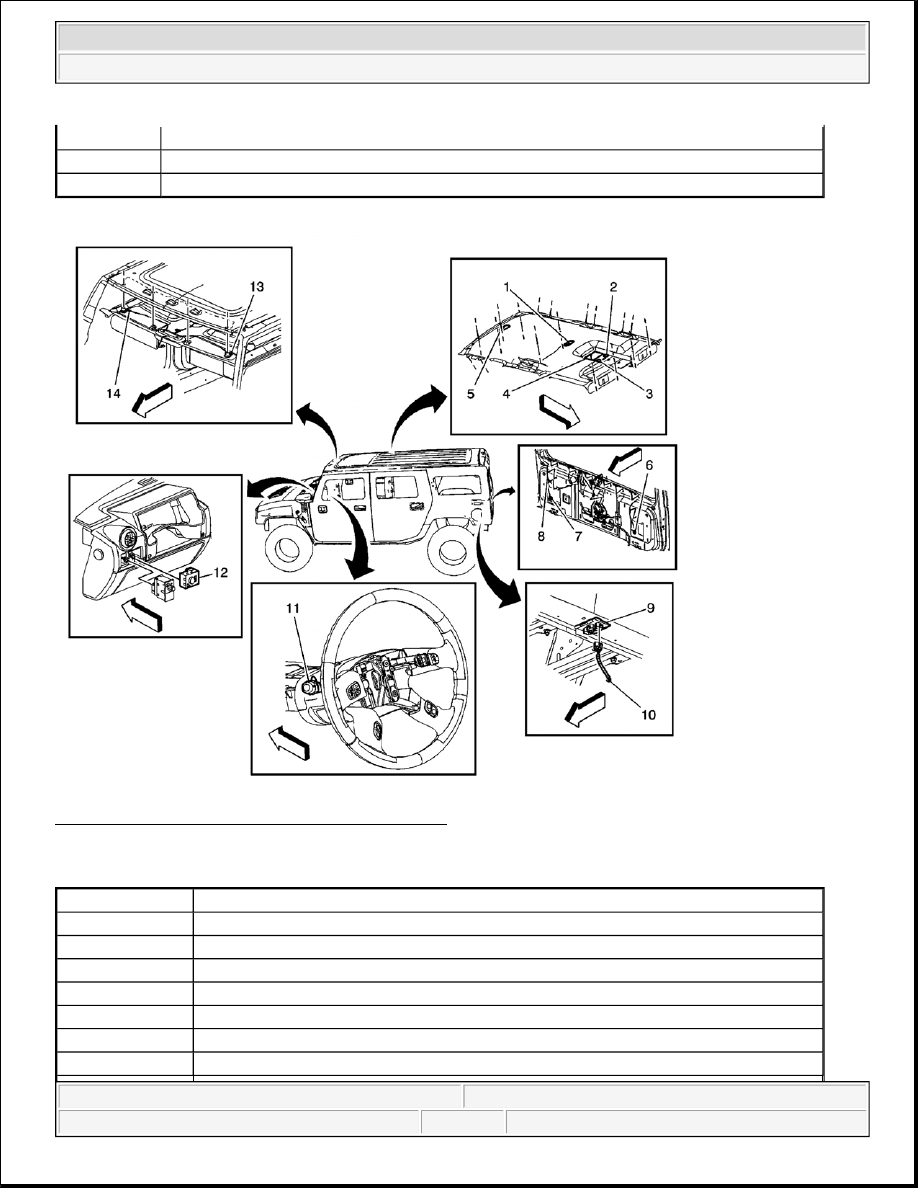

Fig. 28: Lighting System Component Views (2 of 2)
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 28

11

Footwell Courtesy Lamp - Left (Right Side Similar)

12

Data Link Connector (DLC)

13

Fuse Block - I/P C1

Callout

Component Name

1

Courtesy/Reading Lamp - Center

2

Courtesy/Reading Lamp - Front

3

Courtesy/Reading Lamp - Front

4

Overhead Console (w/o Sunroof)

5

Courtesy/Reading Lamp - Rear

6

Liftgate Ajar Switch - Left

7

Liftgate Ajar Switch - Right



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



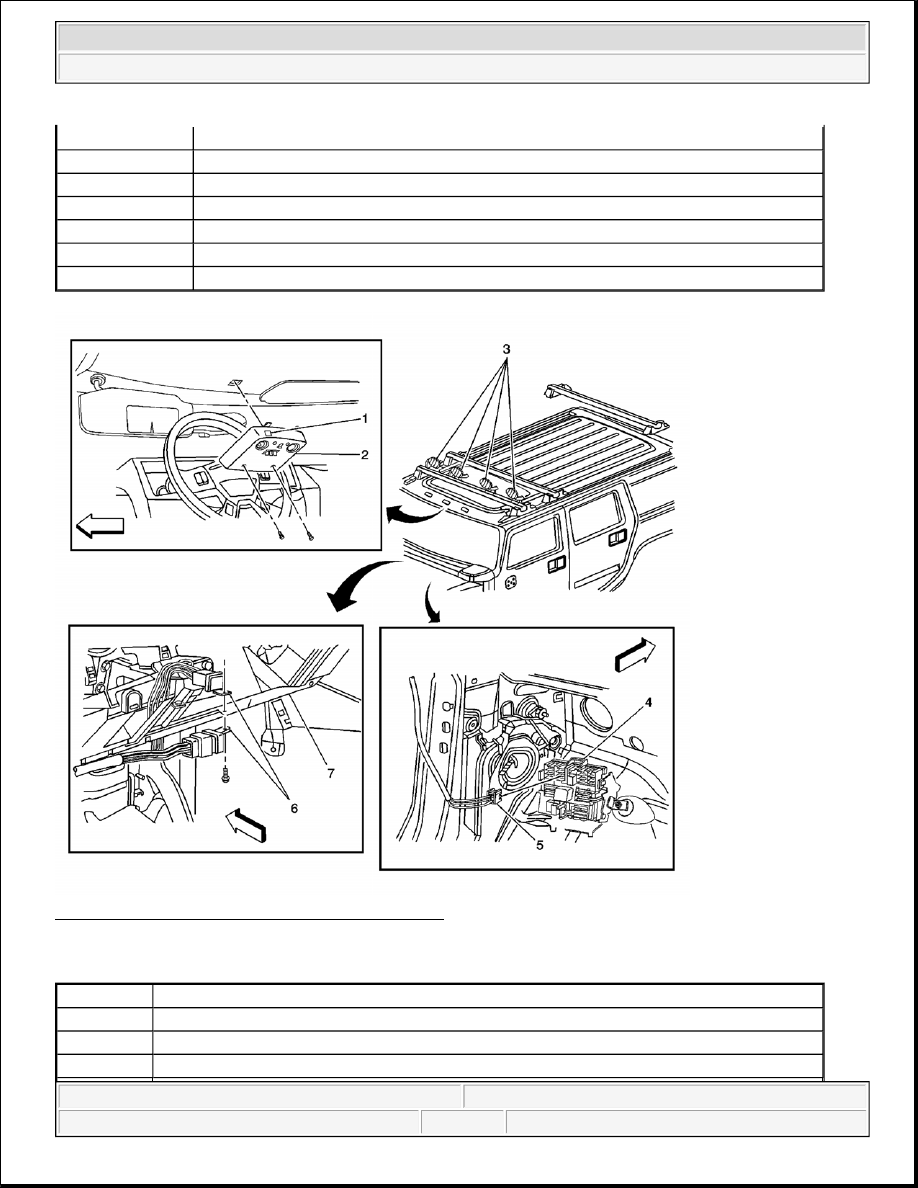

Fig. 29: Off Road Lamps - Roof Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 29

8

Liftgate Harness

9

Junction Block - Rear

10

Chassis Harness

11

Turn Signal Multifunction Switch

12

Headlamp and Panel Dimmer Switch

13

Vanity Mirror Lamp Connector - Left

14

Vanity Mirror Lamp Connector - Right

Callout

Component Name

1

Off Road Lamps - Switch

2

Overhead Console w/Front Courtesy/Reading Lamps (CF5)

3

Off Road Lamps - Roof



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



LIGHTING SYSTEMS CONNECTOR END VIEWS

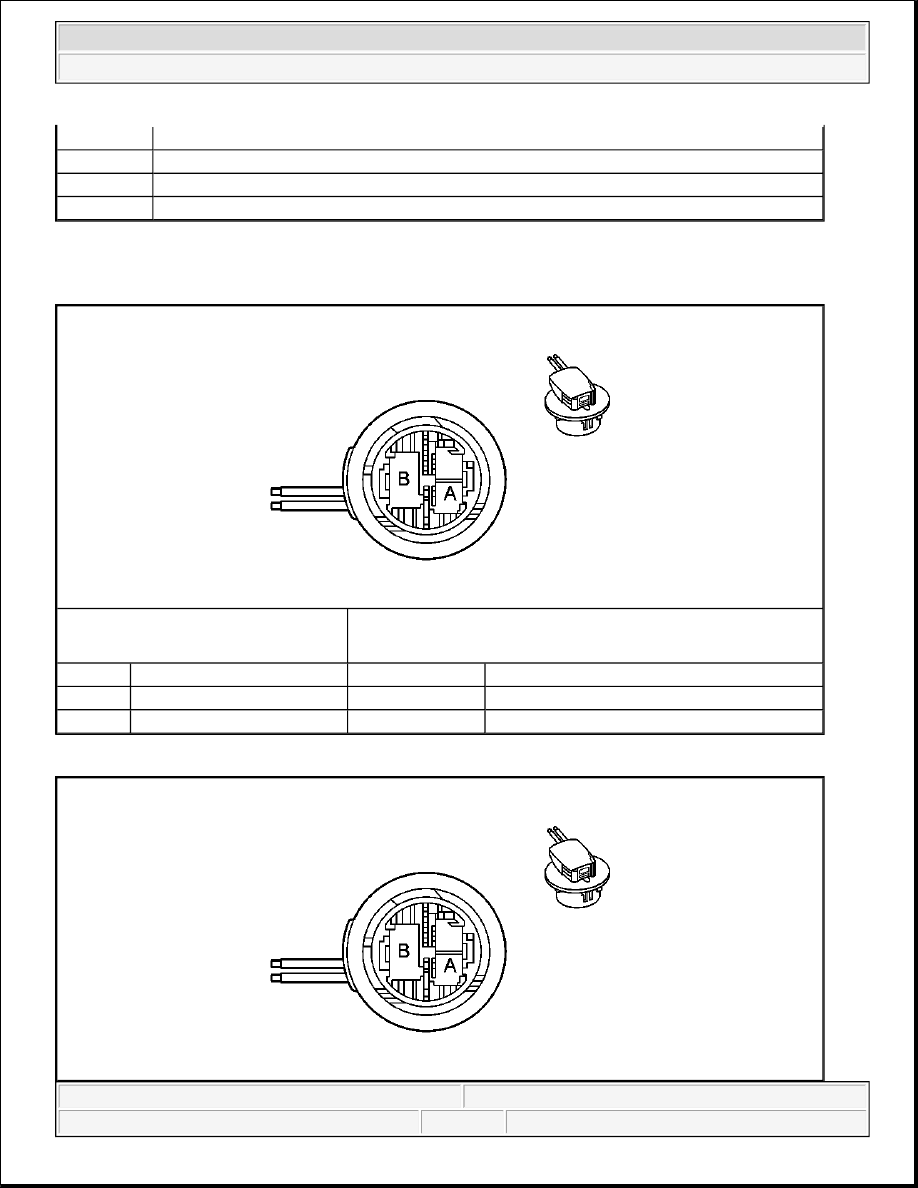

Backup Lamp Terminal Identification - Left

Backup Lamp Terminal Identification - Right

4

Relay Block - I/P

5

Relay Block - I/P C7 (Off Road Lamp Harness)

6

Off Road Lamps Relays

7

Instrument Panel Rail

Connector Part Information

z

0001035

z

2-Way F CE-F29.14-5A Series (GY)

Pin

Wire Color

Circuit No.

Function

A

GY

24

Backup Lamp Supply Voltage

B

GY/BK

1750

Ground



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



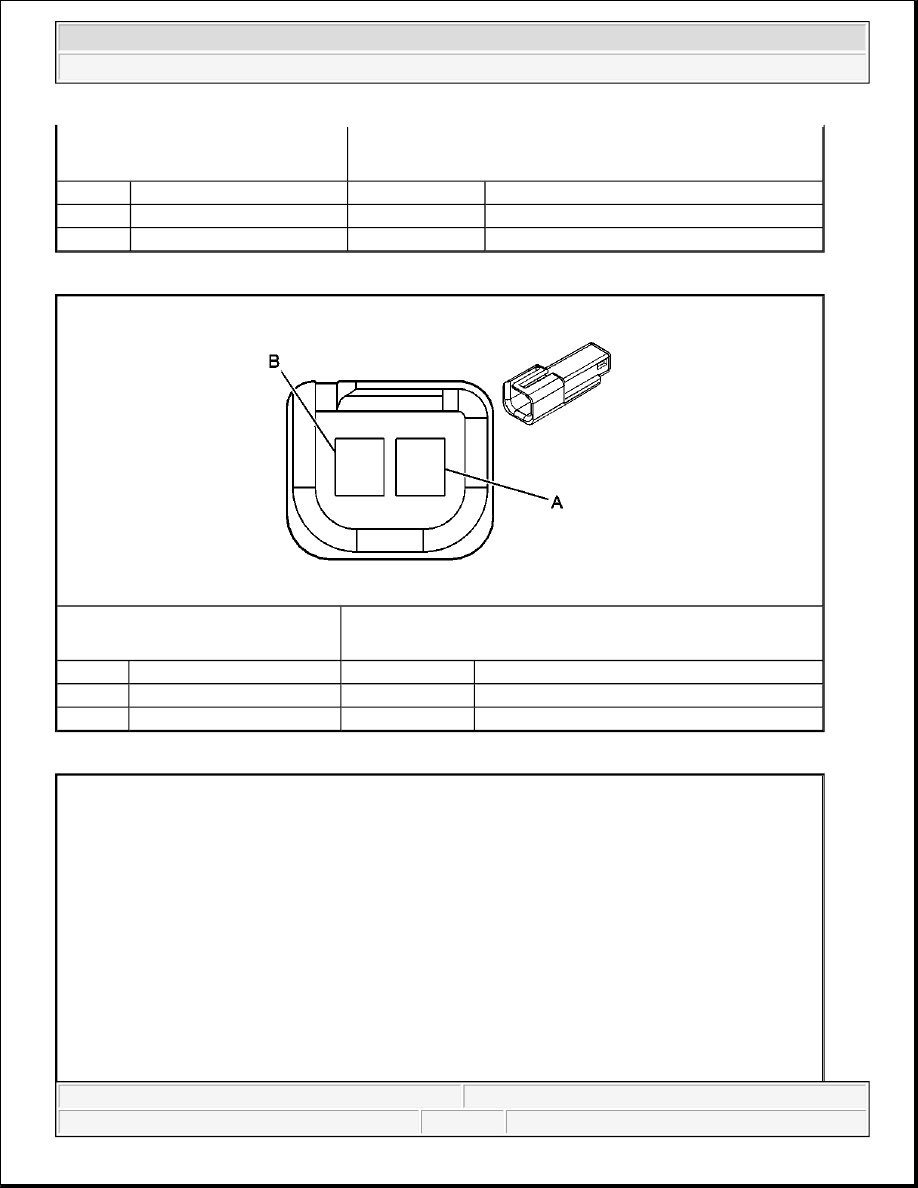

Center High Mounted Stop Lamp (CHMSL) Terminal Identification
