Hummer H2. Manual - part 298

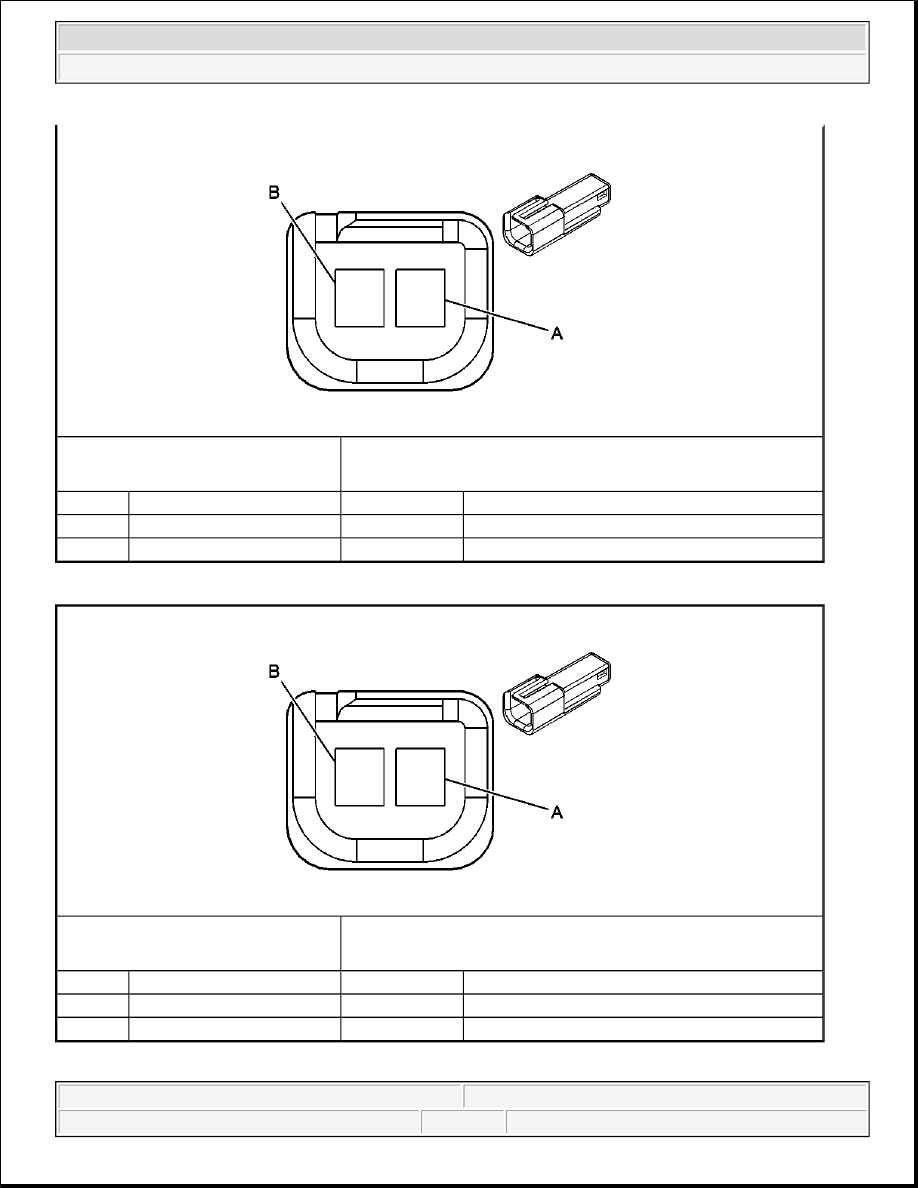

Clearance Lamp Terminal Identification - LR

Clearance Lamp Terminal Identification - RF

Connector Part Information

z

12047663

z

2-Way M Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

BN

2409

Interior Park Lamps Supply Voltage

B

BK

1050

Ground

Connector Part Information

z

12047663

z

2-Way M Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

BN

2409

Interior Park Lamps Supply Voltage

B

BK

1450

Ground



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



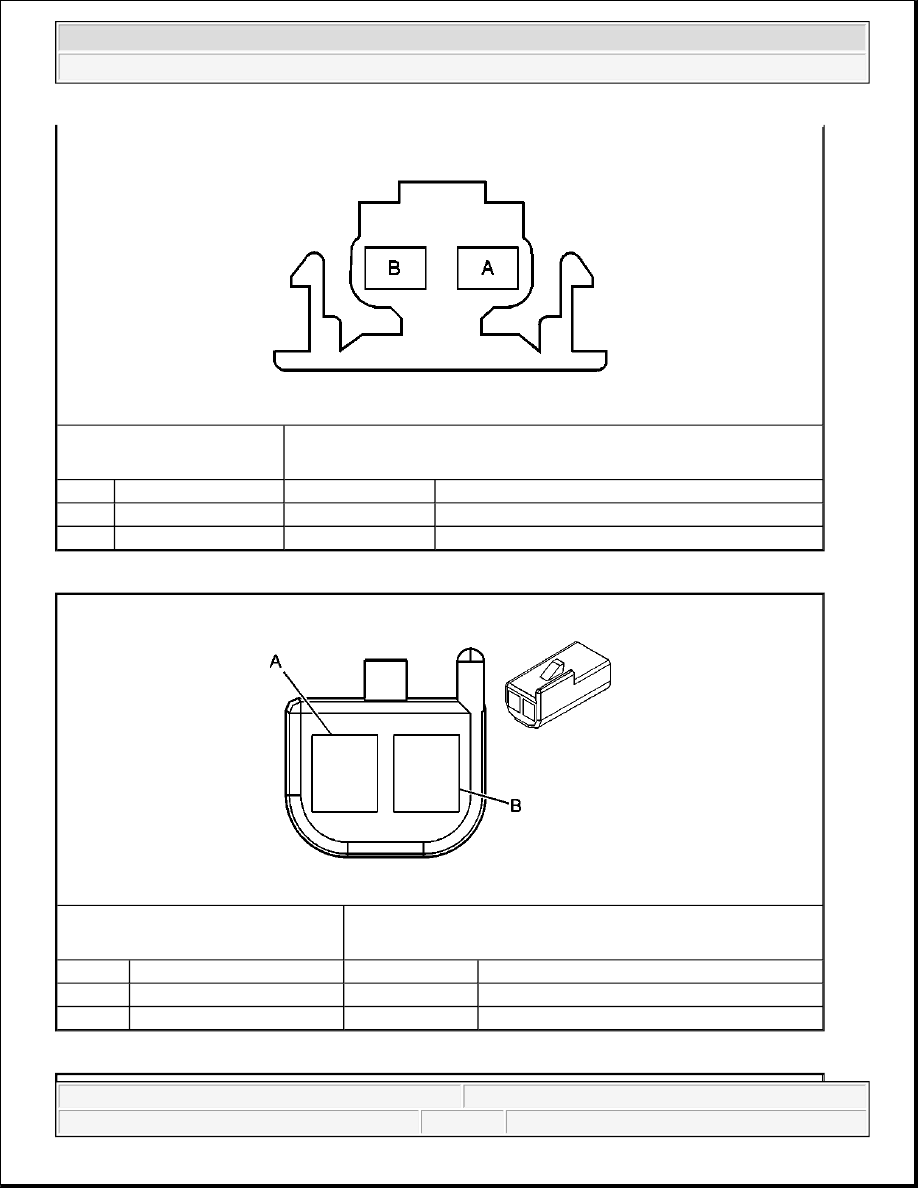

Clearance Lamp Terminal Identification - RR

Courtesy Lamp Terminal Identification - Left B Pillar

Connector Part Information

z

12047663

z

2-Way M Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

BN

2409

Interior Park Lamps Supply Voltage

B

BK

1050

Ground

Connector Part Information

z

12047663

z

2-Way M Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

BN

2409

Interior Park Lamps Supply Voltage

B

BK

1450

Ground



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



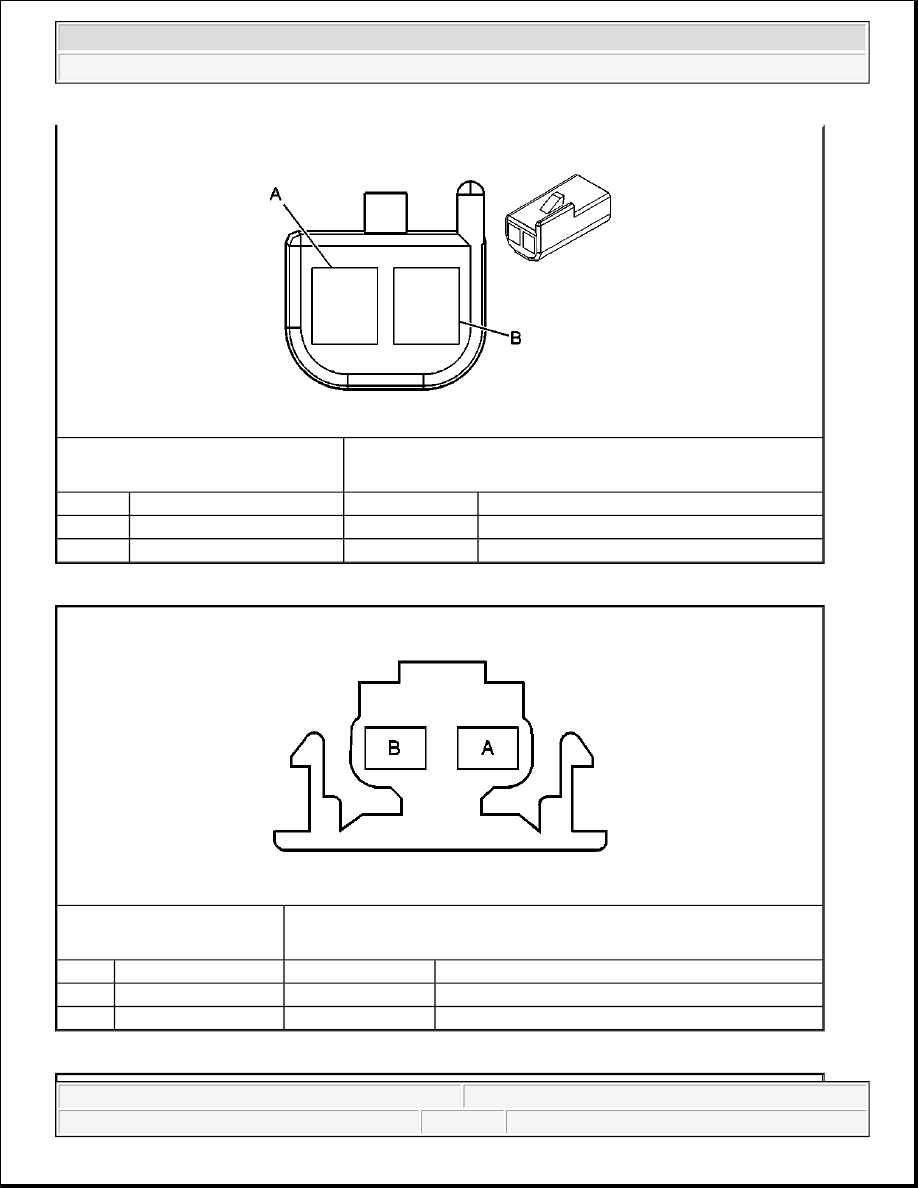

Courtesy Lamp Terminal Identification - Left Front Door

Courtesy Lamp Terminal Identification - Left Rear Door

Connector Part Information

z

12162222

z

2-Way Metri-Pack 150.2 Series Sealed Pull To Seat (WH)

Pin

Wire Color

Circuit No.

Function

A

GY/BK

690

Courtesy Lamp Supply Voltage

B

BK

1150

Ground

Connector Part Information

z

12047662

z

2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

D-BU/WH

149

Courtesy Lamp Supply Voltage

B

D-BU

660

Left Courtesy Lamp Control



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



Courtesy Lamp Terminal Identification - Right B Pillar

Courtesy Lamp Terminal Identification - Right Front Door

Connector Part Information

z

12047662

z

2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

GY/BK

690

Courtesy Lamp Supply Voltage

B

BK

1150

Ground

Connector Part Information

z

12162222

z

2-Way Metri-Pack 150.2 Series Sealed Pull To Seat (WH)

Pin

Wire Color

Circuit No.

Function

A

GY/BK

690

Courtesy Lamp Supply Voltage

B

BK

1250

Ground



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2
