Hummer H2. Manual - part 296

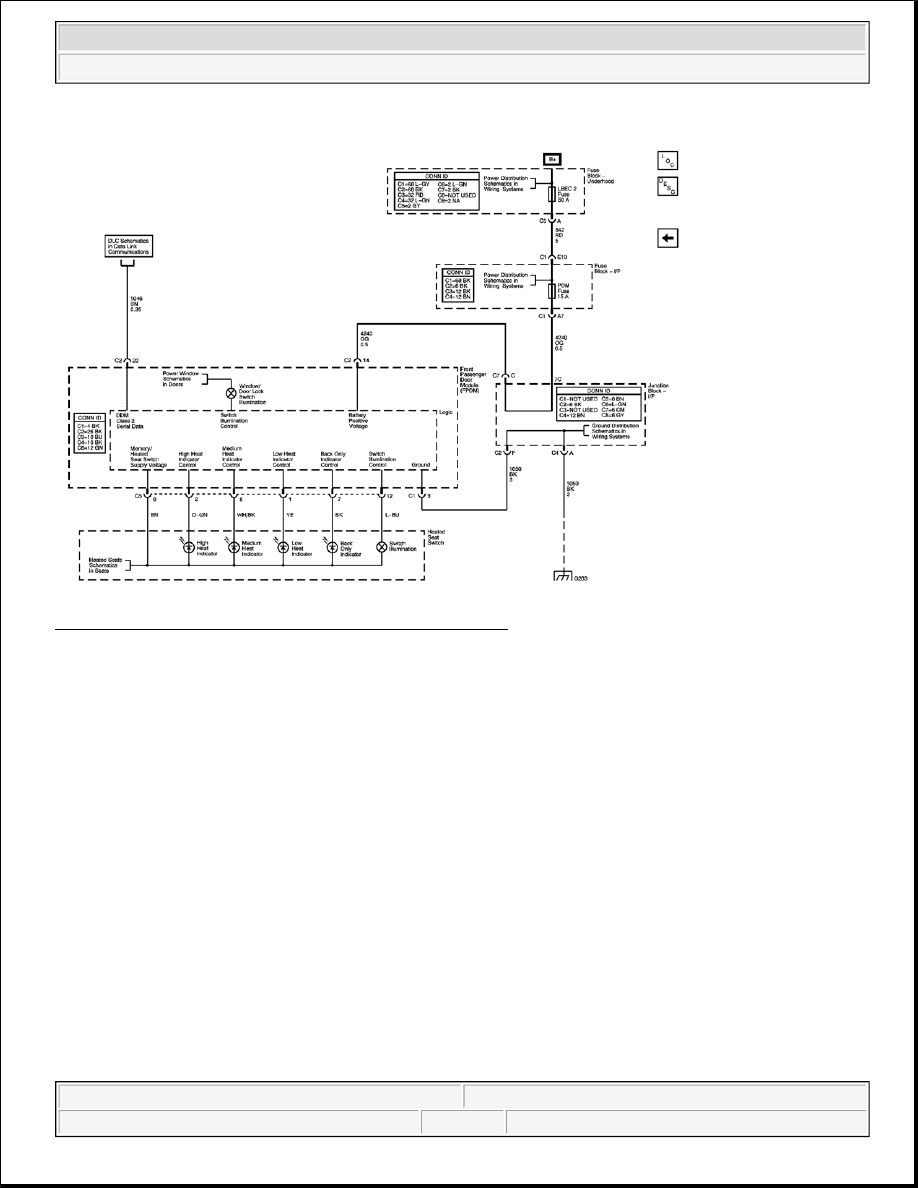

Fig. 24: Front Passenger Window, Door, and Seat Switches
Courtesy of GENERAL MOTORS CORP.

COMPONENT LOCATOR

LIGHTING SYSTEMS COMPONENT VIEWS



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



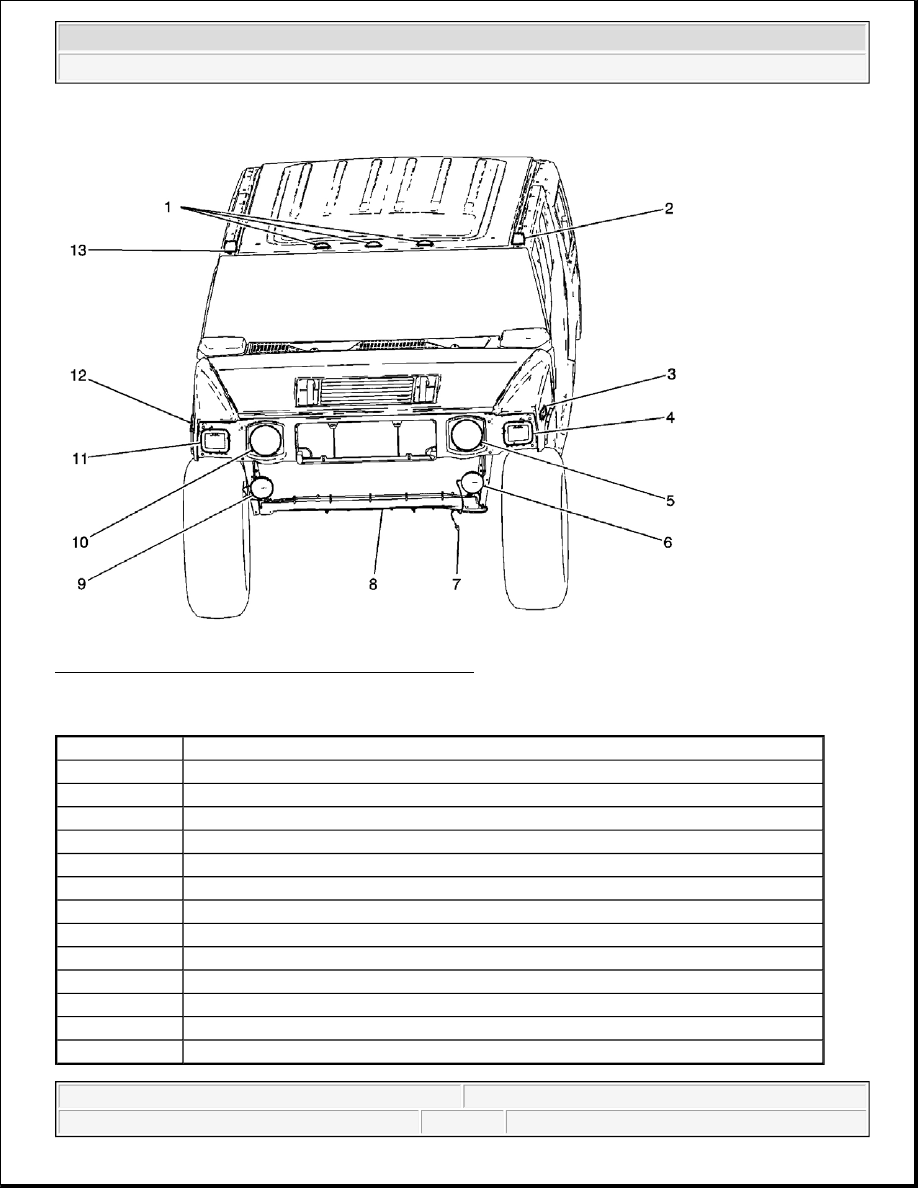

Fig. 25: Front Body Exterior Lights Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 25

Callout

Component Name

1

Roof Lamps - Center Front

2

Clearance Lamp - LF

3

Marker Lamp - LF

4

Park/Turn Signal Lamp - Left

5

Headlamp - High Beam/Low Beam - Left

6

Daytime Running Lamp (DRL) - Left

7

G100

8

Forward Lamp Harness

9

Daytime Running Lamp (DRL) - Right

10

Headlamp - High Beam/Low Beam - Right

11

Park/Turn Signal Lamp - Right

12

Marker Lamp - RF

13

Clearance Lamp - RF



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



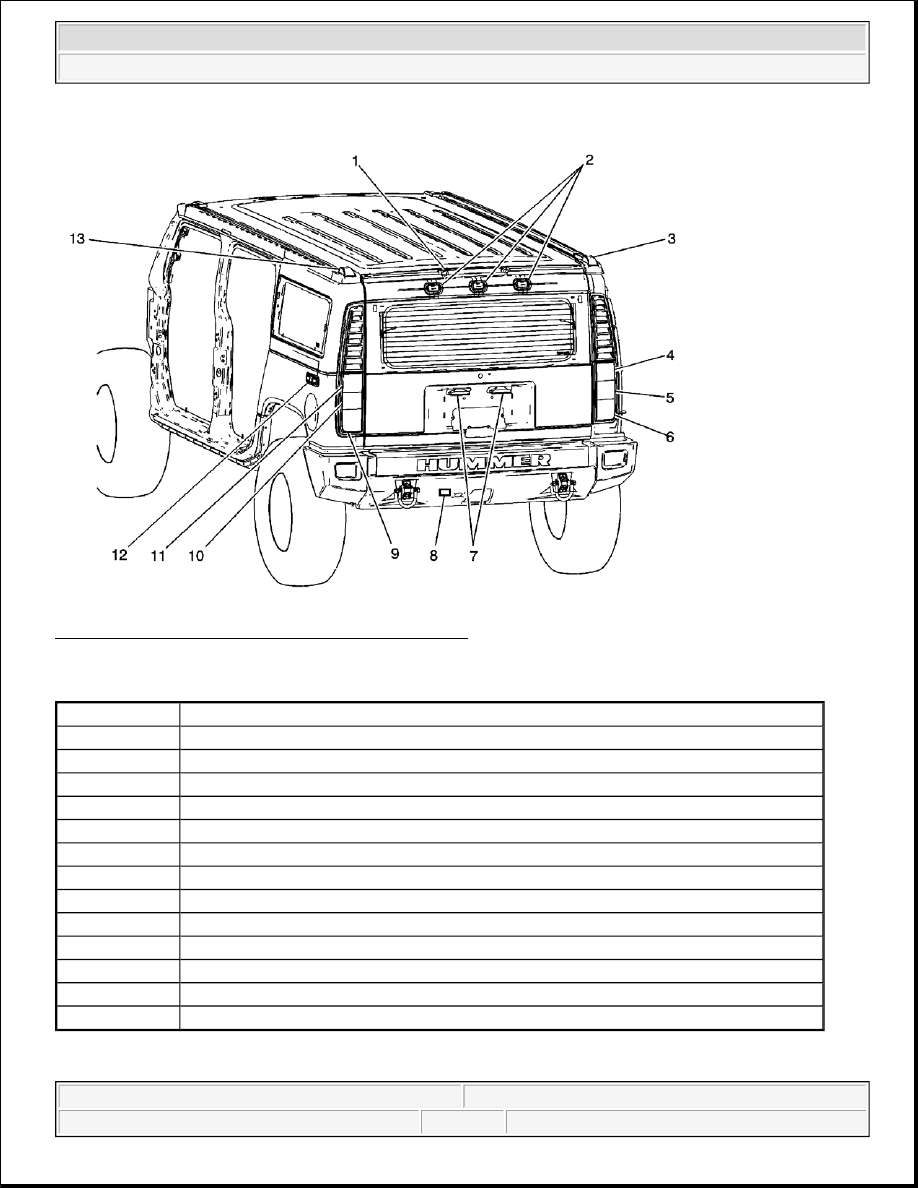

Fig. 26: Rear Body Exterior Lights Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 26

Callout

Component Name

1

Center High Mounted Stop Lamp (CHMSL)

2

Roof Lamps - Center Rear

3

Clearance Lamp - RR

4

Backup Lamp - RH

5

Turn Signal Lamp - RR

6

Tail/Stop Lamp - Right

7

License Lamps

8

Trailer Connector

9

Tail/Stop Lamp - Left

10

Turn Signal Lamp - LR

11

Backup Lamp - LH

12

Marker Lamp - LR

13

Clearance Lamp - LR



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



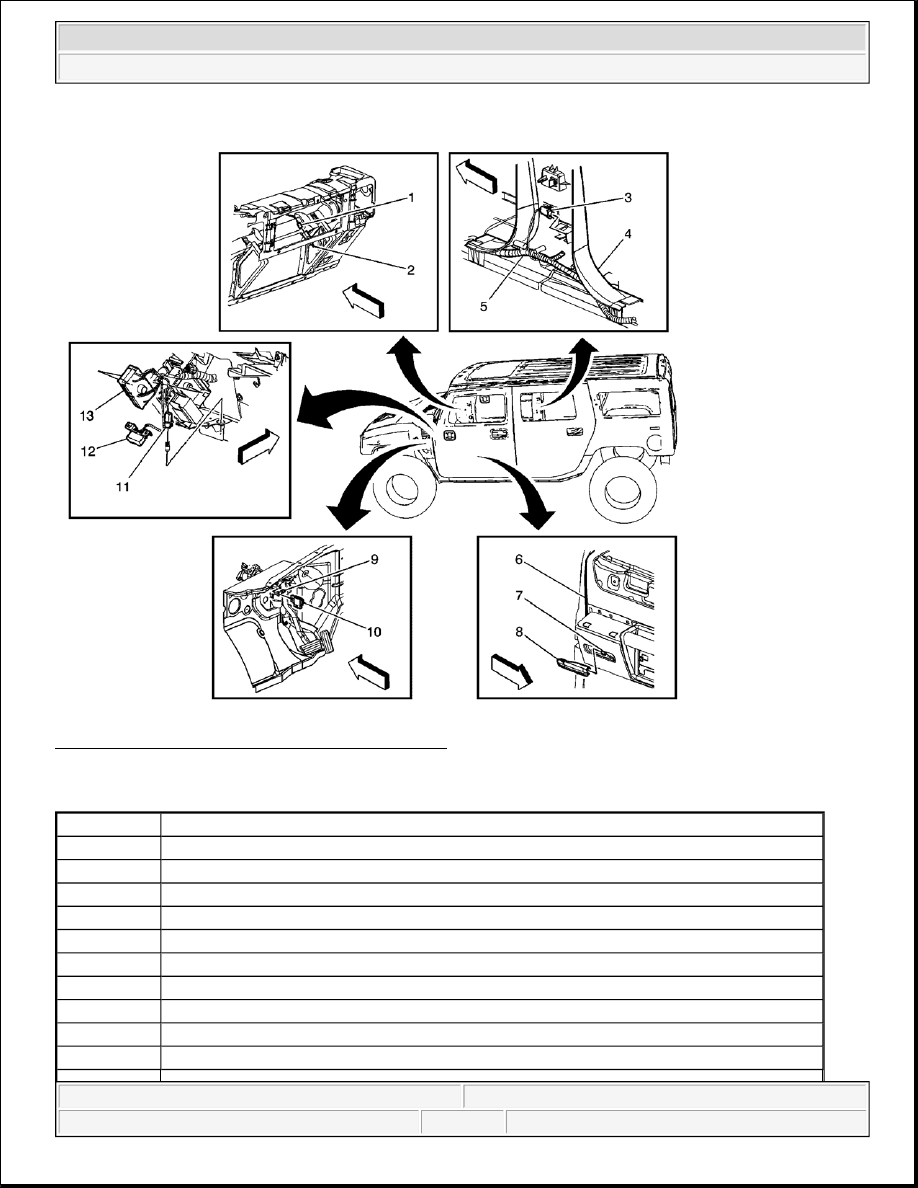

Fig. 27: Lighting System Component Views (1 of 2)
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 27

Callout

Component Name

1

I/P Compartment Lamp Connector

2

I/P Compartment Lamp

3

Courtesy Lamp - Right B Pillar (Right Side Similar)

4

B Pillar Trim Panel

5

Body Harness

6

Left Front Door

7

Courtesy Lamp - Left Front Door Connector

8

Courtesy Lamp - Left Front Door (Right Side Similar)

9

Brake Pedal Assembly

10

Stop Lamp Switch



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2
