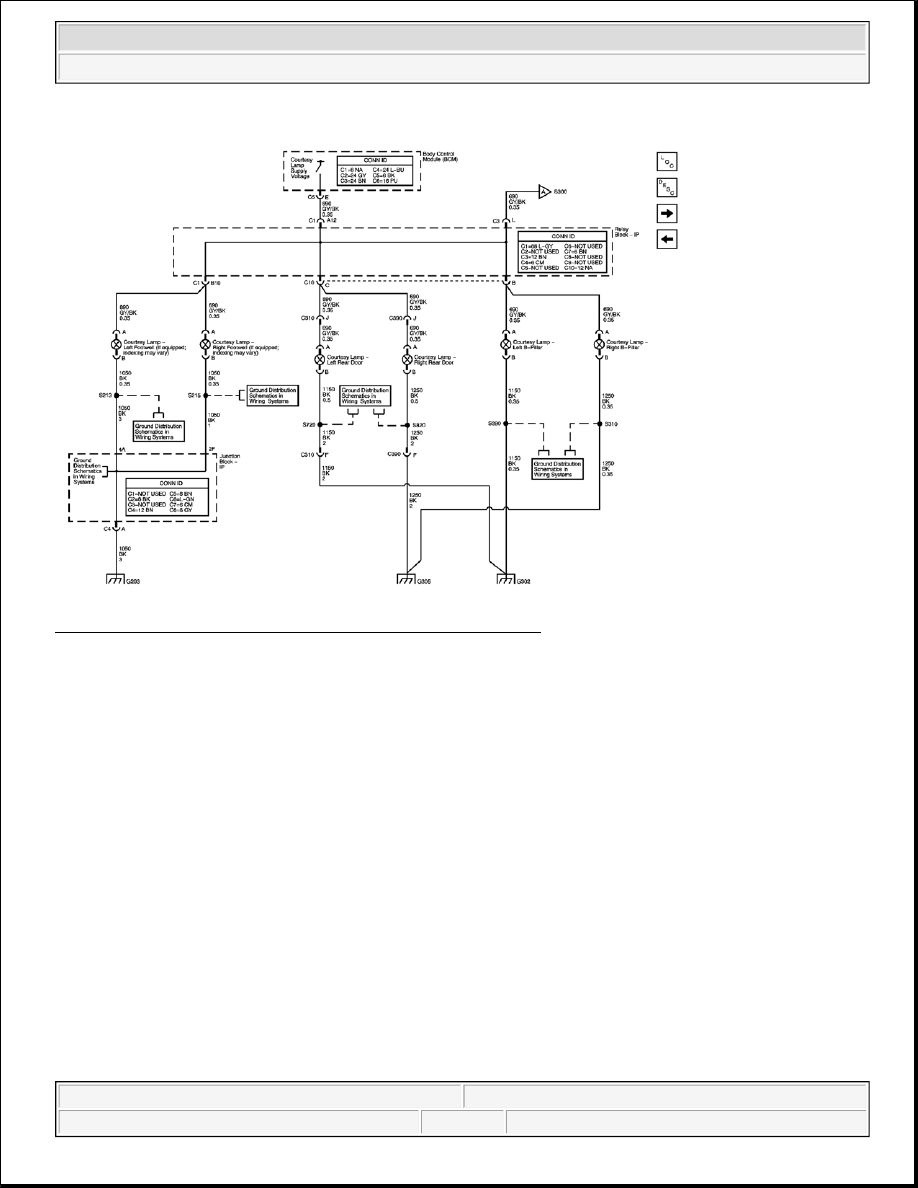

Fig. 16: Courtesy Lamps - Footwells, Rear Doors, and B-Pillars
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2

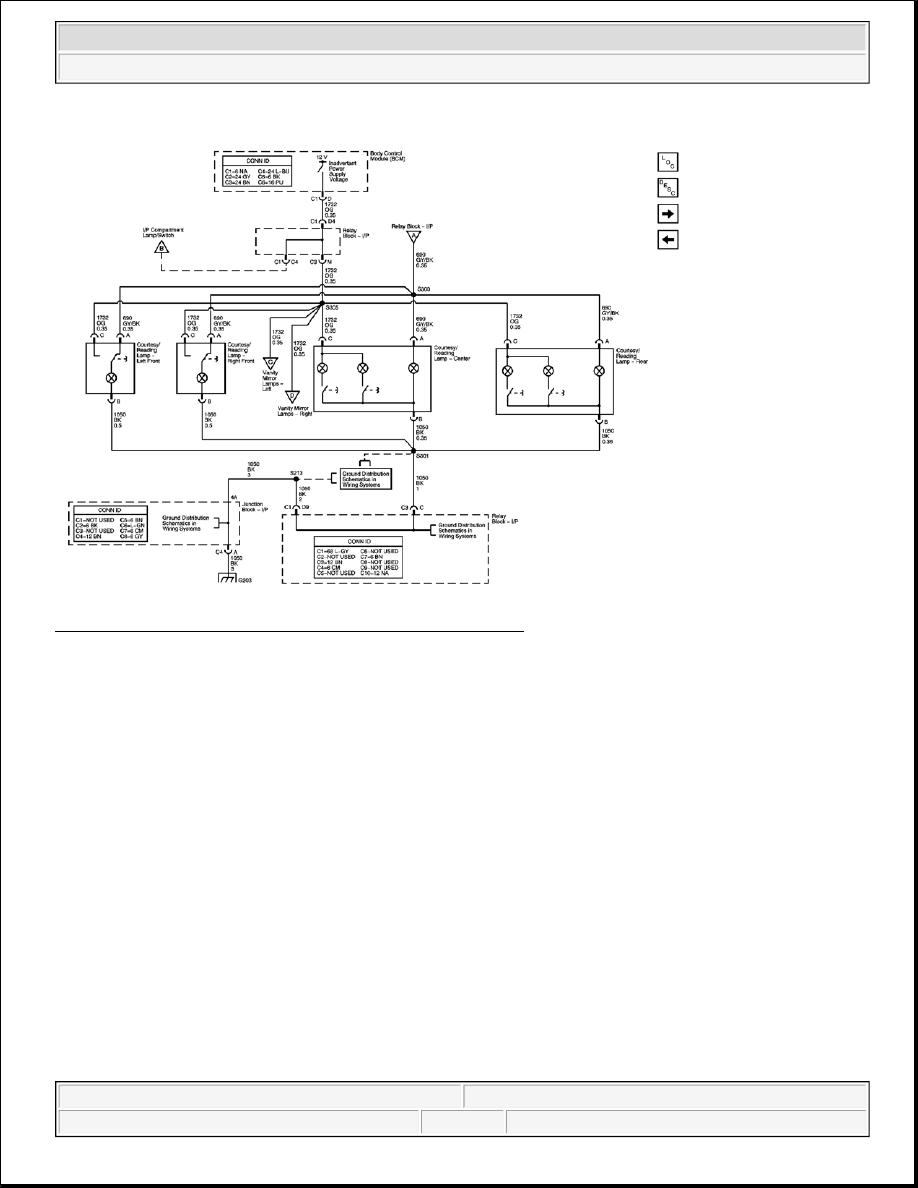

Fig. 17: Courtesy Lamps -Headliner Front, Center, and Rear
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2

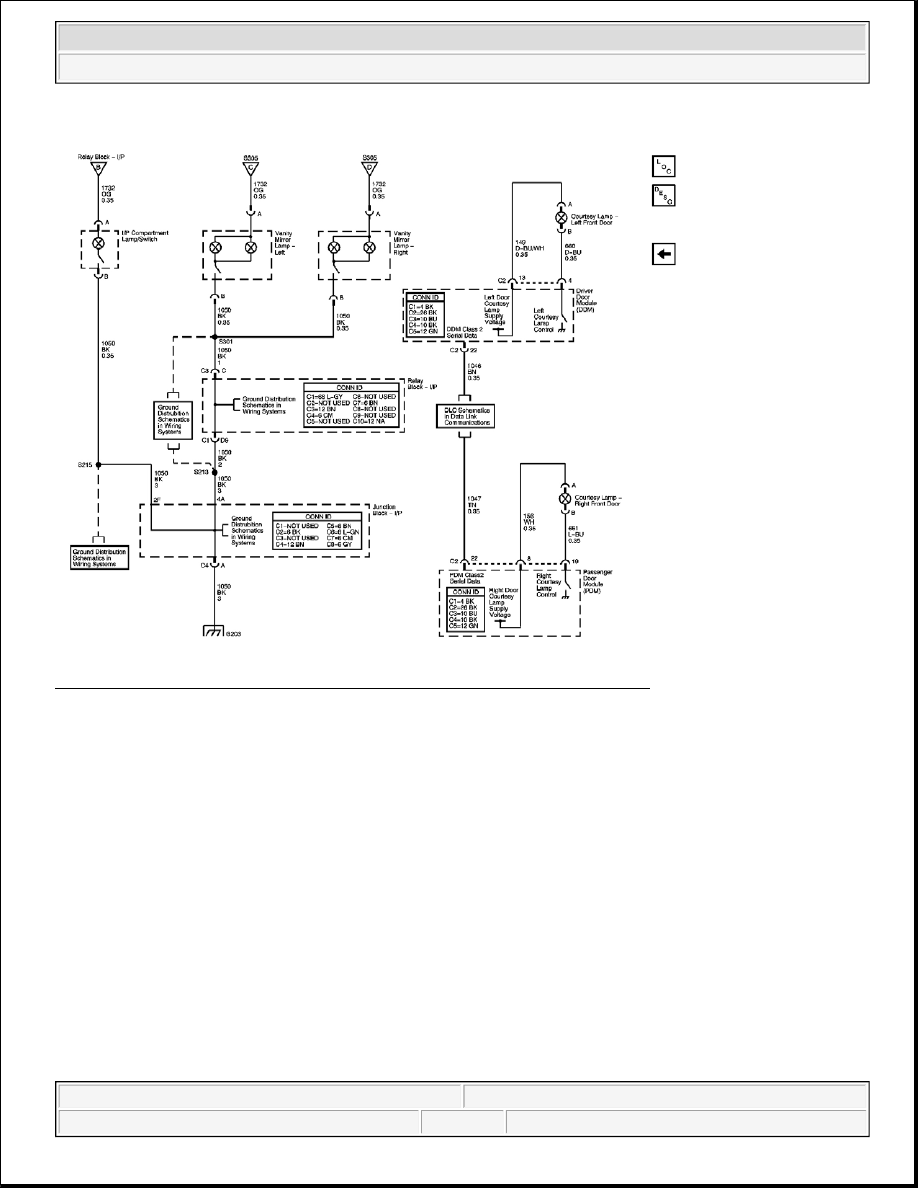

Fig. 18: Courtesy Lamps -Front Doors, Vanity Mirror, and I/P Compartment
Courtesy of GENERAL MOTORS CORP.

INTERIOR LIGHTS DIMMING SCHEMATICS

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2

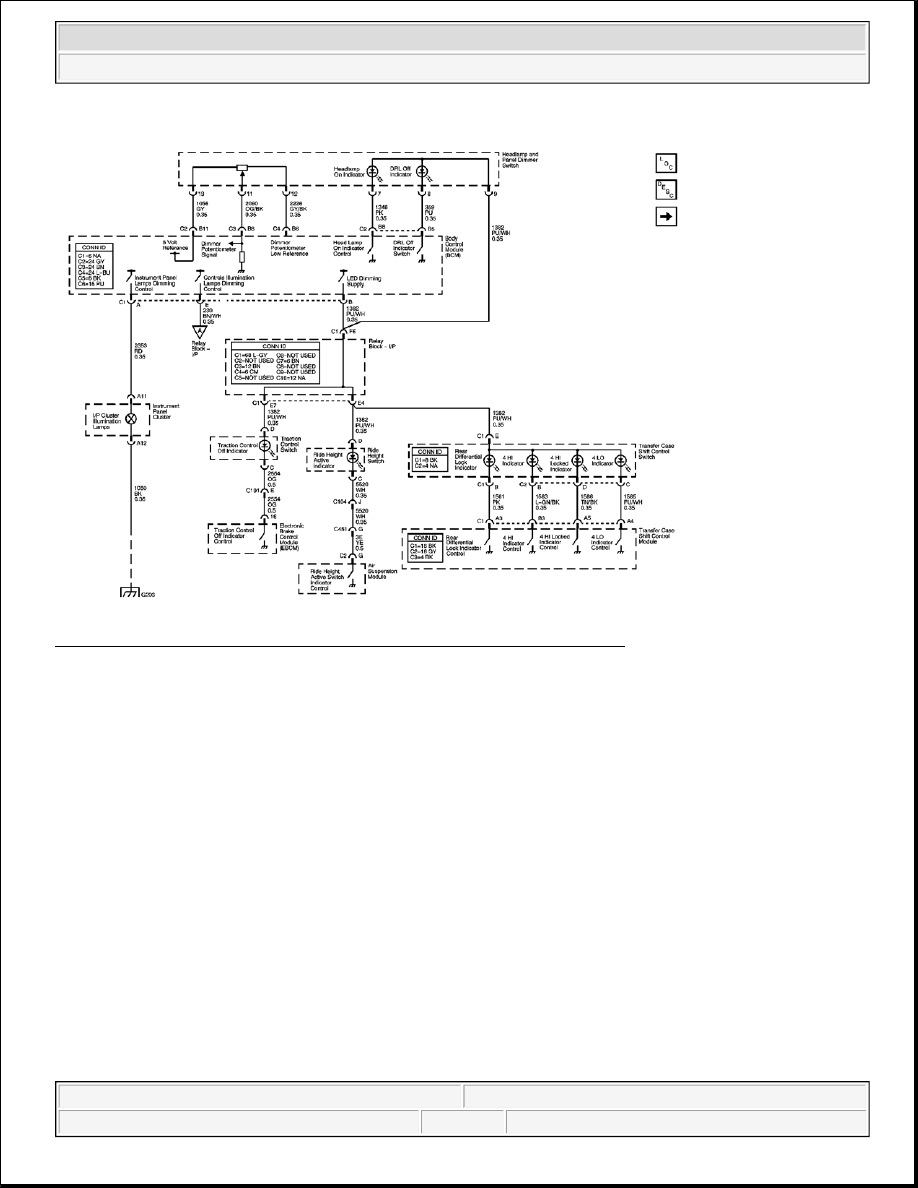

Fig. 19: Dimmer Controls, I/P Cluster Illumination, and Switch Indicators
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2
