Hummer H2. Manual - part 302

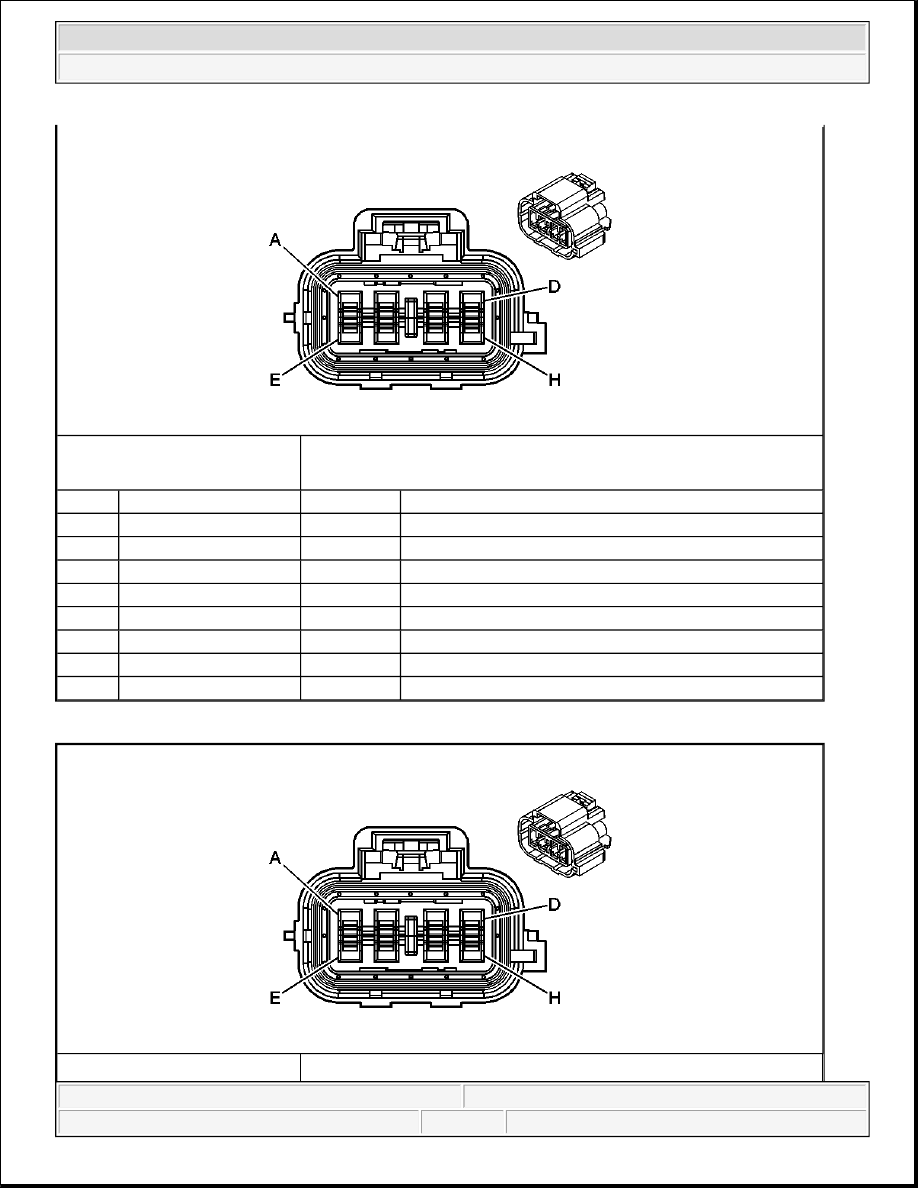

Junction Block Terminal Identification - Rear - C1

Junction Block Terminal Identification - Rear - C2

Connector Part Information

z

12047662

z

2-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

OG

1732

Inadvertent Power Courtesy Lamps Supply Voltage

B

BK

1050

Ground

Connector Part Information

z

15317304

z

8-Way F GT 280 Sealed (BU)

Pin

Wire Color

Circuit No.

Function

A

L-BU

2114

Left Turn Signal Lamps Supply Voltage

B

L-BU

1320

Stop Lamp Supply Voltage

C

L-GN

24

Backup Lamp Supply Voltage

D

BN/WH

2609

Right Rear Park Lamps Supply Voltage

E

BK

1750

Ground

F

-

-

Not Used

G

BN

2509

Left Rear Park Lamps Supply Voltage

H

D-BU

2115

Right Turn Signal Lamps Supply Voltage



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



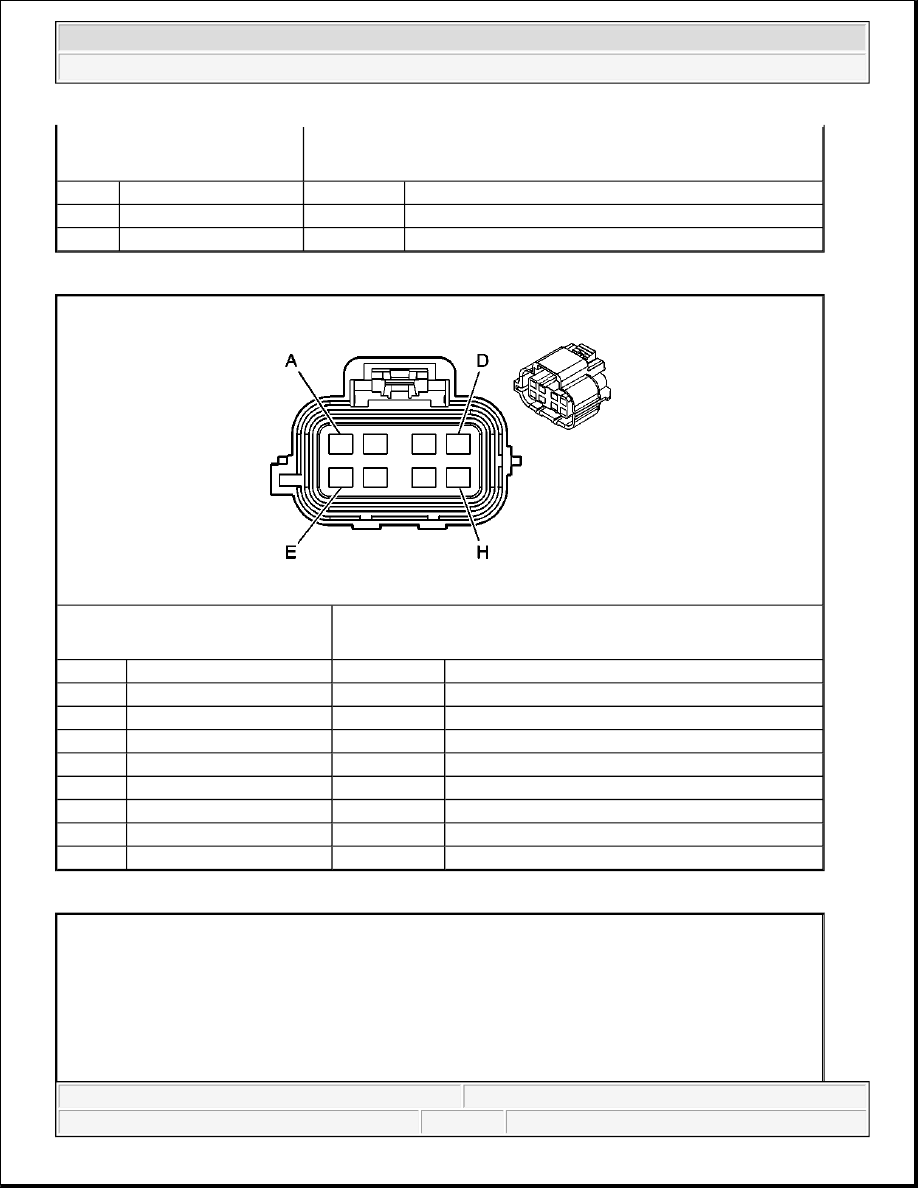

Junction Block Terminal Identification - Rear - C3

Connector Part Information

z

15317305

z

8-Way F GT 280 SLD (MD GY)

Pin

Wire Color

Circuit No.

Function

A

L-GN/BK

1750

Ground

B

GY/BK

1750

Ground

C

BK

1750

Ground

D

RD

1320

CHMSL Supply Voltage/Stop Lamp Supply Voltage

E

BU

2509

Left Rear Park Lamps Supply Voltage

F

GY

24

Backup Lamp Supply Voltage

G

-

-

Not Used

H

OG

2114

Left Turn Signal Lamps Supply Voltage

z

15317306



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



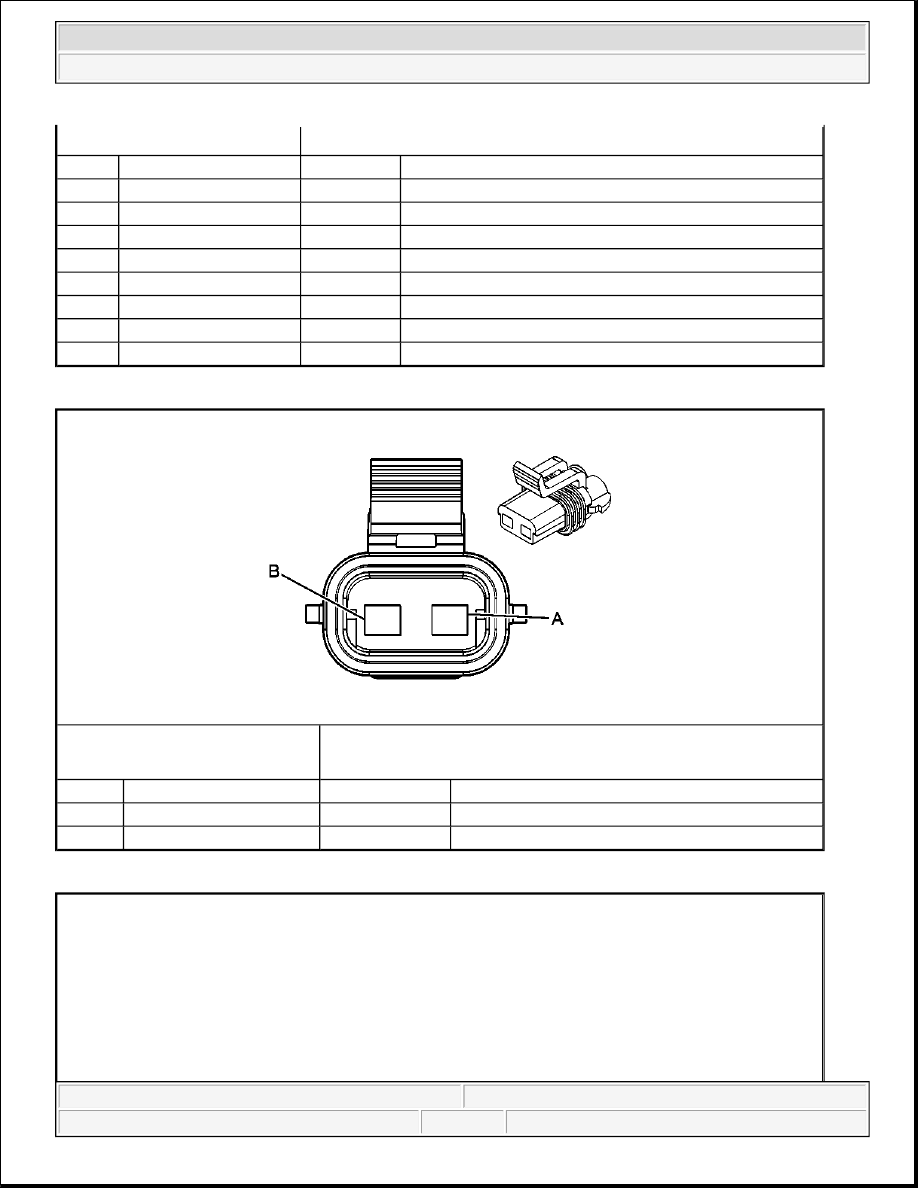

License Lamp Terminal Identification - Left

License Lamp Terminal Identification - Right

Connector Part Information

z

8-Way F GT 280 SLD (BK)

Pin

Wire Color

Circuit No.

Function

A

RD

1320

CHMSL Supply Voltage/Stop Lamp Supply Voltage

B

L-BU

2609

Right Rear Park Lamps Supply Voltage

C

L-GN/BK

1750

Ground

D

BK

1750

Ground

E

GY

24

Backup Lamp Supply Voltage

F

OG

2115

Right Turn Signal Lamps Supply Voltage

G

-

-

Not Used

H

GY/BK

1750

Ground

Connector Part Information

z

15300027

z

2-Way F Metri-Pack 280 Series Sealed (BK)

Pin

Wire Color

Circuit No.

Function

A

BN/WH

2509

Left License Lamp Supply Voltage

B

BK

1450

Ground



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2



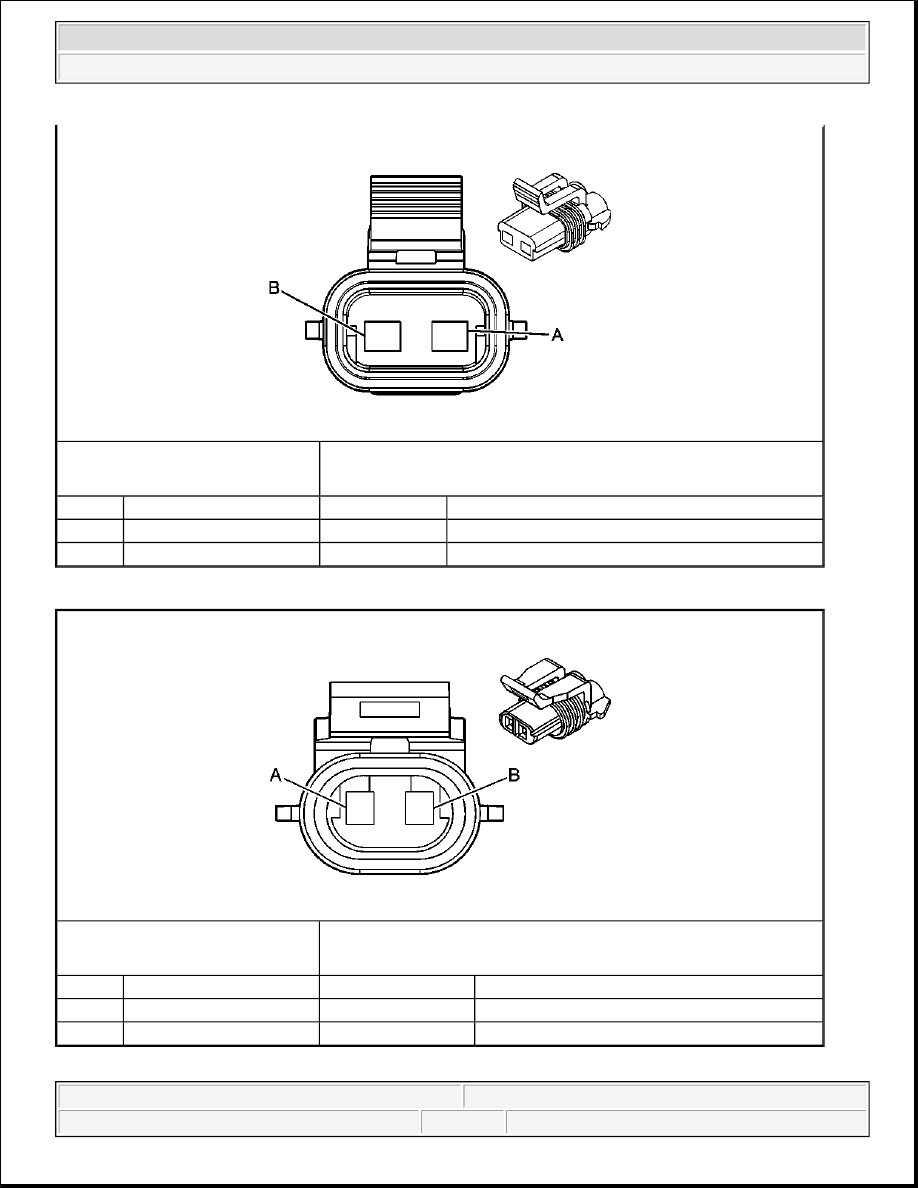

Liftgate Ajar Switch Terminal Identification - Left

Connector Part Information

z

15300027

z

2-Way F Metri-Pack 280 Series Sealed (BK)

Pin

Wire Color

Circuit No.

Function

A

BN/WH

2609

Right License Lamp Supply Voltage

B

BK

1450

Ground

Connector Part Information

z

12052644

z

2-Way F Metri-Pack 150 Series Sealed (GY)

Pin

Wire Color

Circuit No.

Function

A

BK

1450

Ground

B

PK/BK

1303

Liftgate Ajar Switch Signal



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Lighting Systems - Hummer H2
