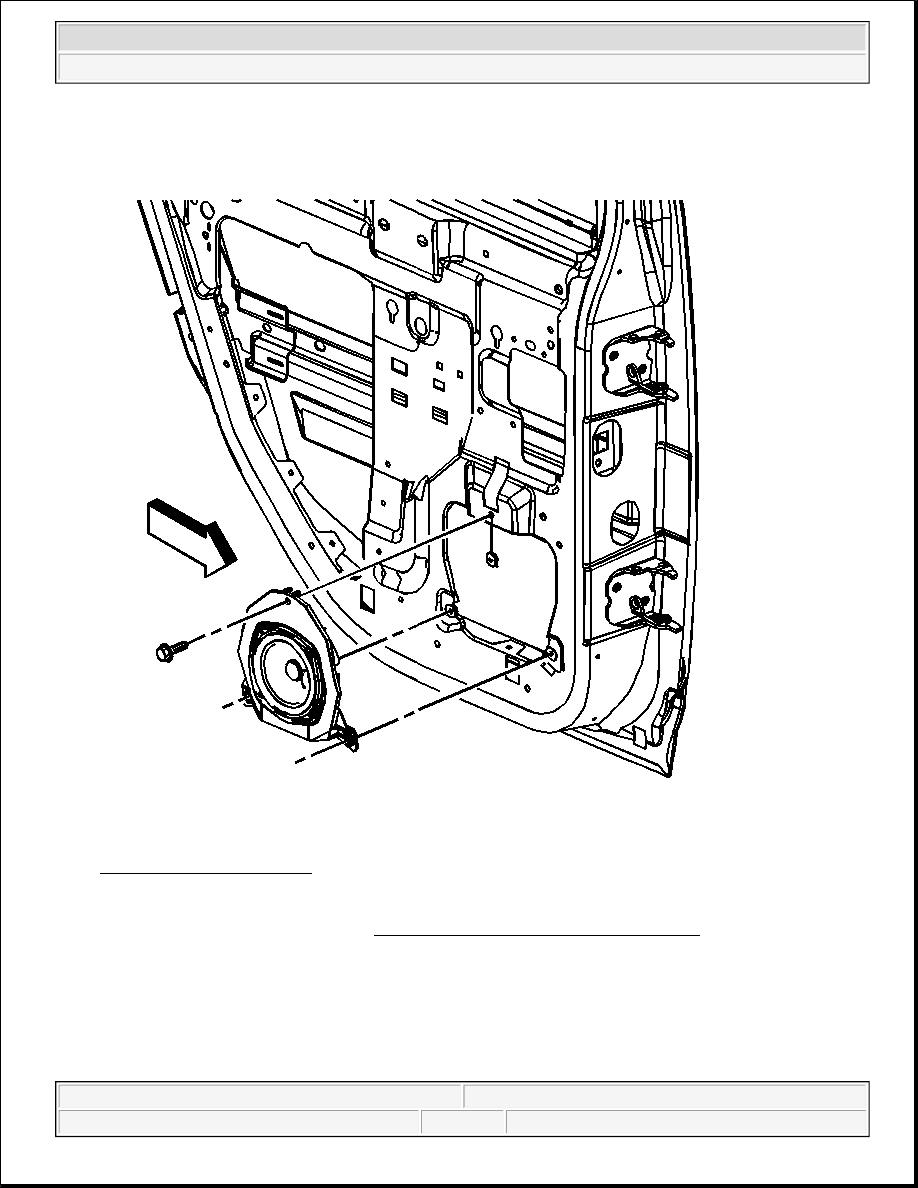

Fig. 46: Rear Door Speaker
Courtesy of GENERAL MOTORS CORP.

1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door in Doors.

2. Partially remove the water deflector to access the speaker bolts.

3. Remove the bolts retaining the speaker to the door.

4. Disconnect the electrical connector from the speaker.

5. Remove the speaker from the vehicle.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2



Fig. 47: Rear Door Speaker
Courtesy of GENERAL MOTORS CORP.

1. Install the speaker to the vehicle.

2. Connect the electrical connector to the speaker.

3. Install the bolts retaining the speaker mounting bracket to the door.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2



Tighten: Tighten the bolts to 6 N.m (53 lb in).

4. Install the door trim panel. Refer to Trim Panel Replacement - Side Rear Door in Doors.

5. Verify the component operation.

SPEAKER REPLACEMENT - REAR QUARTER

Removal Procedure

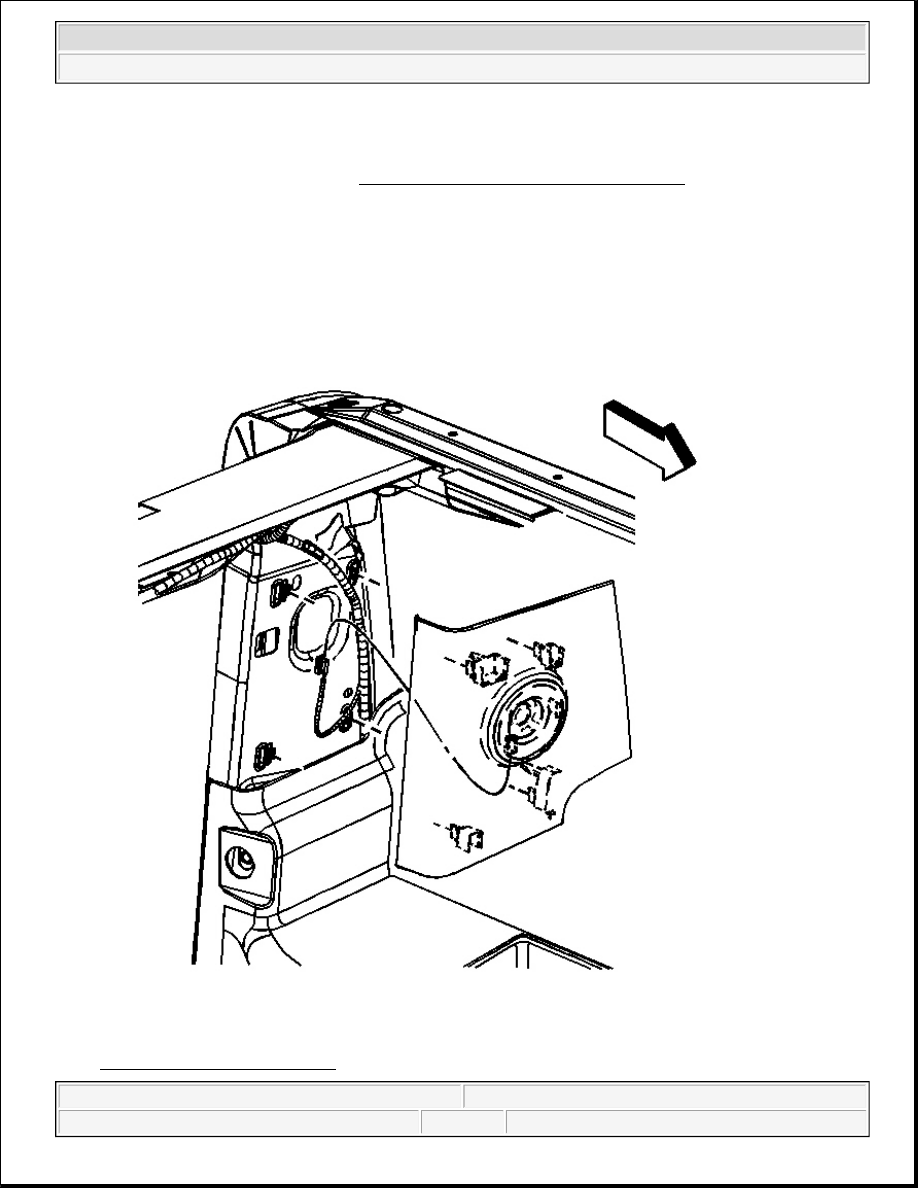

Fig. 48: Rear Quarter Speaker



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2



Courtesy of GENERAL MOTORS CORP.

1. Remove the rear quarter panel to expose the speaker. Refer to Trim Panel Replacement - Right Body

Side or Trim Panel Replacement - Left Body Side in Interior Trim.

2. Disconnect the electrical connection from the speaker.

3. Remove the speaker grille from the panel.

4. Remove the screws that hold the speaker to the quarter trim panel.

Installation Procedure

1. Fasten the screws that hold the speaker to the quarter trim panel.

Tighten: Tighten screws/bolts to 2 N.m (18 lb in).

2. Install the speaker grille.

NOTE:

Refer to Fastener Notice in Cautions and Notices.
