Hummer H2. Manual - part 285

Tighten: Tighten the screws 9 N.m (80 lb in).

4. Install the exterior trim panel. Refer to Instrument Panel (I/P) Extension Trim Plate Replacement in

Instrument Panel, Gauges, and Console.

5. Install the I/P compartment. Refer to Compartment Replacement - Instrument Panel (I/P) in

Instrument Panel, Gauges, and Console.

SPEAKER REPLACEMENT - FRONT DOOR

Removal Procedure

1. Remove the trim panel. Refer to Trim Panel Replacement - Side Front Door in Doors.

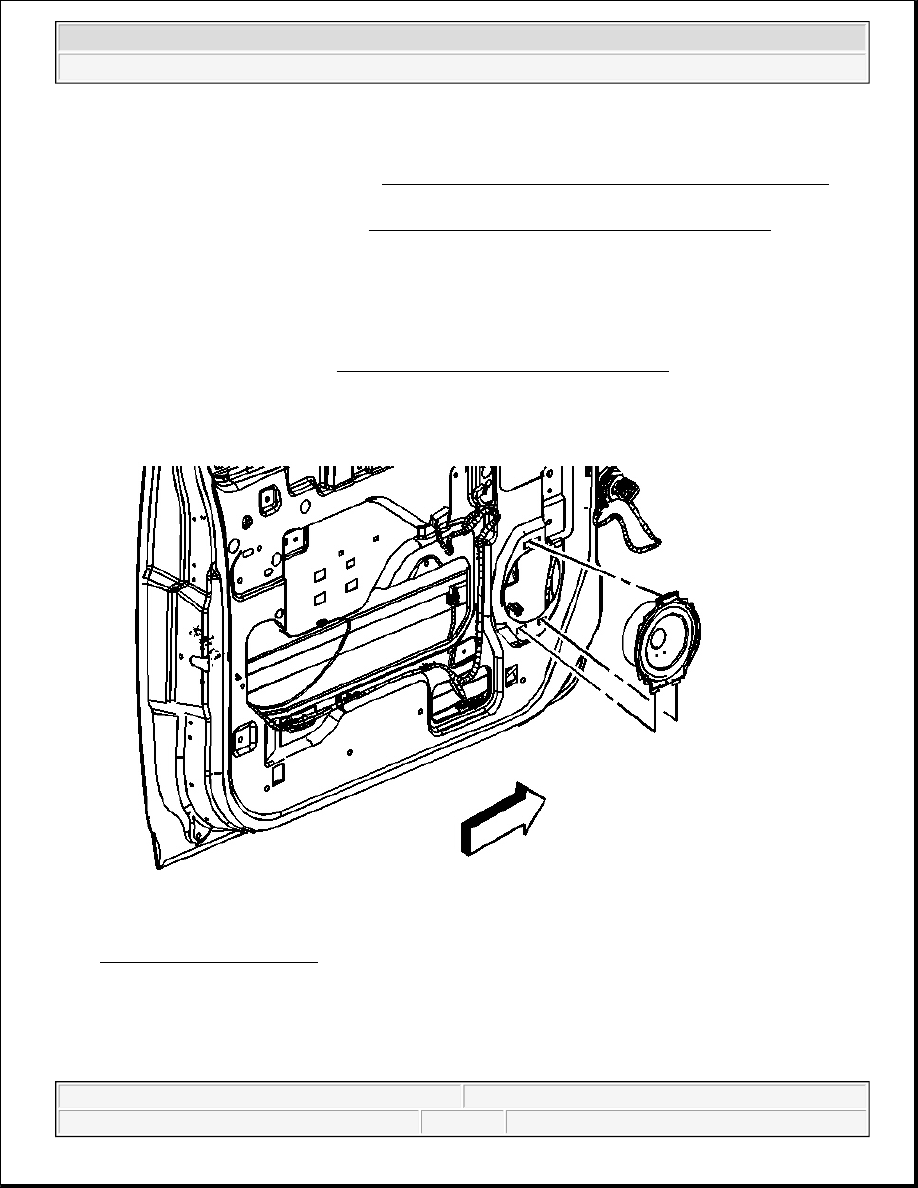

Fig. 42: Front Door Speaker
Courtesy of GENERAL MOTORS CORP.

2. Remove the speaker by pushing down on the top retainer.

3. Disconnect the electrical connector.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2

Installation Procedure

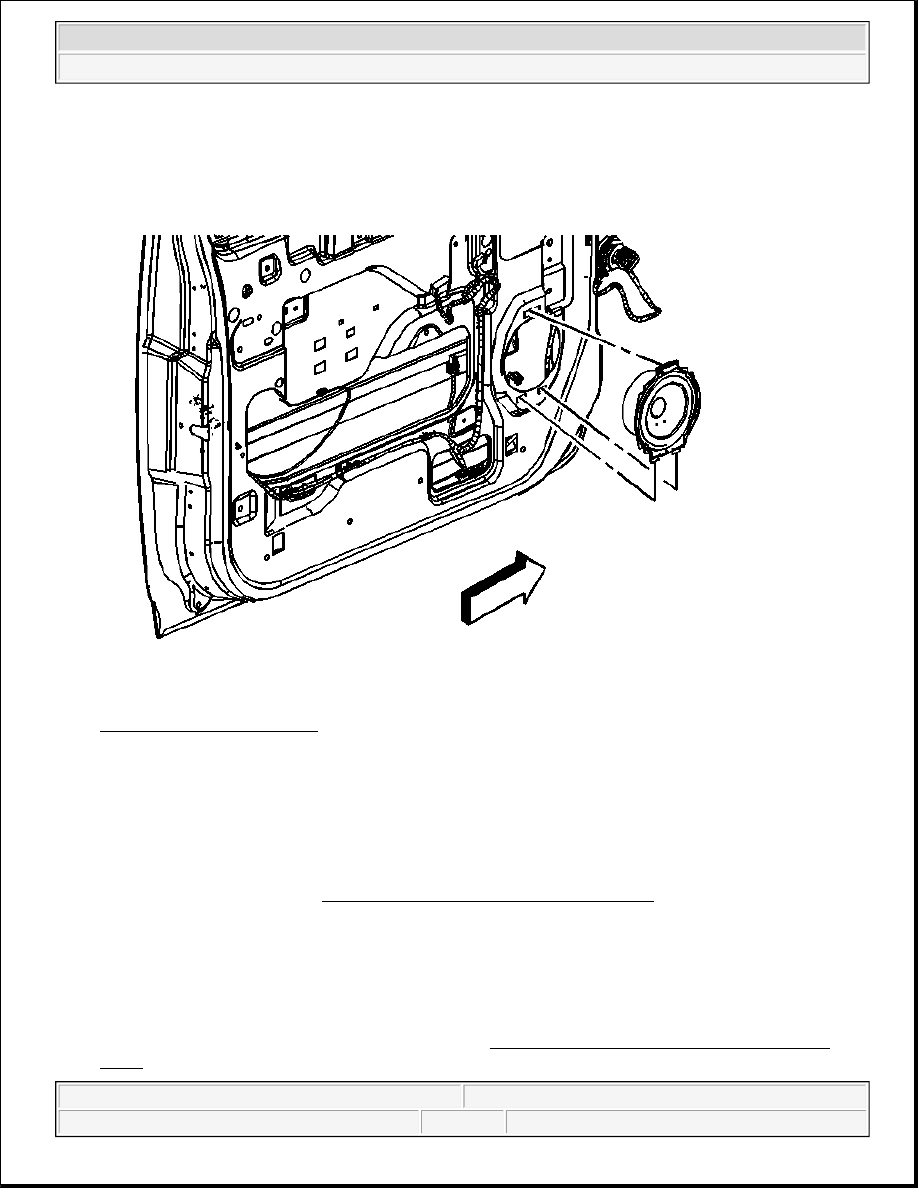

Fig. 43: Front Door Speaker
Courtesy of GENERAL MOTORS CORP.

1. Connect the electrical connector.

2. Install the speaker.

Push the speaker into place. Ensure that the speaker is completely seated.

3. Install the trim panel. Refer to Trim Panel Replacement - Side Front Door in Doors.

4. Inspect the component operation.

SPEAKER REPLACEMENT - FRONT UPPER

Removal Procedure

1. Remove the windshield garnish molding (2). Refer to Garnish Molding Replacement - Windshield

Pillar in Interior Trim.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2

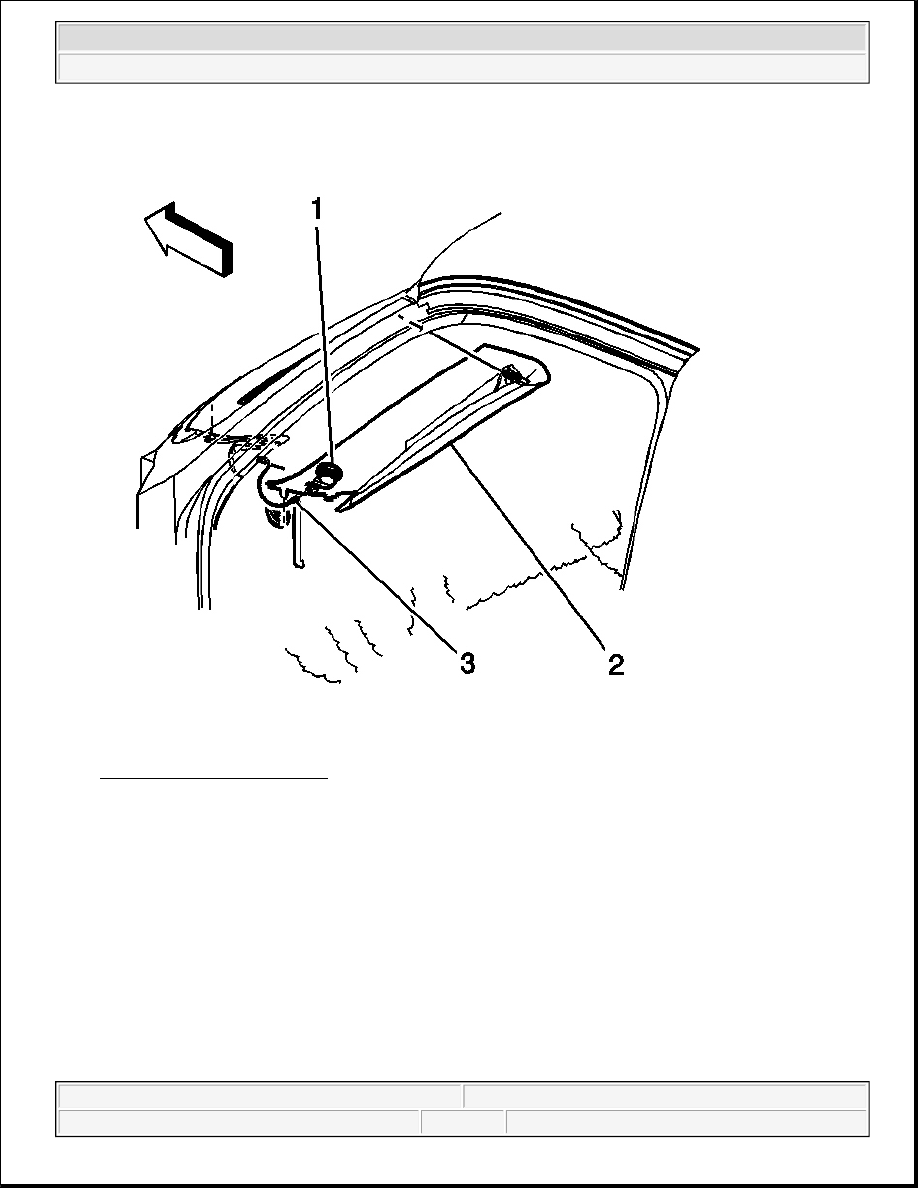

Fig. 44: Front Upper Speaker
Courtesy of GENERAL MOTORS CORP.

2. Disconnect the speaker wire connector (3).

3. Remove the speaker (1) by releasing the retaining tabs.

Installation Procedure

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2

Fig. 45: Front Upper Speaker
Courtesy of GENERAL MOTORS CORP.

1. Press in the speaker (1) until it is fully seated.

2. Connect the electrical connector (3).

3. Install the windshield garnish molding (2). Refer to Garnish Molding Replacement - Windshield Pillar

in Interior Trim.

SPEAKER REPLACEMENT - REAR DOOR

Removal Procedure

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2
