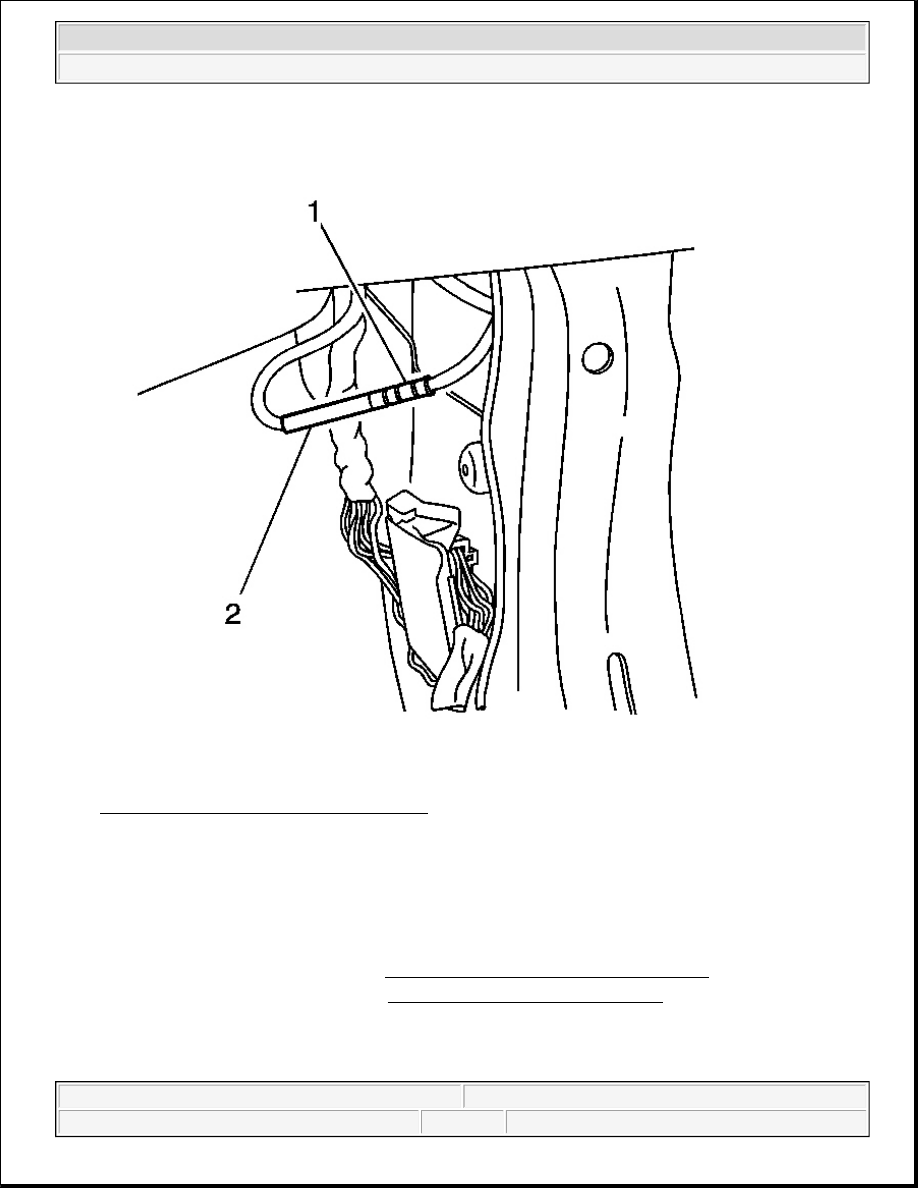

Fig. 34: Antenna Cable & Extension Cable
Courtesy of GENERAL MOTORS CORP.

1. Attach a mechanics wire to the replacement antenna cable (1).

2. Pull the mechanics wire to route the replacement antenna cable.

3. Remove the mechanics wire from the antenna cable.

4. Connect the antenna cable (1) to the extension cable (2).

5. Install the right kick-up panel. Refer to Kick-Up Panel Replacement - Front Floor in Interior Trim.

6. Install the right front sill plate. Refer to Door Sill Plate Replacement - Front in Interior Trim.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2

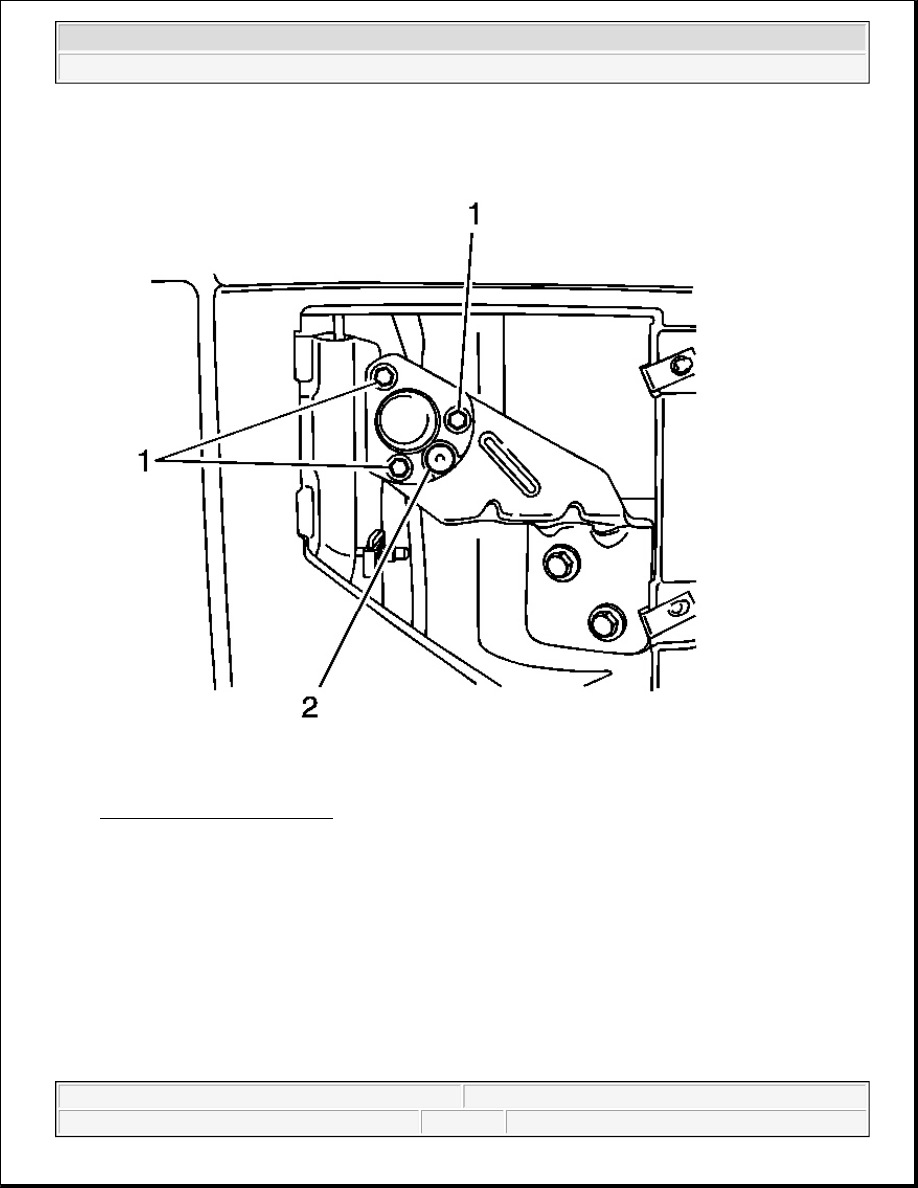

Fig. 35: Fastener & Mast Base
Courtesy of GENERAL MOTORS CORP.

7. Install the 3 screws (1) retaining the mast base.

Tighten: Tighten the screws to 35 N.m (26 lb ft).

8. Install the fastener (2) to the mast base.

NOTE:

Refer to Fastener Notice in Cautions and Notices.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2

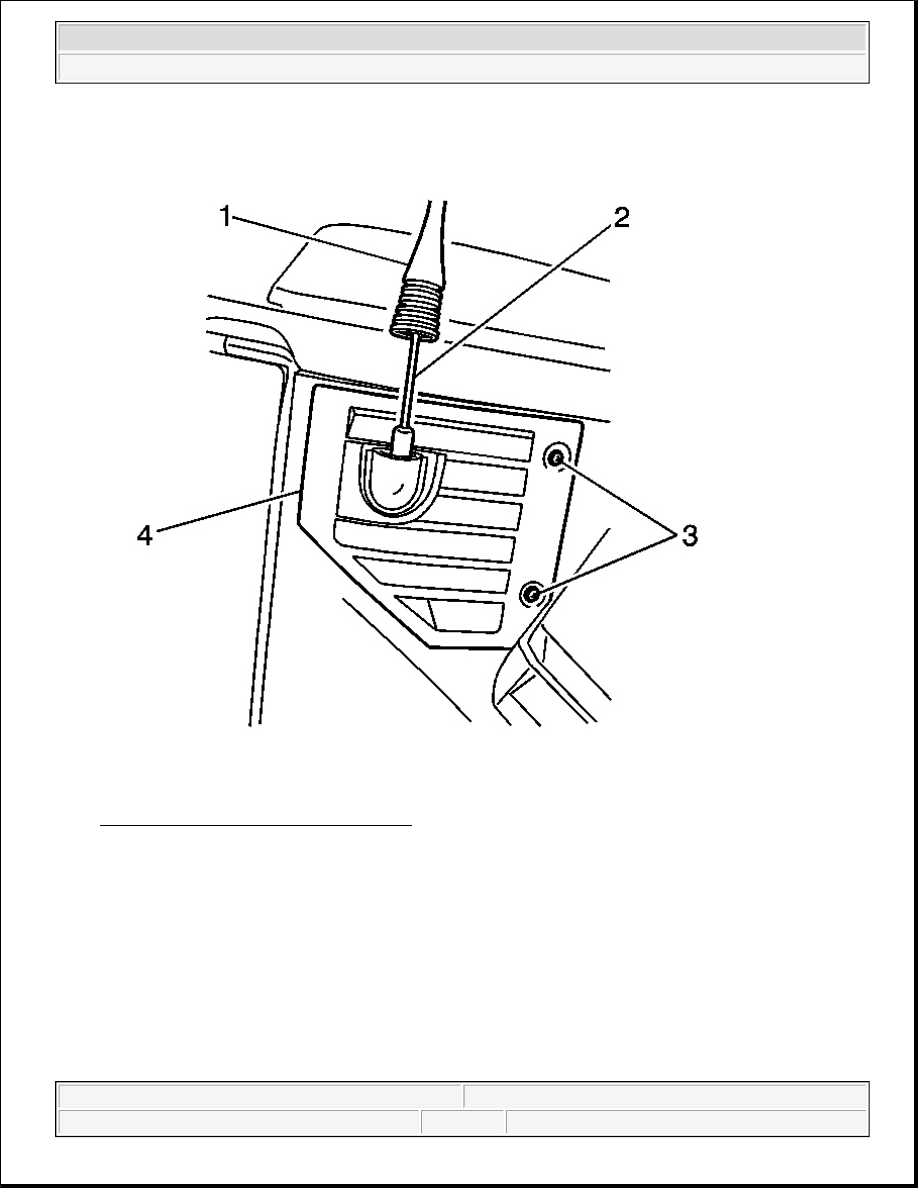

Fig. 36: Front Fender Upper Hole Cover
Courtesy of GENERAL MOTORS CORP.

9. Install the front fender upper hole cover (4).

10. Install the 2 screws (3) retaining the front fender upper hole cover.

Tighten: Tighten the screws to 2.5 N.m (22 lb in).

11. Install the antenna mast (2).

12. Install the antenna boot (1).

13. Close the hood.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2

SPEAKER REPLACEMENT - FRONT FLOOR CONSOLE

Removal Procedure

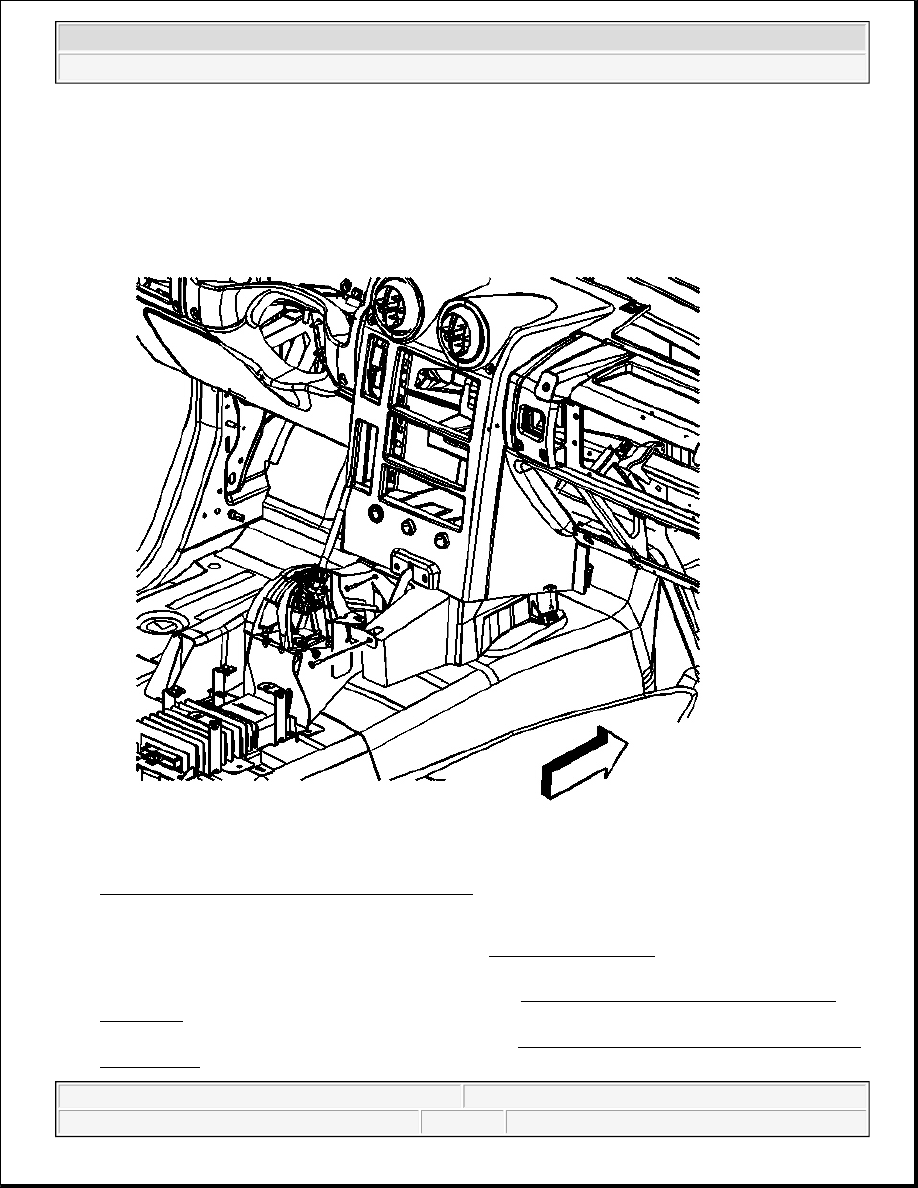

Fig. 37: Removing Center Console From Vehicle
Courtesy of GENERAL MOTORS CORP.

1. Remove the center console from the vehicle. Refer to Console Replacement in Instrument Panel, Gauges

and Console.

2. Remove the instrument panel (I/P) compartment. Refer to Compartment Replacement - Instrument

Panel (I/P) in Instrument Panel, Gauges, and Console.

3. Remove the passengers I/P extension trim panel. Refer to Instrument Panel (I/P) Extension Trim Plate

Replacement in Instrument Panel, Gauges, and Console.
