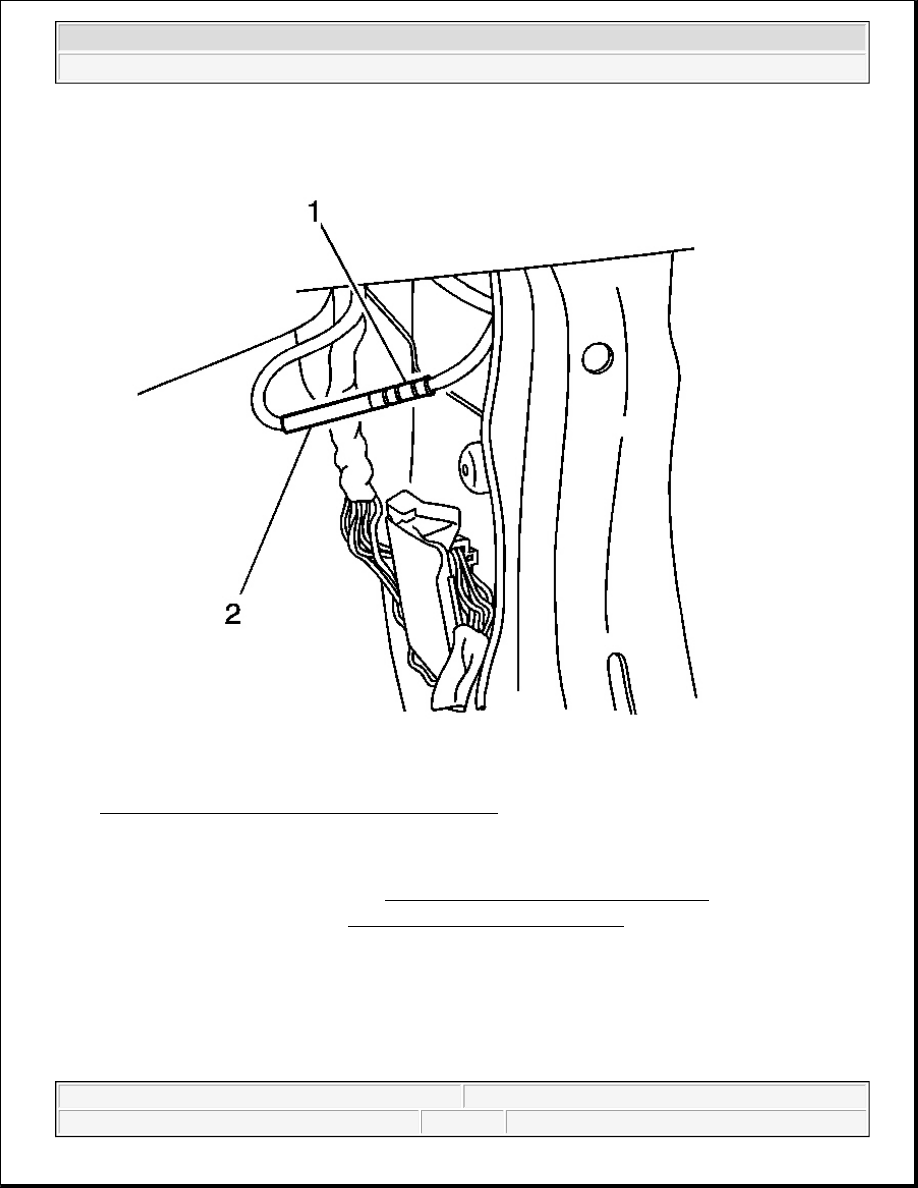

Fig. 30: Antenna Extension Cable & Antenna Cable
Courtesy of GENERAL MOTORS CORP.

4. Connect the antenna extension cable (2) to the antenna cable (1).

5. Install the right kick-up panel. Refer to Kick-Up Panel Replacement - Front Floor in Interior Trim.

6. Install the right sill plate. Refer to Door Sill Plate Replacement - Front in Interior Trim.

ANTENNA CABLE REPLACEMENT

Removal Procedure

1. Open the hood.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2

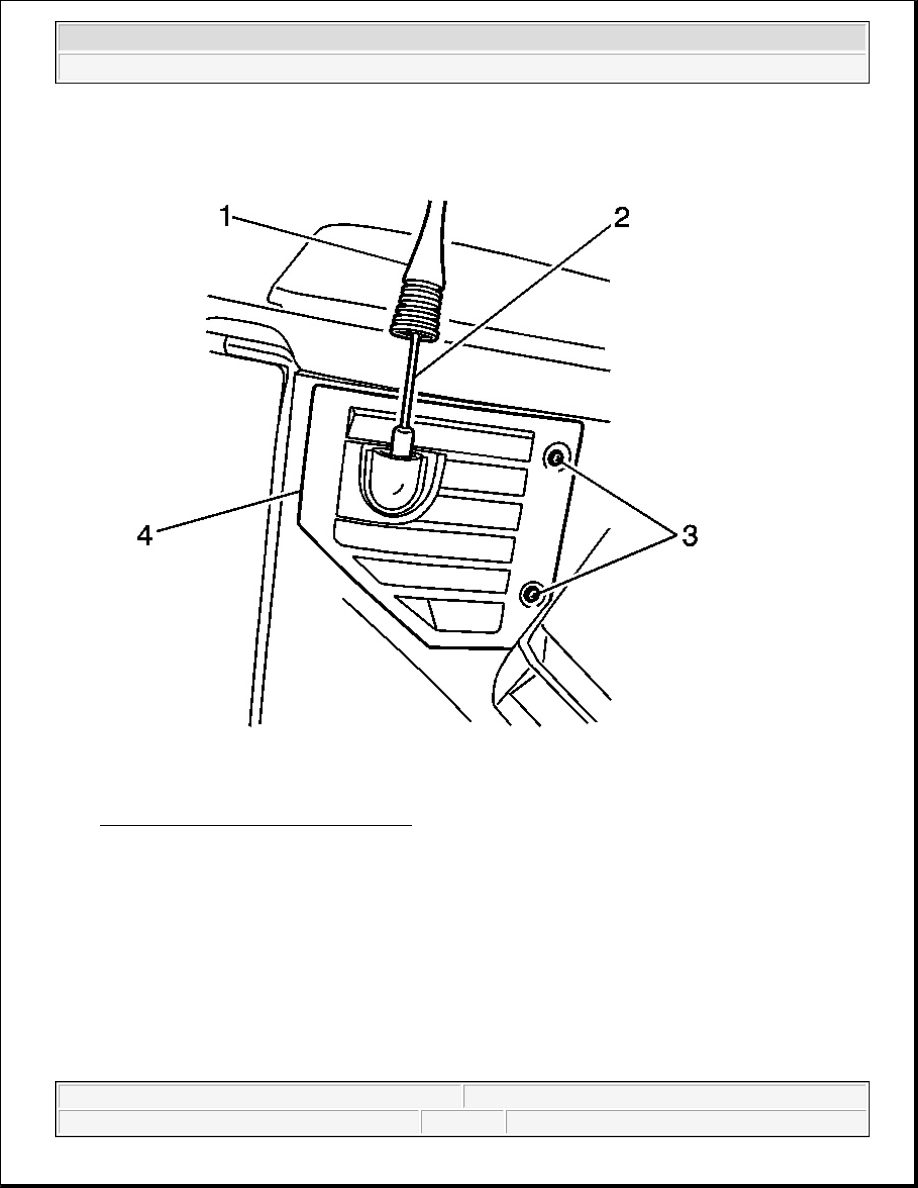

Fig. 31: Front Fender Upper Hole Cover
Courtesy of GENERAL MOTORS CORP.

2. Remove the antenna mast boot (1).

3. Remove the antenna mast (2).

4. Remove the 2 screws (3) retaining the front fender upper hole cover.

5. Remove the front fender upper hole cover (4).



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2

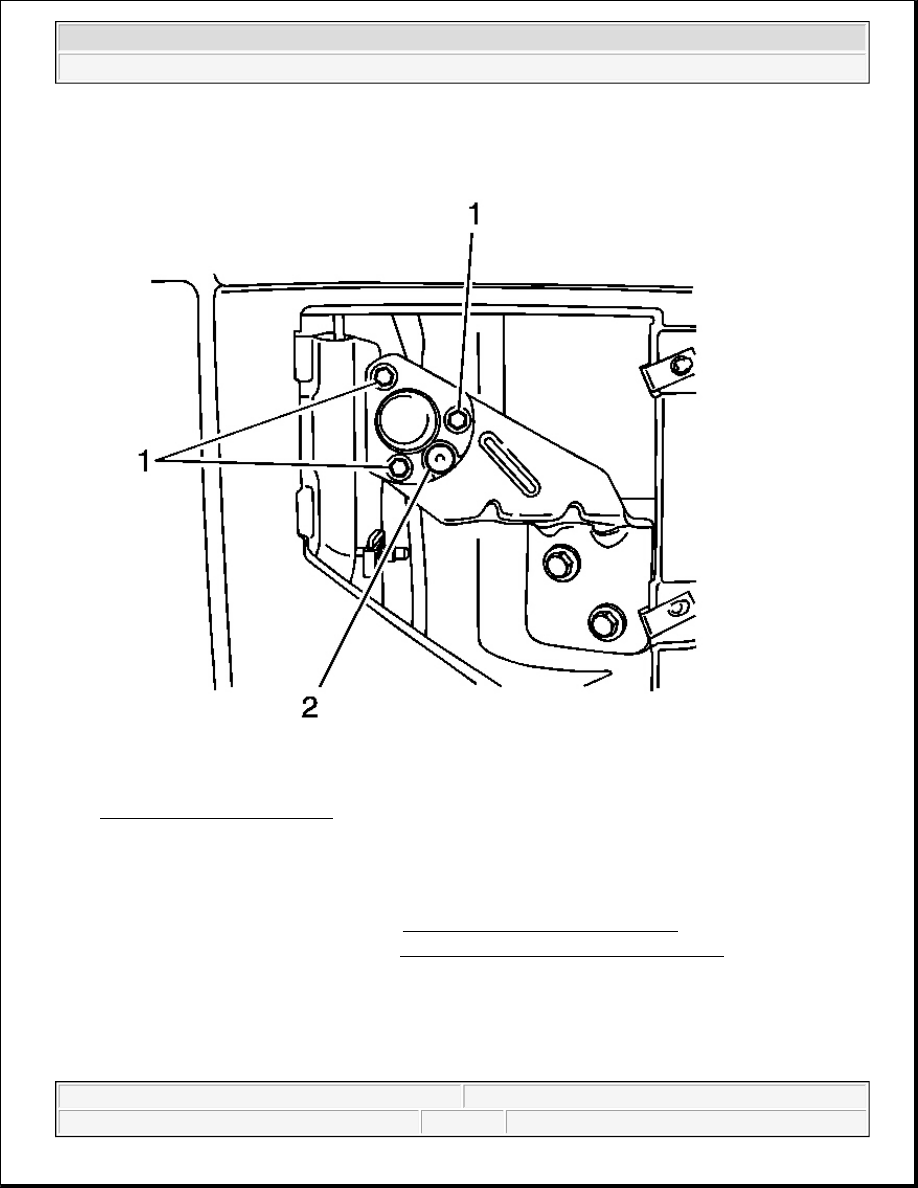

Fig. 32: Fastener & Mast Base
Courtesy of GENERAL MOTORS CORP.

6. Remove the 3 screws (1) retaining the mast base.

7. Remove the fastener (2) from the mast base.

8. Remove the right front sill plate. Refer to Door Sill Plate Replacement - Front in Interior Trim.

9. Remove the right kick-up panel. Refer to Kick-Up Panel Replacement - Front Floor in Interior Trim.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2

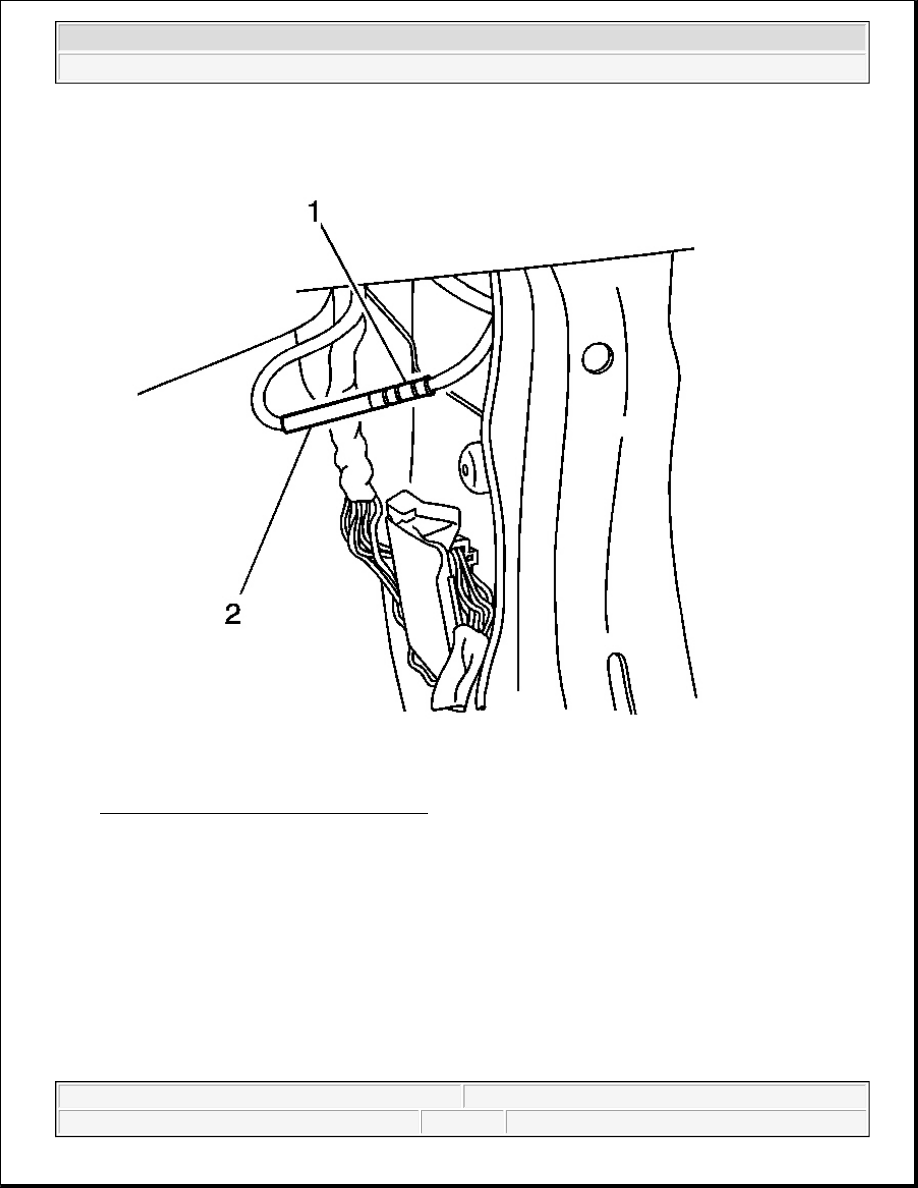

Fig. 33: Antenna Cable & Extension Cable
Courtesy of GENERAL MOTORS CORP.

10. Disconnect the antenna cable (1) from the extension cable (2).

11. Attach a mechanics wire to the antenna cable (1).

12. Remove the antenna cable leaving the mechanics wire in place.

13. Remove the antenna cable assembly from the vehicle.
