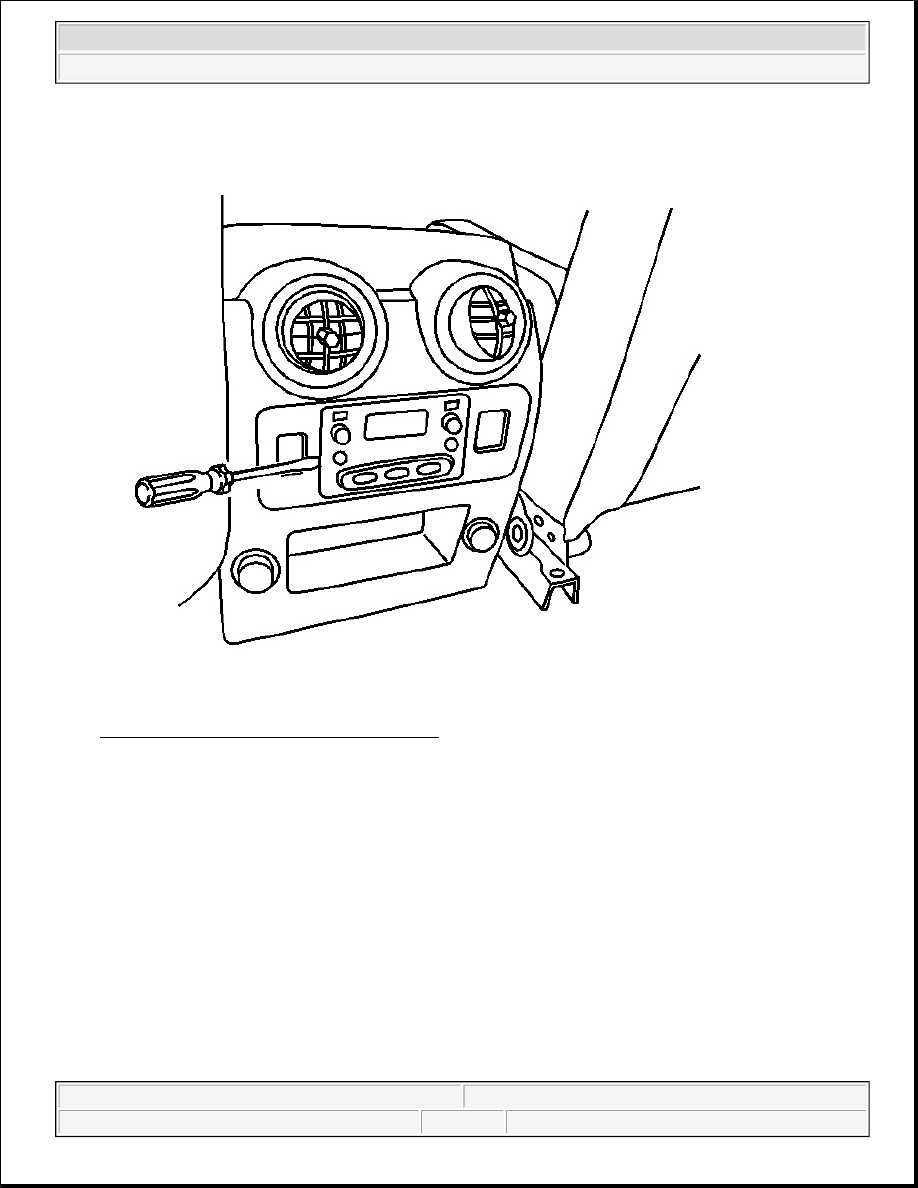

Fig. 24: Installing Rear Seat Audio Controls
Courtesy of GENERAL MOTORS CORP.

2. Install the rear seat audio controls to the console end panel.

3. Inspect the operation of the rear audio controls.

MICROPHONE REPLACEMENT - RADIO VOLUME COMPENSATOR INTERIOR

Removal Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2

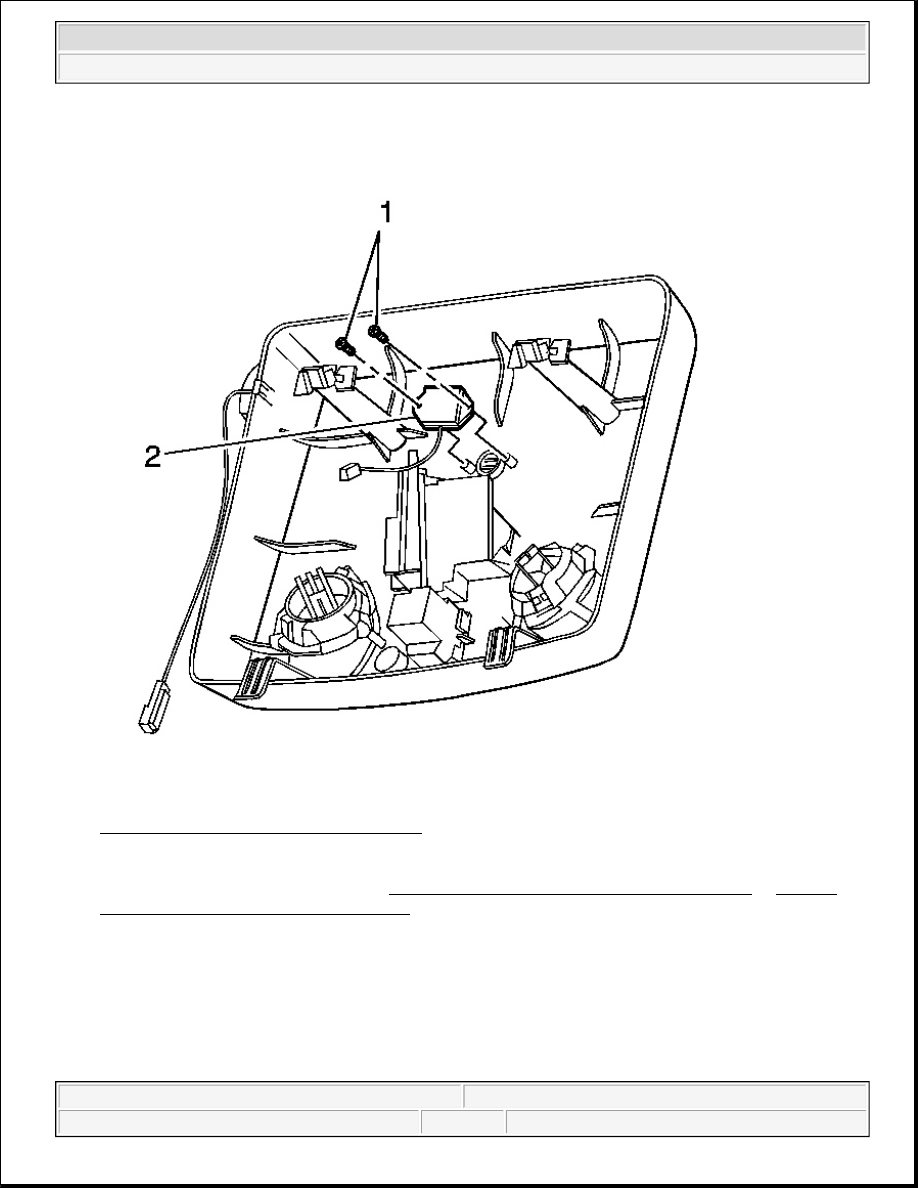

Fig. 25: Microphone & Overhead Console
Courtesy of GENERAL MOTORS CORP.

1. Remove the overhead console. Refer to Console Replacement - Overhead (Full Length) or Console

Replacement - Overhead (Short Length) in Interior Trim.

2. Remove the microphone screws (1).

3. Remove the microphone (2) from the overhead console.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2



Fig. 26: Microphone & Overhead Console
Courtesy of GENERAL MOTORS CORP.

1. Install the microphone (2) to the overhead console.

2. Install the microphone screws (1).

Tighten: Tighten the microphone screws to 2 N.m (18 lb in).

3. Install the overhead console. Refer to Console Replacement - Overhead (Full Length) or Console

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2



Replacement - Overhead (Short Length) in Interior Trim.

FIXED ANTENNA REPLACEMENT

Removal Procedure

1. Remove the right side windshield garnish molding. Refer to Garnish Molding Replacement -

Windshield Pillar in Interior Trim.

2. Remove the right side sunshade from the headliner. Refer to Sunshade Replacement in Interior Trim.

3. Remove the right side door edge molding from the door opening. Refer to Trim Panel Replacement -

Right Body Side in Interior Trim.

4. Lower the front corner of the headliner. Refer to Headliner Replacement in Interior Trim.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2
