Hummer H2. Manual - part 279

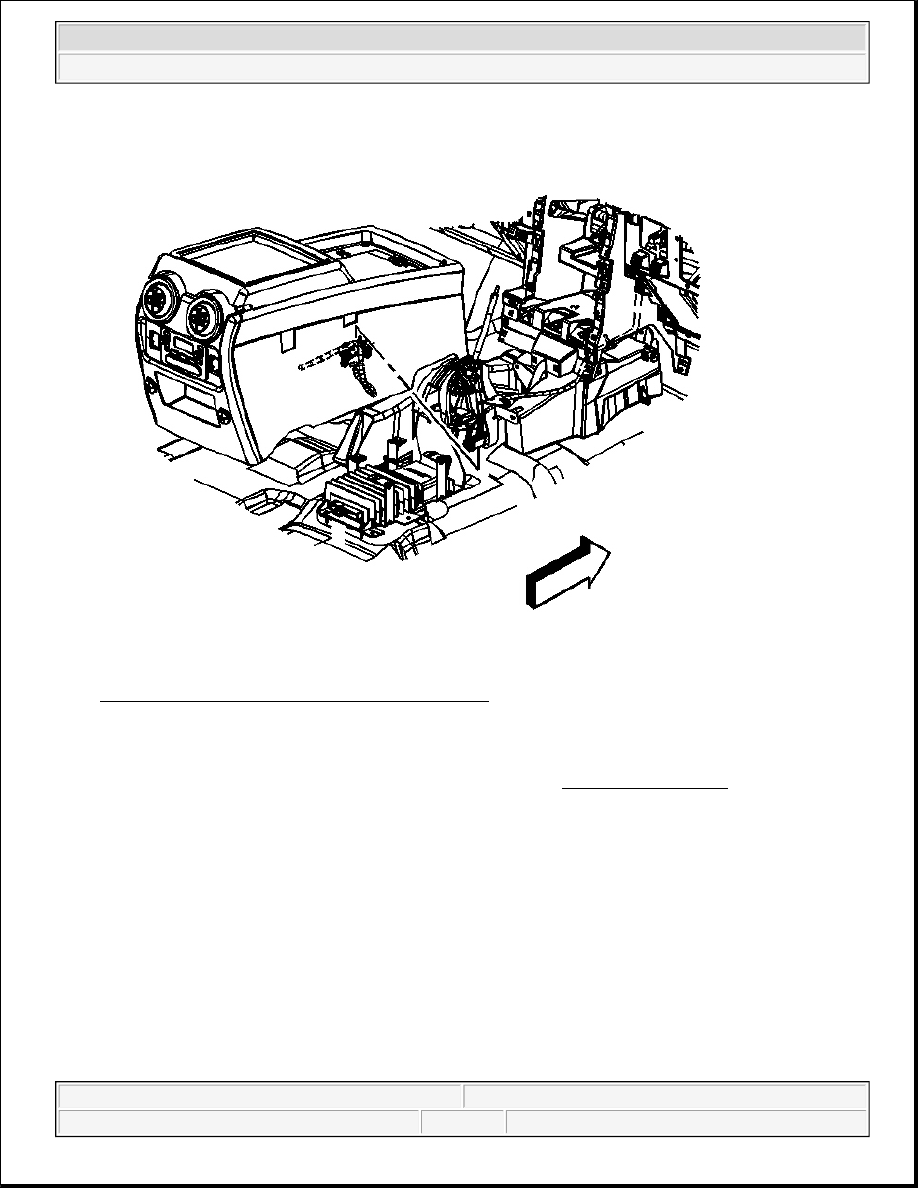

Fig. 20: Center Console & Center Console Bracket
Courtesy of GENERAL MOTORS CORP.

3. Connect the electrical connectors to the amplifier.

4. Install the center console to the center console bracket. Refer to Console Replacement in Instrument

Panel, Gauges and Console.

5. Inspect the system for proper operation.

AUDIO CONTROL REPLACEMENT - REAR SEAT

Removal Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2



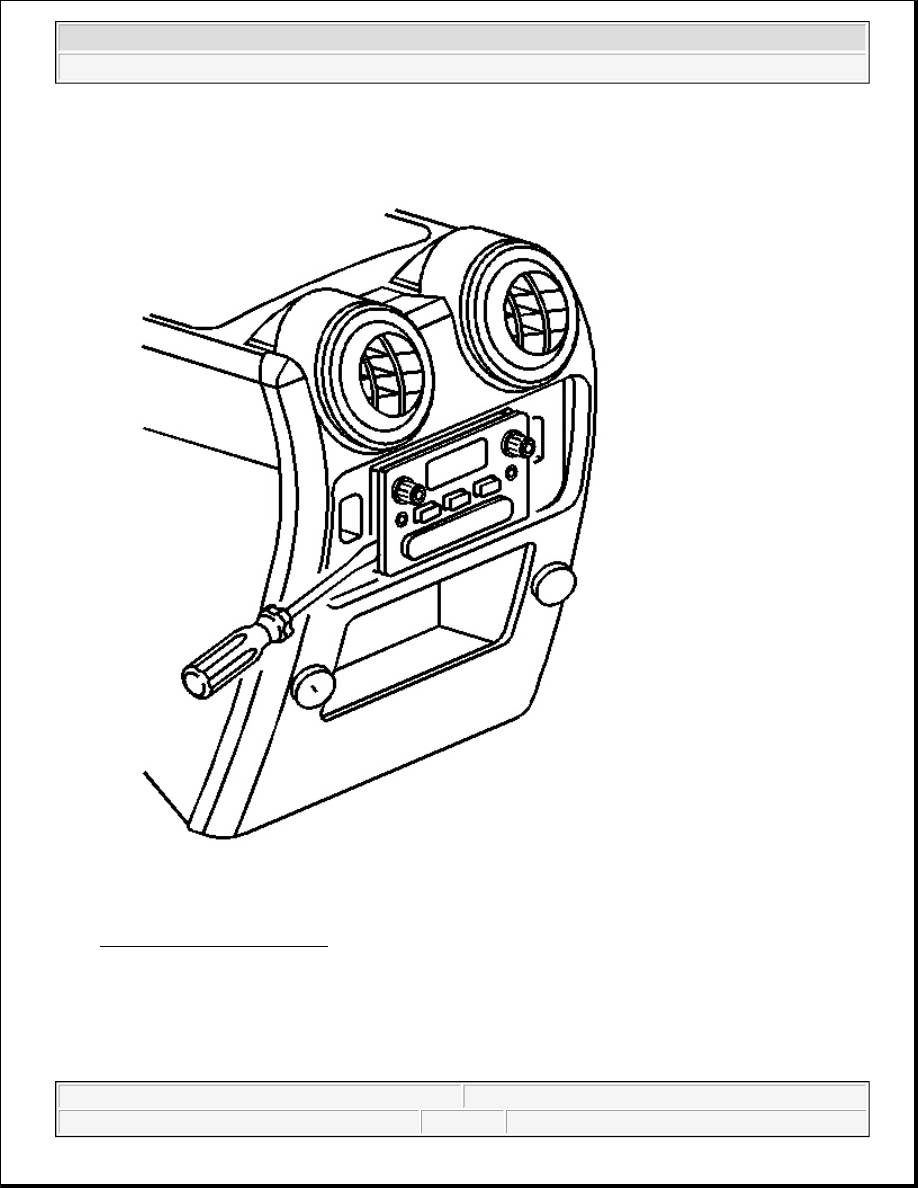

Fig. 21: Disengaging Retainer
Courtesy of GENERAL MOTORS CORP.

1. Remove the rear seat audio controls. Pry gently with a flat bladed tool to disengage the retainer.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2



Fig. 22: Electrical Connectors & Rear Seat Audio Controls
Courtesy of GENERAL MOTORS CORP.

2. Disconnect the electrical connectors from the rear seat audio controls.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2



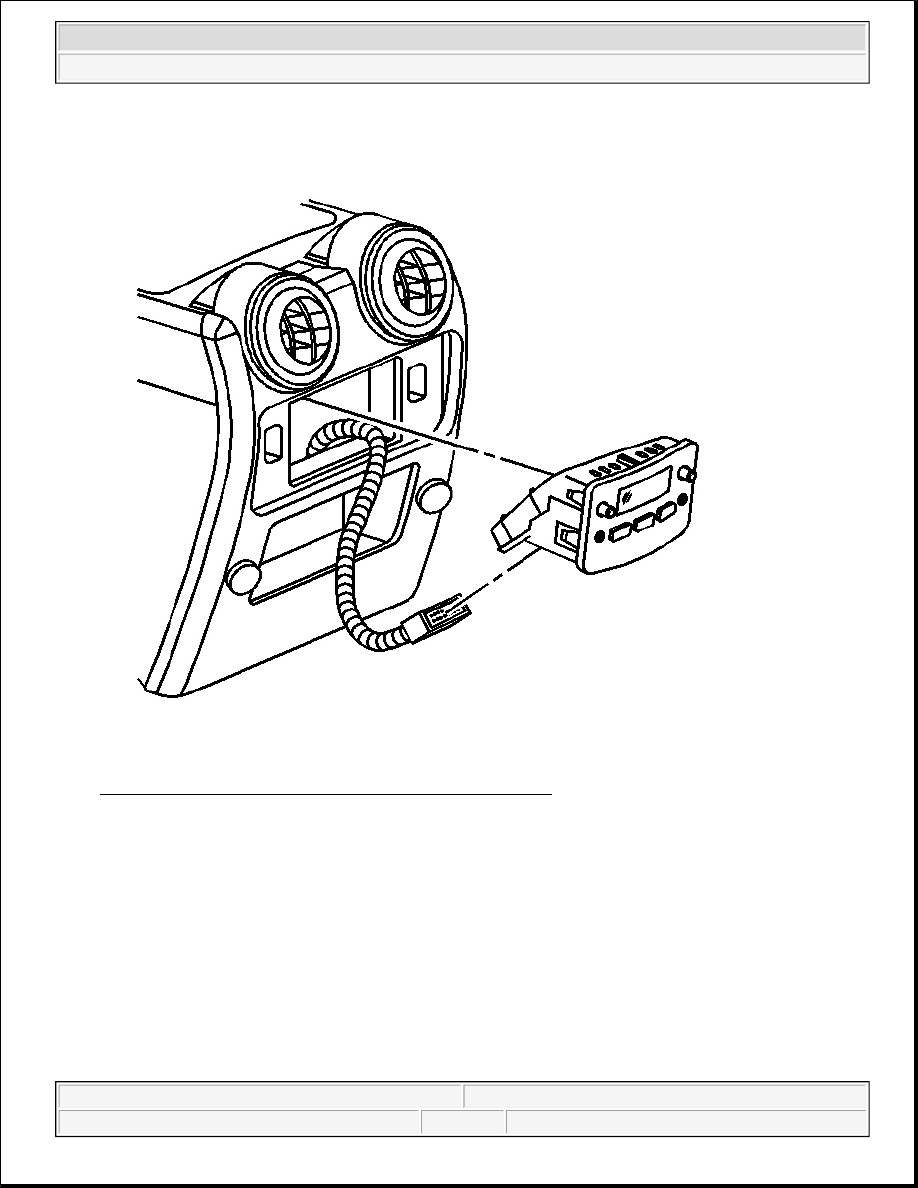

Fig. 23: Electrical Connectors & Rear Seat Audio Controls
Courtesy of GENERAL MOTORS CORP.

1. Connect the electrical connections to the rear seat audio controls.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2
