Hummer H2. Manual - part 278

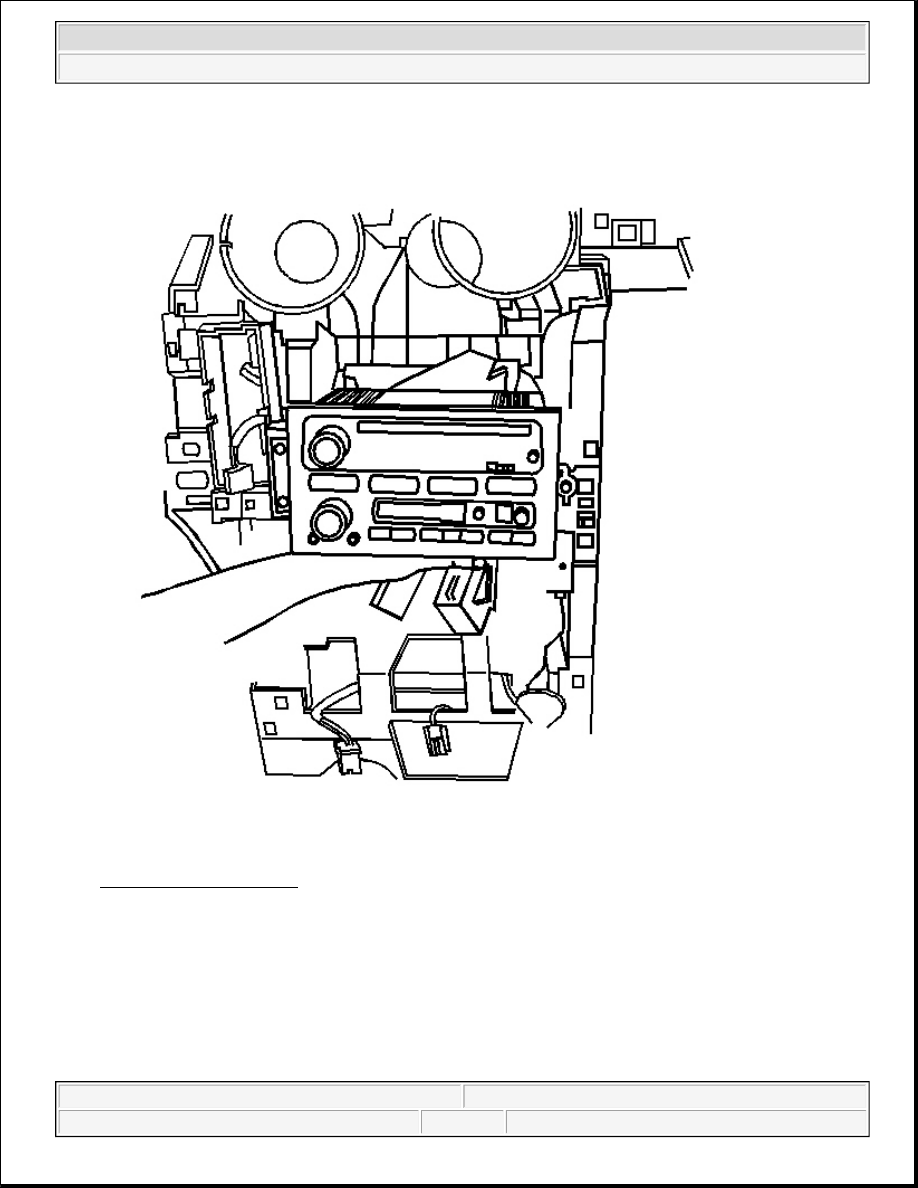

Fig. 16: Identifying Radio
Courtesy of GENERAL MOTORS CORP.

1. Align the radio with the center stack and mounting holes.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2

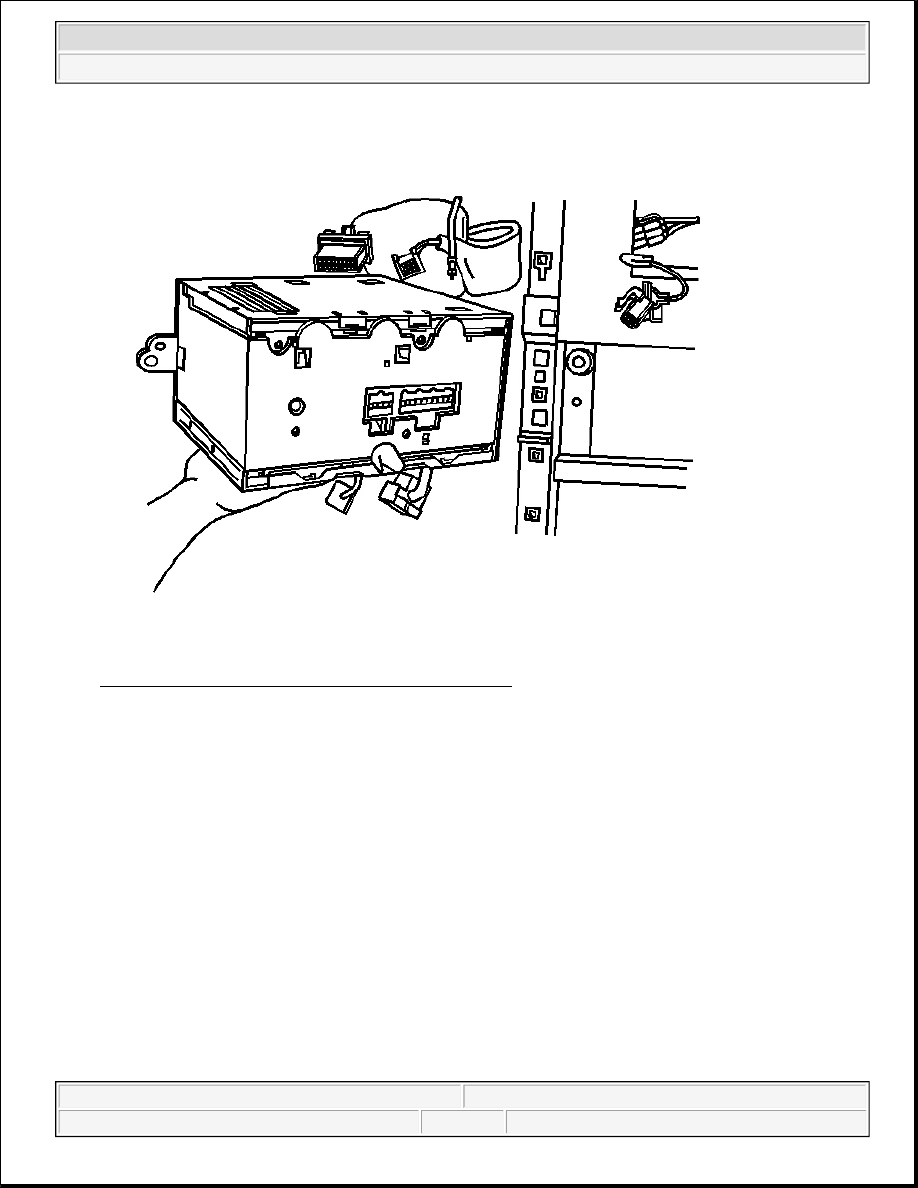

Fig. 17: Electrical Connectors & Antenna Connectors
Courtesy of GENERAL MOTORS CORP.

2. Connect the electrical connectors and the antenna connectors from the rear of the radio.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2

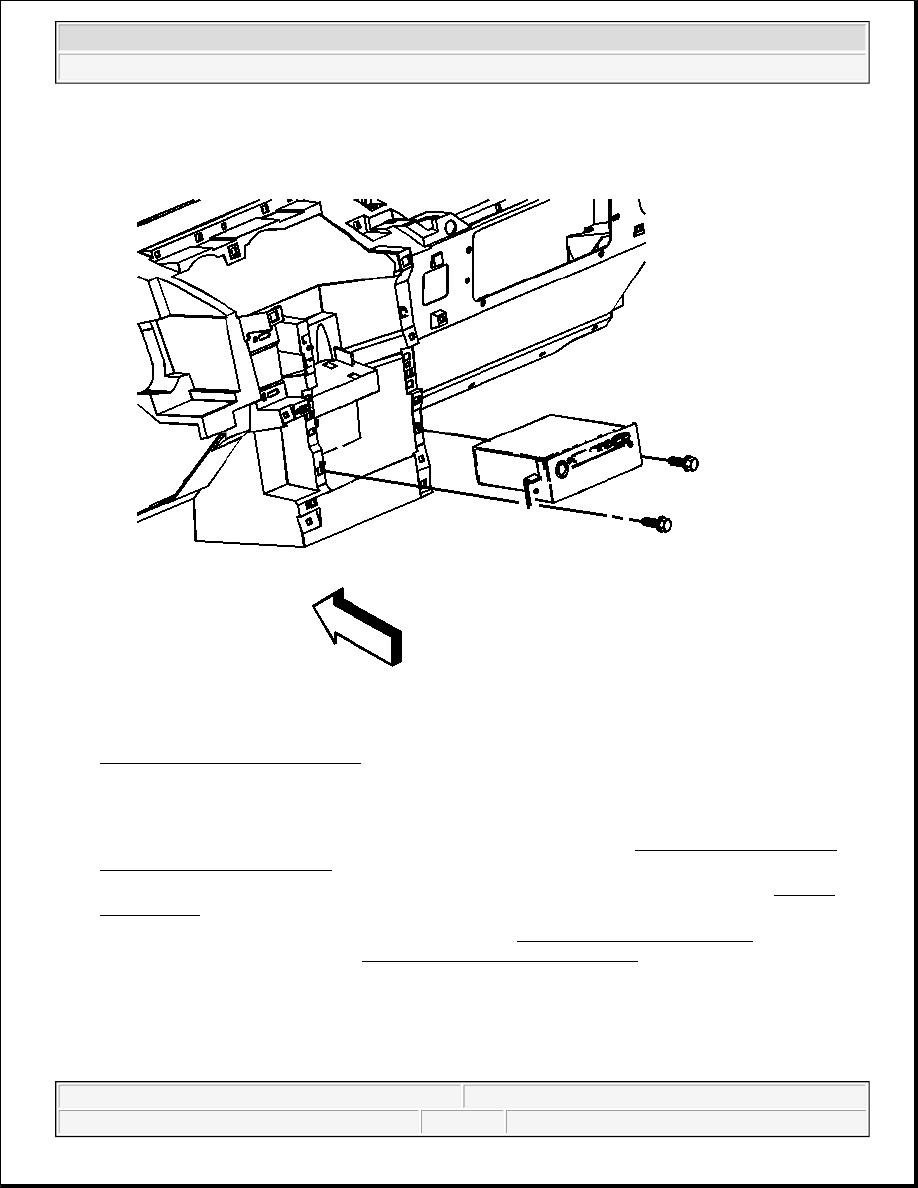

Fig. 18: Radio & I/P Center Stack
Courtesy of GENERAL MOTORS CORP.

3. Install the bolts that hold the radio to the instrument panel center stack.

4. Align the trim panel instrument panel center to instrument panel. Refer to Trim Panel Replacement -

Instrument Panel (I/P) Center in Instrument Panel, Gauges and Console.

5. Align and move the forward center console in place with the center console bracket. Refer to Console

Replacement in Instrument Panel, Gauges and Console.

6. Perform the radio setup, if equipped with UM8 - Refer to Radio Setup (With RPO UM8) . For all other

audio system configuration, refer to Service Programming System (SPS) in Programming for setup.

AMPLIFIER REPLACEMENT

Removal Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Entertainment - Hummer H2

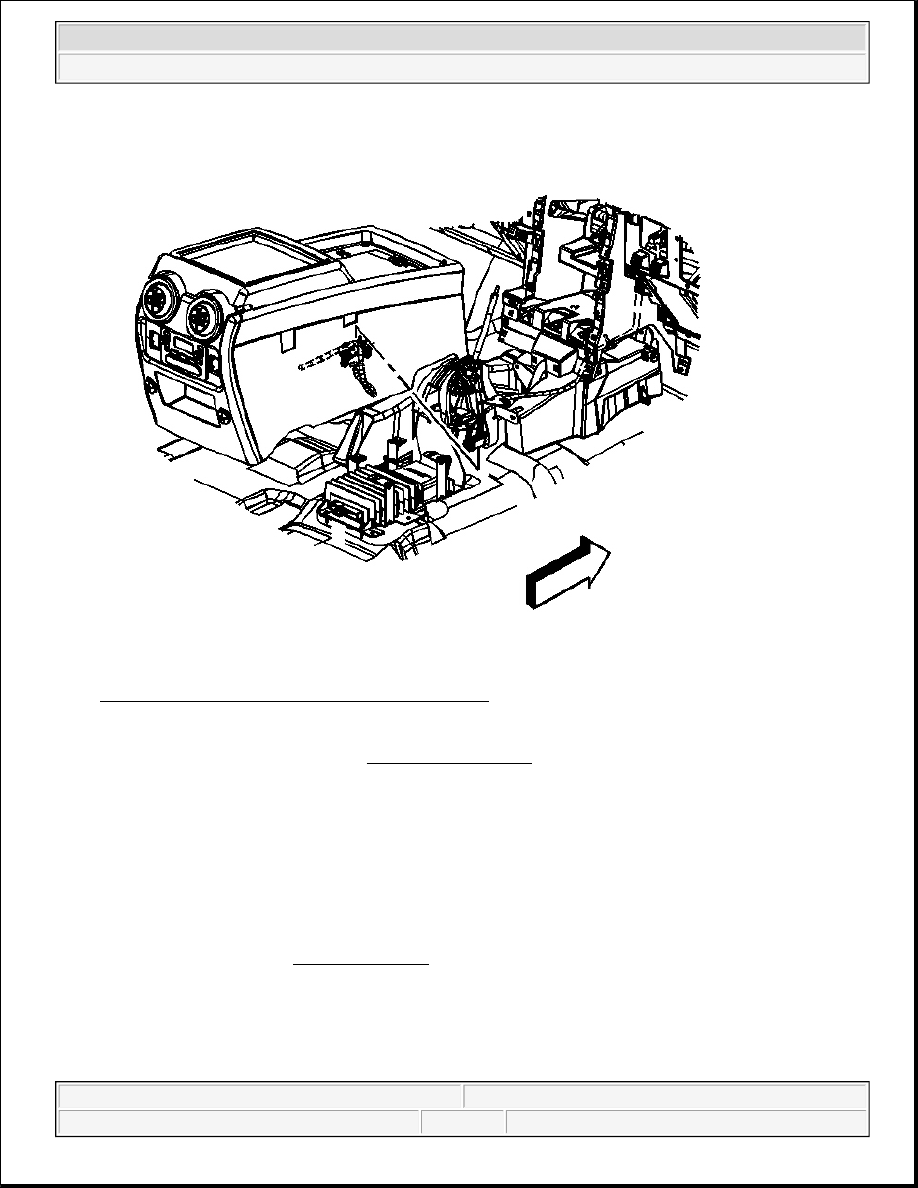

Fig. 19: Center Console & Center Console Bracket
Courtesy of GENERAL MOTORS CORP.

1. Remove the center console. Refer to Console Replacement in Instrument Panel, Gauges and Console.

2. Remove the amplifier from the amplifier bracket by removing the four screws.

3. Disconnect the electrical connectors from the amplifier.

4. Remove the amplifier from the vehicle.

Installation Procedure

1. Align the amplifier with the amplifier bracket.

2. Install the amplifier screws.

Tighten: Tighten the screws to 3.4 N.m (30 lb in).

NOTE:

Refer to Fastener Notice in Cautions and Notices.
