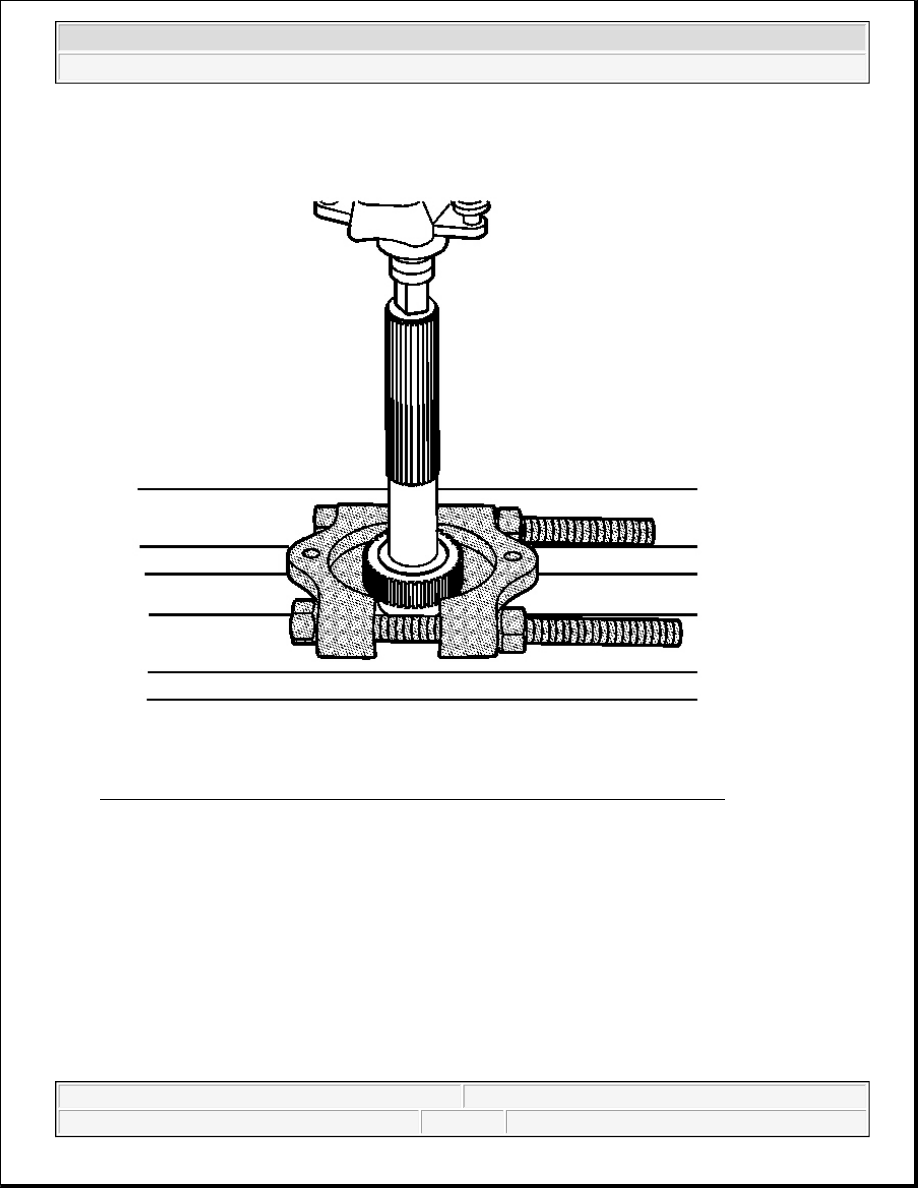

Fig. 82: Removing Speed Reluctor Wheel By Using Hydraulic Press & J 22912-01
Courtesy of GENERAL MOTORS CORP.

55. Using a hydraulic press and the J 22912-01 , remove the speed reluctor wheel.

Do not use the speed reluctor wheel again.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



Fig. 83: Retaining Ring & Rear Output Shaft Bearing
Courtesy of GENERAL MOTORS CORP.

56. Remove the retaining ring for the rear output shaft bearing.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



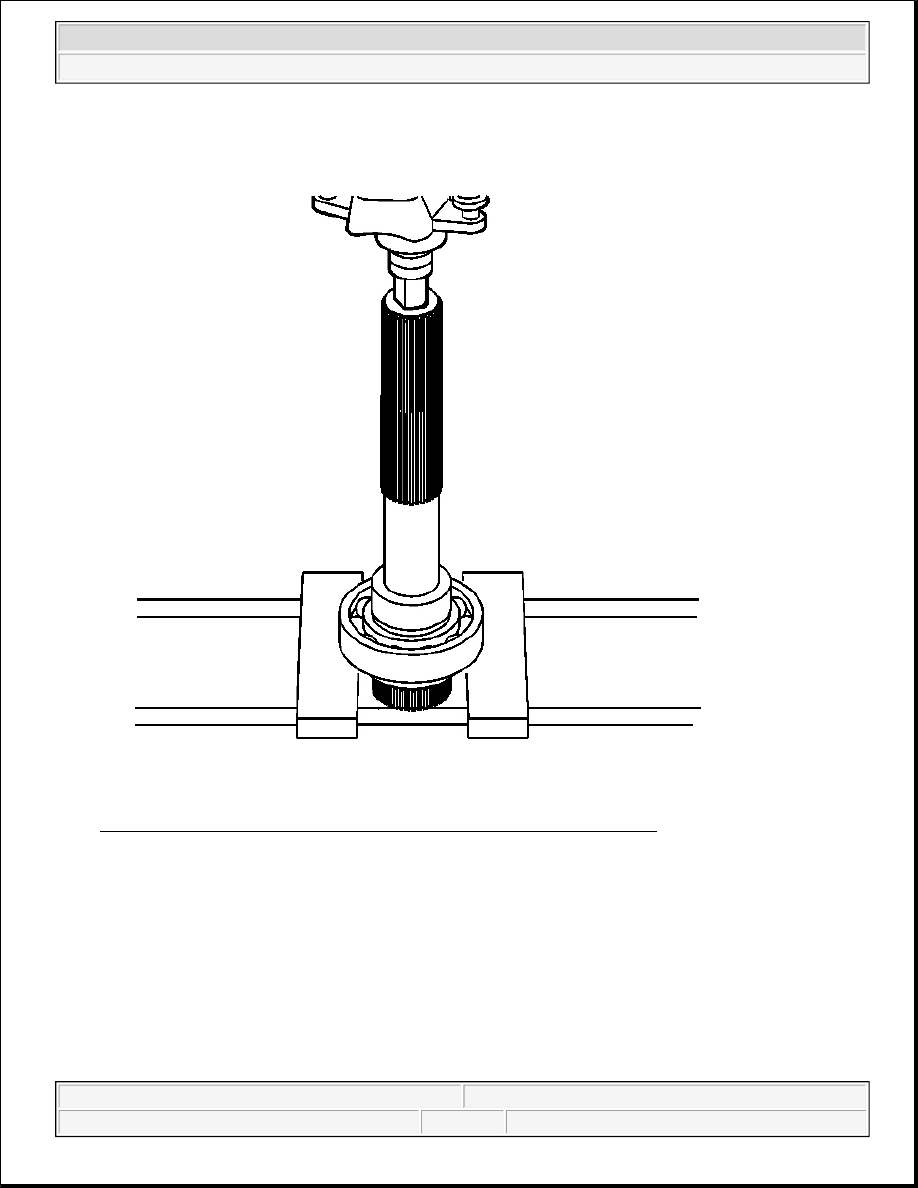

Fig. 84: Removing Rear Output Shaft Bearing By Using Hydraulic Press
Courtesy of GENERAL MOTORS CORP.

57. Using a hydraulic press, remove the rear output shaft bearing.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



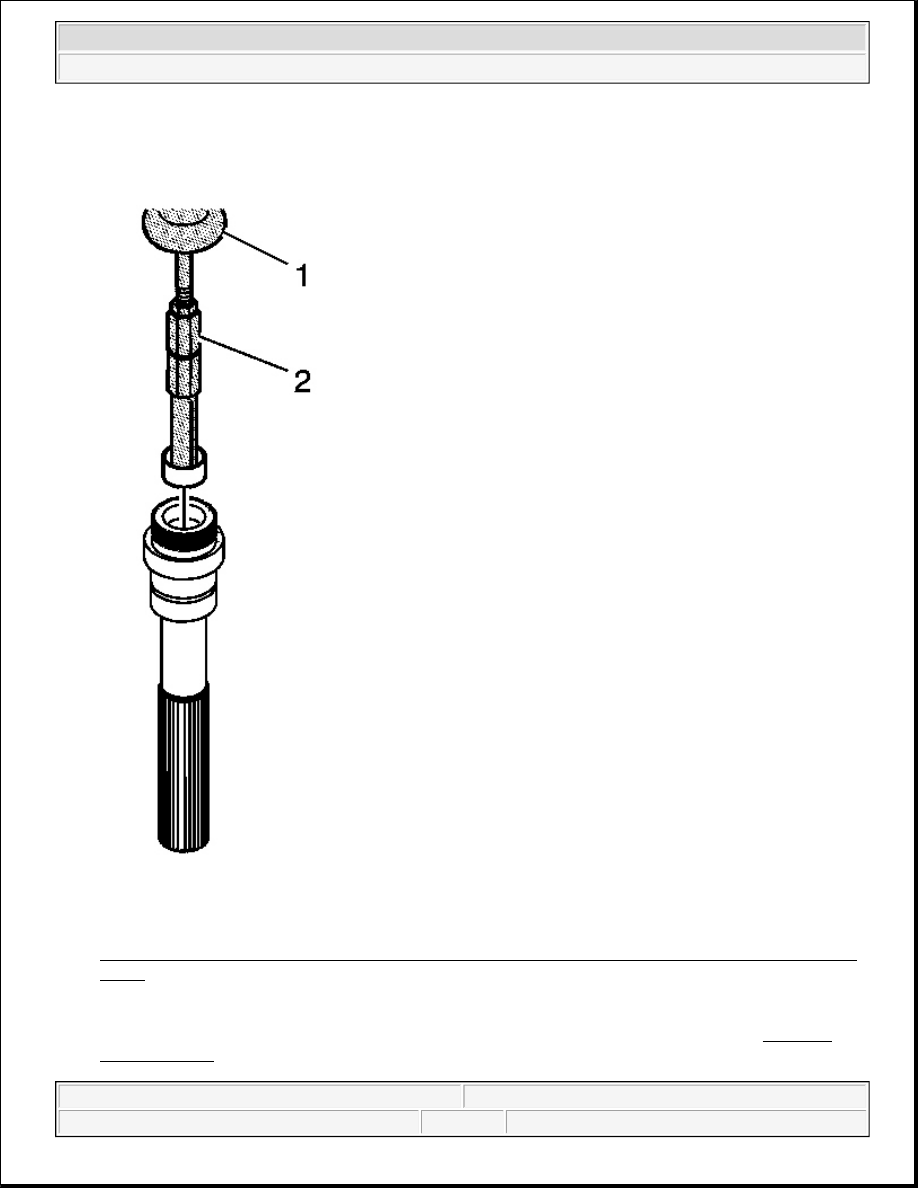

Fig. 85: Removing Mainshaft Rear Support Bushing From Rear Output Shaft Using J 2619-01 & J
45548
Courtesy of GENERAL MOTORS CORP.

58. Inspect the mainshaft rear support bushing in the rear output shaft for being faulty. Refer to Cleaning

and Inspection .
