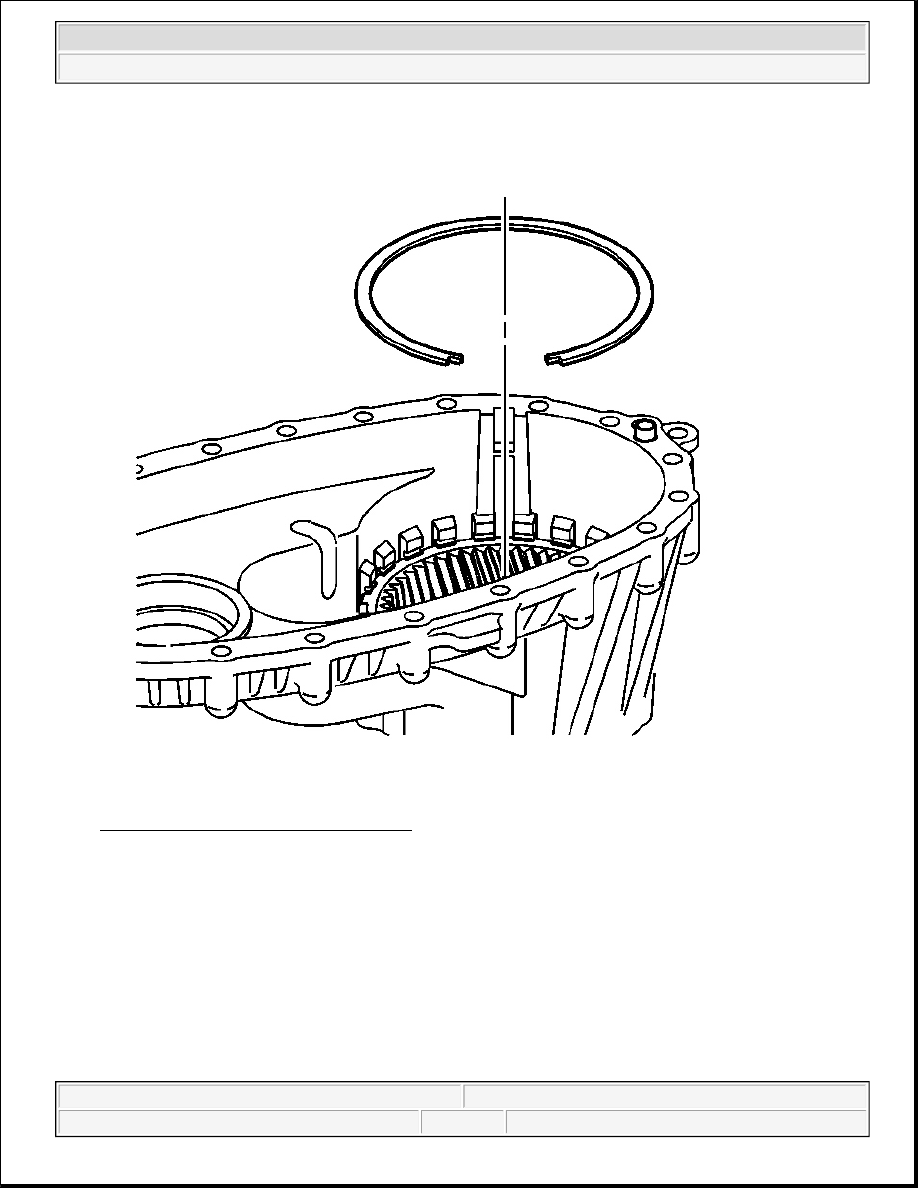

Fig. 78: Retaining Ring & Annulus Gear
Courtesy of GENERAL MOTORS CORP.

51. Remove the retaining ring for the annulus gear.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



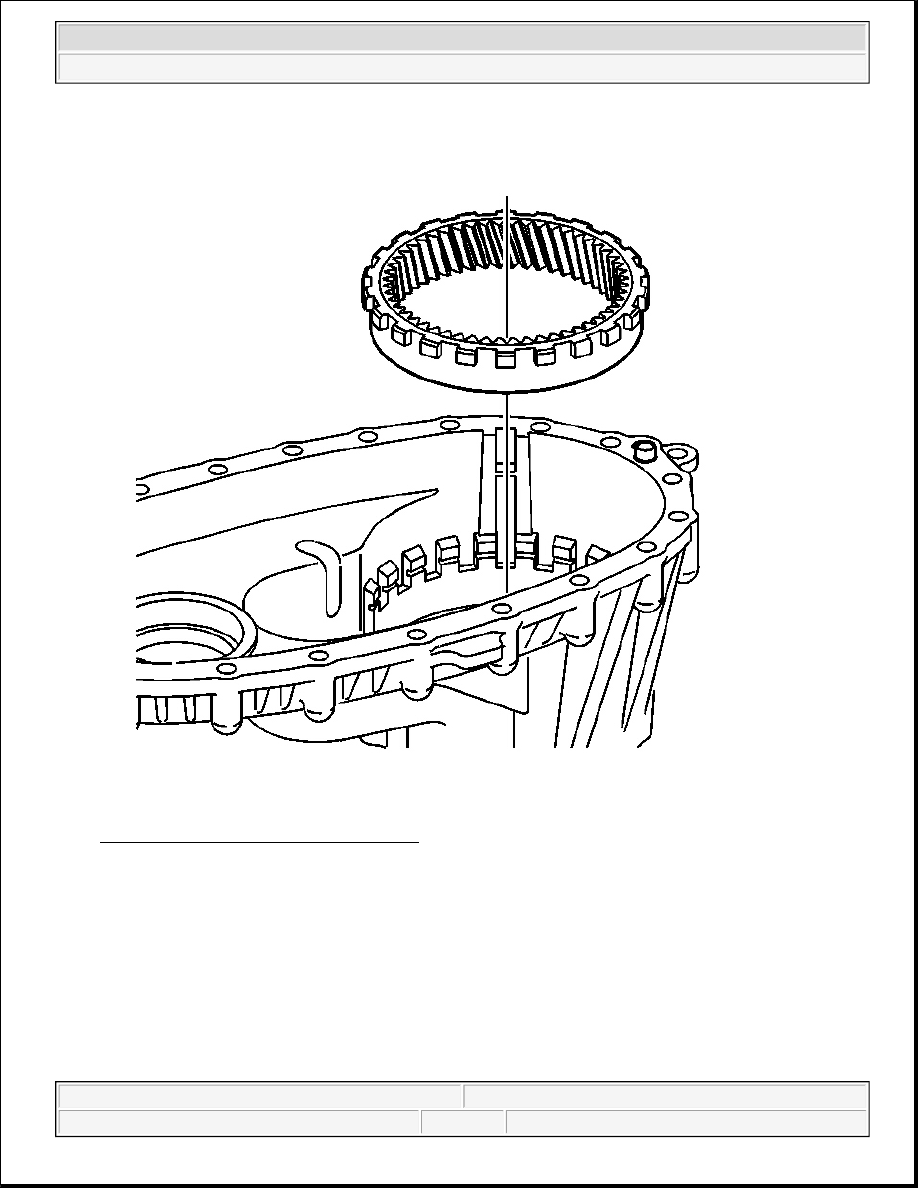

Fig. 79: Annulus Gear & Front Case Half
Courtesy of GENERAL MOTORS CORP.

52. Remove the annulus gear from the front case half.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



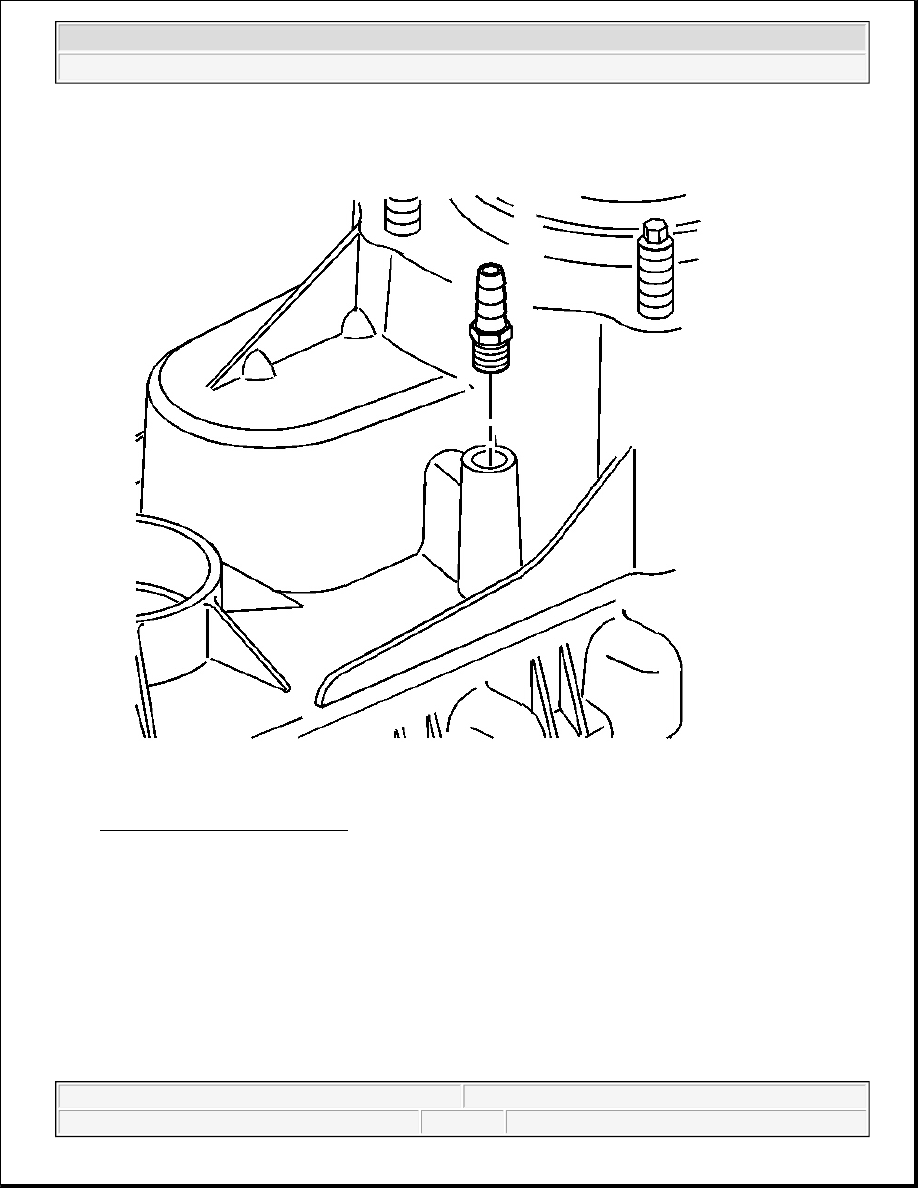

Fig. 80: Vent & Front Case Half
Courtesy of GENERAL MOTORS CORP.

53. If necessary, remove the vent from the front case half.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



Fig. 81: Rear Output Shaft & Rear Case Half
Courtesy of GENERAL MOTORS CORP.

54. Remove the rear output shaft from the rear case half.

1. Spread the rear output shaft rear bearing outer retaining ring.

2. Using a soft-face hammer, tap on the end of the rear output shaft.
