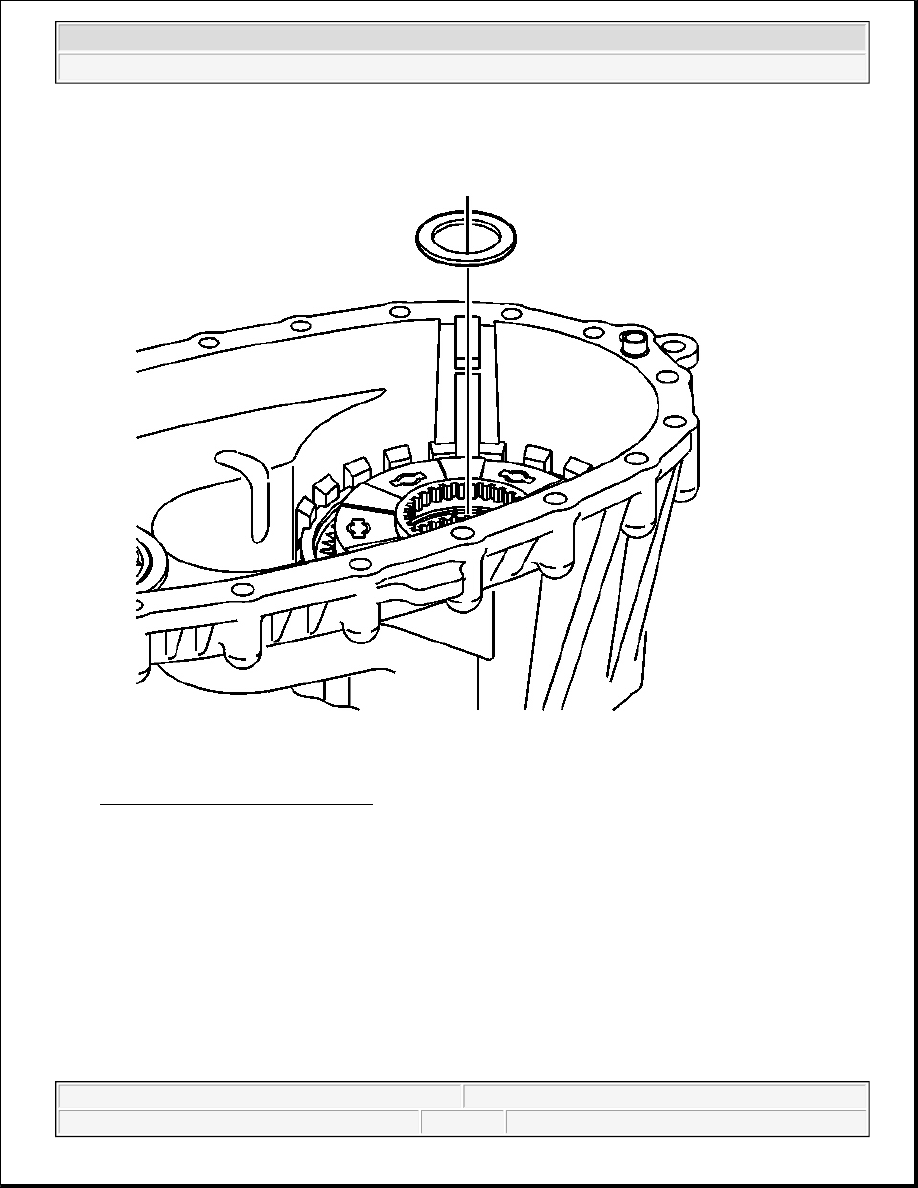

Fig. 70: Input Shaft Thrust Washer
Courtesy of GENERAL MOTORS CORP.

42. Remove the input shaft thrust washer.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



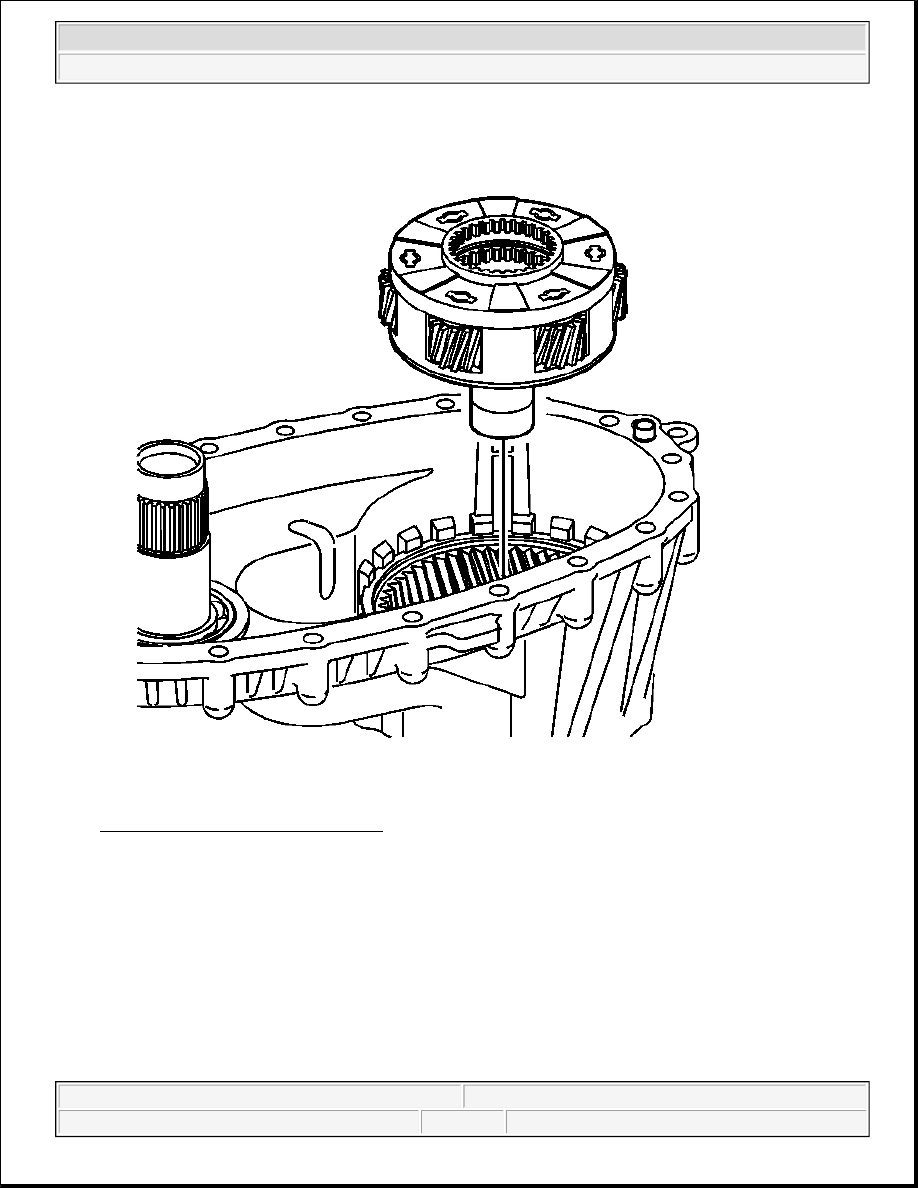

Fig. 71: High/Low Planetary Carrier
Courtesy of GENERAL MOTORS CORP.

43. Remove the high/low planetary carrier.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



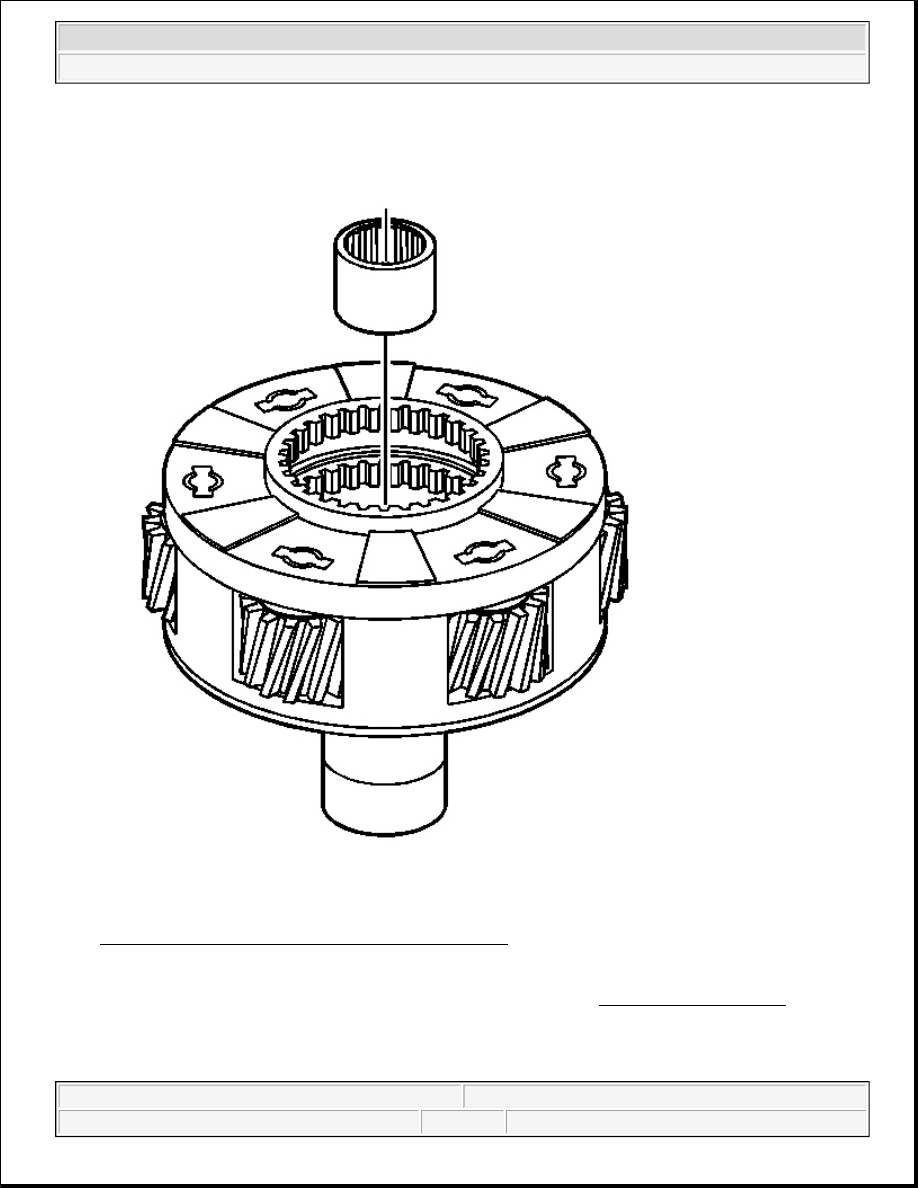

Fig. 72: Inspecting Mainshaft Front Support Bearing
Courtesy of GENERAL MOTORS CORP.

44. Inspect the mainshaft front support bearing for being faulty. Refer to Cleaning and Inspection .

45. Using a brass drift and a hammer, remove the mainshaft front support bearing from the planetary carrier

assembly.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



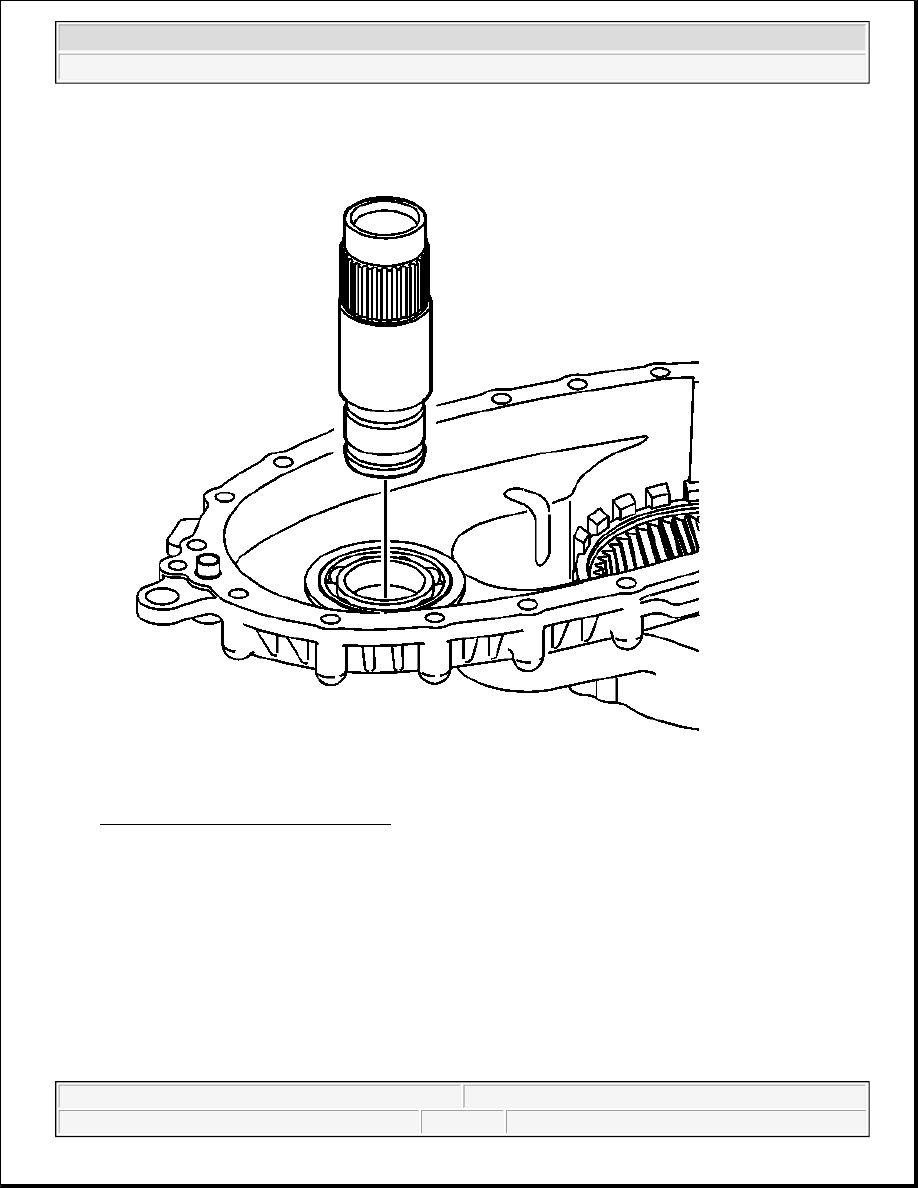

Fig. 73: Front Output Shaft Assembly
Courtesy of GENERAL MOTORS CORP.

46. Remove the front output shaft assembly.
