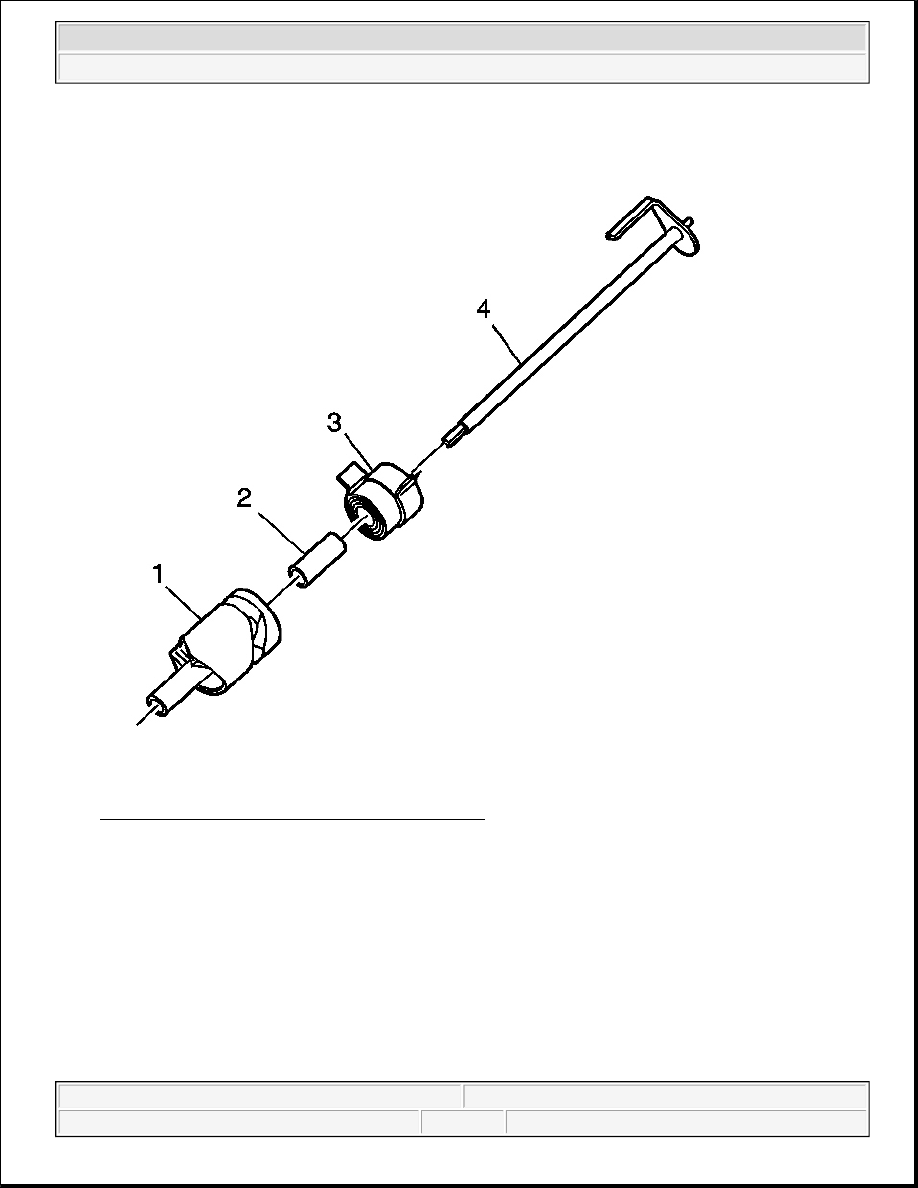

Fig. 66: Shift Detent Lever Assembly Components
Courtesy of GENERAL MOTORS CORP.

38. If necessary, disassemble the shift detent lever assembly.

1. Hold the shift detent lever assembly by one tab of the spring (3), in a vise.

2. Rotate the other spring tab and slide the detent lever cam (1) off the shaft.

3. Remove the sleeve (2).

4. Push the shaft (4) out of the spring (3).



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



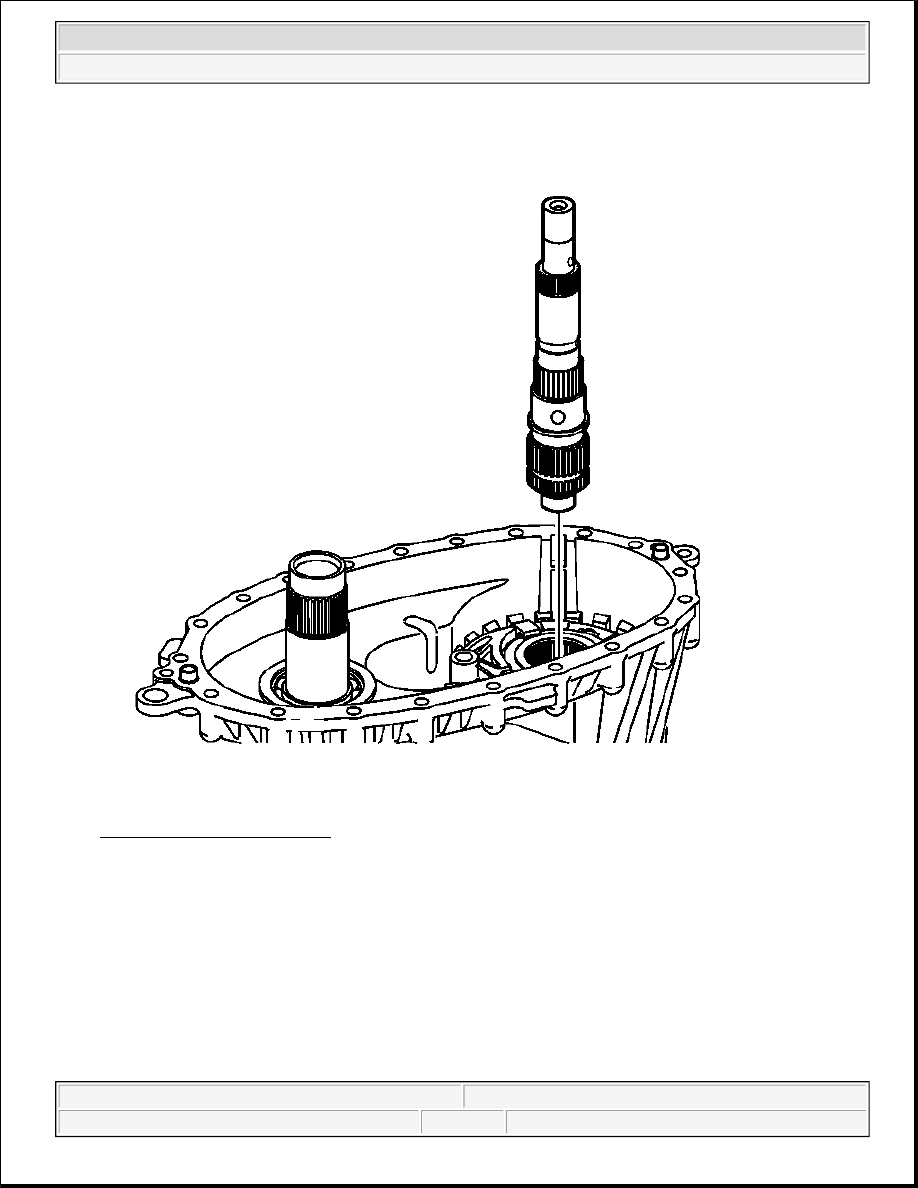

Fig. 67: Identifying Mainshaft
Courtesy of GENERAL MOTORS CORP.

39. Remove the mainshaft.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



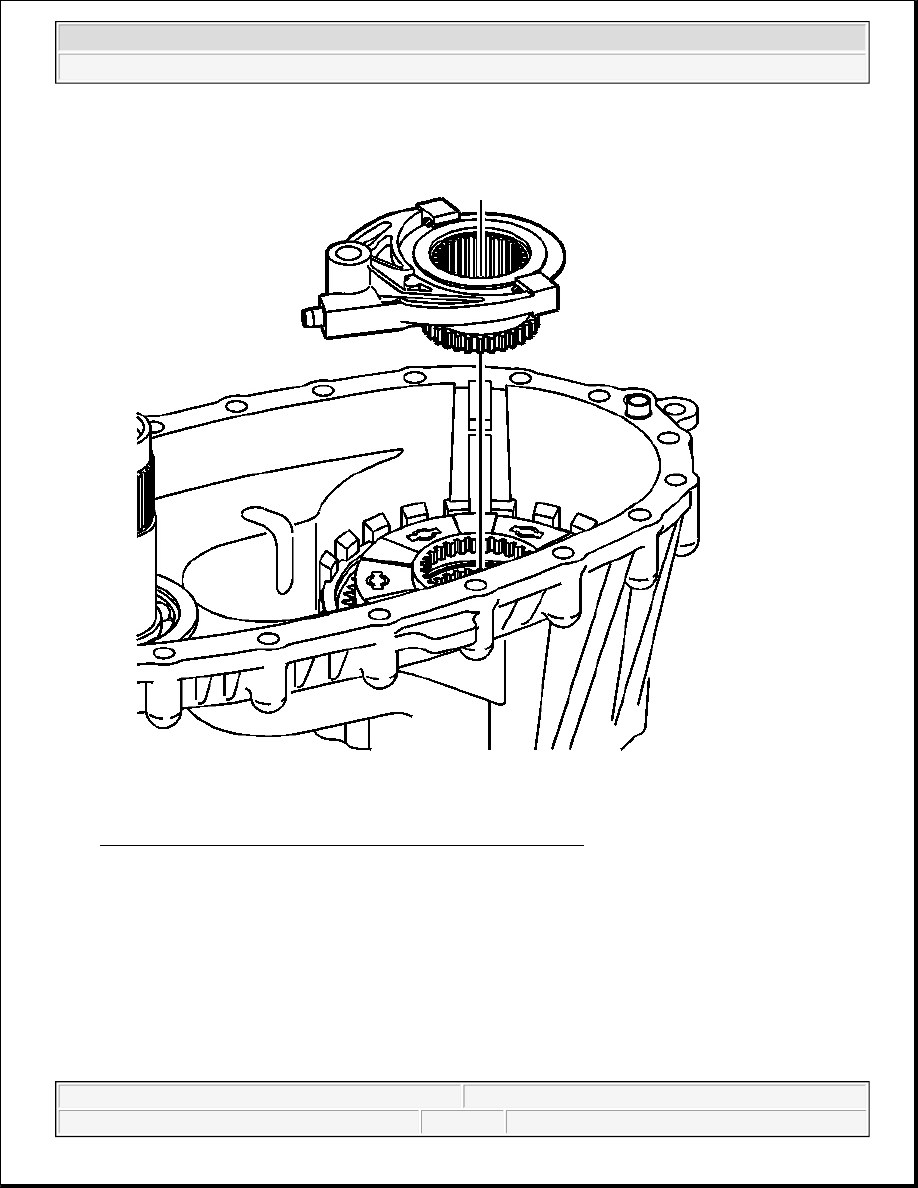

Fig. 68: High/Low Range Sleeve & High/Low Range Shift Fork
Courtesy of GENERAL MOTORS CORP.

40. Remove the high/low range sleeve with the high/low range shift fork.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



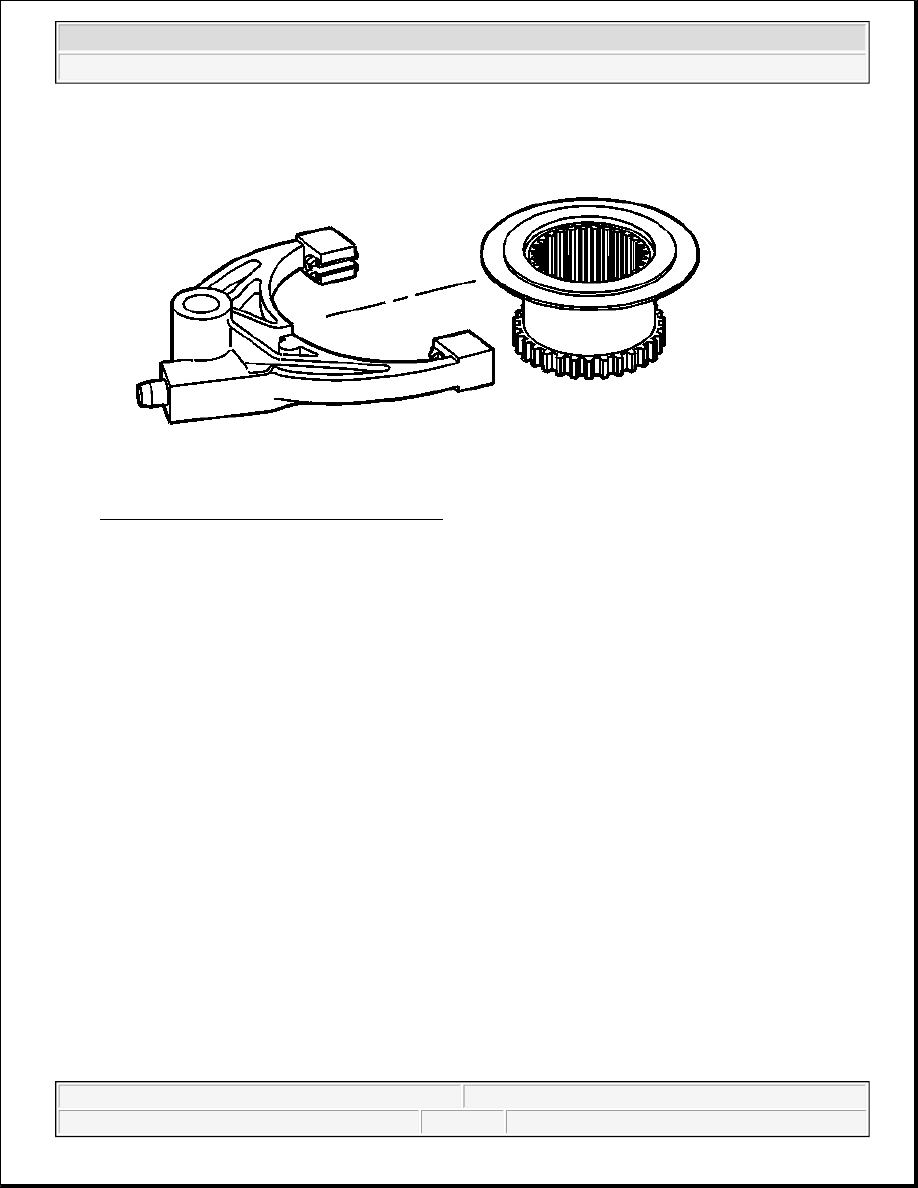

Fig. 69: Range Shift Fork Range Shift Sleeve
